SCM1-D
SAMSUNG
| Quantity: | |
|---|---|
| Compact SMT Placement Solution

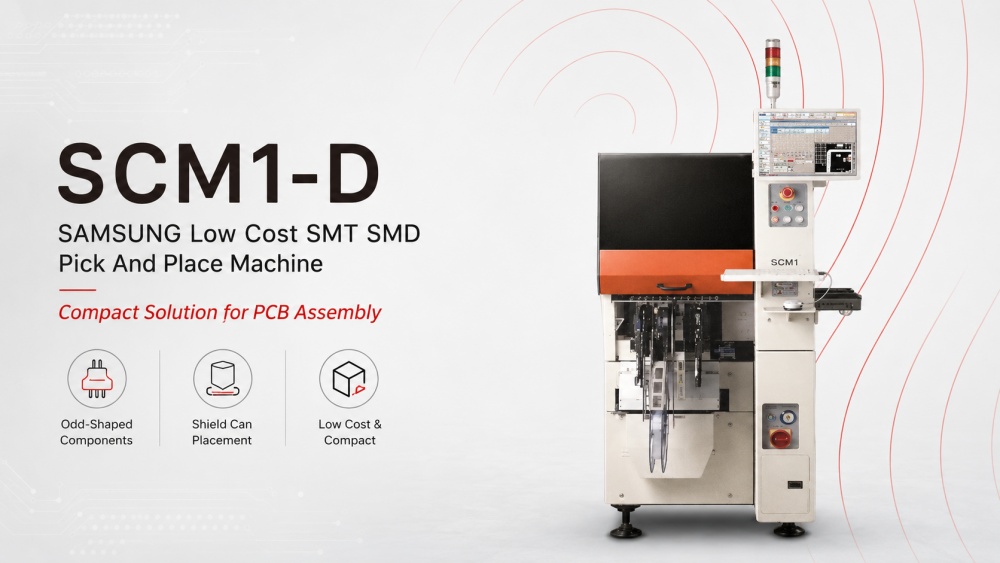

The SCM1-D SAMSUNG Low Cost SMT SMD Pick And Place Machine is designed for PCB assembly factories that need a slim and practical placement solution for shield cans and odd-shaped components. It is suitable for customers who want a compact machine with flexible production capability and easier operation. The machine supports shield can placement inspection, mixed feeder use, and optional tape cutting. Its slim body helps reduce SMT in-line area, which is useful when factory space is limited. As a Low Cost SMT Pick And Place Machine, SCM1-D can help factories handle special component placement without investing in a large high-speed mounter. I.C.T can also support full SMT line planning, installation, training, and production testing.
| Model Introduction
High-Speed Model: SM471Plus Chip Mounter
SM471Plus is a high-speed chip mounter used in SMT production lines for stable and efficient component placement. It is suitable for factories that need fast placement of chip components, small ICs, and general SMD parts. Compared with simple low-cost equipment, SM471Plus is more focused on speed, line balance, and stable mass production. It can work with a solder paste printer, SPI, reflow oven, AOI, and PCB handling machines to build a complete SMT process. For customers who need higher output after starting with the SCM1-D SAMSUNG Low Cost SMT SMD Pick And Place Machine, SM471Plus can be considered as an upgraded placement option for larger production needs.
Flexible Mid-Speed Model: SM481Plus Flexible Mounter
SM481Plus is a flexible SMT placement machine for customers who need both speed and component range. It can handle different SMD components and is suitable for mixed PCB production. This model is often used when the product line includes consumer electronics, control boards, LED boards, power boards, or communication products. Its value is not only in placement speed, but also in stable running, easier production changeover, and better adaptability to different PCB models. For a factory using an SMD Pick And Place Machine For PCB Assembly, SM481Plus can help improve production flexibility. I.C.T can match this machine with printing, inspection, reflow, and PCB handling systems according to the customer’s process.
SM482Plus Multi-Function Mounter
SM482Plus is a multi-function placement machine designed for wider component applications. It is suitable for factories that need to place different component types on the same production line. This model is useful when customers produce products with more complex BOMs, larger components, or more varied board designs. It supports stable placement for many SMT applications and can be used together with other machines in a complete SMT line. For customers comparing SCM1-D with higher-level equipment, SM482Plus is a stronger option when production requires more flexibility and higher placement capability. It can support PCB assembly in electronics, automotive parts, industrial control, and other manufacturing fields.
DECAN L2 Long Board Solution
DECAN L2 is designed for long PCB and large board SMT production. It is suitable for LED lighting boards, long control boards, automotive lighting boards, industrial boards, and other products that need a larger placement area. Compared with standard mounters, DECAN L2 gives factories more flexibility when PCB length becomes a key requirement. It can work with long-board printers, conveyors, reflow ovens, and AOI machines to form a complete production line. For customers looking for a SAMSUNG Pick and Place Machine or Hanwha solution for special board sizes, DECAN L2 is a strong choice. I.C.T can help design the full line based on PCB size, capacity, and factory layout.
| Specification
| Specification Item | SCM1-D |
|---|---|
| Product Name | SCM1-D Pick And Place Machine |
| Machine Type | Odd-Shaped Component Placer |
| Application | PCB Assembly / Shield Can Placement / Odd-Shaped Component Placement |
| Main Function | Placement for shield cans and special-shaped components |
| Speed | 2,400 CPH, 1 Spindle / 3,000 CPH, 2 Spindles |
| Structure | 1 Gantry × 25 Spindles |
| Optional Structure | 1 Gantry × 1 Spindle |
| PCB Size | Min. L50 × W50 mm / Max. L295 × W250 mm |
| Machine Width | 680 mm |
| Component Size | 1005 ~ □45 mm, H15 mm |
| Component Recognition | Back Lighting Recognition |
| Placement Inspection | Shield Can Placement Inspection |
| Production Mode | Dual Lane Mixed Production |
| PCB Surface Support | Same PCB Top / Bottom Surface Production |
| Feeder Type | Mixed Use of Electric Feeder and Pneumatic Feeder |
| Dispenser Head | One Nozzle and One Dispenser |
| Tape Cutter | Built-in Tape Cutter, Optional |
| Label Feeder | Optional |
| Main Advantage | Low Cost, Compact Size, Flexible Odd-Shaped Component Placement |
| Specification Item | HM520 HS | HM520 MF |
|---|---|---|
| Model | HM520 HS | HM520 MF |
| Machine Type | High-Speed Modular Mounter | Multi-Function Modular Mounter |
| Configuration | 20 Spindles × 2 Gantry | 6 Spindles × 2 Gantry |
| Placement Speed | 80,000 CPH | 60,000 CPH |
| Placement Accuracy | ±25 μm @ Cpk ≥ 1.0, Chip | ±40 μm @ Cpk ≥ 1.0, Chip / ±30 μm @ Cpk ≥ 1.0, IC |
| Component Range | 0201 ~ □6 mm | 0402 ~ □55 mm |
| Machine Dimension | L 890 × D 2,370 × H 1,930 mm | L 890 × D 2,370 × H 1,930 mm |
| Main Advantage | High-speed chip component placement | Flexible mixed-component placement |
| Recommended Application | Mass production of small chip components | Production with wider component types and larger parts |
| Parameter | SM471Plus | SM481Plus | SM482Plus | DECAN L2 |
|---|---|---|---|---|
| Placement Speed (Optimum) | 78,000 CPH | 40,000 CPH | 30,000 CPH | 56,000 CPH |
| Number of Spindles | 10 Spindles/Head (1 Gantry) | 6 Spindles/Head (1 Gantry) | 6 Spindles/Head (1 Gantry) | 6 Spindles/Head (2 Gantries) |
| Placement Accuracy (Chip) | ±40µm (0402) | ±40µm (0402) | ±40µm (0402) | ±28µm (03015) |
| Placement Accuracy (IC) | ±50µm | ±30µm | ±30µm | ±25µm |
| Component Range | 0402 ~ □14mm (H12mm) | 0402 ~ □42mm (H15mm) | 0402 ~ □55mm (H15mm) | 0402 ~ □21mm (H12mm, up to □55mm opt.) |
| Max PCB Size (Standard) | 510 x 460mm | 460 x 400mm | 740 x 460mm | 510 x 460mm |
| Max PCB Size (Option) | 610 x 460mm | 1,500 x 460mm | 1,200 x 510mm | Up to 1,200 x 460mm |
| Feeder Capacity (8mm) | 120ea | 120ea | 120ea | 120ea |
| Vision System | Flying Vision | Stage Vision | Stage Vision | Flying Vision |
| More SMT Related Products
I.C.T provides complete high-quality SMT lines beyond the SMT pick and place machine. Our full PCBA production solutions include vacuum loaders for board handling, automatic solder paste printers for precise application, multi-zone reflow ovens for strong soldering, and advanced AOI systems to detect defects. These machines work together seamlessly in tight, efficient lines. This setup delivers high yield, low cost, and reliable performance for demanding industries like automotive, medical, lighting, and consumer electronics. Boards come out ready for real-world use. We offer full planning and support to build your ideal SMT production system.
The SCM1-D SAMSUNG Low Cost SMT SMD Pick And Place Machine can be used together with other SMT production machines to form a more complete PCB assembly process. I.C.T can provide SMT loader, automatic stencil printer, SPI machine, PCB conveyor, SMT mounter, reflow oven, AOI inspection machine, PCB router, and PCBA cleaning machine. These machines cover the process from PCB loading, solder paste printing, paste inspection, component placement, soldering, optical inspection, depaneling, and cleaning. For factories using SCM1-D for shield can or odd-shaped component placement, the related equipment must be matched carefully. A good SMT line is like a team: one machine cannot carry the whole game alone.
| Product Name | Purpose in SMT Line |
|---|---|
| Turnkey SMT production line | Turkey Fully Automated Traceable High-End SMT Line. |
| SMT magazine loader | Automatically loads bare PCBs to the line. |
| Automatic PCB Stencil Printer | Prints solder paste on PCB pads accurately. |
| SMT automatic chip mounter | Mounts components onto PCBs precisely. |
| SMD reflow oven | Melts solder to form solid joints. |
| PCB inspection equipment | SMT inspection devices like AOI, SPI, X-ray, and stencil inspecter. |
| Traceability Equipment | Records and tracks production data like PCBA laser marking machine |
| Customer Success Video
I.C.T provided technical support for a Customer in Uzbekistan who built a large electronics manufacturing factory for computer motherboards, SSDs, memory products, and related electronic products. From the early project stage to installation, debugging, and production testing, the I.C.T team worked closely with the Customer to help both SMT and DIP lines run smoothly. The SMT line included an I.C.T-5151 stencil printer, four SMT placement machines, Lyra series reflow ovens, SPI, AOI, and PCB handling systems. The DIP line included a manual insertion line, JUKI odd-form insertion machine, I.C.T-Acrab350 wave soldering machine, and conveyor system. After testing, the Customer gave positive feedback on I.C.T service, response speed, and equipment quality.
| Service and Training Support
I.C.T provides full support for customers who choose the SCM1-D SAMSUNG Low Cost SMT SMD Pick And Place Machine or a complete SMT production line. Before delivery, our team can help check PCB size, component type, production capacity, factory space, and process flow. After equipment arrives, I.C.T engineers can support installation, machine adjustment, software setup, program teaching, production testing, and operator training. For SCM1-D, training can include shield can placement setup, feeder use, placement inspection, tape cutter option, daily maintenance, and basic troubleshooting. We also help customers understand how SCM1-D works with printers, conveyors, SPI, AOI, reflow ovens, and other SMT machines.
| Customer Feedback
Many Customers choose I.C.T because we support not only equipment supply, but also real factory operation. During overseas projects, Customers often praise our engineers for clear training, patient communication, and fast problem-solving. They also give positive feedback on machine quality, stable testing, careful packaging, and quick after-sales response. For SMT projects, fast support is very important because one machine issue may affect the full line. I.C.T keeps close communication with the Customer during installation, trial production, and early mass production. For customers choosing an Odd-Shaped Component Pick And Place Machine, this support helps reduce project risk and makes production startup much smoother.
| Certifications and Standards
I.C.T focuses on product safety, quality control, and long-term reliability. Our equipment and SMT line solutions can support common certification requirements such as CE, RoHS, ISO9001, and related patent documents. These certificates help customers evaluate equipment safety, manufacturing control, and factory quality management. Before shipment, I.C.T checks machine operation, electrical performance, appearance, accessories, and packing protection. For overseas transportation, stable packaging is also very important because the machine must arrive safely after long-distance shipping. Whether the customer chooses SCM1-D, a Shield Can Placement Machine, or a complete SMT production line, I.C.T follows strict testing and quality processes before delivery.
| About I.C.T Company and Factory
I.C.T is a one-stop SMT factory solution provider with experience in SMT, DIP, coating, dispensing, soldering, inspection, and PCB handling equipment. We have our own R&D, production, engineering, and service teams. Over the years, I.C.T has grown quickly and served more than 1,700 Customers in over 80 countries. Our factory follows strict quality management and machine testing processes before shipment. For customers building a new PCB assembly factory, I.C.T can provide machine selection, line layout, process planning, installation, training, and long-term technical support. With the SCM1-D SAMSUNG Low Cost SMT SMD Pick And Place Machine, customers can build a more flexible SMT process for special component placement.
