| Automatic PCB Inverter

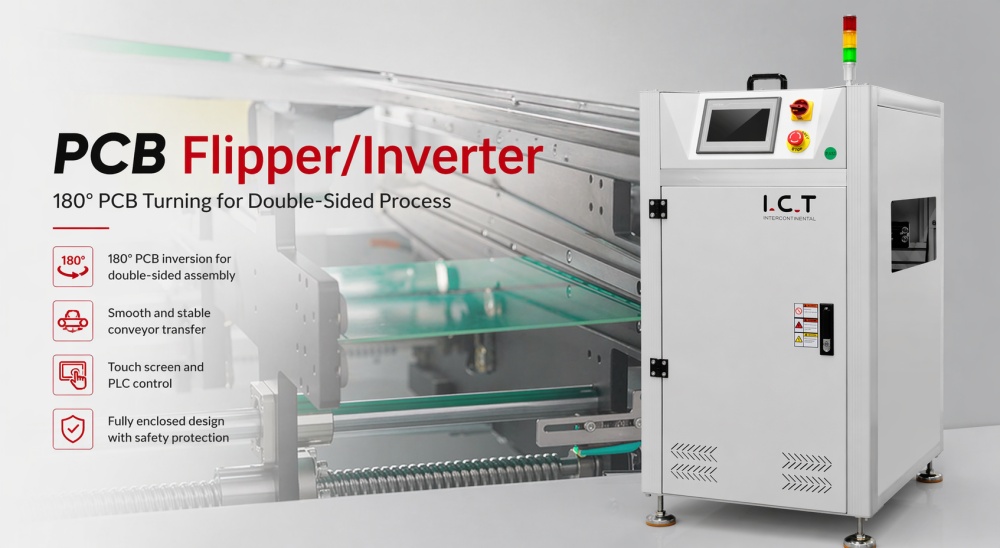

Engineers working on modern SMT lines know how important smooth board handling is between processes. The Automatic PCB Inverter solves this by turning printed circuit boards exactly 180 degrees so both sides can be assembled without extra manual work. With strong PLC control and sturdy construction, it fits perfectly into any SMT production line and helps factories raise output while keeping high quality. Two models, PF350 and PF460, handle different board sizes and connect easily with other machines.
| Key Features of PCB Inverter / Flipper Conveyor
Accurate Board InversionOperators place boards into the Automatic PCB Inverter and watch them flip smoothly to the other side. The machine uses precise motors and sensors to complete each cycle in about ten seconds, making it ideal right after the reflow oven or before AOI inspection in a full SMT line.
User-Friendly Control SystemThe large touch screen shows real-time status clearly. Workers can change settings quickly and choose between pass-through, invert, or invert-back modes without stopping the whole SMT production line.
Safe and Protected DesignSafety comes first in every I.C.T machine. This unit has a fully enclosed body and torque limiter that stops movement instantly if anything unusual happens, protecting both people and expensive PCBs.
Easy Access for MaintenanceWhen service is needed, technicians simply open the top cover. All important parts are easy to reach, which means shorter downtime and faster return to full SMT line operation.
Stable Width AdjustmentScrew-type adjustment keeps the width perfectly parallel. The retractable motor system ensures steady movement and reduces any gap between this SMT Inverter and neighboring conveyors.
Flexible Line IntegrationThanks to SMEMA communication, the Automatic PCB Inverter works smoothly with loaders, printers, chip mounters, reflow ovens, AOI systems, and unloaders in complete SMT solutions.
Related SMT Production EquipmentI.C.T offers complete SMT production lines that include the Automatic PCB Inverter as a key part. The full solution covers loader, cleaner, printer, JUKI mounter, conveyor, reflow oven, cooling station, buffer, AOI, and unloader. Every machine is tested together so the entire line runs reliably from the first board to the last.
| Specification
| Parameter | PF350 | PF460 |
|---|---|---|
| Dimension (mm) | 500 × 786 × 1250 | 600 × 856 × 1250 |
| PCB Size (mm) | 50×50 - 445×350 | 50×50 - 550×460 |
| Cycle Time | Approx. 10 Seconds | Approx. 10 Seconds |
| Belt Type | Oblique Belt | Oblique Belt |
| Control System | PLC | PLC |
| Power | Max 150 VA | Max 150 VA |
| Transport Height | 900 ± 20 mm (or custom) | 900 ± 20 mm (or custom) |
| PCB Direction | L to R or R to L | L to R or R to L |
| Communication | SMEMA for Both In & Out | SMEMA for Both In & Out |
| Power Supply | 1 PH AC 220V 50/60Hz (Option: 110V to 380V) | 1 PH AC 220V 50/60Hz (Option: 110V to 380V) |
| Weight | 120 kg | 160 kg |
| Option | Automatic Width Adjustment | Automatic Width Adjustment |
* I.C.T keeps working on quality and performance, specifications and appearance may be updated without particular notice.
