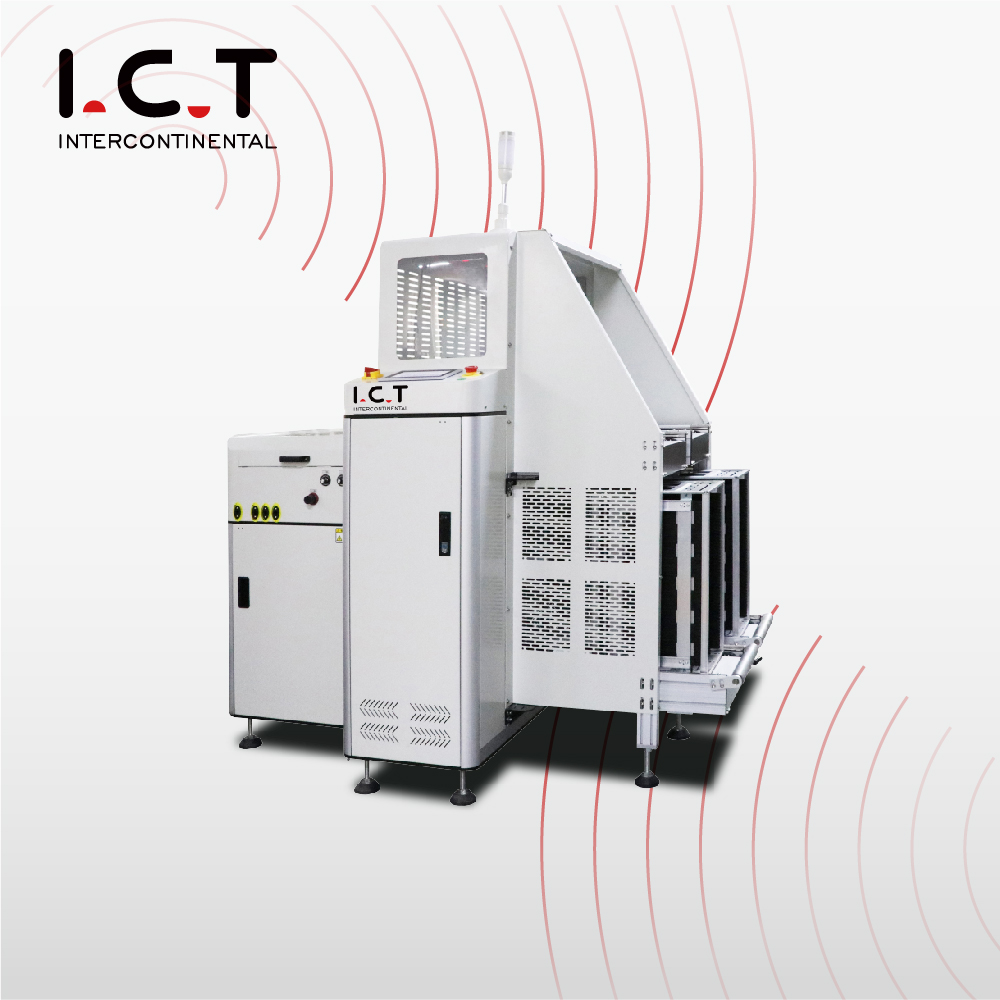

I.C.T | PCB Vertical Loader / Unloader with Low Price

Share to:

I.C.T | PCB Vertical Loader / Unloader with Low Price

Name: I.C.T | PCB Vertical Loader / Unloader with Low Price
Brand: I.C.T
Rating: 5.0 (11 reviews)

The I.C.T PCB Vertical Loader feeds bare boards from tall magazines straight into the line. Zero hands. Zero damage. Maximum speed.

a. Vertical design slashes floor space 60 percent
b. Steel frame locked to CE and ISO spec
c. Sensors catch every board, every time
d. Industry 4.0 brain, ready for tomorrow
e. Gentle push, no scratches, no jams
f. SMEMA handshake plus optional smart talk
g. Service hits the ground running, anywhere, anytime

Model:
LD-L
Brand:
I.C.T

Availability:

Quantity:



Inquire Add to Basket

Product Description

| PCB Vertical Loader – Automatic Loader Smt Machine

The PCB Vertical Loader stands narrow and tall. It swallows full magazines. It drops one board. It drops the next. It never stops. This Automatic Loader Smt Machine aligns every board dead-center for the printer. Standard model or full CE model—both run heavier steel, sharper eyes, smarter code. The PCB Vertical Loader kills labor cost. It pumps output. It runs three shifts, seven days, no complaints. It plugs into any line on day one.

| Detailed Product Features

Strong and Durable Hardware

Feature 1-Hardware Part

Steel beams thicker. Rails locked down. CE and ISO stamped in metal. The PCB Vertical Loader does not shake. Maintenance is quick. Years roll by.

Advanced Electrical System

Feature 2-Electrical Part

Sensors burn hot. Lights flash red-green. Buttons slam fast. The PCB Vertical Loader sees the board leave the magazine. It knows the next board is coming.

Smart Industry 4.0 Control

Feature 3-Control Part

Industry 4.0 code inside. IPC-CFX, Hermes, SEMI SMT-ELS on standby. New program drops in. The PCB Vertical Loader talks to the plant computer the same afternoon.

Reliable Vacuum Suction Technology

Feature 4-Other Detail

Stack drops slow. Bottom board slides out clean. Next board waits. The PCB Vertical Loader does this ten thousand times. No marks. No errors.

Flexible Communication Options

Feature-5 Option

SMEMA cables live. Smart cables wait. The PCB Vertical Loader sends the board down the line. The line keeps moving. Changeover happens on the fly.

| Specification

Parameter	Specification
PCB Width	50–400 mm (500 mm optional)
Conveyor Height	900 ± 20 mm
Transfer Speed	0.5–20 m/min adjustable
Power Supply	AC 220 V 50/60 Hz
Power Consumption	50–150 W
Direction	Left to Right (Right to Left optional)
Belt Material	3 mm ESD flat belt or chain
Control Mode	PLC + Touch Screen
One-button Width Adjust	Optional (whole line sync)
CE Safety Standard	Full cover + sensor protection

* I.C.T keeps working on quality and performance, specifications and appearance may be updated without particular notice.

| SMT Line Equipment List

SMT LINE

Turnkey. Bare board in. Finished panel out. The PCB Vertical Loader never sleeps. Print. Place. Reflow. Inspect. All stations locked tight. Labor thin. Yield fat. Uptime brutal. Automotive, medical, consumer, LED—standards met. Cost crushed.

1 SMT Line with SMT Machine 03

Product Name	Purpose in SMT Line
SMT Production Line	Turkey Fully Automated Traceable High-End SMT Line.
PCB Loader	Automatically loads bare PCBs to the line.
Solder Paste Printer	Prints solder paste on PCB pads accurately.
Pick and Place Machine	Mounts components onto PCBs precisely.
Reflow Oven	Melts solder to form solid joints.
Inspection Machine	SMT inspection devices like AOI, SPI, X-ray, and stencil inspecter.
Traceability Equipment	Records and tracks production data.
SMT Peripheral	Auxiliary SMT equipment like IC programmers, storage, X-ray counters, and tape splicers
PCB Cleaning Machine	Cleans PCB/Stencil to remove flux, dust, and contaminants post-soldering.
PCB Routing Machine	Precision-cuts PCBA outlines and slots with high-speed cutting.
SMT Desktop Robot	Automates screw-fastening and soldering for efficient SMT assembly.

| Customer Success Story

Finland. I.C.T crew lands. Full LED panel line for big European lighting outfit. PCB Vertical Loader, 1.5 m printer, SM482PLUS placer, L8 reflow, buffers, conveyors, splitter, mixer. Five days—install, debug, train. Day six—full speed. Zero defects. Customer stares at the PCB Vertical Loader. Says it never blinked. European audit walks through—clean pass. Second line ordered same week.

| Professional Training & Support

Remote check before crate leaves. Boots on ground for start-up. Free training—operators, techs. Hotline 24/7, real voice. Parts fly global warehouses. Scheduled visits. The PCB Vertical Loader stays up when it’s supposed to stay up.

SMT Solder Paste Printer 206

| Customer Praise

“Your engineer fixed it at 3 a.m. their time—best support on the planet!” “Forty-five days at sea and the crate arrived perfect—no damage.” “My PCB SMT Unloader machine has run three shifts for 20 straight months—no failures.” “After one day of training our newest operators ran the whole line alone.”

好评1

| Our Certification

CE. RoHS. ISO9001. Patents locked and loaded. 72-hour full-load burn-in. Final inspection signed. The PCB Vertical Loader ships certified, compliant, ready.

证书1

| About Us and Factory

2012 start. 12,000 m². Ninety bodies. In-house R&D. Every cut, weld, test under one roof. 1,600 customers. 72 countries. From single PCB Vertical Loader to full turnkey. I.C.T delivers.
