| PCB Handling Equipment – Real Cheap PCB Loader Machine

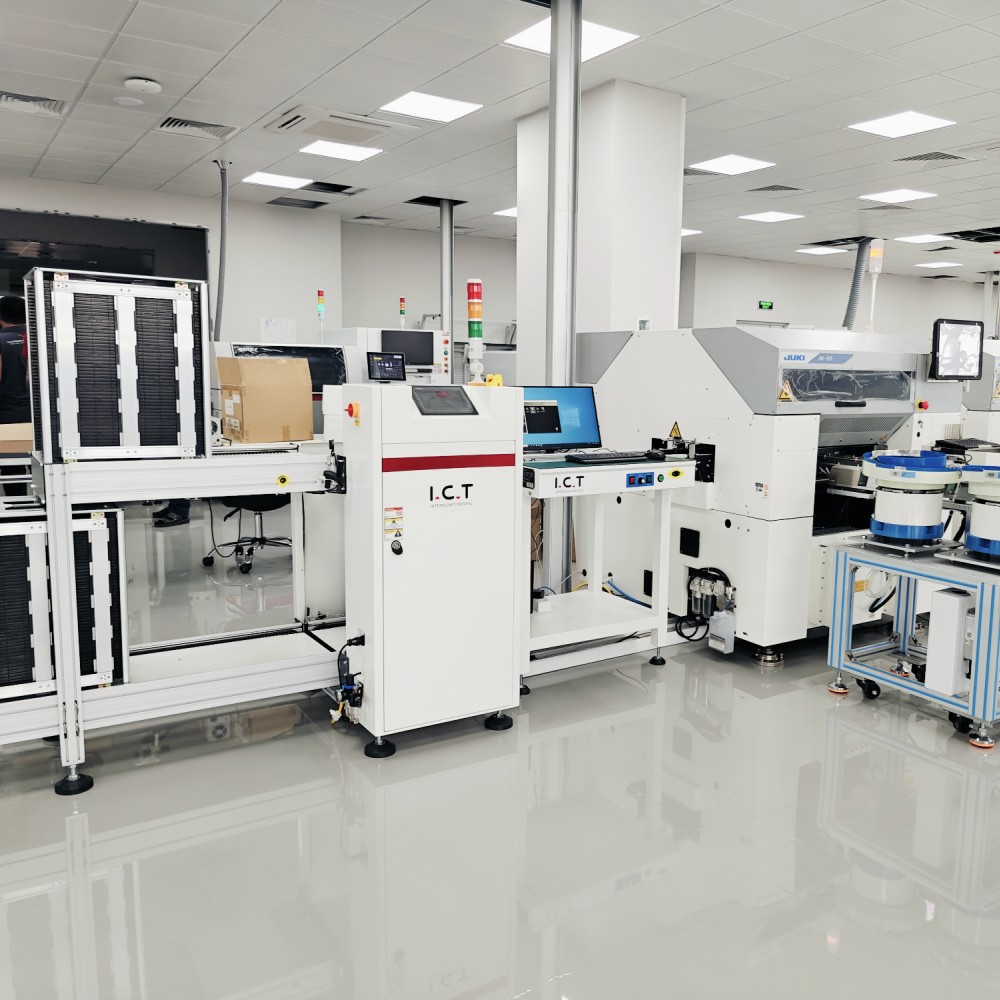

Walk into any modern SMT factory and the first thing you see is the I.C.T PCB handling equipment line doing the dirty work nobody else wants. These Cheap PCB Loader Machine units grab full magazines of bare boards, separate them, feed them dead-center to the printer, then later catch finished boards and stack them perfectly after reflow. Standard or full CE configuration—both versions get thicker frames, higher-grade linear rails, better vision sensors, and software that learns new products while the operator drinks coffee. The PCB handling equipment cuts floor space, slashes labor, runs three shifts without drama, and costs thousands less than the famous Japanese names.
| Detailed Product Features
Every rail, every lift, every base plate on the PCB handling equipment is thicker, heavier, over-engineered steel. The machines meet full CE and ISO marks without cutting corners. Vibration disappears. Maintenance crews finish in minutes. The Cheap PCB Loader Machine units keep running for ten, twelve, fifteen years in real factories.
Sensors fire the instant a board moves. Tower lights burn bright red or green across the entire floor. High-frequency buttons answer like race-car shifters. The PCB handling equipment knows exactly where every board is—loading, unloading, buffering. Operators watch the lights and trust the show.
Industry 4.0 suite is built in. IPC-CFX, Hermes, SEMI SMT-ELS protocols load with one click. New product files drop in under two minutes. The PCB handling equipment talks live to the factory MES, adjusts magazine height automatically, switches modes without stopping the line.
Lifters drop slow and sure. Pushers slide with calibrated pressure. The PCB handling equipment feeds bare boards or stacks finished ones—thousands of cycles per shift, zero scratches, zero jams, zero misfeeds. Quality stays perfect from the first board to the last.
SMEMA cables are live from the factory. Smart protocols wait ready. The PCB handling equipment grabs boards from the printer, releases to reflow, buffers, unloads—changeover takes thirty seconds while the rest of the line never slows down.
| Specification
| Parameter | Specification |
|---|---|
| PCB Width | 50–400 mm (500 mm optional) |
| Conveyor Height | 900 ± 20 mm |
| Transfer Speed | 0.5–20 m/min adjustable |
| Power Supply | AC 220 V 50/60 Hz |
| Power Consumption | 50–150 W |
| Direction | Left to Right (Right to Left optional) |
| Belt Material | 3 mm ESD flat belt or chain |
| Control Mode | PLC + Touch Screen |
| One-button Width Adjust | Optional (whole line sync) |
| CE Safety Standard | Full cover + sensor protection |
* I.C.T keeps working on quality and performance, specifications and appearance may be updated without particular notice.
| SMT Line Equipment List
Turnkey means bare board in, finished panel out, no babysitting. The PCB handling equipment feeds clean at the front, catches clean at the back. Printer hits perfect paste. Placer drops every component dead-center. Reflow solders solid. AOI checks everything. All stations stay locked in perfect rhythm. Labor stays thin. First-pass yield stays north of 99.5 %. Uptime stays brutal. Automotive, medical, consumer, LED—standards crushed, costs crushed, profits up.
| Customer Success Story
I.C.T engineers land in minus-twenty cold. Full LED panel line for Europe’s largest lighting company. PCB handling equipment front and back, 1.5 m printer, SM482PLUS placer, L8 reflow, vertical buffers, conveyors, board splitter, solder-paste mixer. Five days flat—install, debug, full operator and technician training. Day six they hit target speed. Zero defects all week. Customer walks the floor, stares at the PCB handling equipment, says it never once stopped or scratched a single board. European audit team arrives—clean pass, no remarks. Same month they sign for a second identical line, cash on the table.
| Professional Training & Support
Remote diagnostic check before the crate leaves Dongguan. Engineers on site for commissioning. Free two-day training—operators, maintenance techs, even the plant manager. Real 24/7 hotline with engineers who speak perfect English. Spare-parts warehouses in Germany, Texas, and Shanghai. Scheduled preventive visits twice a year. The PCB handling equipment almost never sits dead when it should be running full speed.
| Customer Praise
“Your engineer fixed it at 3 a.m. their time—best support on the planet!” “Forty-five days at sea and the crate arrived perfect—no damage.” “My PCB SMT Unloader machine has run three shifts for 20 straight months—no failures.” “After one day of training our newest operators ran the whole line alone.”
| Our Certification
CE mark stamped. RoHS compliant. ISO9001 certified. Multiple exclusive patents registered worldwide. Every PCB handling equipment unit finishes a full 72-hour loaded burn-in plus final line inspection before it ships. Customers open the crate knowing the machine is already proven, compliant, and ready to make money from hour one.
| About Us and Factory
Started 2012. 12,000 m² campus. Ninety employees. Full in-house R&D lab with twenty engineers. Every cut, every weld, every wire, every test done under one roof with zero shortcuts. Over 1,600 customers in 72 countries—from one Cheap PCB Loader Machine to complete turnkey factories. I.C.T ships what it promises, on time, every time.
