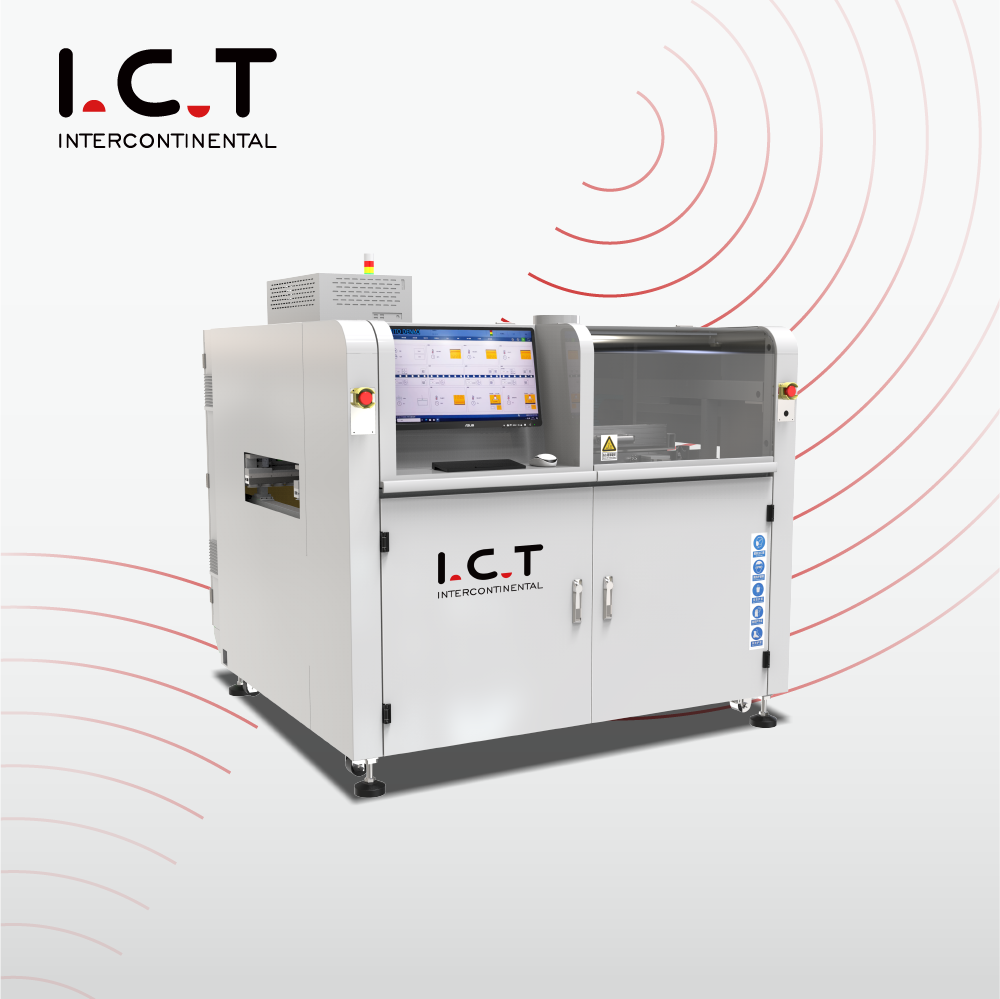

| On-line Selective Wave Soldering Machine
Fully engineered and produced in Dongguan, the I.C.T On-line Selective Wave Soldering Machine is the true Selective Soldering System built for high-volume, high-mix SMT factories that refuse to compromise quality for speed. The PCB glides continuously on a precision conveyor while the ultra-light cast-aluminum gantry – driven by Panasonic servos and linear rails – brings flux and solder exactly to the pins. Inline nitrogen heating creates shiny, full fillets with virtually zero waste. Operators control every detail – paths, temperatures, spray volume, wave height – on a large Windows touchscreen and save endless programs for instant changeovers. Auto wave calibration, live CCD, German jet valve, and titanium pot turn this On-line Selective Wave Soldering Machine into a 24/7 profit center.
| DIP Line Equipment List
German high-frequency jet valve fires micro-dots of low-solids flux (<10%) repeatable to 0.02 mm. Pressurized tank plus digital flow meter keep pressure rock-solid even when the tank is nearly empty. Residue falls into a quick-pull tray. Japanese SMC pneumatics and front gauges make daily checks effortless. An automatic pump never lets supply drop. This flux module activates every pad perfectly on the On-line Selective Wave Soldering Machine.
Fully adjustable bottom IR is standard; top hot-air or extra IR optional. Open-grid layout plus thick high-temp insulation spreads heat evenly across the whole board. Premium heaters and plug-in motors run silent and tool-free for years. Boards exit perfectly activated and stress-free, ready for flawless joints in the Selective Soldering System.
German electromagnetic pump and titanium pot produce an ultra-stable mini wave that never drifts. Set N2 flow, solder temp, wave height, and auto-calibration right from the touchscreen. Inline nitrogen delivers mirror-bright fillets and almost no dross. Laser checks height, nozzles self-clean, and 900 hours of video are stored for traceability. This is the bulletproof core of every On-line Selective Wave Soldering Machine.
SMEMA-compatible three-section conveyor plus pneumatic side/top clamps hold boards up to 20 kg dead-still during soldering. Beefy rails and high-precision servos move PCBs smoothly at line speed. Thick or double-sided assemblies clear with ease. Built for nonstop high-volume duty on any Selective Soldering System.
CE-certified PLC, Cat-6 wiring, and full MES connectivity deliver lightning-fast response and total reliability. Guided wizards, picture-based edits, auto nozzle detection, and multi-language menus cut training to hours. Remote diagnostics keep the On-line Selective Wave Soldering Machine earning around the clock.
Big color touchscreen, step-by-step guides, one-tap live CCD preview, and voice alerts make running the machine dead simple. Switch instantly between English, Chinese, Japanese, or Russian. Custom tower lights and Wi-Fi upgrades keep everyone in the loop without leaving the line.
| Specification
| On-line Selective Wave Soldering Machine | ||||
| Model | I.C.T SS540 | I.C.T SS550 | I.C.T SS550P1 | I.C.T SS550P2 |
| On-line Modular | Spray + Preheating & Soldering | Spray + Preheating + Soldering | Spray + Preheating + Soldering +Soldering | Spray + Preheating + Soldering + Soldering+ Soldering |
| Soldering System | ||||
| Nozzle Quantity | 1 | 1 | 2 | 3 |
| Solder Pot Quantity | 1 set | 1 set | 2 set | 3 set |
| Double Pot (Option) | N/A | Option | Option | Option |
| Solder Pot Power | 2.35kw | 2.35kw | 4.70kw | 7.05kw |
| Flux System | ||||
| Flux Storage Tank | 1L | 1L | 2L | 2L |
| Flux Support | Flux Alarm, Automatic | |||
| Spray Nozzle | Germany Jet Valve (Spot and line spraying) 1 set | |||
| Spray Nozzle Size | 130um (180um, 210um Option) | |||
| Spray Speed | 0~20mm/s | |||
| Spray Nozzle Move Speed | 0~400mm/s | |||
| Preheating System | ||||
| Preheating Mode | Hot air and IR | Hot air and IR | Hot air and IR | Hot air and IR |
| Preheating Area | L500*W500mm | L500*W500mm | L500*W500mm | L500*W500mm |
| Preheating Zone | Top hot air: 2, Bottom IR: 1 | |||
| Bottom Preheating Power | Max.12kw | |||
| Top Preheating Power | Max.6kw | |||
| Warm-up Time | Approx.15min (setting 150℃) | |||
| Control Mode | PC+PLC | |||
| Transport System | ||||
| PCB Size (with fixture) | 120*60~500*500mm | |||
| PCB Replacement | Online | |||
| PCB Top Clearance | 120mm | |||
| Transport Height | 900±20mm | |||
| Transport Width | 60~500mm | |||
| Dimension：mm | L1850*W1850*H1480 | L2560*W1750*H1480 | L2560*W1950*H1480 | L2600*W1950*H1480 |
| Weight | Approx: 800kg | Approx: 1200kg | Approx: 1300kg | Approx: 1500kg |
| DIP Line Equipment List
Round out your On-line Selective Wave Soldering Machine with I.C.T fully automatic DIP line – the perfect partner for high-mix THT production. The turnkey setup includes a high-speed DIP insertion machine for pinpoint component placement, a SMEMA-compatible wave loader that feeds boards smoothly into the Selective Soldering System, a gentle wave unloader that catches finished PCBs without stress, and a buffered assembly conveyor for final inspection and touch-up. Everything is modular, CE-certified, and built in-house for rock-solid reliability and lightning-fast changeovers. With global spare-parts warehouses and on-site support in 72 countries, I.C.T keeps your entire through-hole process running at peak efficiency and minimum cost – from insertion all the way through selective soldering.
| Product Name | Purpose in DIP Line |
|---|---|
Automatically places components onto PCBs with precision for DIP production line. | |
Melts solder to form solid joints on PCBs during THT plug-in process. | |
Applies solder selectively to specific areas for accurate THT assembly | |
| Post-wave Inline AOI | Inspects solder joints and placement defects on DIP assembled PCB. |
| Customer Success Video
In early 2025 a major Vietnamese camera-brand supplier flew in for final acceptance of their new On-line Selective Wave Soldering Machine. Our engineers loaded their real production boards, ran full-speed cycles while the customer watched perfect THT joints form live on the CCD, then trained their team for two days on programming, daily maintenance, and troubleshooting. They left 100% ready to hit volume the day the crate arrived – another example of I.C.T’s true global partnership.
| Professional Service and Training
From line integration and commissioning to lifetime support and upgrades, we’ve got you covered worldwide. Twenty senior engineers plus local teams in 72 countries deliver on-site or remote training whenever you need it. Spare-parts warehouses on three continents and real 24/7 hotlines keep your Selective Soldering System at peak uptime for decades.
| Customer Praise
Customers keep telling us our engineers are patient, sharp, and truly care about their success. They love the pinpoint flux accuracy, rock-steady wave, and how fast the On-line Selective Wave Soldering Machine pays for itself in higher yields and zero rework. Export crates arrive flawless, and same-day remote fixes have turned first-time buyers into lifelong partners worldwide.
| Industry Certifications
Every On-line Selective Wave Soldering Machine carries CE safety certification, RoHS compliance, ISO9001 quality system, and multiple patents on jet valves, pumps, and laser calibration. These globally trusted marks prove you’re getting safe, green, field-proven technology you can rely on anywhere.
| About I.C.T Company and Factory
Since 2012 we’ve grown into a 12,000 m² state-of-the-art campus with 89 team members, 20 dedicated engineers, and 8 global branches. Everything – R&D, fabrication, assembly, and burn-in testing – happens in-house. We serve over 1,600 factories in 72 countries with complete turnkey SMT and THT solutions, and every On-line Selective Wave Soldering Machine leaves backed by rigorous inspection and proven quality systems.
