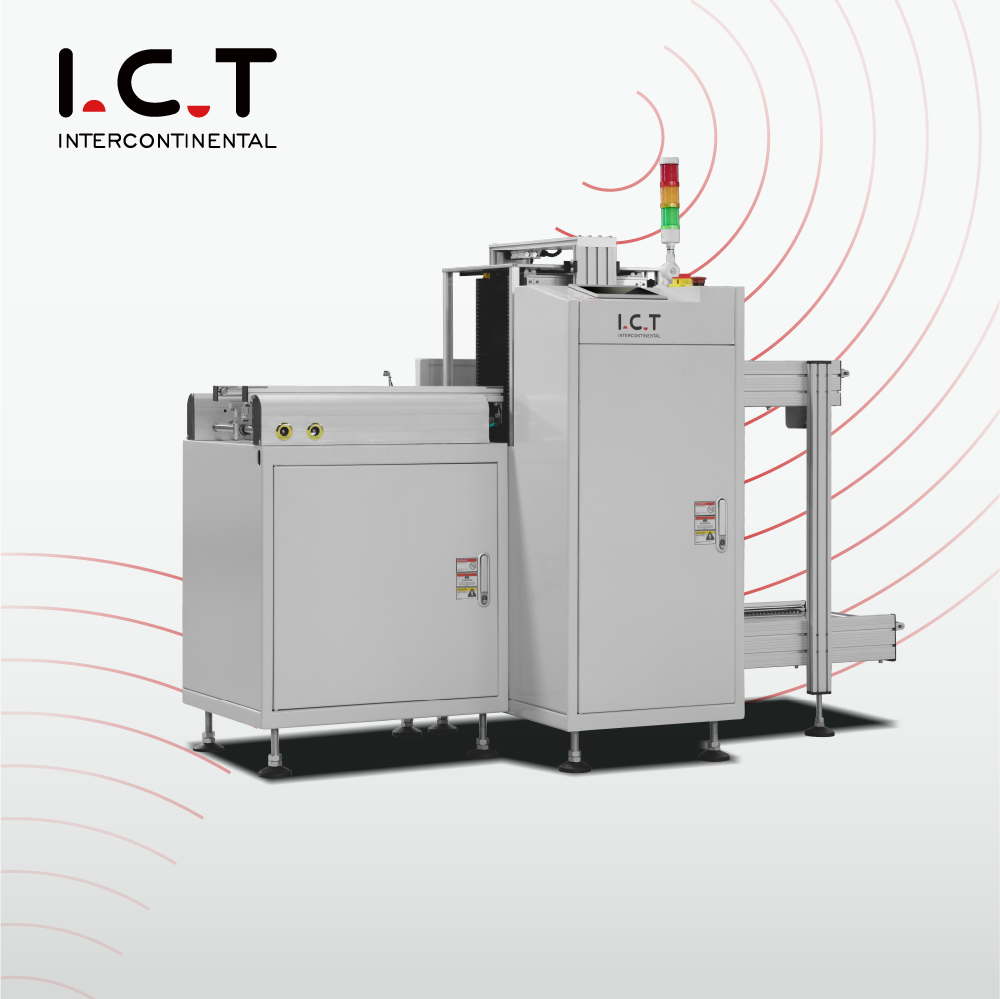

| PCB Vertical Loader – Space-Saving Pcb Loader Machine
The I.C.T PCB Vertical Loader stands tall and narrow. It holds full magazines vertically. One board drops at a time. The board lands exactly where the printer waits. No scratches. No delays. Customers pick standard or CE version. Both have stronger steel, better sensors, and expandable controls. The PCB Vertical Loader reduces labor. It raises output. It runs day and night. It fits tight factories that have no room for wide loaders. It connects to every major brand in minutes.
| Detailed Product Features
The PCB Vertical Loader uses thicker steel rails and lifts. Everything follows ISO and CE rules. The base never shakes. Maintenance takes minutes. The machine keeps running for years.
Sensors react fast. Tower lights stay bright. Buttons answer instantly. The PCB Vertical Loader sees each board the second it leaves the magazine. Operators watch the lights and know everything is fine.
The software accepts Industry 4.0 standards. IPC-CFX, Hermes, and SEMI SMT-ELS come as options. New functions load in minutes. The PCB Vertical Loader talks to the factory MES the same day.
Lifters move slow and sure. Pushers stay gentle. The PCB Vertical Loader handles tall magazines without noise or damage. Every board arrives in perfect position. Quality never drops.
SMEMA is built in. Smart protocols are optional. The PCB Vertical Loader speaks to printers, placement machines, and AOI without extra cables. Changeovers happen fast.
| Specification
| Parameter | Specification |
|---|---|
| PCB Width | 50–400 mm (500 mm optional) |
| Conveyor Height | 900 ± 20 mm |
| Transfer Speed | 0.5–20 m/min adjustable |
| Power Supply | AC 220 V 50/60 Hz |
| Power Consumption | 50–150 W |
| Direction | Left to Right (Right to Left optional) |
| Belt Material | 3 mm ESD flat belt or chain |
| Control Mode | PLC + Touch Screen |
| One-button Width Adjust | Optional (whole line sync) |
| CE Safety Standard | Full cover + sensor protection |
* I.C.T keeps working on quality and performance, specifications and appearance may be updated without particular notice.
| SMT Line Equipment List
Your turnkey High-Quality SMT Production Line gives you fully automatic, high-speed, ultra-reliable PCBA manufacturing from bare board to final inspection. You feed with precision, print and place at top speed, reflow perfectly, and finish with your flawless PCB SMT Unloader machine—all linked seamlessly. You keep labor low, first-pass yield sky-high, and uptime exceptional while meeting automotive, medical, consumer, and LED standards at the lowest possible cost.
| Customer Success Story
I.C.T engineers went to Finland. They installed a full LED panel line for a large European lighting company. The line had the PCB Vertical Loader, 1.5 m printer, SM482PLUS placer, L8 reflow oven, buffers, conveyors, splitter, and mixer. They finished installation and training in five days. Production started at full speed on day one. Zero defects. The customer said the PCB Vertical Loader never stopped and communication was perfect. They passed the European audit the first time. They ordered another line the same week.
| Professional Training & Support
I.C.T sends remote checks before the machine ships. Engineers arrive for start-up. Operators and technicians get free training. The 24/7 hotline always answers. Spare parts come from warehouses around the world. Preventive visits keep happening. The PCB Vertical Loader almost never stops when it is not supposed to.
| Customer Praise
“Your engineer fixed it at 3 a.m. their time—best support on the planet!” “Forty-five days at sea and the crate arrived perfect—no damage.” “My PCB SMT Unloader machine has run three shifts for 20 straight months—no failures.” “After one day of training our newest operators ran the whole line alone.”
| Our Certification
Every PCB Vertical Loader carries CE, RoHS, and ISO9001 marks. It also has several exclusive patents. Each unit passes a 72-hour full-load test and final inspection before shipping. Customers receive proven quality from the first day.
| About Us and Factory
I.C.T runs a 12,000 m² factory with nearly 90 people and its own R&D center. Everything is designed, built, and tested inside the same building under strict quality rules. More than 1,600 customers in 72 countries use I.C.T machines—from one PCB Vertical Loader to complete turnkey lines.
