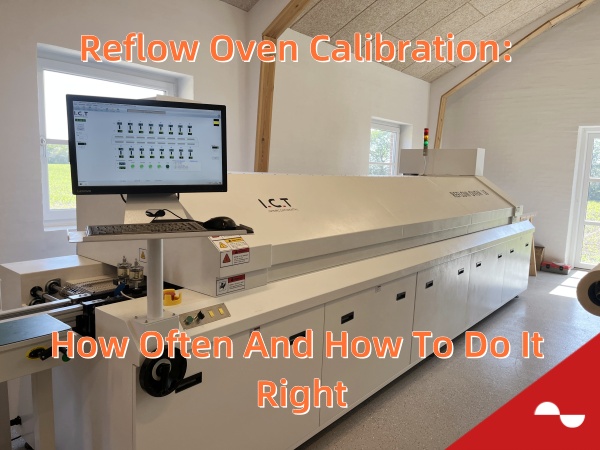

Reflow Oven Calibration: How Often And How To Do It Right

You should perform Reflow Oven Calibration at specific intervals. Check the profile every week and mark calibration frequently, as it is considered a best practice. Maintaining a written schedule helps you control each reflow step, reducing soldering errors and aiding in tracking and audits. Regular Reflow Oven Calibration ensures your reflow process stays within strict guidelines, resulting in higher quality products that last longer. Always consult your Reflow Oven Supplier for advice—they can provide tips tailored to your production needs.

Key Takeaways

· Check your reflow oven profile each week. This helps you find small changes early. It also keeps solder joints strong. - Use multi-channel thermal profilers with thermocouples. These tools give you correct temperature data on your boards. - Calibrate temperature zones, airflow, and conveyor speed with care. This makes sure heating is even and stops defects. - Keep good records of all calibration and maintenance work. This helps you pass audits and make quality better. - Follow a regular maintenance schedule. This stops problems and helps your reflow oven last longer.

Why Reflow Oven Calibration Matters

Solder Quality

You need your reflow oven to be set right to make strong solder joints. If you do not check the calibration often, your boards can have problems. Some common problems are:

· Heater failure can make the temperature go up and down. This can leave solder unfinished or burn parts.

· Conveyor calibration drift can heat things the wrong way. This can cause solder to bridge or parts to crack.

· Airflow problems can make heat uneven. This can lead to solder balls, open spots, or too much solder.

· Cooling system failures can cool things too fast or unevenly. This can cause cracks, shock, or layers to peel.

· Conveyor parts can wear out and heat some areas more. This can make more solder problems.

You can stop these problems by checking your reflow profile every week. This helps your soldering process make better pcb assemblies with fewer mistakes.

Process Reliability

A reflow oven that is set right works the same every time. You do not get hot or cold spots that can hurt parts. Good calibration keeps the temperature safe for your parts. This helps you make more good boards and waste less. You do not have to fix as many mistakes. Keeping the profile steady helps you make strong solder joints. These joints last through heat and stress.

Tip: Use special tools to watch each oven zone and change settings if needed. This helps your SMT line stay good and steady.

Compliance

You have to follow rules that say you must keep records of calibration and thermal profiling. IPC standards, ISO 14971, and groups like the FDA, FCC, and UL want you to keep these records. These records help you track problems and get better. Good records also make your quality program stronger and help you pass audits.

Regular Calibration Schedule

Calibration Frequency

You need to make a regular calibration plan. This keeps your reflow process steady and reliable. Check the temperature profile every week. Use control charts to find problems early. When you check your oven a lot, you catch small changes fast. This helps your solder joints stay strong. Your boards will be the same every time.

How often you calibrate depends on a few things:

· Product requirements: If you make medical or aerospace parts, calibrate more often. Some jobs need calibration every six months. If your products are not as critical, you can wait up to 18 months.

· Oven usage: If you use your reflow oven all day, check it more often. If you use it less, you can wait longer.

· Process stability: If your oven keeps its settings well, you can wait longer. If you see big changes, calibrate sooner.

· Manufacturer guidelines: Always read your oven manual. Most manufacturers say to calibrate once a year.

· Production volume: If you make lots of boards, calibrate more often. More boards mean more wear and more drift.

Tip: Check the thermal profile every week. Check conveyor speed every day. Use a ruler and stopwatch for the conveyor. This easy step can stop big problems.

Here is a table that shows what affects calibration frequency:

You should use statistical process control (SPC) to watch your reflow oven calibration. SPC lets you record temperature profiles with many thermocouples. You can see trends in peak temperature, soak time, and reflow time. This helps you spot drift and keep your process steady. Automated systems can chart these numbers in real time. They warn you if something is wrong, so you can fix it before you get defects.

Signs Calibration Is Needed

You need to look for signs your reflow oven needs calibration. Here are the most common signs:

1. You see temperature drift or uneven heat over ±5°C.

2. The oven does not follow the set temperature profile.

3. The control system is unstable or shows big changes.

4. Repeatability tests give different results, like changing temperature curves or solder joint quality.

5. You see more solder joint defects or quality problems during full-load testing.

6. No-load and full-load tests show different temperature or heat transfer.

7. Maintenance checks show worn parts or buildup that hurt performance.

Note: If you see any of these signs, schedule reflow oven calibration right away. Regular calibration and maintenance keep your process steady and your boards reliable.

Always watch your thermal profile closely. If you see changes, act fast. This helps you stop costly defects and keeps your line running well.

Profile and SMT Reflow Oven Profile Checks

Image Source: pexels

Profiling Tools

You need the right tools to check your reflow oven’s profile. A thermal profiler gives you accurate data about how your oven heats your boards. Industry experts recommend multi-channel profilers like the KIC X5 or Bathrive series. These tools measure temperature at many points on your board, giving you a complete picture of your SMT reflow oven profile. You should use profilers that can handle high heat and repeated use. Attach thermocouples to test boards at key spots. Make sure you use strain relief on the wires so they do not come loose during the run.

Profilers help you track ramp rates, soak times, and peak temperatures. You can use control charts to spot trends or drifts in your profile. Even low-cost dataloggers can help, but multi-channel profilers give you the best results for modern electronics. Always check the physical condition of your profile boards and thermocouples to keep your data reliable.

Tip: Use robust profiling tools instead of actual production boards. This protects your products and gives you repeatable results.

Time Above Reflow

Time above reflow, also called time above liquidus (TAL), is a key part of your profile. You must make sure your solder paste melts and wets the leads and pads. If the TAL is too short, you get weak joints. If it is too long, you risk damaging parts. Most solder pastes need a TAL between 45 and 90 seconds, with reflow zone temperatures from 230°C to 250°C.

To check your profile each week, follow these steps:

1. Attach thermocouples to your test board using solder or epoxy.

2. Use strain relief to keep wires secure.

3. Place thermocouples at different spots and on various components.

4. Run the board through the oven and record the temperature data.

5. Analyze the thermal profile for ramp rates, peak temperature, and TAL.

6. Compare your results to solder paste and component specs.

7. Adjust your reflow settings if needed and repeat the check.

You should always verify your SMT reflow oven profile after any maintenance or recipe change. This keeps your process stable and your boards reliable.

Calibration Steps

Temperature Zones

You must check each temperature zone in your reflow oven to keep your process stable. Start by setting up your thermal profiler with multiple thermocouples. Place these sensors at different points on a test PCB. This step helps you see if every zone heats up as expected. Each zone should match the set temperature within a tight range, usually ±2°C. If you find a zone that is too hot or too cold, adjust the heater settings. Repeat the test until all zones reach the target temperatures.

You should also watch for common problems during reflow oven calibration. Sometimes, you may see thermal profiling issues, like zones not reaching the right temperature or heating too quickly. These problems can cause weak solder joints or damage parts. To fix this, always use your profiling tools and check the ramp-up, soak, and cooling rates. Fine-tuning the profile in each zone helps you avoid defects and keeps your boards reliable.

Tip: Document your zone settings and results after each calibration. This record helps you spot trends and fix problems faster next time.

Airflow and Conveyor

Airflow and conveyor speed play a big role in reflow quality. Uneven airflow can cause hot or cold spots, which leads to poor soldering. You need to calibrate the airflow so hot air moves evenly through the oven. Use your thermal profiler again. Attach thermocouples to a test PCB and run it through the oven. Watch the temperature data in real time. If you see big differences between sensors, adjust the airflow fans until the heat spreads evenly.

Conveyor speed controls how long your PCB stays in each zone. If the conveyor moves too fast, the board may not reach the right temperature. If it moves too slow, parts can overheat. To calibrate, set the conveyor speed and run your test PCB. Check the thermal profile to see if the board spends enough time in the reflow zone. Adjust the speed as needed and repeat the test until you get the right results.

Here is a simple step-by-step process for airflow and conveyor calibration:

1. Attach thermocouples to a test PCB at key spots.

2. Connect the profiler to record temperature data.

3. Define your target thermal profile.

4. Run the oven and watch the temperature readings.

5. Adjust airflow fans to fix hot or cold spots.

6. Change conveyor speed to control time in each zone.

7. Repeat the test until you see uniform heating.

8. Inspect solder joints to confirm good results.

Note: Always use test PCBs that match your real boards. This makes your calibration more accurate and helps you avoid surprises in production.

Data Analysis

After you collect your calibration data, you need to analyze it carefully. Start by cleaning your data. Remove any duplicate or bad readings. This step makes sure your results are reliable. Next, use your profiler software to plot the temperature curves. Look for trends, like zones that heat up too slowly or cool down too fast.

You can use advanced methods to get even better results. Some engineers use neuro-fuzzy models or fuzzy associative memory to predict how the oven will behave. These tools help you control the process and make better decisions. The Analytic Hierarchy Process (AHP) can help you compare different settings and pick the best one. It uses judgment matrices and checks for consistency, so you know your choices make sense.

Data analytics also helps you spot problems before they get worse. By tracking your calibration results over time, you can see if a zone starts to drift or if the conveyor slows down. This lets you fix issues early and keep your reflow process stable. Good data analysis supports continuous improvement and helps you meet industry standards.

Tip: Use charts and graphs to share your results with your team. Visual data makes it easier to spot trends and explain your findings.

Maintenance and Records

Preventative Maintenance

You need to take care of your reflow oven to keep it working well. A good maintenance plan helps stop sudden problems and keeps calibration right. Here are some key things to do:

· Calibrate temperature sensors often so the oven heats right.

· Check and change heating elements to keep heat even.

· Clean the oven chamber to stop dust and uneven heat.

· Take care of the cooling system so parts do not get too hot.

· Calibrate temperature profiles often for good soldering.

· Teach workers how to use and care for the oven.

· Write down all maintenance and calibration work.

You should do these jobs on a regular schedule. The table below shows when to do each job:

Tip: Keeping your oven clean and in a steady place helps it work better and last longer.

Documentation

You have to write down every time you do maintenance or calibration on your reflow oven. Keep logs with temperature profiles, schedules, and any changes you make. Put calibration labels right on the oven so you can see them easily. Save your records in a computer system that connects to your quality program. This helps you pass audits and show you follow the rules.

When you have an audit, you need to show logs, thermal profiles, and inspection notes. Use a special calibration board and save its data for later. Take care of your "golden" profile board so you get the same results each time. Digital records make it easy to find and check your data, which helps keep your process steady.

Note: If you do not keep good records, you can fail audits, lose certifications, and get bad solder joints. Always keep your records current.

You make your SMT process better by checking your oven often. If you check the profile every week, you can find problems early. This helps your oven work well. Taking care of your oven and writing down what you do helps you reach your quality goals.

· Checking the profile often keeps heat even and finds problems before they get worse.

· Taking care of your oven and profile board stops bad data and weak joints.

· Watching each profile part means you get fewer mistakes and do less fixing.

· Keeping the profile steady helps your devices last longer and makes customers happy.

If you do these things all the time, your soldering works well and your products are always good.

FAQ

How often should you check your reflow oven profile?

You should check your profile every week. This helps you catch small changes before they cause big problems. Weekly checks keep your soldering process stable and reliable.

What tools do you need for accurate profile measurement?

You need a thermal profiler with multiple channels. Attach thermocouples to a test board. This setup gives you a complete profile of your oven’s temperature zones and helps you spot any drift.

Why does the profile change over time?

Parts inside your oven can wear out or get dirty. This can change how heat moves through the oven. Regular profile checks help you find these changes early and keep your process in control.

What should you do if your profile does not match the target?

First, review your profiler data. Adjust oven settings like zone temperature or conveyor speed. Run another profile check. Repeat until your profile matches the target for your solder paste and components.

Can you use the same profile for different boards?

No, you should not use the same profile for every board. Each board has different parts and layouts. You need to create a unique profile for each new product to get the best results.
