SMT PCB Loader / Unloader
I.C.T
| Quantity: | |
|---|---|

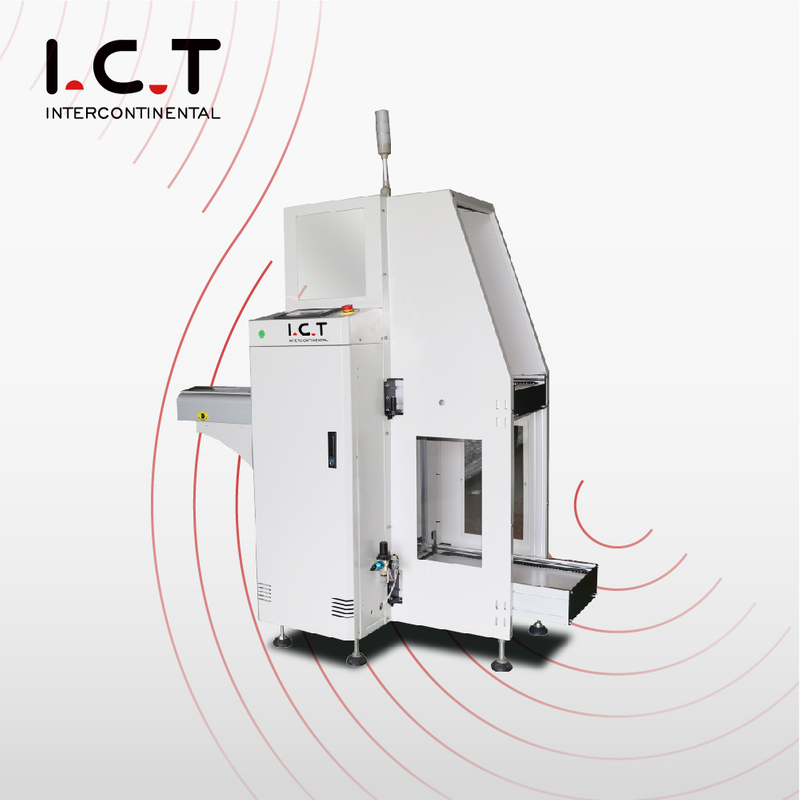

| Your Space-Saving PCB Box Loader
With your new PCB Box Loader, you load hundreds of bare PCBs from small, stackable boxes instead of big magazines. This automatic SMT mini PCB box loader grabs one board at a time, aligns it perfectly, and feeds it straight to your printer or placement machine—no scratches, no jams. You pick standard or full CE version and get upgraded hardware, smarter electrics, and future-proof controls that cut labor and double your daily output. You drop it into any line and it talks perfectly to every brand while running 24/7.
| Detailed Product Features
Your PCB Box Loader uses upgraded high-grade rails, lifts, and frames that meet strict ISO and CE standards. You enjoy the reinforced base and ergonomic design that keep everything dead stable and make daily operation and maintenance incredibly simple.
Your machine comes with top-tier sensors, bright tower lights, and high-frequency buttons so you see every board instantly and get crystal-clear feedback. You stay in total control even at full speed—no errors, just smooth, fast production.
Your PCB Box Loader supports IPC-CFX, Hermes, and SEMI SMT-ELS right out of the box (optional). You connect to your MES or add new features in minutes and watch your line become a true smart factory.
Your precision picker and pusher handle even the smallest PCBs quietly and perfectly. You get flawless alignment from the very first board to the last—zero scratches, zero misalignment, total quality protection.
Your automatic SMT mini PCB box loader talks directly to printers, placement machines, reflow ovens, and AOI. You switch box sizes instantly and save huge amounts of floor space compared to traditional magazine systems.
| Specification
| Parameter | Specification |
|---|---|
| PCB Width | 50–400 mm (500 mm optional) |
| Conveyor Height | 900 ± 20 mm |
| Transfer Speed | 0.5–20 m/min adjustable |
| Power Supply | AC 220 V 50/60 Hz |
| Power Consumption | 50–150 W |
| Direction | Left to Right (Right to Left optional) |
| Belt Material | 3 mm ESD flat belt or chain |
| Control Mode | PLC + Touch Screen |
| One-button Width Adjust | Optional (whole line sync) |
| CE Safety Standard | Full cover + sensor protection |
* I.C.T keeps working on quality and performance, specifications and appearance may be updated without particular notice.
| SMT Line Equipment List
Your turnkey High-Quality SMT Production Line gives you fully automatic, high-speed, ultra-reliable PCBA manufacturing from bare board to final inspection. You start with the ultra-compact PCB Box Loader, move through precision printing and high-speed placement, continue with stable reflow, and finish with advanced AOI—all linked perfectly. You keep labor low, first-pass yield sky-high, and uptime exceptional while meeting automotive, medical, consumer, and LED standards at the lowest possible cost.
| Customer Success Story
In 2024 our engineers flew to Finland and set up a complete LED panel line for one of Europe’s biggest lighting manufacturers. Your turnkey package included the PCB Box Loader, 1.5 m auto printer, SM482PLUS mounter, L8 reflow, buffers, conveyors, and more. You watched us finish installation, debugging, and full operator training in only five days. On day one of official production you hit target speed with zero defects. You told us the PCB Box Loader ran perfectly and communication between machines was flawless. You passed the tough European audit first time and ordered another line the same week.
| Professional Training & Support
You get remote pre-checks, on-site commissioning, free hands-on training for your operators and technicians, a real 24/7 global hotline, spare-parts warehouses worldwide, and scheduled preventive visits—so your PCB Box Loader keeps running at peak performance with almost zero unexpected stops.
| Customer Praise
“Your engineer fixed our problem at 2 a.m. their time—best response I’ve ever seen!” “Forty days at sea and the crate arrived perfect—no damage at all.” “My PCB Box Loader has run three shifts for 19 straight months—no failures.” “After one day of training our newest operators ran the line solo.”
| Our Certification
Your PCB Box Loader comes with CE, RoHS, ISO9001 marks and several exclusive patents. Before it leaves our factory you know it has passed a full 72-hour loaded burn-in test and detailed quality inspection—so you get proven reliability and full compliance from day one.
| About Us and Factory
Since 2012 we’ve grown into a 12,000 m² modern factory with nearly 90 team members and our own R&D center. You benefit from everything designed, built, and tested under one roof with strict quality systems. You join over 1,600 customers in 72 countries who trust us—from one PCB Box Loader to complete turnkey lines.
