SMT PCB Loader & PCB Unloader
I.C.T
| Quantity: | |
|---|---|

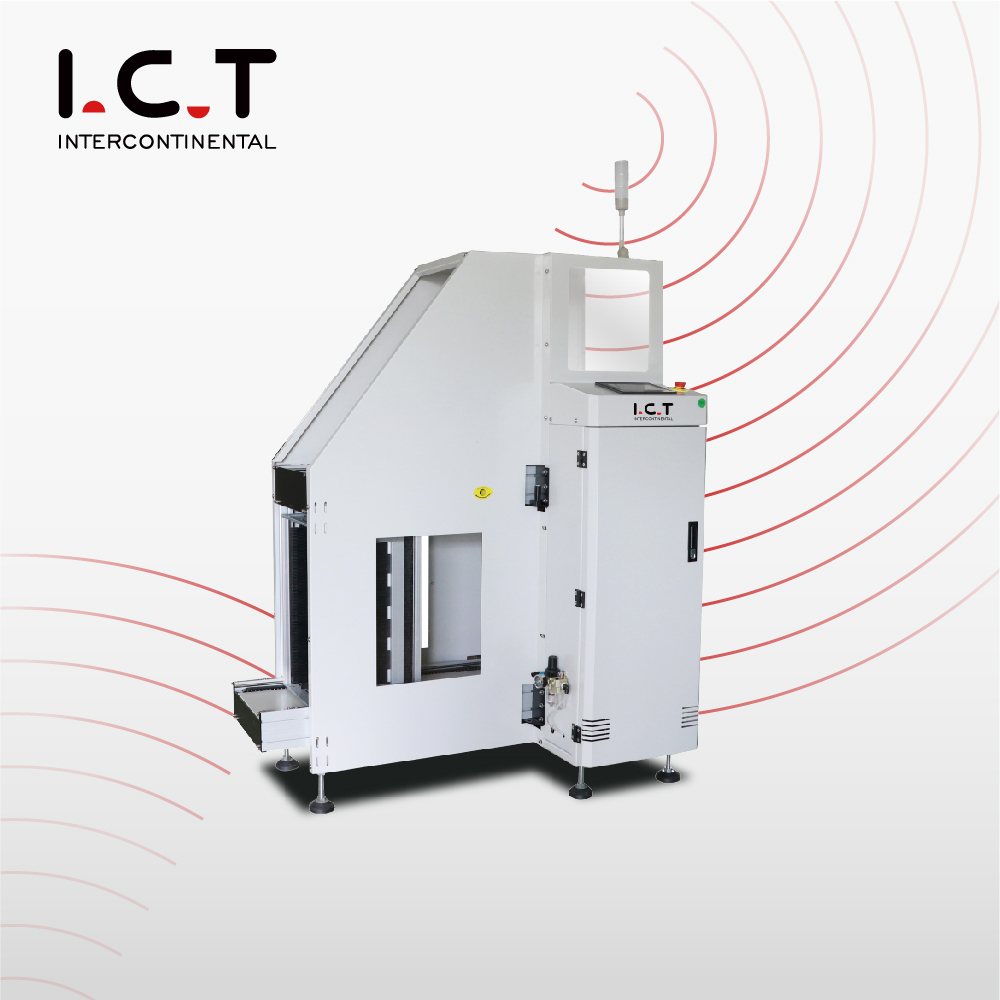

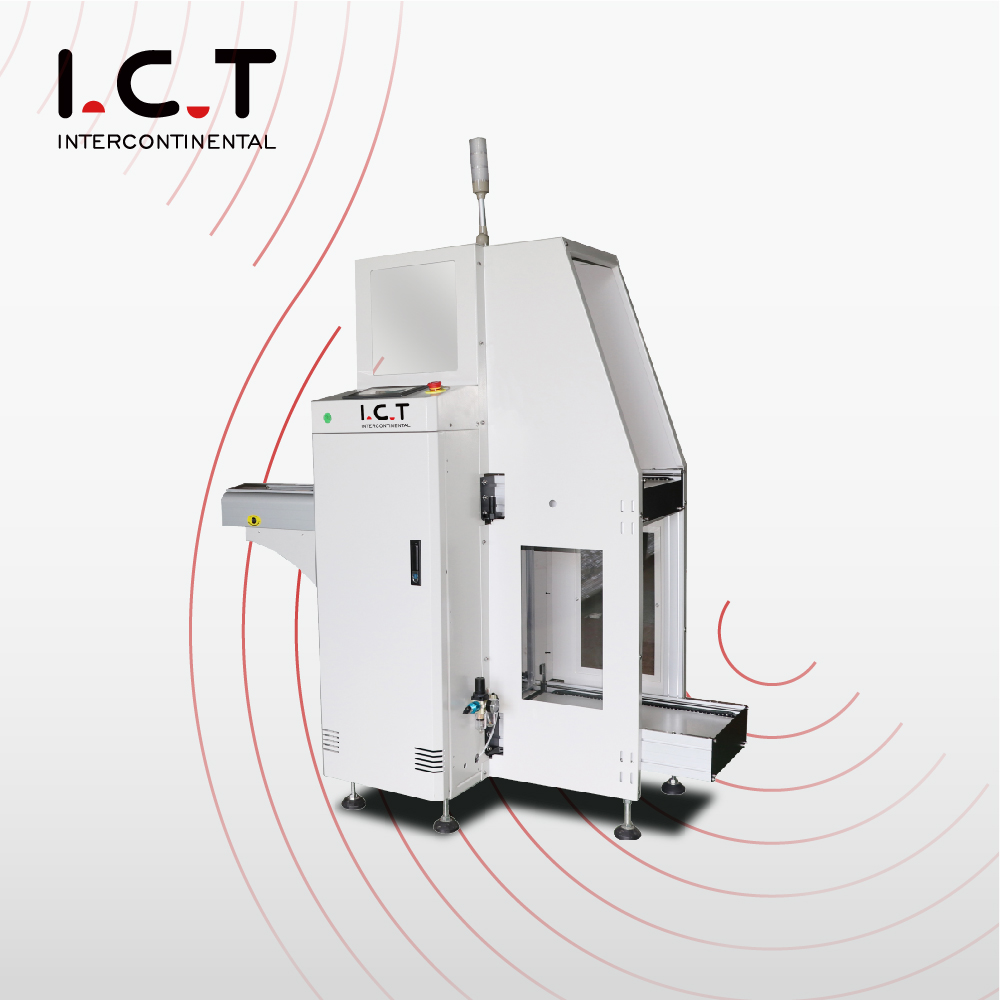

| Reliable Automatic Magazine PCB Loader for High-Volume SMT Lines
The upgraded I.C.T automatic magazine PCB loader serves as the perfect front-end solution for any high-speed SMT line. This Smt Small Pcb Loader smoothly lifts bare PCBs from magazines and feeds them perfectly aligned to the printer or placement machine with zero scratches or misfeeds. Available in standard or full CE configuration, the automatic magazine PCB loader combines reinforced hardware, advanced electrical systems, and expandable Industry 4.0 controls to reduce labor and boost daily throughput. The machine integrates instantly with all major brands and supports full smart-factory upgrades while running 24/7.
| Detailed Product Features
The automatic magazine PCB loader uses upgraded high-grade rails, lifts, and frames built to strict ISO and CE standards. The reinforced base and ergonomic layout provide years of vibration-free stability and make daily operation and maintenance extremely simple for any operator.
Premium sensors, bright tower lights, and high-frequency buttons give the automatic magazine PCB loader instant board detection and crystal-clear status feedback. Operators maintain full control even during the fastest production runs, eliminating errors and keeping output at peak levels.
The expandable control platform supports IPC-CFX, Hermes, and SEMI SMT-ELS protocols (optional). Connecting the Smt Small Pcb Loader to a factory MES or adding new features takes only minutes, instantly transforming the line into a true smart-factory setup.
Precision pusher and lifting mechanisms handle every magazine size quietly and smoothly. The automatic magazine PCB loader guarantees perfect board positioning every cycle—protecting bare-board quality from the very first process step.
Optional modules let the automatic magazine PCB loader communicate directly with printers, placement machines, and AOI systems. Plug-and-play SMEMA plus smart protocols mean zero rework and complete adaptability to any SMT environment.
| Specification
| Parameter | Specification |
|---|---|
| PCB Width | 50–400 mm (500 mm optional) |
| Conveyor Height | 900 ± 20 mm |
| Transfer Speed | 0.5–20 m/min adjustable |
| Power Supply | AC 220 V 50/60 Hz |
| Power Consumption | 50–150 W |
| Direction | Left to Right (Right to Left optional) |
| Belt Material | 3 mm ESD flat belt or chain |
| Control Mode | PLC + Touch Screen |
| One-button Width Adjust | Optional (whole line sync) |
| CE Safety Standard | Full cover + sensor protection |
* I.C.T keeps working on quality and performance, specifications and appearance may be updated without particular notice.
| SMT Line Equipment List
The turnkey High-Quality SMT Production Line delivers fully automatic, high-speed, ultra-reliable PCBA manufacturing from bare board to final inspection. It begins with the flawless automatic magazine PCB loader, flows through precision printing and high-speed placement, continues with stable reflow soldering, and ends with advanced AOI—all perfectly synchronized. Labor stays minimal, first-pass yield stays sky-high, and uptime stays exceptional. This proven solution meets automotive, medical, consumer electronics, and LED standards while keeping operating costs extremely low.
| Customer Success Story
In 2024, I.C.T overseas engineers flew to Finland and commissioned a fully automatic LED panel production line for a leading European lighting manufacturer. The turnkey solution included the automatic magazine PCB loader, 1.5 m fully automatic printer, SM482PLUS placement machine, L8 reflow oven, vertical cooling buffer, linking conveyors, board splitter, and solder paste mixer. The team completed installation, debugging, and operator training in just five days. On the first official production day the line reached target speed with zero defects. The customer especially praised the rock-solid performance of the automatic magazine PCB loader and perfect machine-to-machine communication. They passed the strict European audit on the first attempt and immediately ordered another line.
| Professional Training & Support
I.C.T provides true one-stop support: remote pre-install checks, on-site commissioning, free operator and maintenance training, 24/7 global hotline, worldwide spare-parts warehouses, and scheduled preventive maintenance—so the automatic magazine PCB loader runs at peak performance year after year with almost no unplanned downtime.
| Customer Praise
“Your engineer fixed it at 2 a.m. their time—fastest response ever!” “Packing survived 45 days at sea—machine arrived perfect, not a scratch.” “The automatic magazine PCB loader has run three shifts for 20 months without a single failure.” “Training was so clear our newest operators were independent after one day.”
| Our Certification
Every automatic magazine PCB loader carries CE, RoHS, ISO9001 certifications plus multiple proprietary patents. Before leaving the factory, each unit completes a full 72-hour loaded burn-in test and detailed quality inspection, ensuring proven reliability and full compliance right from day one.
| About Us and Factory
Since 2012, I.C.T has grown into a modern 12,000 m² facility with nearly 90 team members and its own R&D center. The company designs, manufactures, and tests everything in-house under strict quality systems. Serving over 1,600 customers across 72 countries, I.C.T has earned trust by consistently delivering—from a single automatic magazine PCB loader to complete turnkey lines.
