SMT PCB Loader / Unloader
I.C.T
| Quantity: | |
|---|---|

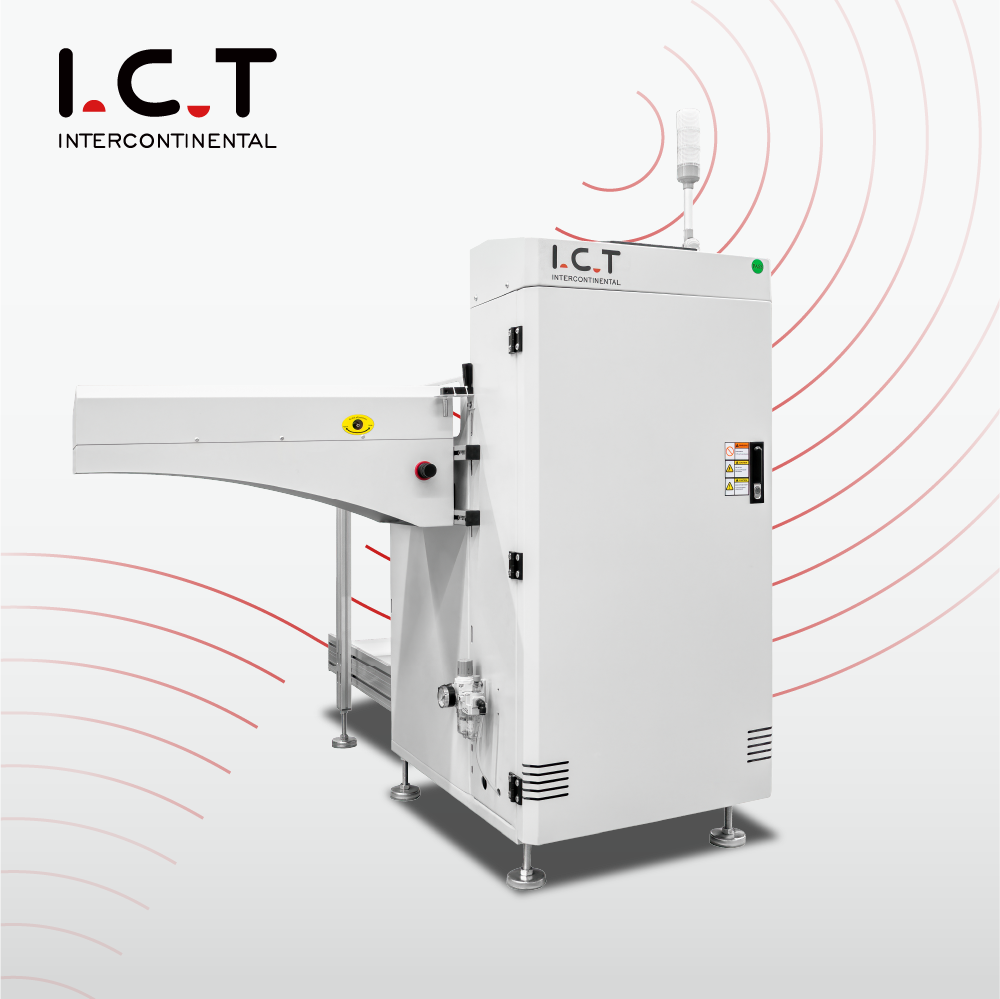

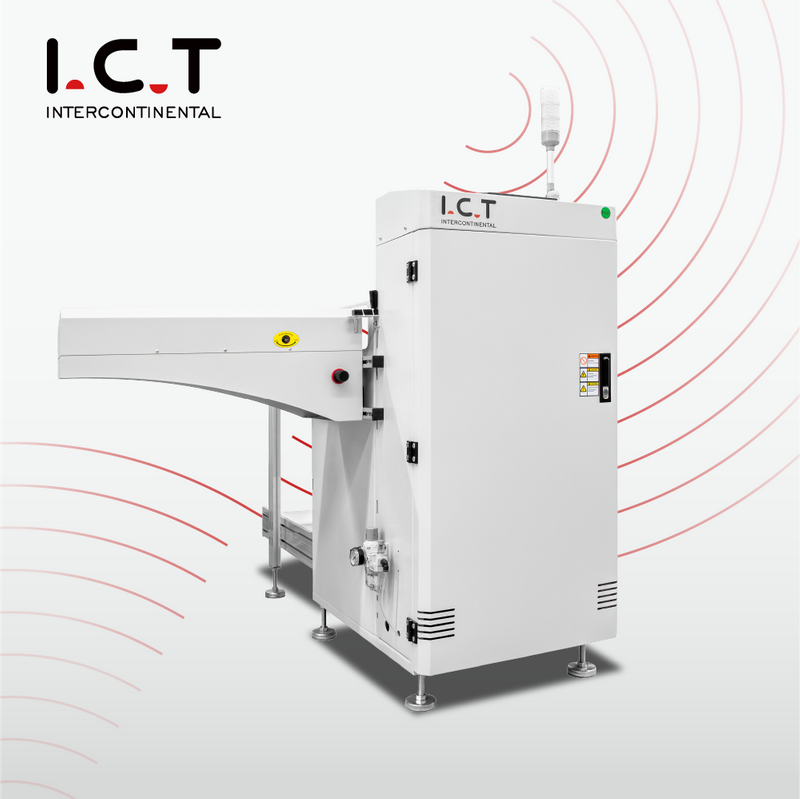

| Space-Saving L shape PCB unloader for Crowded SMT Lines
The upgraded I.C.T L shape PCB unloader is the ideal end-of-line solution when straight unloaders simply won’t fit. Its clever 90-degree design receives finished PCBs from the main line, turns them smoothly, and stacks them neatly into magazines—all while using up to 40% less floor space than traditional unloaders. Available in standard or full CE versions, the L shape PCB unloader combines reinforced hardware, advanced electrical systems, and expandable Industry 4.0 controls to keep high-speed lines running 24/7. It drops into any brand’s setup instantly and supports full smart-factory integration without extra rework.
| Detailed Product Features
The unique L-shape frame of the L shape PCB unloader uses upgraded high-grade materials and follows strict ISO and CE installation rules. The reinforced base and ergonomic design deliver years of vibration-free performance and make daily operation and maintenance incredibly easy—even in the tightest factory corners.
Top-quality sensors, bright tower lights, and high-frequency buttons give the L shape PCB unloader instant board detection and clear status visibility. Operators stay fully informed during the fastest production runs, eliminating mistakes and keeping throughput at maximum levels.
The expandable control platform supports IPC-CFX, Hermes, and SEMI SMT-ELS protocols (optional). Adding smart communication or connecting the L shape PCB unloader to your factory MES takes only minutes, instantly upgrading cramped spaces into true smart-factory zones.
Precision turning and lifting mechanisms handle every board gently and accurately. The L shape PCB unloader guarantees perfect positioning into magazines—protecting finished product quality from the last process all the way to storage or testing.
Optional modules let the L shape PCB unloader talk directly to reflow ovens, AOI systems, and conveyors. The L-shape design removes the need for long straight unloaders, freeing up precious floor space without sacrificing speed or capacity.
| Specification
| Parameter | Specification |
|---|---|
| PCB Width | 50–400 mm (500 mm optional) |
| Conveyor Height | 900 ± 20 mm |
| Transfer Speed | 0.5–20 m/min adjustable |
| Power Supply | AC 220 V 50/60 Hz |
| Power Consumption | 50–150 W |
| Direction | Left to Right (Right to Left optional) |
| Belt Material | 3 mm ESD flat belt or chain |
| Control Mode | PLC + Touch Screen |
| One-button Width Adjust | Optional (whole line sync) |
| CE Safety Standard | Full cover + sensor protection |
* I.C.T keeps working on quality and performance, specifications and appearance may be updated without particular notice.
| SMT Line Equipment List
Our turnkey High-Quality SMT Production Line delivers fully automatic, high-speed, ultra-reliable PCBA manufacturing—even in the most space-constrained factories. It flows through precision printing and high-speed placement, continues with stable reflow soldering, and ends with the clever L shape PCB unloader that neatly collects finished boards without wasting an inch of floor space. Labor stays low, first-pass yield stays sky-high, and uptime stays exceptional. This proven solution meets automotive, medical, consumer electronics, and LED standards while keeping operating costs rock-bottom.
| Customer Success Story
I.C.T overseas engineers flew to Finland to install and commission a fully automatic LED Panel production line for a leading European lighting manufacturer. The turnkey solution included our L shape PCB unloader, 1.5 m fully automatic printer, SM482PLUS placement machine, L8 reflow oven, vertical cooling buffer, linking conveyors, board splitter, and solder paste mixer. Our team finished installation, debugging, and hands-on operator training in just five days. On the first official production day the line already hit target speed with zero defects. The customer especially praised the rock-solid performance of the L shape PCB unloader and the perfect machine-to-machine communication. They passed the strict European audit on the first try and immediately placed a repeat order for another line.
| Professional Training & Support
I.C.T offers true one-stop support: remote pre-install checks, on-site commissioning, free operator and maintenance training, 24/7 global hotline, worldwide spare-parts warehouses, and scheduled preventive maintenance—so your L shape PCB unloader runs at peak performance year after year with almost zero unplanned downtime.
| Customer Praise
“Engineers arrived the next day after we called – super fast!” “The PCB Vacuum Loader is very stable, almost zero failure in one year.” “Packing is extremely safe; every machine arrived perfectly.” “Response speed is the fastest among all suppliers we have.”
| Our Certification
Every L shape PCB unloader carries CE, RoHS, ISO9001 certifications plus multiple proprietary patents. Before shipping, each unit completes a full 72-hour loaded burn-in test and detailed quality inspection, ensuring you receive proven reliability and full compliance right out of the crate.
| About Us and Factory
Since 2012, I.C.T has grown into a modern 12,000 m² facility with nearly 90 team members and our own R&D center. We design, manufacture, and test everything in-house under strict quality systems. Serving over 1,600 customers across 72 countries, we’ve earned trust by always delivering—from a single L shape PCB unloader to complete turnkey lines.
