SMT machine component rejection usually means the placement system has detected that a component cannot be picked, held, recognised, corrected, or placed within the required tolerance. In daily production, this problem is often called “throwing component” or “rejecting component”, but the real cause may sit in the feeder, tape pocket, nozzle, vacuum path, vision library, material condition, or program data. A lower pick and place rejection rate starts with finding the exact point where the rejection happens.
This article explains the most common SMT component rejection causes in a practical way for engineers, technicians, and production managers. It focuses on how to separate mechanical, material, optical, and process-related faults so a team can reduce waste without hiding quality risks.

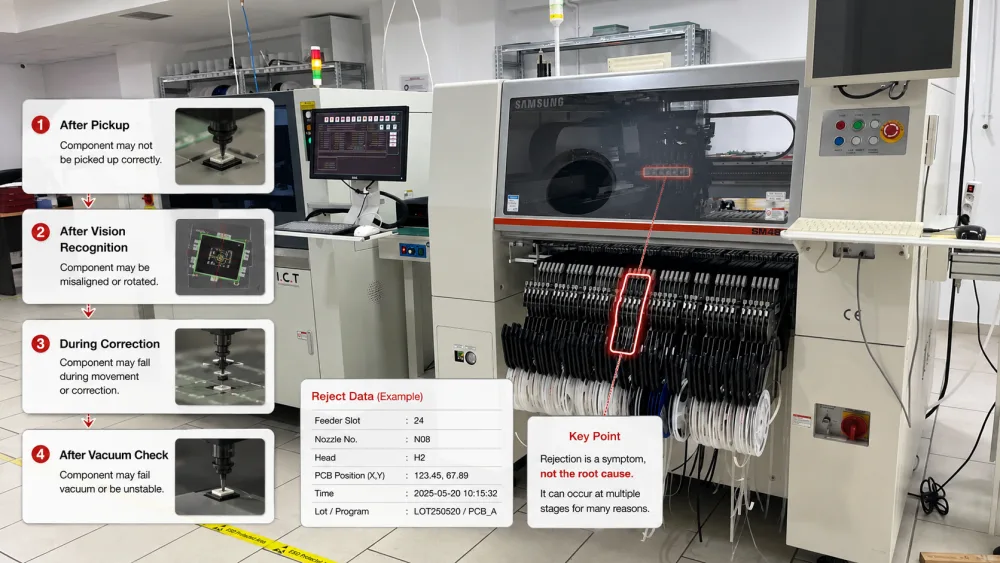

Component rejection is not one single fault. It is a machine decision made after the placement system finds that the component or pickup result is outside the allowed process window. The machine may reject the component immediately after pickup, after camera recognition, during correction, or after a vacuum check. The operator sees one result, but the machine may be responding to several different signals.
A component may be rejected because it was never picked correctly. It may also be picked correctly but appear rotated under the camera. In another case, the camera may see a good component but the package library may contain the wrong body size, lead shape, or polarity definition. This is why changing one tolerance value rarely solves the problem for long.
Good troubleshooting begins by asking where the rejection happens. If rejection appears before vision inspection, the team should check feeder presentation, nozzle condition, pickup height, and vacuum value first. If rejection happens after vision inspection, the camera image, lighting, recognition threshold, package data, and component appearance become more important.
A useful rejection report should show the affected component, feeder slot, nozzle number, head, machine lane, PCB position, time, and lot. If the same component fails across different feeder positions, the issue may be package data or material variation. If different component fail on the same feeder, the feeder is suspicious. If many component fail on one nozzle, the nozzle or vacuum path needs attention.

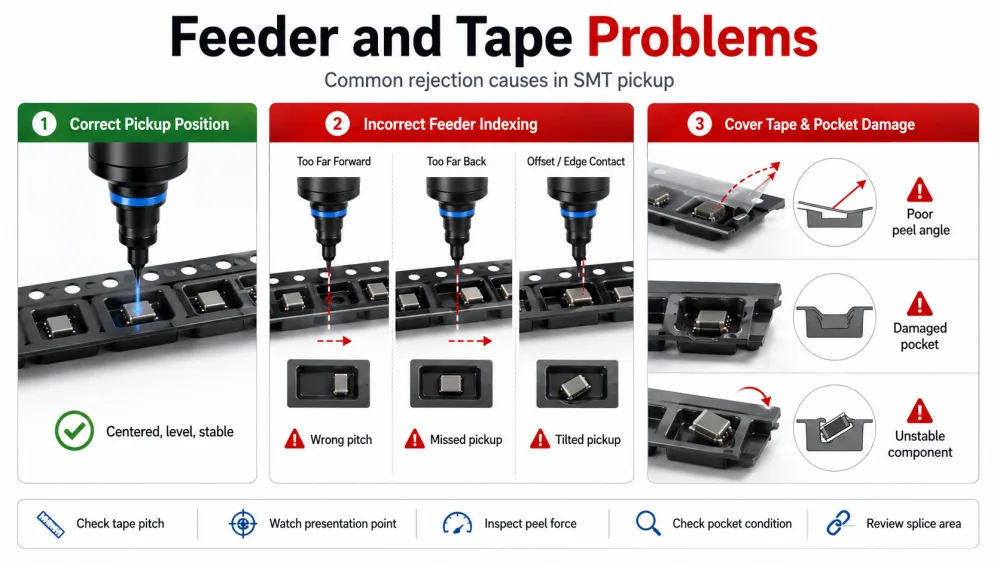

Feeder condition is one of the first areas to inspect when SMT component rejection rises. A feeder presents the component to the nozzle. If the component is not in the correct pickup position, the best machine head and vision system cannot create stable production.
Feeder indexing error happens when the tape does not advance by the correct pitch. The component may sit too far forward, too far back, or partly under the cover tape. The nozzle then picks the component from the wrong point or touches the tape pocket. This can cause missed pickup, tilted pickup, damaged component, or vision rejection.
Operators should compare the programmed pitch with the real component tape. They should also watch the presentation point slowly during trial pickup. The component should arrive centred and level, with no bounce or delay after tape movement.
Cover tape problems can create repeated rejection even when the reel looks normal from the outside. If the cover tape peel angle is wrong, the component can lift, rotate, or jump inside the pocket. If the pocket is crushed or the carrier tape is bent, the nozzle may not contact the component surface correctly.
For small passive component, even a tiny movement inside the pocket can increase the pick and place rejection rate. The team should inspect the tape path, reel tension, peel force, pocket condition, splice area, and feeder guide. A problem that begins after a splice or reel change often points to packaging or loading rather than machine hardware.
The nozzle is the direct contact point between the placement machine and the component. If the nozzle cannot create a stable seal, the component may be missed, dropped, flipped, or rejected by vision. Nozzle and vacuum checks are therefore essential in SMT machine component rejection analysis.
A nozzle must match the component body, pickup area, weight, and surface. A nozzle that is too small may not hold enough area. A nozzle that is too large may touch leads, edges, or nearby pocket walls. For odd-shaped component, the pickup point may need to move closer to the centre of gravity.
Wrong nozzle selection often creates intermittent rejection. The machine may run well at low speed but fail when head acceleration increases. It may also reject more often when the component surface is slightly dusty or when vacuum response becomes weaker after several hours of production.
Nozzle contamination is a simple but common cause. Solder paste residue, dust, tape debris, or package particles can reduce the seal between nozzle and component. A worn nozzle tip may also create leakage that is too small to stop every pickup but large enough to create unstable recognition.
Technicians should inspect the nozzle under magnification, clean it with the approved method, and compare error history by nozzle ID. If the rejection follows the nozzle after the nozzle is moved to another head or component, the nozzle should be replaced or recalibrated.
Vacuum should not be treated only as an alarm. It is a useful process signal. Low vacuum can mean air leakage, blocked filter, wrong pickup height, rough component surface, poor feeder presentation, or damaged nozzle. A vacuum value that slowly changes during a shift may indicate contamination or maintenance drift.
Factories should record normal vacuum baseline for common package. When rejection rises, comparing current vacuum values with the baseline helps the team avoid random adjustment.

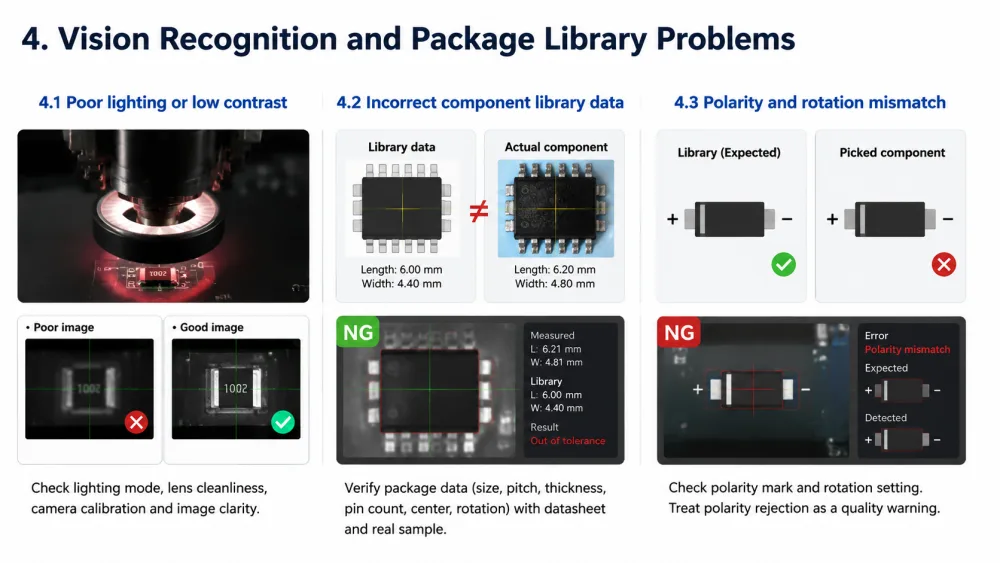

Vision recognition errors are another major group of SMT component rejection causes. The camera checks whether the component is present, centred, rotated correctly, and within tolerance. If the camera cannot recognise the component, the machine may reject it even when the physical pickup looks acceptable.
Some component are difficult for the camera to see. Black body on dark background, shiny metal surface, transparent package, small polarity mark, or irregular lead shape can reduce contrast. If the camera image is unclear, changing tolerance will not solve the problem. The team should first review lighting mode, lens cleanliness, camera calibration, and the actual image captured by the machine.
The package library must match the real component. Body size, lead count, lead pitch, thickness, polarity mark, pickup centre, and allowed rotation all matter. A library copied from a similar component may be close enough for a simple chip package but fail for fine-pitch IC, connector, shield, or diode.
When rejection appears after a new product introduction, library data should be checked against the component drawing and a real sample. The engineer should avoid widening tolerance until the package data is confirmed.
Polarity mismatch is especially important for diode, IC, LED, and other directional component. The machine may reject the component because the vision system sees a mark in a different position than the library expects. In some cases, the component may pass placement but create a serious electrical failure later. For this reason, polarity rejection should be treated as a quality warning, not just a production delay.
Material condition can directly affect pick and place rejection rate. A placement machine expects component to arrive in a stable shape and position. If storage, handling, or packaging changes that condition, rejection may rise even though the machine setup has not changed.
Moisture-sensitive component need controlled storage and handling. Poor storage may not always cause immediate pickup rejection, but it can create package deformation, soldering defects, or reliability risk later in the process. JEDEC provides widely used guidance for moisture/reflow sensitive device handling through J-STD-033.
Static charge can make small component cling to tape, nozzle, or surrounding surfaces. Dust and contamination can also affect pickup and vision. A good ESD control programme helps protect sensitive devices and supports more stable handling. The ANSI/ESD S20.20 standard is a useful reference for building a formal ESD control system.
Different lots of the same part number may have small variations in body colour, marking contrast, lead shape, or tape pocket fit. These differences may be within supplier tolerance but still affect recognition or pickup. When rejection rises after a lot change, engineers should compare old and new material under the same machine image and pickup condition.
Reducing rejection rate is not about making the machine less sensitive. It is about making the process more stable. A machine that rejects bad pickup protects quality. A machine that rejects good component wastes material and time. The target is to remove false rejection while keeping real quality protection.

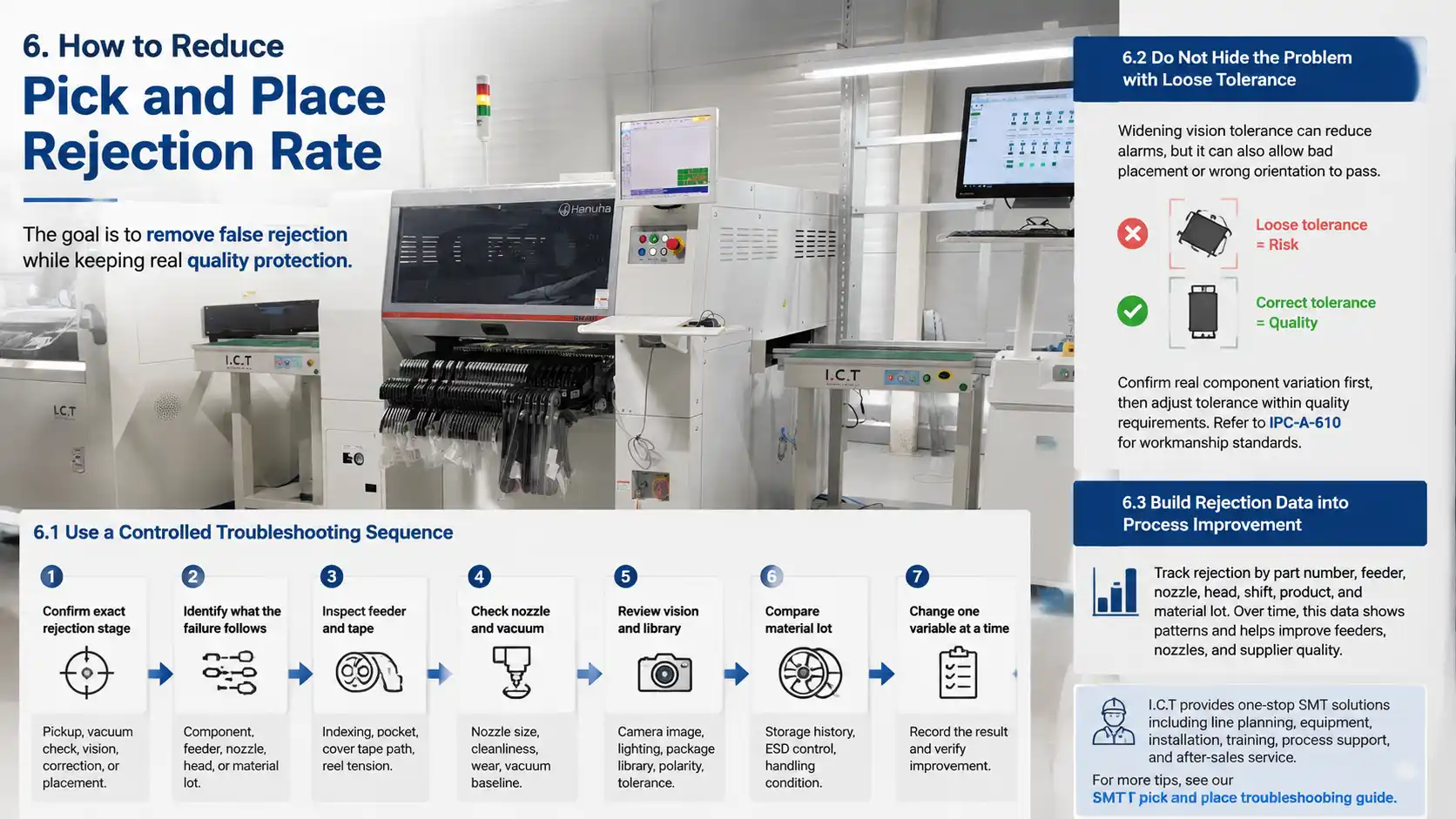

Confirm the exact rejection stage: pickup, vacuum check, vision recognition, correction, or placement.
Check whether the failure follows the component, feeder, nozzle, head, or material lot.
Inspect feeder indexing, tape pocket, cover tape path, and reel tension.
Inspect nozzle size, cleanliness, wear, and vacuum baseline.
Review camera image, lighting, package library, polarity, and recognition tolerance.
Compare material lot, storage history, ESD control, and handling condition.
Change one variable at a time and record the result.
Widening vision tolerance can reduce alarms, but it can also allow bad placement or wrong orientation to pass. The safer method is to confirm the real component variation first, then adjust tolerance only within the quality requirement. General workmanship references such as IPC-A-610 help production teams keep inspection language and acceptability judgement consistent.
Rejection records should become a process improvement tool. A factory can track rejection by part number, feeder, nozzle, head, shift, product, and material lot. Over time, this data shows which package need better nozzle strategy, which feeder need maintenance, and which material supplier creates more variation.
I.C.T provides one-stop SMT solutions for electronics manufacturers, including line planning, SMT equipment, installation, training, process support, and after-sales service. When customers face repeated rejection, I.C.T can help review the full production chain instead of looking only at one alarm page. For a wider diagnostic framework, readers can also review this SMT pick and place troubleshooting guide.
SMT component rejection is a symptom that must be traced to the exact failure stage.
Feeder indexing, tape pocket condition, and cover tape peeling are common root causes.
Nozzle size, nozzle wear, contamination, vacuum leakage, and pickup height strongly affect rejection.
Vision rejection often comes from lighting, contrast, library data, polarity, or package variation.
Material handling, moisture control, ESD control, and lot variation should not be ignored.
The best way to reduce pick and place rejection rate is to make one controlled change at a time and record the result.
A stable SMT process is built through patient observation, clean data, and good production habits. When rejection becomes frequent, the right response is not panic or random adjustment. It is a clear root-cause path that protects both output and quality.
There is no universal normal rejection rate because it depends on component size, package type, machine condition, feeder quality, production speed, material packaging, and product mix. A line placing many small passive component will have a different risk profile from a line placing larger connector or IC. Instead of chasing one fixed number, factories should establish a normal baseline for each product and package family. If the rate suddenly rises above that baseline after a material lot change, feeder change, nozzle change, or program update, the team should investigate immediately.
Small component have less pickup area and are more sensitive to tape pocket position, static charge, nozzle size, pickup height, and air leakage. A very small feeder offset can make the nozzle pick near the edge of the component instead of the centre. The component may lift at an angle, rotate under the camera, or drop during head movement. For small package, stable feeder presentation and clean nozzle condition are especially important.
Vision tolerance should only be adjusted after the physical and data-related causes are checked. If the component is truly good and the package library is too strict, a careful tolerance adjustment may be correct. However, if the component is tilted because of poor pickup, or if the library has the wrong polarity mark, wider tolerance only hides the problem. This can allow bad placement into production and create larger downstream losses.
A practical method is to see whether the problem follows the feeder or the nozzle. If the same component fails only in one feeder slot, inspect feeder calibration, indexing, tape path, and pocket condition. If different component fail with the same nozzle, inspect nozzle wear, contamination, blockage, and vacuum leakage. If the problem follows one material reel across different feeder, material packaging or lot variation may be the root cause.
External support is useful when rejection continues after basic feeder, nozzle, vacuum, vision, and program checks. It is also helpful during new product introduction, machine relocation, line upgrade, or repeated quality instability. An experienced SMT solution provider can review machine condition, feeder setup, package library, material handling, line balance, operator training, and upstream or downstream process influence together. This broader view often finds causes that a single alarm screen cannot show.
