SMT feeder pickup position errors happen when a component is not presented at the correct location for the nozzle to pick it up. The machine may report a pickup error, vacuum error, component rejection, or feeder alarm, but the real problem is often an incorrect feeder pickup position, unstable tape indexing, wrong pickup coordinates, or movement inside the component pocket.
A feeder is responsible for moving each component to the pickup point with repeatable accuracy. If the tape advances too far, stops too early, shifts sideways, or does not hold the component correctly, the nozzle may miss the component or pick it from the edge. This can lead to missing component, dropped component, upside down component placement, high rejection rate, and unnecessary material waste.
This guide explains the main causes of SMT feeder pickup position error and provides a practical SMT feeder calibration process for production engineers and maintenance teams.
Table of Contents
An SMT feeder pickup position error means that the component is not located at the expected pickup coordinate when the nozzle arrives. The component may be too far forward, too far backward, shifted sideways, rotated, tilted, or missing from the pocket.
The machine may still complete some pickup cycles successfully. This is why feeder problems can be difficult to identify. A feeder may work normally for several minutes and then create an intermittent error when the tape hole, pocket, cover tape, or component position changes.
Typical symptoms include missed pickup, side pickup, component rotation, component rejection after camera inspection, unstable vacuum value, dropped component, and repeated placement offset.
Other signs include a nozzle touching the edge of the tape pocket, component movement after tape indexing, inconsistent tape advance, abnormal feeder noise, and errors that follow one feeder after it is moved to another machine position.
The nozzle needs to contact the component at a stable and suitable pickup area. If the nozzle touches the edge instead of the center, vacuum sealing becomes weaker and the component may rotate during head movement.
An incorrect feeder pickup position can also cause the machine to reject a good component. The component may be picked, but its position on the nozzle may be outside the camera correction range. In this situation, the problem may appear to be a vision error even though the feeder created the original offset.

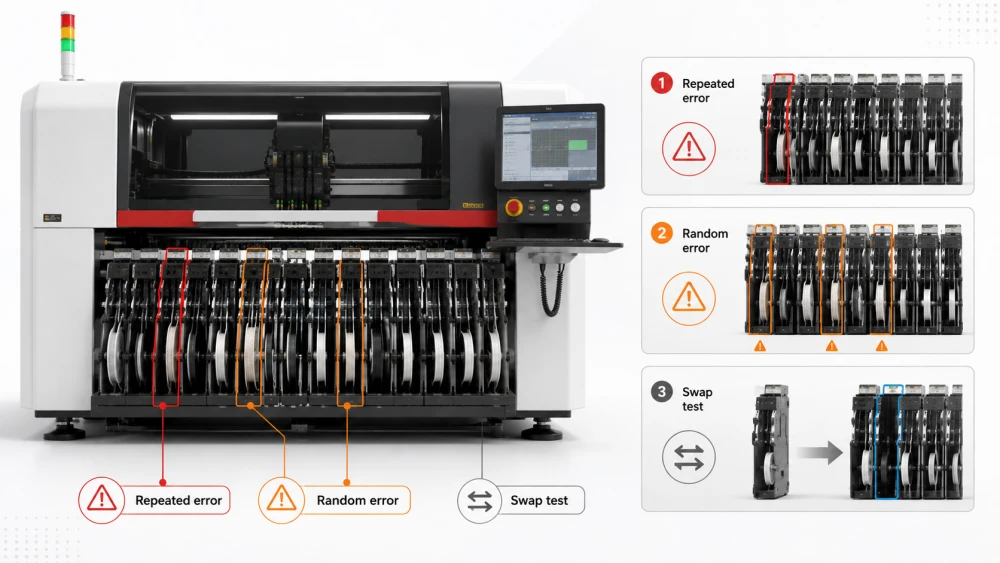

Before changing feeder parameters, engineers should record the defect pattern. This helps separate a feeder problem from a nozzle, vacuum, vision, or material problem.
If the same feeder creates repeated pickup errors, engineers should check feeder calibration, tape indexing, pickup coordinate, sprocket condition, cover tape tension, and component pocket position.
A repeated error usually means that the feeder is consistently presenting the component at the wrong location. The issue may be mechanical, but it may also come from incorrect pitch, incorrect feeder type, or wrong component data.
If several feeders create random errors, the problem may not be a single feeder. Engineers should check the common machine conditions, including nozzle wear, vacuum source, air pressure, feeder base alignment, machine vibration, and software settings.
Random feeder errors may also happen when the factory uses a new tape specification or component package that is not well matched to the existing feeder system.
A feeder swap test is one of the most useful diagnostic methods. Move the suspected feeder to another slot and run a controlled test. If the pickup problem follows the feeder, the feeder or its material is likely responsible. If the problem stays at the original machine slot, the feeder base, machine coordinate, or head system should be checked.
Only one variable should be changed during the test. If the feeder, nozzle, material reel, and program are all changed at the same time, the result will be difficult to interpret.
A feeder must be installed firmly and aligned correctly on the feeder base. A small mechanical gap can change the relationship between the tape pocket and the nozzle pickup coordinate.
If the feeder is not fully inserted into the machine base, it may sit at a small angle or remain slightly away from the expected position. The machine may still recognize the feeder, but the pickup location can be inaccurate.
Engineers should check the feeder lock, guide rail, positioning block, connector, and mechanical stop. The feeder should be inserted with consistent force and should not move when lightly touched.
Dust, tape particles, component debris, and oil can accumulate on the feeder base. This may prevent the feeder from sitting flat. A worn guide rail or positioning block can create similar problems.
When several feeders show a similar pickup shift at the same machine location, the feeder base should be inspected. Cleaning only the individual feeder may not solve the real problem.
A feeder that is tilted or moving sideways can cause the tape pocket to shift away from the nozzle center. This is more serious for small component because the pickup tolerance is very small.
Engineers should check whether the feeder body is stable during indexing. If the feeder moves forward and backward with every tape advance, the feeder lock or internal mechanism may need adjustment.

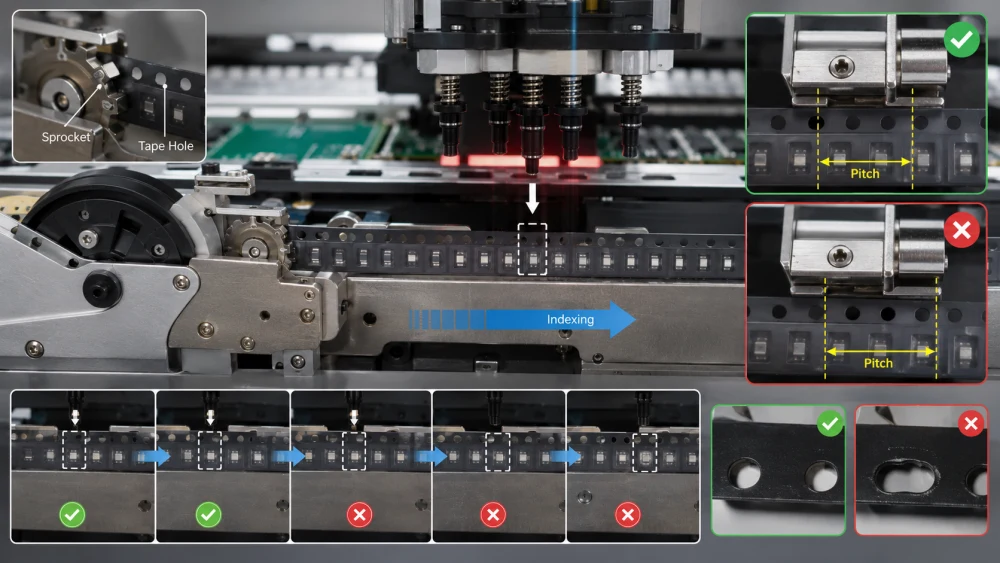

Tape indexing moves the carrier tape forward one pocket at a time. If the indexing distance is incorrect, the component will not arrive at the expected pickup position.
Different carrier tape specifications use different pocket pitches. If the feeder pitch setting does not match the actual tape, the tape may advance too much or too little during each cycle.
This can cause a gradual pickup shift, repeated empty-pocket pickup, side pickup, or component damage. Engineers should confirm the actual pitch from the component packaging and compare it with the feeder program.
The feeder sprocket must engage correctly with the carrier tape holes. If the tape holes are damaged, stretched, blocked, or poorly formed, the sprocket may not advance the tape accurately.
Worn sprocket teeth can also create indexing variation. The feeder may work correctly with one reel and fail with another because the tape hole quality is different.
Some feeder indexing errors are caused by internal mechanical wear. The motor, gear, spring, belt, clutch, or drive mechanism may not move the tape the same distance every cycle.
Engineers should observe several consecutive indexing cycles. The component should stop at the same position every time. A slow-motion video or visual mark on the tape can help identify small movement differences.
The feeder may be mechanically healthy, but the machine program may still use the wrong pickup position. Pickup coordinate and pickup height must be verified with the actual component and actual feeder.
An incorrect feeder pickup position means that the machine nozzle is not aiming at the correct point on the component. The nozzle may land near the component edge, between two component, or outside the pocket.
Engineers should check the X and Y pickup coordinates and compare them with the real component position. The theoretical center of the pocket is not always the same as the best pickup point, especially when the component is loose or the pocket is larger than the component body.
If pickup height is too high, the nozzle may not contact the component firmly enough. Vacuum may not build correctly, and the component may remain in the pocket when the head moves away.
This may create missed pickup, weak vacuum, or camera rejection. The problem may appear only at high speed because the component does not have enough time to form a stable seal.
If pickup height is too low, the nozzle may press the component into the tape pocket. This can create side force, component rotation, pocket damage, or nozzle collision.
Pickup height should be adjusted according to tape pocket depth, component thickness, nozzle length, and feeder condition. The correct height should allow firm contact without excessive pressure.

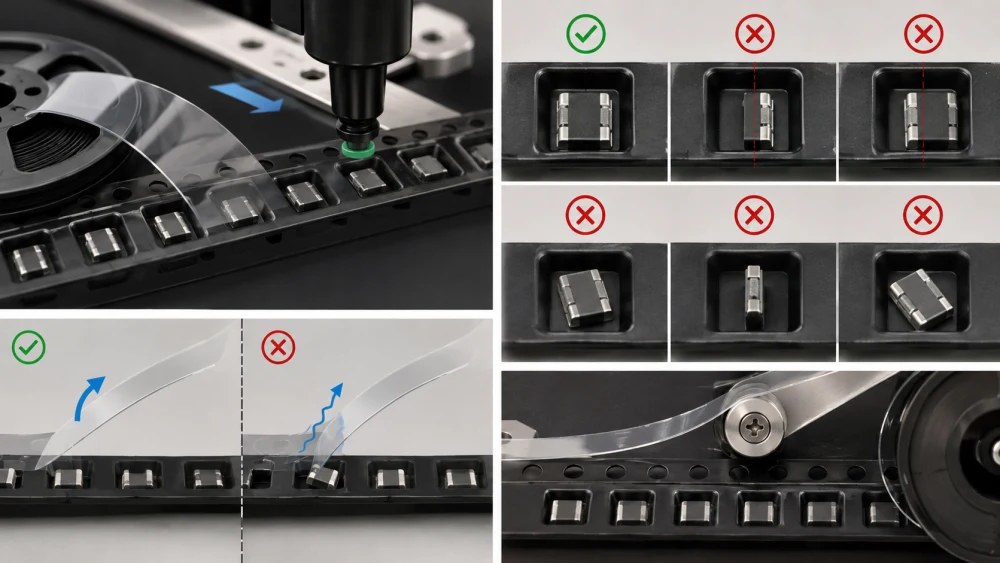

Not every pickup position problem is caused by feeder movement. The component itself may move inside the pocket before the nozzle arrives.
Small or lightweight component may move sideways inside the tape pocket. When the component is no longer centered, the nozzle may pick it from the edge or fail to create a stable vacuum seal.
Engineers should inspect the component immediately after the cover tape is removed and before the nozzle picks it up. If the component is already shifted, the material packaging or tape specification should be reviewed.
A component may stand at an angle because the pocket is too shallow, too large, damaged, or contaminated. It may also be affected by cover tape peeling force or vibration during indexing.
A tilted component can create incorrect pickup position, component rotation, dropped component, or upside down placement. Slower feeder speed and better packaging may improve stability, but some component may require a different carrier tape design.
If cover tape peels unevenly, it may pull the component or create vibration near the pickup point. Excessive peeling force can move lightweight component. Loose peeling can leave tape material in the pickup area.
Engineers should check cover tape angle, peeling tension, waste tape path, and tape collection. The cover tape should separate smoothly without disturbing the component inside the pocket.
A correct SMT feeder calibration process should verify the feeder position, tape indexing, pickup coordinate, pickup height, and repeatability. Calibration should be performed after feeder repair, feeder collision, long-term storage, repeated pickup error, or material change.
Before calibration, clean the feeder body, sprocket, guide rail, tape path, and pickup area. Remove tape fragments, component debris, and dust. Confirm that the correct feeder type is being used for the tape width and pitch.
Load a known-good component reel if possible. Using a stable reference reel makes it easier to distinguish feeder error from material packaging error.
Run several indexing cycles and observe whether the tape advances consistently. Check that the sprocket engages the tape holes and that each component pocket stops at the same pickup location.
If the tape position changes from cycle to cycle, mechanical repair should be completed before software calibration. Software correction cannot compensate for unstable indexing.
After mechanical indexing is stable, teach or verify the X and Y pickup coordinate. The nozzle should be positioned over the actual component center. The pickup point should provide enough contact area for stable vacuum without touching the pocket wall.
For small component, the pickup coordinate should be checked carefully under magnification. A small coordinate error can be large compared with the component body.
Set pickup height so that the nozzle contacts the component firmly but does not press it deeply into the pocket. Confirm that vacuum reaches the required level within the expected time.
Run repeated pickup tests and monitor whether the component remains centered on the nozzle during head movement. If the component shifts after pickup, nozzle selection, vacuum response, and head acceleration should also be checked.
Calibration is not complete after one successful pickup. The feeder should run enough cycles to confirm repeatability. Engineers should check pickup position, vacuum value, component angle, and camera recognition result across consecutive cycles.
A feeder that works once but fails intermittently is not stable enough for mass production.

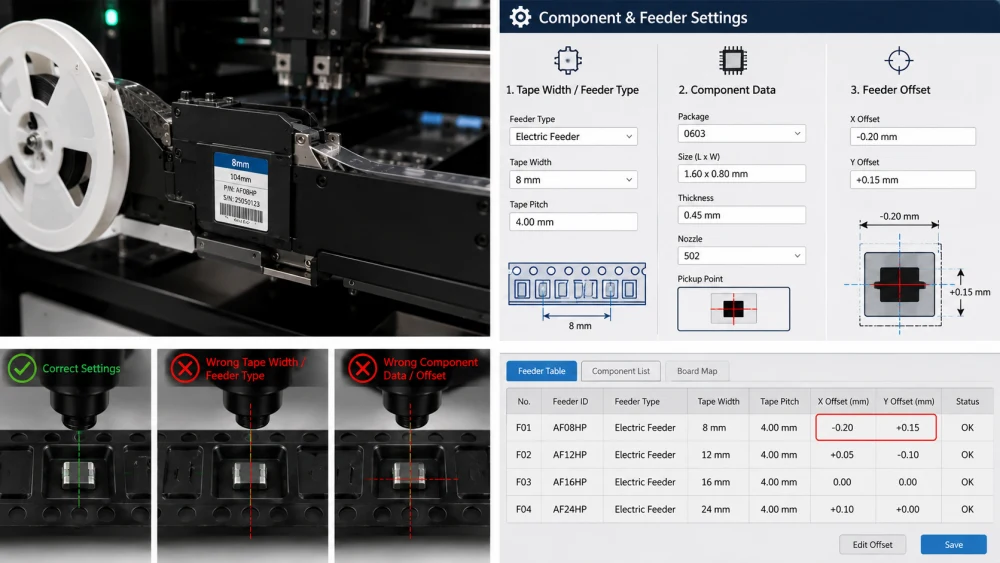

Incorrect software settings can create an incorrect feeder pickup position even when the feeder hardware is in good condition.
If the program uses the wrong tape width or feeder type, the machine may calculate the wrong feeder position or indexing behavior. This can cause incorrect pickup coordinate and repeated component pickup failure.
Engineers should compare the actual feeder label, tape width, tape pitch, component package, and machine program. Similar-looking feeder models may have different indexing or pickup characteristics.
Component data may include package size, thickness, pickup point, nozzle type, feeder type, tape pitch, and recognition parameter. If this data is copied from another component without verification, the machine may use an unsuitable pickup setup.
Component replacement and supplier changes require special attention. Even when the electrical specification is the same, the packaging dimensions or pocket design may be different.
Some machine systems use feeder-specific offset values. If the offset is incorrect, the nozzle may consistently arrive too far to one side of the component.
Engineers should review feeder offset history and compare the value with a known-good feeder. Offset should be changed carefully and recorded after verification.
A feeder pickup error can be affected by other parts of the machine. Engineers should confirm that the feeder is not being blamed for a nozzle or vision problem.
A dirty or worn nozzle may pick the component off-center even when feeder position is correct. Engineers should inspect the nozzle tip, air hole, nozzle ID, and seating condition.
Weak or delayed vacuum can make a correct pickup look like a feeder position error. The component may be picked but move during head acceleration. Engineers should compare vacuum response with another nozzle or head.
If the component is picked slightly off-center, the vision system may correct the position if the error is within its allowed range. If the error is too large, the machine may reject the component.
For a wider view of how feeder, nozzle, vacuum, and placement symptoms are connected, engineers can read this SMT pick and place troubleshooting guide:

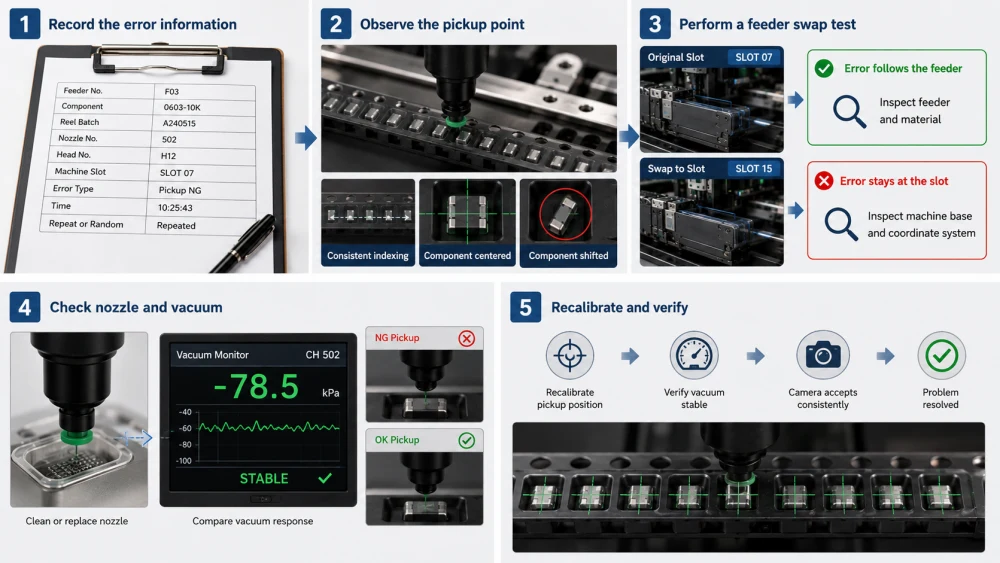

A structured troubleshooting sequence helps engineers find the cause without changing too many variables.
Record the feeder number, component name, reel batch, nozzle number, head number, machine slot, error type, and time of occurrence. Note whether the problem is repeated or random.
Watch the feeder during several indexing cycles. Check where the component stops, whether the tape moves consistently, and whether the component remains centered inside the pocket.
Move the suspected feeder to another machine slot. Keep the same nozzle, component program, and production conditions. If the error follows the feeder, inspect the feeder and material. If the error stays at the slot, inspect the machine base and coordinate system.
Clean or replace the nozzle and compare vacuum response. If the pickup error disappears, the feeder may not be the primary cause.
After correcting the suspected cause, run repeated pickup cycles. Confirm that the component is centered, the vacuum value is stable, and the camera accepts the pickup consistently.
SMT feeder pickup position error is commonly caused by incorrect feeder installation, unstable tape indexing, wrong pitch setting, worn sprocket, incorrect pickup coordinate, unsuitable pickup height, component movement inside the pocket, cover tape peeling problems, wrong feeder offset, or incorrect component data.
The correct SMT feeder calibration process should include mechanical inspection, indexing verification, pickup coordinate teaching, pickup height adjustment, vacuum confirmation, and repeatability testing. Calibration is not complete until the feeder runs consistently across multiple cycles.
Engineers should also check the nozzle, vacuum system, vision setting, and component packaging. A feeder problem and a nozzle problem can create very similar machine alarms, so controlled testing is important.
I.C.T provides professional one-stop SMT solution for electronics manufacturers, including SMT line planning, feeder setup, pick and place process support, feeder calibration guidance, inspection, training, and production troubleshooting. For factories facing repeated feeder pickup position error, a complete review of feeder, material, nozzle, and machine data can help improve placement stability.
SMT feeder pickup position error is usually caused by incorrect tape indexing, wrong pickup coordinate, feeder installation error, feeder wear, wrong tape pitch, component movement inside the pocket, or incorrect feeder offset. The nozzle may also appear to miss the component when the real problem is feeder presentation. Engineers should observe the pickup point and perform a feeder swap test before changing machine parameters.
Engineers correct an incorrect feeder pickup position by checking feeder seating, cleaning the feeder base, verifying tape pitch, inspecting sprocket movement, teaching the pickup X/Y coordinate, and adjusting pickup height. After adjustment, the feeder must be tested across multiple indexing cycles. A single successful pickup does not prove that the feeder is stable enough for production.
An SMT feeder calibration process usually includes feeder cleaning, mechanical indexing inspection, tape pitch verification, pickup coordinate teaching, pickup height adjustment, vacuum confirmation, and repeatability testing. The process should use a known-good component reel when possible. Calibration should be repeated after feeder repair, collision, long-term storage, or repeated pickup error.
Yes, a feeder problem can cause component rejection. If the component is picked from the edge or at an angle, the vision system may reject it because its center, rotation, or outline is outside the allowed range. The machine may report a vision rejection even though the feeder created the original pickup offset. Pickup position, nozzle number, vacuum value, and camera image should be reviewed together.
SMT feeders should be calibrated according to usage, equipment condition, and defect history. High-use feeder may require more frequent inspection than low-use feeder. Calibration should also be performed after repair, collision, abnormal indexing, repeated pickup error, or long-term storage. Instead of using only a fixed calendar interval, factories should combine scheduled maintenance with actual feeder performance data.
SMT feeder pickup position errors are often caused by a combination of mechanical, software, material, and process conditions. The feeder may be incorrectly seated, the tape may index inaccurately, the component may move inside the pocket, or the program may use the wrong pickup coordinate.
A reliable solution starts with error pattern analysis and direct observation of the pickup point. Engineers should then check feeder installation, indexing, pitch, pickup coordinate, pickup height, component packaging, nozzle condition, vacuum response, and vision data in a controlled sequence.
With a disciplined SMT feeder calibration process and regular performance tracking, factories can reduce component pickup failure, material waste, machine stops, and placement instability. I.C.T can support manufacturers with practical SMT equipment and process solutions from feeder setup to complete production line optimization.
