SMT component placement shift happens when a component is not mounted in its intended pad position during the pick and place process. This problem may look small at first, but it can lead to solder bridging, open solder joint, tombstoning, poor electrical contact, rework, and unstable product quality after reflow.
For electronics manufacturers, component misalignment during placement is not only a machine accuracy issue. It can be caused by PCB support, nozzle wear, feeder position, vision recognition, solder paste condition, placement pressure, board warpage, or incorrect program data. A stable SMT process requires every part of the placement chain to work together.
This guide explains the most common SMT placement offset causes and shows how engineers can troubleshoot them in a practical way.
Component shift means the component is placed away from its designed pad center. The offset can happen in the X direction, Y direction, rotation angle, or a combination of all three. In some cases, the component is only slightly off-center and may still pass inspection. In more serious cases, it causes visible solder defect or functional failure.
SMT component placement shift usually appears in several forms:
First, the component may move sideways from the pad center. This is common on small chip component, resistor, capacitor, diode, and fine-pitch IC. Second, the component may rotate slightly, which can affect lead alignment and solder joint formation. Third, the component may sit on the edge of solder paste instead of landing correctly on the pad. Fourth, the component may look correct before reflow but move during reflow due to solder wetting imbalance.
Each type of shift gives a different clue. A repeated shift in one direction may point to machine calibration, board positioning, or program offset. Random shift may point to nozzle, vacuum, feeder, solder paste, or board support instability.
Modern SMT production uses smaller component, tighter pad spacing, and faster placement speed. This makes the process less forgiving. A small placement offset that was acceptable for a large chip component may create a serious problem for a 0201 component, BGA, QFN, or fine-pitch connector.
When the component is not centered, solder paste volume is no longer balanced. During reflow, molten solder may pull the component further away from its correct position. This can create bridging, tombstone, insufficient solder, skewed component, or hidden joint weakness.

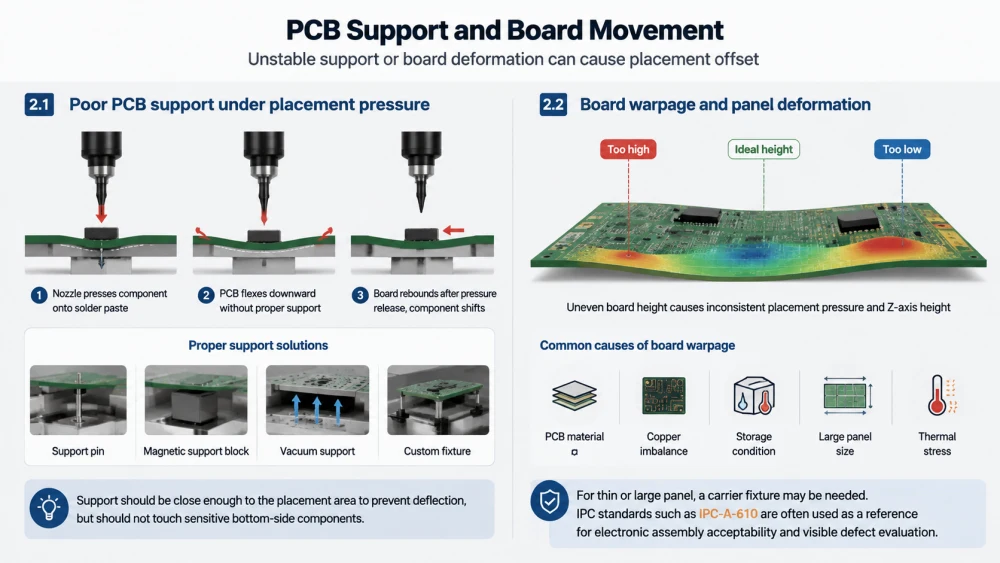

One of the most overlooked SMT placement offset causes is unstable PCB support. If the board moves, bends, vibrates, or is not clamped properly during placement, even a high-accuracy placement machine cannot maintain stable results.
During placement, the nozzle presses the component onto the solder paste. If the PCB is not supported from below, the board may flex downward. When the board rebounds, the component can shift slightly. This is especially common with thin board, large panel, flexible PCB, or board with uneven component distribution.
Engineers should check whether support pin, magnetic support block, vacuum support, or custom fixture is positioned correctly. The support should be close enough to the placement area to prevent deflection, but it should not touch sensitive bottom-side component.
PCB warpage can cause different height across the panel. If one area of the board is higher or lower than expected, placement pressure and Z-axis height may become inconsistent. Some component may be pressed too hard, while others may barely touch the solder paste.
Board warpage may come from PCB material, copper imbalance, storage condition, panel size, or thermal stress. For thin or large panel, a carrier fixture may be needed. IPC standards such as IPC-A-610 are often used as a reference for electronic assembly acceptability and visible defect evaluation.
The nozzle is the direct contact point between the SMT machine and the component. If the nozzle cannot pick the component securely and centrally, placement shift becomes very likely.
A worn nozzle may lose its flatness or air sealing ability. A dirty nozzle may have flux residue, dust, solder particle, or adhesive material on the pickup surface. An incorrect nozzle size may not match the component body, causing unstable pickup and inaccurate centering.
For small component, nozzle condition is critical. If the nozzle is too large, it may touch adjacent component in the tape pocket. If it is too small, it may not provide enough holding force. If the nozzle tip is damaged, the component may rotate during fast head movement.
Vacuum problems can cause the component to move between pickup and placement. If vacuum pressure is weak, unstable, or delayed, the component may slide on the nozzle tip. This often appears as random placement offset, dropped component, or intermittent recognition failure.
Engineers should inspect the nozzle, vacuum filter, vacuum pipe, head seal, ejector, and vacuum sensor value. A stable vacuum curve is often more useful than only checking whether the machine reports an alarm.

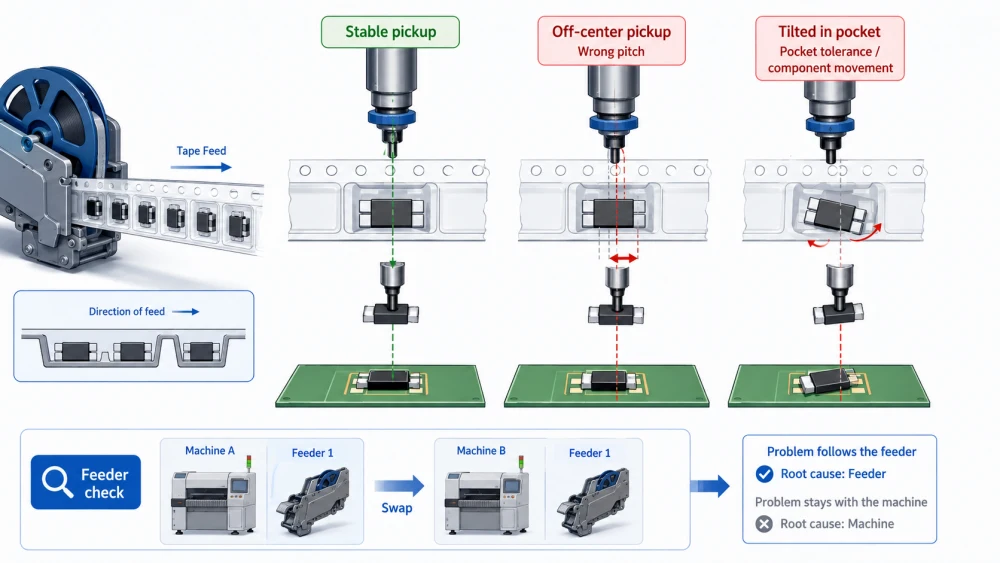

Feeder error is another major cause of component misalignment during placement. If the component is not presented correctly in the tape pocket, the nozzle may pick it off-center. The machine may still place it, but the component position can shift or rotate.
When feeder pitch, tape advance, or pickup coordinates are wrong, the component will not sit under the nozzle center at the pickup moment. This creates an unstable pickup. The vision system may correct small error, but it cannot fully solve a poor mechanical pickup condition.
Common signs include repeated pickup error, component standing at an angle on the nozzle, high rejection rate, and placement offset that appears only on one feeder position. If the problem follows the feeder after swapping positions, the feeder is likely the root cause.
Some component may move inside the tape pocket before pickup. This can happen with very small component, loose packaging, damaged carrier tape, or vibration during feeder indexing. If the component is already tilted or shifted in the pocket, the nozzle may pick it at the wrong center.
Engineers should check feeder cover tape tension, sprocket engagement, feeder calibration, pickup height, and component pocket condition. Material packaging quality can directly affect placement stability.

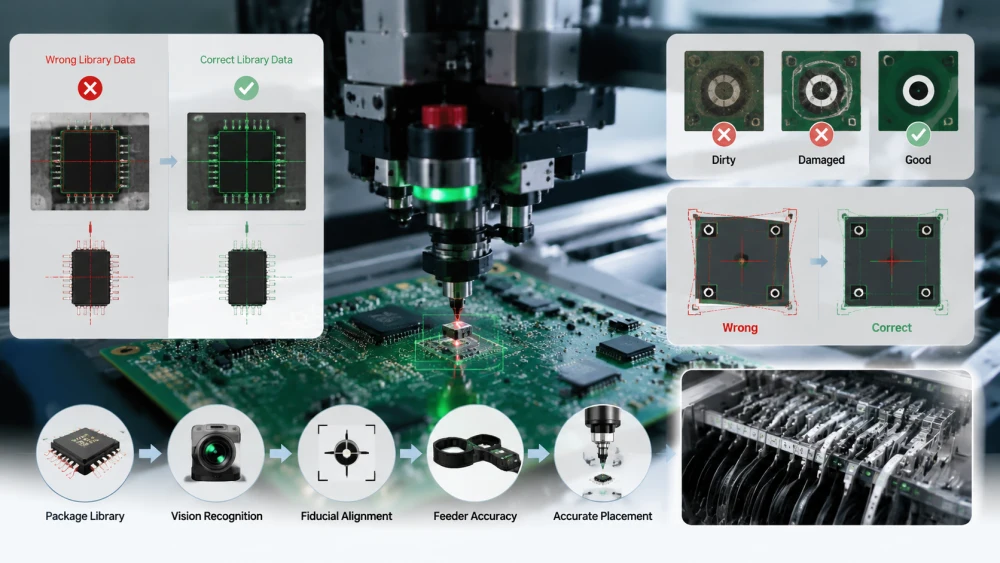

SMT machine vision is designed to correct component position before placement. However, if the vision data, lighting, package library, or fiducial recognition is wrong, the machine may calculate an incorrect offset.
Every component needs correct size, body outline, lead position, thickness, polarity, and recognition parameter. If the component library data is wrong, the camera may recognize the wrong edge or center point. The machine may then place the component according to a false correction value.
This is common after new product introduction, component replacement, library copying, or manual data editing. Engineers should compare the actual component with the library data, especially for similar package types that look almost the same but have different body size or lead geometry.
If the board fiducial is dirty, damaged, poorly designed, or incorrectly recognized, the entire board coordinate system may shift. In this case, many component may show offset in a similar direction. The problem may not be the placement head; it may be the board alignment reference.
Fiducial marks should have clear contrast, enough clearance, and stable solder mask definition. The machine should recognize the correct fiducial point consistently before placement starts.
For a wider troubleshooting framework that connects vision, feeder, pickup, and nozzle symptoms, engineers can also review this SMT pick and place troubleshooting guide.
Some placement shift is not caused by the placement machine itself. The component may be placed correctly, but the solder paste condition causes it to move before or during reflow.
If solder paste volume is uneven between two pads, the component may be pulled toward the side with stronger wetting force during reflow. This is a common cause of tombstone, skew, and small chip movement.
Uneven paste volume may come from stencil blockage, poor stencil design, incorrect aperture ratio, insufficient cleaning, bad squeegee pressure, or unstable printing speed. SPI data can help confirm whether the shift starts before placement or after reflow.
Solder paste must hold the component in place before reflow. If paste tack force is weak, the component may move during board transfer, conveyor vibration, or placement of nearby component. Paste that has been exposed too long may dry out, while paste stored incorrectly may lose stable printing and holding performance.
Process teams should control paste storage, thawing, mixing, printing interval, and stencil cleaning. The IPC J-STD-001 standard is a useful reference for soldered electrical and electronic assembly process requirements.

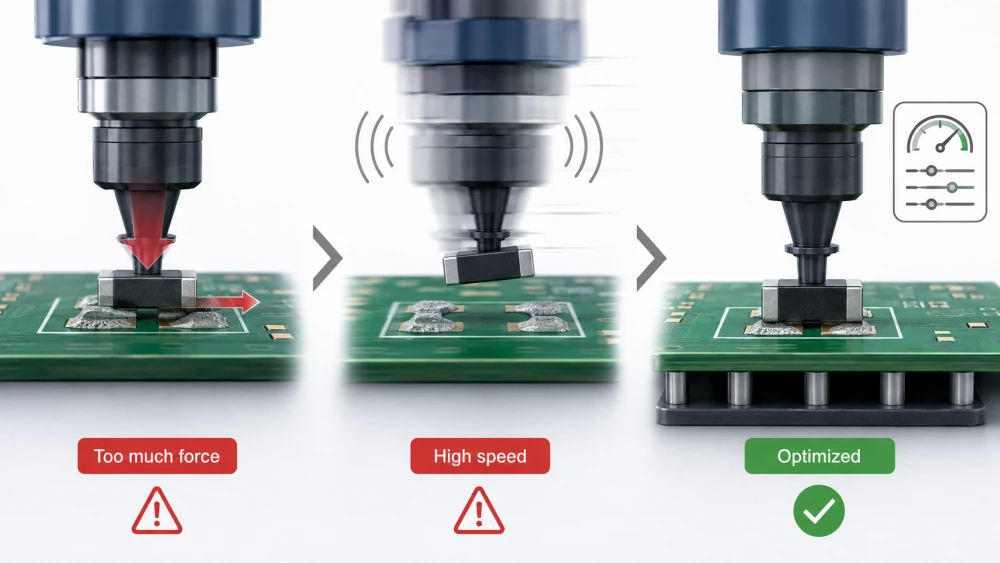

Machine settings can directly affect placement accuracy. A program that runs well at low speed may create offset at full production speed if acceleration, placement force, or Z-axis height is not optimized.
If placement force is too high, the component can slide on the solder paste instead of landing gently. This is more likely when the paste deposit is high, the pad is small, or the component has a smooth bottom surface.
Excessive force may also damage delicate component or create hidden stress. Engineers should optimize placement force according to component type, package size, board support, and paste condition.
High placement speed improves output, but it also increases vibration, acceleration stress, and component movement risk. If the head moves too aggressively, the component may shift on the nozzle before placement. If the board support is weak, high-speed placement can make offset worse.
A practical approach is to reduce speed temporarily during troubleshooting. If the shift improves, the process team can adjust acceleration, placement sequence, support condition, or nozzle choice before returning to full production speed.
Not every offset seen after reflow is a placement error. A component may be correctly mounted before reflow and still move during the heating process.
When solder on one pad melts or wets faster than the other side, surface tension can pull the component away from the center. This is common on small chip component, especially when pad design, paste volume, or thermal distribution is unbalanced.
Engineers should compare pre-reflow AOI or microscope inspection with post-reflow inspection. If the component is centered before reflow but shifted after reflow, the root cause is likely soldering process, not placement machine accuracy.
Moisture-sensitive component may behave unpredictably during reflow if storage and baking are not controlled. JEDEC J-STD-033 provides handling guidance for moisture and reflow sensitive surface mount device. Poor moisture control can increase process risk, especially for IC package, BGA, and high-value component.
Thermal profile should also be reviewed. Too fast ramp rate, uneven heating, or unstable conveyor speed can affect solder wetting balance and component stability.

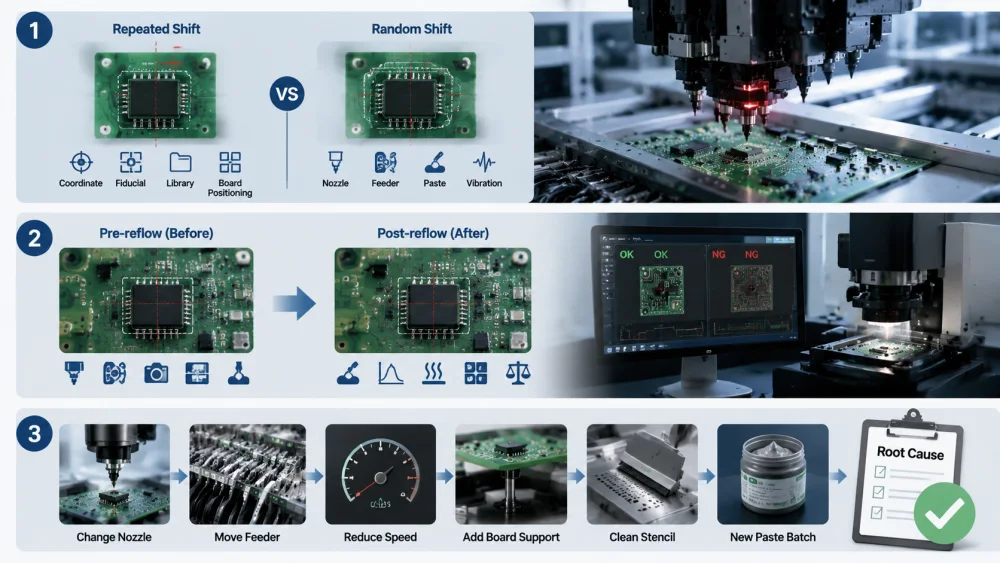

A good troubleshooting method separates machine cause from material cause and process cause. Without this structure, teams may adjust many settings but fail to find the real reason.
If the same component shifts in the same direction on every board, the likely cause is program coordinate, fiducial, component library, board positioning, or stencil alignment. If the shift appears randomly, the likely cause is nozzle, vacuum, feeder, paste tack force, board vibration, or material variation.
This simple distinction helps engineers avoid wasting time. A repeated offset should be treated like a coordinate or setup problem. A random offset should be treated like a stability problem.
Pre-reflow inspection is one of the best ways to locate the true stage of failure. If the component is already shifted before reflow, focus on placement machine, feeder, nozzle, vision, PCB support, and paste holding force. If the component shifts only after reflow, focus on solder paste volume, pad design, thermal profile, and wetting balance.
AOI, SPI, machine placement report, and manual microscope check should be used together. One data source rarely tells the full story.
Engineers can isolate the cause by changing one factor at a time. For example, swap the nozzle, move the feeder to another lane, reduce placement speed, add PCB support, clean the stencil, or run a fresh solder paste batch. If the defect follows one item, that item becomes the strongest suspect.
This method is slower than guessing, but it produces reliable process learning. It also helps teams build a database of SMT placement offset causes for future production.
SMT component placement shift is usually caused by a chain of small process problems, not one single machine fault. The most common causes include weak PCB support, worn nozzle, unstable vacuum, feeder pickup error, wrong vision data, uneven solder paste, excessive placement pressure, and reflow wetting imbalance.
Engineers should first decide whether the shift is repeated or random, then compare pre-reflow and post-reflow inspection data. This helps separate placement error from soldering movement. Stable production depends on accurate machine setup, clean material handling, controlled solder paste printing, and regular maintenance.
I.C.T supports electronics manufacturers with professional one-stop SMT solution, including SMT line planning, pick and place process support, reflow soldering, inspection, training, and troubleshooting guidance. For factories that want to reduce placement defect and improve production stability, a complete process view is often more valuable than adjusting one machine parameter alone.
The main cause is usually unstable control of the placement process. This may include poor PCB support, incorrect pickup position, worn nozzle, weak vacuum, wrong vision data, or uneven solder paste. If the shift is repeated in the same direction, engineers should check program coordinates, fiducial recognition, and component library data. If the shift is random, the cause is more likely nozzle condition, feeder stability, board vibration, or paste tack force.
The best method is to inspect the board before and after reflow. If the component is already off-center before reflow, the issue is related to placement, pickup, vision, feeder, or board support. If the component is centered before reflow but shifted after reflow, the problem is more likely solder paste volume, pad design, thermal profile, or wetting imbalance. SPI and pre-reflow AOI are very useful for this comparison.
Yes, solder paste can cause or worsen component misalignment. If paste volume is uneven, the component may sit at an angle or move during reflow. If paste tack force is too weak, the component may shift during board transfer or vibration before reflow. Paste storage, open time, stencil cleaning, printing pressure, and aperture design should all be checked when placement offset appears together with solder defect.
When only one component type shifts, the root cause is often related to that specific package. The nozzle may not match the component body, the feeder pocket may allow movement, the vision library may have incorrect size data, or the pad design may create uneven solder wetting. Engineers should check the component drawing, package library, pickup position, nozzle type, feeder condition, and paste deposit for that exact location.
A factory can reduce SMT placement offset by building a stable control routine. This includes checking nozzle wear, cleaning vacuum path, calibrating feeder, verifying vision library, improving PCB support, monitoring SPI data, and comparing pre-reflow AOI with post-reflow defect. For high-volume production, teams should record shift patterns by component position, feeder number, nozzle number, and production batch. This makes troubleshooting faster and prevents repeated defects.
Component shift during SMT placement is a practical process warning. It tells engineers that one part of the placement chain is no longer stable enough for the product requirement. The cause may come from machine accuracy, material presentation, solder paste behavior, board support, or reflow balance.
