Pick-and-place bottlenecks directly kill printed circuit board assembly profitability. You constantly fight the balance between raw placement speed, changeover agility, and uncompromising product quality. Selecting the wrong surface mount technology platform leads to massive downtime, high scrap rates, and placement errors. Forcing a high-volume machine into a high-mix environment guarantees setup delays. Running an agile platform for sustained mass production chokes your output.

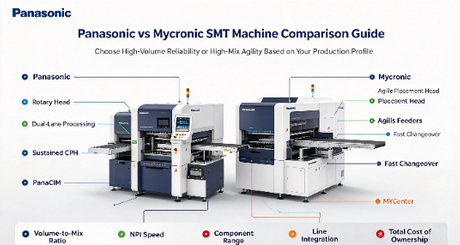

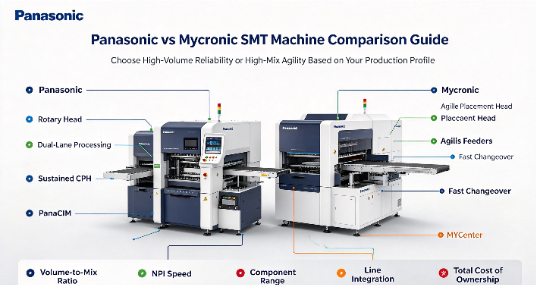

Evaluating a Panasonic vs Mycronic SMT Machine means looking at actual production requirements, long-term reliability, and line compatibility. Panasonic delivers sustained, ultra-high-speed throughput for massive runs. Mycronic gives you rapid changeovers and extreme component flexibility for dynamic schedules. We will break down their architectural differences, software ecosystems, and line compatibility so you can optimize production efficiency based on real operational data.
Production Profile Alignment: Panasonic generally excels in high-volume, low-mix (HVLM) environments requiring sustained, ultra-high-speed throughput, whereas Mycronic is architected for high-mix, low-volume (HMLV) agility and rapid changeovers.
Software and Ecosystem: Mycronic’s software suite prioritizes seamless NPI (New Product Introduction) and inventory management, while Panasonic’s PanaCIM focuses on enterprise-level line control and continuous production monitoring.
Integration Realities: Evaluating either SMT machine requires assessing compatibility with existing screen printers, reflow ovens, and MES (Manufacturing Execution Systems) to ensure seamless inline or island configurations.
Vendor Support and Reliability: Long-term success depends heavily on the manufacturer's global service network, SLA options, and the reliability of their hardware under continuous operational stress.
Table of Contents

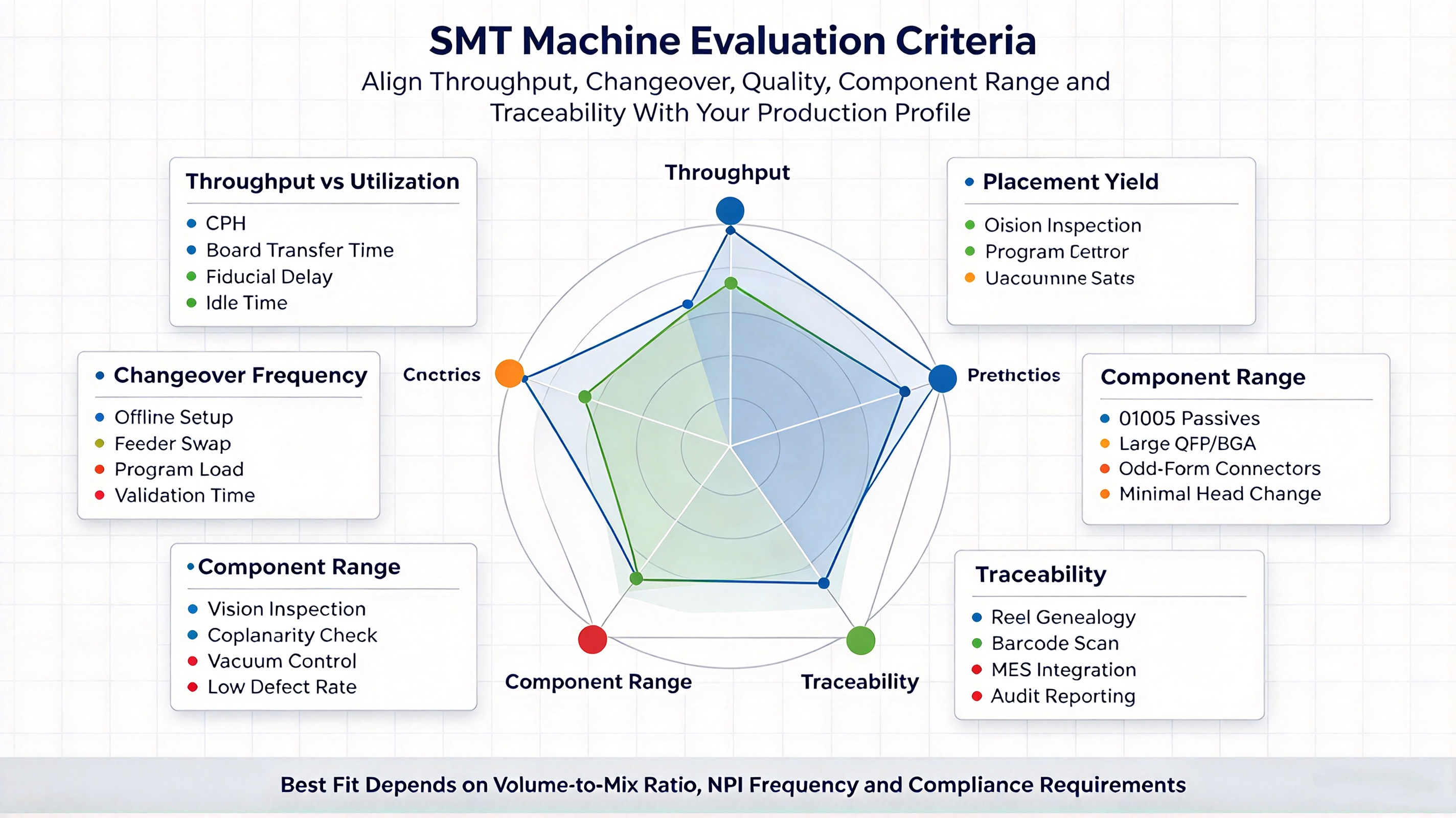

Theoretical placement speed provides a baseline for components per hour (CPH) using the IPC-9850 standard. However, theoretical CPH rarely reflects actual factory floor output. True production efficiency relies on line utilization rates. A machine boasting 100,000 CPH means nothing if it sits idle for hours during complex setups. Evaluating an SMT Machine requires calculating real-world throughput. You must factor in board transfer times, fiducial recognition delays, and nozzle change intervals. High-volume environments demand sustained CPH. High-mix facilities prioritize maintaining high utilization despite frequent production stops. When you run a continuous automotive board line, you want the head moving constantly. When you run prototype batches, you want the machine back up and running within minutes of a job completion.
The number of daily product changeovers dictates your necessary feeder capacity and software setup speed. In a facility running ten different assemblies per shift, changeover time becomes the primary bottleneck. Success depends on how quickly operators can swap feeder banks, load new placement programs, and verify component values. Machines designed with offline setup capabilities allow operators to prepare the next job while the current one runs. This drastically reduces machine downtime. Feeder architecture directly influences this metric. Bulky or complex feeders slow down the transition process. If your operators spend thirty minutes splicing tape and verifying reels for every new job, your utilization rate plummets.
High placement speeds must never compromise product quality. Reworking a densely populated PCB degrades reliability and wastes labor hours. Modern platforms utilize advanced vision systems, real-time error correction, and coplanarity checks to maintain high placement yields. Success criteria include the machine's ability to detect bent leads, verify component orientation before placement, and automatically adjust for slight board warpage. Reject rates must remain near zero. This requires robust mechanical stability and precise vacuum control at the nozzle tip. A dropped component or a skewed 0402 resistor creates a downstream nightmare at the Automated Optical Inspection (AOI) station.
Miniaturization continues to push the limits of assembly hardware. A capable platform must handle micro-components, such as 01005 and 0201 metric chips, with absolute precision. Simultaneously, the machine must accommodate large, odd-form connectors, heavy inductors, and tall electrolytic capacitors. Success is defined by the equipment's ability to manage this vast component range without requiring excessive manual intervention. You want to avoid custom nozzles or specialized placement heads that disrupt the standard production flow. If your machine requires a manual head swap to place a 45mm BGA, you lose valuable production time.
Regulated sectors, including medical devices, aerospace, and automotive manufacturing, require strict component-level traceability. Success criteria involve the machine's software capacity to log exactly which component reel was used on a specific board serial number. This requires seamless integration with barcode scanners, intelligent feeders, and factory MES networks. The system must prevent an operator from loading the wrong reel. It must document the entire placement process to satisfy strict industry compliance audits. When an auditor asks for the placement history of a specific micro-controller, your software needs to generate that report instantly.
Panasonic engineers its platforms around rotary head technology and rigid modularity. The core philosophy centers on continuous, uninterrupted placement. Rotary heads allow multiple nozzles to pick components simultaneously and place them in rapid succession. This avoids the start-stop motion inherent in some linear systems. This mechanical approach minimizes vibration at high speeds, ensuring consistent accuracy during massive production runs. The modular design allows facilities to scale their lines by adding specific placement or dispensing modules as volume demands increase. You build a line that matches your exact throughput requirements without over-investing in unnecessary flexibility.
When sustained high-speed placement is the primary goal, Panasonic architectures excel. The integration of dual-lane processing allows the machine to populate two identical boards simultaneously or process two different boards asynchronously. This eliminates board transfer bottlenecks. The rotary placement heads maintain their CPH ratings even when handling a dense mix of standard passive components. The rigid gantry systems and advanced linear motors drive the placement heads with aggressive acceleration profiles. You maximize output per square meter of factory floor space. If you need to place millions of 0201 capacitors a week, this architecture handles the load effortlessly.
Panasonic integrates AI-driven placement corrections to maintain reliability under continuous operational stress. The machines monitor placement data in real-time. They automatically adjust for microscopic shifts in board alignment or component variations. Mechanical engineering focuses on robust, heavy-duty castings that resist thermal expansion and vibration. This intelligent communication extends across the production line. The machine feeds data back to the screen printer to correct solder paste offsets before they cause placement defects. You get a self-correcting line that runs for shifts at a time with minimal operator intervention.
The intelligent feeder system handles bulk components for uninterrupted operation. Panasonic utilizes splice-free operation capabilities. Operators attach a new reel of components to an expiring reel without stopping the machine. The feeder carts allow rapid swapping. Operators wheel in an entirely new bank of pre-validated components. This architecture supports continuous manufacturing. The machine runs for days or weeks on a single product family. You spend less time tearing down setups and more time pushing boards through the reflow oven.
Panasonic ecosystems thrive in environments where volume dictates profitability. Contract manufacturers and original equipment manufacturers producing consumer electronics, smartphones, automotive control modules, and LED lighting arrays benefit immensely from this architecture. These facilities experience infrequent changeovers and demand enterprise-grade continuous reliability. The machines run 24/7. They represent the optimal choice for high-volume, low-mix production strategies. If your production schedule looks the same on Friday as it did on Monday, Panasonic provides the stability you need.
Mycronic approaches assembly with a focus on extreme flexibility and software-driven setup. The engineering philosophy prioritizes the ability to handle any component, on any board, at any time. Rather than relying on massive rotary heads, Mycronic utilizes highly agile placement heads combined with sophisticated tool banks. This architecture integrates with their proprietary jet printing technology. Facilities apply solder paste on the fly without needing custom stencils for every new board revision. You eliminate stencil procurement delays and start building prototypes the same day you receive the bare boards.
The Agilis feeder system drives Mycronic's changeover optimization. These feeders lack complex moving parts. They rely on the machine to advance the tape. Operators load a new reel into a feeder in seconds without tools or tape splicing. The software-centric approach enables comprehensive off-line setup. Operators program the machine, validate component values, and load the Agilis feeders onto magazines while the machine actively builds another product. This architecture minimizes downtime during New Product Introductions. You swap a completed job for a new prototype in minutes instead of hours.
Mycronic utilizes advanced on-the-fly vision systems. Cameras mounted directly on the placement head inspect components as they travel from the feeder to the board. This eliminates the need to travel to a stationary upward-looking camera for standard parts. This ecosystem integration extends to pairing the placement platform with Mycronic's 3D SPI and AOI solutions. The machines share inspection data. They create a closed-loop system that enhances overall line quality and automatically flags potential defect trends. You catch placement errors before the board enters the reflow oven.
Mycronic platforms handle a vast array of component types without requiring specialized placement heads or extensive mechanical reconfiguration. The machines seamlessly transition from placing 01005 passives to large QFPs, BGAs, and odd-form connectors. The intelligent tool banks automatically swap nozzles in seconds based on the software program. This versatility ensures that highly complex boards with diverse Bills of Materials assemble in a single pass. You do not need to route boards to a secondary hand-placement station for odd-form parts.
Mycronic platforms fit facilities that require maximum agility over raw CPH. Contract manufacturers specializing in aerospace, defense, medical prototyping, and specialized industrial controls fit this profile perfectly. These environments handle multiple daily changeovers, build complex boards in small batches, and face constant design revisions. The ability to transition from one complex product to an entirely different one in minutes makes this architecture indispensable for high-mix, low-volume operations. If your production schedule changes three times a day, Mycronic keeps your spindles turning.
Panasonic uses rigid frames and rotary heads to maintain high placement speed and accuracy, making it suitable for large volumes of standard components. Mycronic has lower raw speed but maintains stable accuracy across a wider range of complex components. Both use advanced vision systems to inspect components and reduce placement defects.
Panasonic uses feeder carts that can be prepared offline, which works well for repeated high-volume production. Mycronic uses Agilis feeders and software-based setup to support faster product changes. It can import CAD and BOM data, simplify feeder loading, and speed up first article production, making it more flexible for frequent NPI and prototype work.
Panasonic PanaCIM focuses on factory-wide production control, material management, MES integration, and predictive maintenance. Mycronic MYCenter focuses more on rapid setup, component inventory, and NPI management. PanaCIM is designed for large-scale production control, while MYCenter supports flexible production and frequent changeovers.
Panasonic generally provides higher CPH per square meter through high-speed and dual-lane processing, but feeder carts and offline setup areas require additional space. Mycronic may provide lower output per square meter, while its compact Agilis feeders require less storage space. The choice depends on whether the factory prioritizes maximum output or flexible setup.
Panasonic has a large global service network that supports spare parts, long-term service, and continuous production environments. Mycronic provides specialized technical support and remote diagnostics closely connected to its software ecosystem. Both support long-term machine operation, but their service models are designed for different production needs.
Feature / Attribute | Panasonic Architecture | Mycronic Architecture |
|---|---|---|
Primary Strength | Sustained ultra-high-speed throughput | Extreme changeover agility and flexibility |
Feeder System | Intelligent cart-based, splice-free operation | Agilis individual feeders, tool-free loading |
NPI Speed | Moderate; requires cart preparation | Exceptionally fast; software-driven setup |
Component Range | Excellent; uses modular precision heads | Vast; handles odd-forms without head changes |
Software Focus | PanaCIM: Enterprise line control & MES | MYCenter: Rapid setup & inventory tracking |
Ideal Environment | High-Volume, Low-Mix (HVLM) | High-Mix, Low-Volume (HMLV) |
Introducing a new platform introduces a learning curve for programming and operation. Panasonic systems require operators to understand complex cart management, splice-free reloading techniques, and enterprise software navigation. Mycronic systems require operators to adapt to software-heavy interfaces and unique feeder mechanics. The risk of operator error increases during the transition period. You mitigate this by leveraging vendor training programs extensively before installation. Utilize the intuitive UI features of both platforms and create standardized internal operating procedures. This ensures operators confidently manage setups and troubleshoot minor faults without calling engineering.
Integrating a modern platform into a line with older, non-communicative equipment poses significant risks. A new machine cannot optimize production if the legacy screen printer or reflow oven creates a bottleneck. Older equipment lacks the communication protocols necessary for closed-loop feedback. You mitigate this by implementing middleware solutions or ensuring all equipment adheres to standardized SMEMA or the newer IPC-HERMES-9852 protocols. Upgrade legacy inspection equipment to match the throughput and communication capabilities of the new placement machine. You need the entire line talking to achieve true efficiency.
Committing to either brand means committing to their proprietary feeder ecosystem. Feeders represent a massive operational investment. If a facility chooses a platform but fails to acquire enough feeders to support offline setup, the machine's efficiency drops drastically. The risk is being locked into a system that cannot scale with future production needs. You mitigate this through accurate modeling based on current and projected component inventory. Implement phased purchasing strategies. Acquire the base machine with enough feeders for immediate needs, while budgeting for additional feeder banks as product complexity grows.
Neither machine is objectively superior in a vacuum. Efficiency and product quality depend entirely on your facility's volume-to-mix ratio and specific production line suitability. Panasonic dominates environments where raw speed and continuous operation drive profitability. Mycronic leads in environments where the ability to pivot quickly between complex, low-volume builds is your primary competitive advantage. Aligning the machine's architectural strengths with your factory's actual daily operational realities prevents costly bottlenecks.
Take the following next steps to finalize your equipment evaluation:
Conduct a rigorous time-study on your facility's current changeover bottlenecks to quantify lost production hours.
Audit your existing feeder inventory and component mix to determine which feeder architecture best supports your daily operations.
Request a time-to-volume demonstration from both manufacturers using your facility's most complex and challenging PCB assembly.
Evaluate the integration capabilities of your existing MES and inspection equipment with PanaCIM and MYCenter software suites.
A: Panasonic machines are engineered for high-volume, low-mix production, utilizing rotary heads for sustained, ultra-high-speed placement. Mycronic machines focus on high-mix, low-volume environments, prioritizing rapid changeovers, software-driven agility, and flexible component handling for frequent product transitions.
A: Mycronic generally excels at NPI. Its software-centric MYCenter suite, combined with the tool-free Agilis feeder system, allows operators to program new boards and load components significantly faster than traditional cart-based systems. This minimizes downtime during prototype builds.
A: Both brands utilize advanced cameras and software to minimize defects. Panasonic relies on robust mechanical stability and AI-driven placement corrections for continuous runs. Mycronic utilizes head-mounted, on-the-fly vision systems to inspect components continuously, adapting instantly to varied component types without slowing down.
A: Yes, using standardized SMEMA or IPC-HERMES-9852 protocols, they can physically pass boards to one another. However, mixing brands complicates software integration, requires operators to learn two distinct interfaces, and forces the facility to maintain two completely different proprietary feeder inventories.
A: Panasonic utilizes intelligent, cart-based systems designed for bulk loading and splice-free continuous operation, ideal for long runs. Mycronic uses the Agilis system, featuring individual, tool-free feeders that snap into place instantly, optimizing speed for frequent offline setups.
A: Both require strict adherence to daily, weekly, and annual calibration routines, including nozzle cleaning, vacuum checks, and axis lubrication. Long-term reliability depends heavily on following these schedules and utilizing the manufacturer's global service networks for periodic deep maintenance.
