NPM-DX Panasonic Pcb Smt Pick And Place Machine

| Modular SMT Mounting Platform

The NPM-DX Panasonic Pcb Smt Pick And Place Machine is a modular mounter for factories that need speed, accuracy, and easier line control. It uses a configuration of four heads and four feeder carts, allowing the machine to support up to 136 different component types. This makes it useful for high-volume production and also for factories with many PCB models. The machine can place small 0201 chips and larger components such as L 120 × W 90 × T 30 parts. In high-accuracy mode, it can reach ±15 μm placement accuracy. For electronics manufacturers, this Panasonic Pick and Place Machine helps build a more stable SMT process with less manual work.

| Panasonic Pick and Place Machine Features

High Productivity Structure

The NPM-DX is designed to improve SMT line output while supporting many component types. Its four-head and four-feeder-cart structure gives factories more room for production planning. The placement head speed can reach 49,000 CPH, with another speed mode of 35,000 CPH depending on the head and production setup. This helps the machine support both speed-focused and accuracy-focused work. For a PCB SMT Pick and Place Machine, productivity is not only about fast movement. It also depends on feeder preparation, stable pickup, process data, and line balance. NPM-DX gives the production team a strong base for daily SMT manufacturing.

High Accuracy Placement

The machine supports placement accuracy of ±25 μm per chip and ±15 μm per chip in high-accuracy mode, based on Cpk ≥ 1. This is useful for products that need stable mounting quality and fewer placement errors. In SMT production, small placement shifts may affect soldering, AOI results, and final product reliability. The NPM-DX Panasonic Pcb Smt Pick And Place Machine helps control this risk by keeping placement more accurate during production. It is suitable for boards with small chips, ICs, connectors, and mixed components. For factories that care about quality, accuracy is not optional. It is the foundation of stable output.

APC-5M Process Control

NPM-DX supports APC-5M process control to help reduce production variation. The 5M system focuses on important production factors such as human, machine, material, method, and measurement. This helps the factory monitor unit conditions, find abnormal trends, and plan maintenance before small issues become bigger problems. The system can also support analysis from the line process controller screen, helping engineers check equipment status more clearly. For an Automatic Pick And Place Machine Smt Pcb line, this process control is useful because quality problems may come from many points. APC-5M gives the team better visibility and helps keep the line more stable.

Quality Load Checking

The NPM-DX can support load checker functions to monitor placement load for die components. As the number of die components increases, the placement load becomes more important. This function can measure the indentation load of the placement head on a regular basis. It helps visualize nozzle sliding condition and supports predictive maintenance. In simple words, it helps the factory know when the mounting head condition is changing before it causes production defects. This is useful for high-quality placement and long-term line stability. For a Pick and Place Machine used in demanding production, load monitoring can help reduce hidden risks during daily operation.

Skill-Less Labor Saving

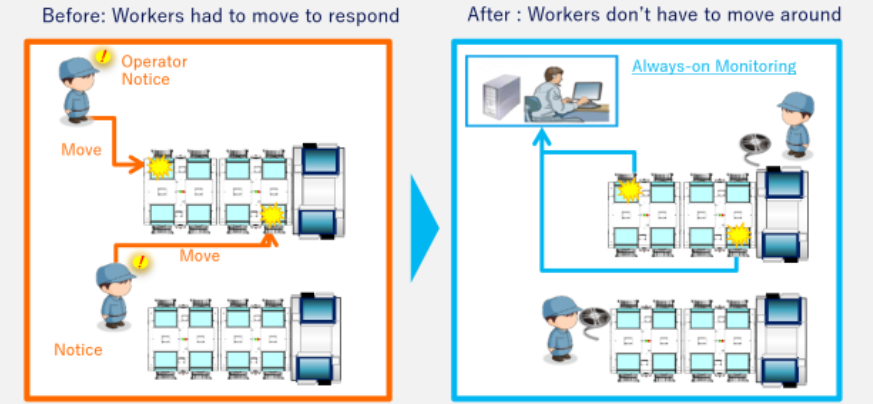

The NPM-DX includes labor-saving functions such as Auto Setting Feeder. This helps automate component feeding work and reduces operator workload. It is useful when factories face smaller batches, more product changes, or limited skilled operators. The machine can also support remote error recovery, allowing recovery work to be handled from an offsite location. This reduces the need for operators to move around the line every time an error appears. For factories building smart SMT production, these functions help improve work efficiency. They also allow operators to focus more on material supply, quality checking, and production planning instead of only reacting to alarms.

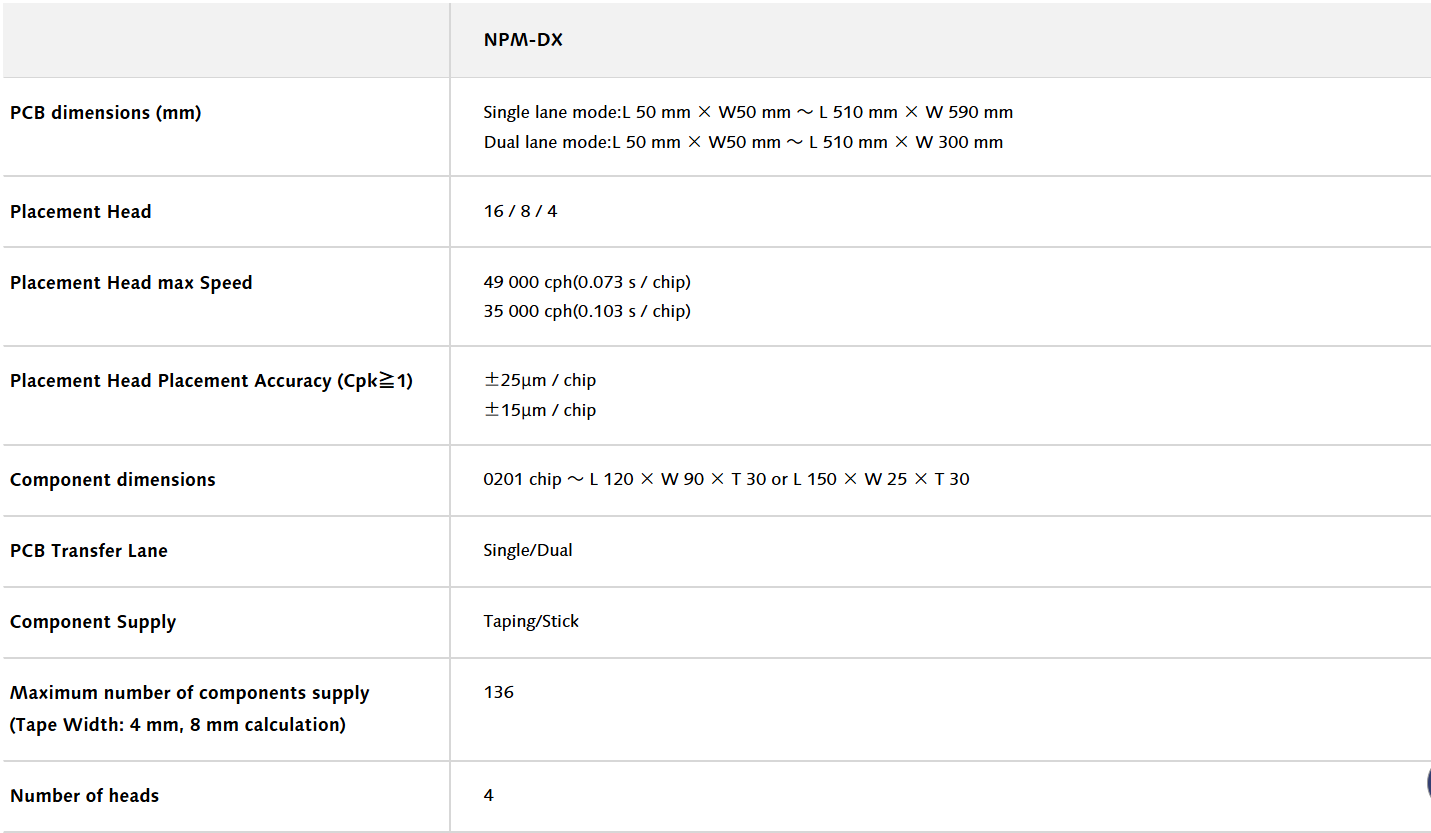

| Specification

*Values such as maximum speed may vary depending on operating conditions.
*Please contact I.C.T for details.

| SMT Line Equipment List

The NPM-DX Panasonic Pcb Smt Pick And Place Machine can be used with complete SMT production equipment from I.C.T. A full line can include SMT loader, automatic stencil printer, SPI machine, PCB conveyor, Pick and Place Machine, Lyra series reflow oven, AOI inspection machine, PCB router, PCBA cleaning machine, and unloader. These machines connect the main SMT process from PCB loading to printing, paste inspection, component placement, reflow soldering, optical inspection, board separation, cleaning, and final unloading. For products such as LED boards, industrial control boards, and consumer electronics, the full line needs good balance. Good line matching helps the Panasonic placement machine show its real production value.
