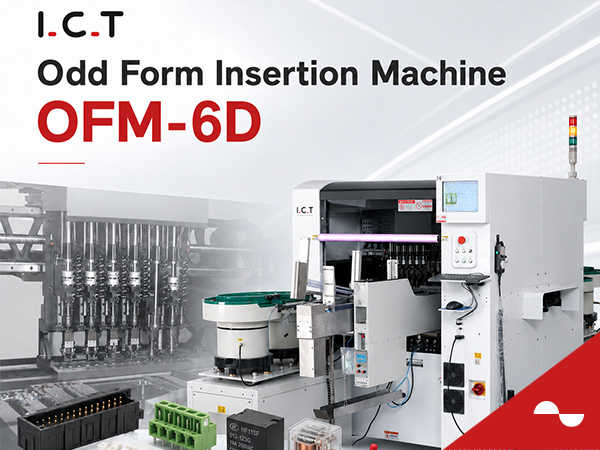

I.C.T Odd Form Insertion Machine OFM-6D

The I.C.T Odd Form Insertion Machine OFM-6D is a high-performance automated solution designed for inserting odd-form electronic components. It is widely used in PCB assembly processes involving connectors, switches, sockets, coils, capacitors, and other irregular components. The machine helps manufacturers improve consistency and efficiency in through-hole insertion production lines.

The OFM-6D supports multiple feeding systems, including bowl feeder, tape feeder, tube feeder, and tray or box feeder. The bowl feeder uses vibration sorting to automatically orient bulk components and deliver them to the pick position, offering strong compatibility with complex shapes. Tape and tube feeders enable stable and precise high-speed feeding for standardized components, while tray and box feeding options provide flexible handling of bulk or unpackaged parts, reducing packaging dependency and improving material adaptability.

Built with a high-rigidity cast structure, the OFM-6D integrates advanced servo systems, precision ball screw drives, and high-end motion components to ensure stable long-term operation at high speed. Its mechanical design focuses on accuracy and durability, supporting continuous production environments with reduced maintenance requirements and consistent insertion performance.

In addition, the machine adopts a modular feeder design, allowing flexible configuration based on different component types and production requirements. It is equipped with specialized gripper systems for a wide range of odd-form components, enabling quick product changeover without complex adjustments. With support for component database management, MES connectivity, and remote monitoring, the OFM-6D provides a more intelligent and traceable production process, improving overall manufacturing efficiency.
