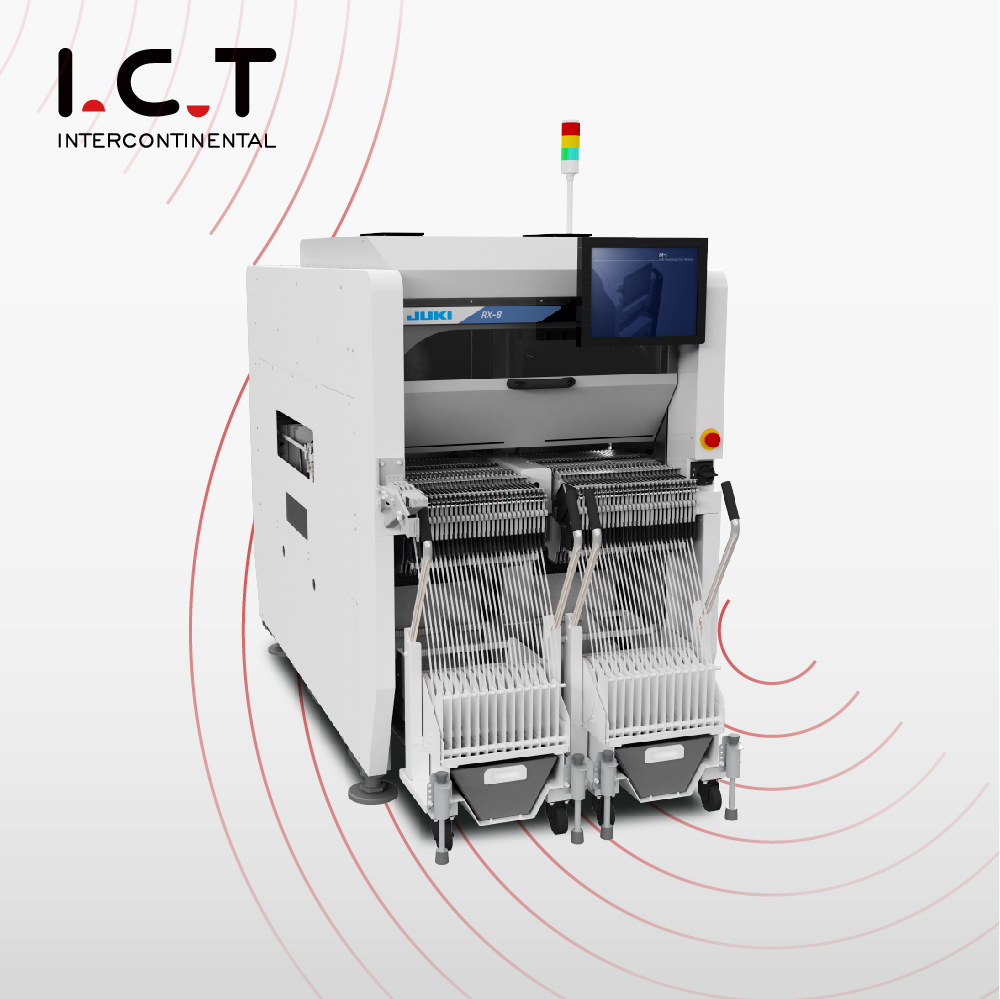

| JUKI SMT Pick
The JUKI SMT Pick stands as the central machine in SMT lines, where it mounts surface components on PCBs with steady speed and accuracy day after day. RS models like the RS-1R deliver reliable performance across various board sizes, handling everything from small chips to larger parts without slowing down. RX models push higher output in tight factory spaces, making them practical for high-volume runs. These machines connect smoothly with printers, reflow ovens, AOI inspection, and conveyors to form complete, efficient lines. They place tiny 0201 components up to bigger ICs, supporting LED boards, automotive electronics, bar phones, and more. I.C.T designs full systems around them, from layout planning to daily operation, helping factories maintain consistent quality and reduce downtime in real production environments.
| JUKI Pick and Place Machine Model Features
RS-1R / RS-1XL Series Features
The RS-1R and RS-1XL provide solid, versatile mounting for typical SMT production needs. The RS-1R reaches 47,000 CPH optimum with placement accuracy of ±35µm (Cpk ≥1) and handles boards from 50×50 mm to 650×370 mm single clamping or up to 1,200×370 mm double clamping. The RS-1XL expands board handling to 650×560 mm, ideal for wider LED panels or similar applications. Both models employ the Takumi head to place parts from 0201 metric up to 74 mm square or 150×50 mm elongated shapes. They support a maximum of 112 feeders for efficient job changes. Compact size allows easy integration into existing lines, while vision cameras and force control maintain precise, gentle placement. These machines suit facilities that handle mixed production runs and require dependable speed over extended shifts.
RX-7R / RX-8 Series Features
The RX-7R and RX-8 concentrate on delivering maximum output within limited factory floor space. The RX-7R achieves 75,000 CPH with parallel heads, placing components from 03015 size up to 25 mm square on boards as large as 510×450 mm single lane. The RX-8 reaches 100,000 CPH optimum using the P20 head, designed specifically for dense, small-component assembly in high-volume settings. Both maintain a narrow 998 mm width, providing the highest placement rates per square meter available. They include coaxial lighting for clear component recognition, low-impact placement to prevent board damage, and real-time monitoring to minimize idle time. Dual-lane support and data sharing with other line equipment improve overall efficiency. These models work best for demanding production of mobile devices, LED strips, automotive parts, and similar products where space constraints and throughput are critical.
| Specification
| Parameter | RS-1R | RS-1XL | RX-7R | RX-8 |
|---|---|---|---|---|
| Placement Speed (Optimum CPH) | 47,000 | 42,000 | 75,000 | 100,000 |
| Maximum Board Size (mm) | 650 × 370 (single/double) | 650 × 560 | 510 × 450 (single lane) | 510 × 450 (approx.) |
| Minimum Board Size (mm) | 50 × 50 | 50 × 50 | 50 × 50 | 50 × 50 |
| Component Height (max mm) | 25 | 25 | 3-10.5 (head dependent) | 3 |
| Smallest Component | 0201 (metric) | 0201 (metric) | 03015 (metric) | 0201 (approx. 0.4×0.2mm) |
| Largest Component (mm) | 74 square / 150×50 | 74 square / 150×50 | 25 square | 5 square |
| Feeder Inputs (max) | 112 | 112 | 76 | 56 (approx.) |
| Placement Accuracy | ±35µm (Cpk ≥1) | ±35µm (Cpk ≥1) | ±40µm (approx.) | High precision (vision) |
| Machine Width (mm) | 1,500 (approx.) | 2,109 | 998 | 998 |
| Head Type | Takumi inline head | Takumi inline head | Parallel rotary heads (P16S) | P20 rotary head |
| SMT Line Equipment List
I.C.T assembles dependable PCBA assembly lines centered on the JUKI SMT equipment for consistent daily performance. Vacuum loaders introduce clean boards from the start. Automatic printers apply paste with exact control. The mounter places every component firmly and true. Multi-zone reflow ovens bond solder evenly and strong. AOI systems inspect closely to catch any flaw early. Conveyors maintain smooth, uninterrupted flow. Yield rises steadily while costs fall away. No unnecessary pauses or rework appear. Lines manage demanding work—automotive power units, LED assemblies, and beyond. Completed boards emerge prepared for final use. I.C.T supports the entire chain from beginning to end.
| Customer Success Video
The video features a customer describing their complete SMT and DIP lines used for automotive power supply manufacturing. The SMT section starts with vacuum loading of clean boards, followed by cleaning, precise paste printing, and the JUKI SMT Pick mounting components at high speed with consistent accuracy. Boards move through conveyors to multi-zone reflow soldering, cooling buffers, AOI inspection, and unloading stations. The DIP portion includes wave soldering, board flipping, ICT testing, and secure connections. The footage shows machines operating steadily, boards traveling smoothly, and placement remaining exact throughout the process. The customer explains how the setup keeps defects low, maintains steady production pace, and delivers quality suitable for automotive standards. Downtime remains minimal during normal factory shifts, supporting reliable output over time.
| Service and Training Support
I.C.T provides complete, practical support for full factory production lines that include JUKI SMT Pick machines and other equipment. Engineers arrive on site for careful installation and initial operation setup. They conduct clear training sessions on daily routines, program building, maintenance tasks, and basic problem-solving. Remote tools allow quick diagnosis and fixes from distant locations. Regular service visits keep machines performing at their best over many years. Technical staff help adjust lines for new products, better efficiency, or increased capacity without major interruptions. With service centers located worldwide, response times stay short wherever customers are based. This reliable partnership turns equipment into dependable tools that support consistent production and gradual business growth.
| Customer Feedback
Customers speak well of I.C.T engineers who arrive prepared and resolve issues efficiently during installation and service calls. They praise the steady performance and accuracy of JUKI SMT Pick machines through long production runs. Secure, professional packing ensures equipment reaches factories in excellent condition after long-distance shipping. Inquiries receive fast, helpful responses that prevent unnecessary line stoppages. Many report the complete system operates more smoothly than expected, with higher yields and fewer interruptions. Trust develops from reliable machines combined with consistent, attentive support. Factories consider I.C.T a dependable partner that helps maintain efficient, high-quality manufacturing day after day.
| Certifications and Standards
JUKI SMT Pick machines hold key certifications including CE marking for European safety compliance, RoHS for environmentally responsible materials, and ISO9001 for structured quality management systems. Several patents protect important innovations in placement heads, vision technology, and related features. These certifications confirm the equipment meets strict international standards for safe operation, environmental protection, and consistent manufacturing quality. Facilities around the world install and run the machines with confidence that regulatory requirements are fully satisfied. The certifications demonstrate a serious commitment to producing durable, high-performing systems that align with global industry expectations.
| About I.C.T Company and Factory
I.C.T operates its own research and development teams to continuously improve SMT and electronics manufacturing equipment. Production takes place in a large, modern facility equipped with strict inspection processes at every step, from raw materials to final testing. Since its establishment in 2012, the company has expanded rapidly, now employing a large workforce and maintaining eight branch offices worldwide. It serves more than 1600 customers in over 72 countries with comprehensive factory solutions. Rigorous quality management systems control all operations, ensuring consistent reliability and long-term performance of every machine. I.C.T delivers full support—from initial line planning and complete equipment delivery to ongoing optimization and upgrades—helping electronics manufacturers achieve stable, efficient production on a global scale.
| JUKI SMT Pick
The JUKI SMT Pick stands as the central machine in SMT lines, where it mounts surface components on PCBs with steady speed and accuracy day after day. RS models like the RS-1R deliver reliable performance across various board sizes, handling everything from small chips to larger parts without slowing down. RX models push higher output in tight factory spaces, making them practical for high-volume runs. These machines connect smoothly with printers, reflow ovens, AOI inspection, and conveyors to form complete, efficient lines. They place tiny 0201 components up to bigger ICs, supporting LED boards, automotive electronics, bar phones, and more. I.C.T designs full systems around them, from layout planning to daily operation, helping factories maintain consistent quality and reduce downtime in real production environments.
| JUKI Pick and Place Machine Model Features
RS-1R / RS-1XL Series Features
The RS-1R and RS-1XL provide solid, versatile mounting for typical SMT production needs. The RS-1R reaches 47,000 CPH optimum with placement accuracy of ±35µm (Cpk ≥1) and handles boards from 50×50 mm to 650×370 mm single clamping or up to 1,200×370 mm double clamping. The RS-1XL expands board handling to 650×560 mm, ideal for wider LED panels or similar applications. Both models employ the Takumi head to place parts from 0201 metric up to 74 mm square or 150×50 mm elongated shapes. They support a maximum of 112 feeders for efficient job changes. Compact size allows easy integration into existing lines, while vision cameras and force control maintain precise, gentle placement. These machines suit facilities that handle mixed production runs and require dependable speed over extended shifts.
RX-7R / RX-8 Series Features
The RX-7R and RX-8 concentrate on delivering maximum output within limited factory floor space. The RX-7R achieves 75,000 CPH with parallel heads, placing components from 03015 size up to 25 mm square on boards as large as 510×450 mm single lane. The RX-8 reaches 100,000 CPH optimum using the P20 head, designed specifically for dense, small-component assembly in high-volume settings. Both maintain a narrow 998 mm width, providing the highest placement rates per square meter available. They include coaxial lighting for clear component recognition, low-impact placement to prevent board damage, and real-time monitoring to minimize idle time. Dual-lane support and data sharing with other line equipment improve overall efficiency. These models work best for demanding production of mobile devices, LED strips, automotive parts, and similar products where space constraints and throughput are critical.
| Specification
| Parameter | RS-1R | RS-1XL | RX-7R | RX-8 |
|---|---|---|---|---|
| Placement Speed (Optimum CPH) | 47,000 | 42,000 | 75,000 | 100,000 |
| Maximum Board Size (mm) | 650 × 370 (single/double) | 650 × 560 | 510 × 450 (single lane) | 510 × 450 (approx.) |
| Minimum Board Size (mm) | 50 × 50 | 50 × 50 | 50 × 50 | 50 × 50 |
| Component Height (max mm) | 25 | 25 | 3-10.5 (head dependent) | 3 |
| Smallest Component | 0201 (metric) | 0201 (metric) | 03015 (metric) | 0201 (approx. 0.4×0.2mm) |
| Largest Component (mm) | 74 square / 150×50 | 74 square / 150×50 | 25 square | 5 square |
| Feeder Inputs (max) | 112 | 112 | 76 | 56 (approx.) |
| Placement Accuracy | ±35µm (Cpk ≥1) | ±35µm (Cpk ≥1) | ±40µm (approx.) | High precision (vision) |
| Machine Width (mm) | 1,500 (approx.) | 2,109 | 998 | 998 |
| Head Type | Takumi inline head | Takumi inline head | Parallel rotary heads (P16S) | P20 rotary head |
| SMT Line Equipment List
I.C.T assembles dependable PCBA assembly lines centered on the JUKI SMT equipment for consistent daily performance. Vacuum loaders introduce clean boards from the start. Automatic printers apply paste with exact control. The mounter places every component firmly and true. Multi-zone reflow ovens bond solder evenly and strong. AOI systems inspect closely to catch any flaw early. Conveyors maintain smooth, uninterrupted flow. Yield rises steadily while costs fall away. No unnecessary pauses or rework appear. Lines manage demanding work—automotive power units, LED assemblies, and beyond. Completed boards emerge prepared for final use. I.C.T supports the entire chain from beginning to end.
| Customer Success Video
The video features a customer describing their complete SMT and DIP lines used for automotive power supply manufacturing. The SMT section starts with vacuum loading of clean boards, followed by cleaning, precise paste printing, and the JUKI SMT Pick mounting components at high speed with consistent accuracy. Boards move through conveyors to multi-zone reflow soldering, cooling buffers, AOI inspection, and unloading stations. The DIP portion includes wave soldering, board flipping, ICT testing, and secure connections. The footage shows machines operating steadily, boards traveling smoothly, and placement remaining exact throughout the process. The customer explains how the setup keeps defects low, maintains steady production pace, and delivers quality suitable for automotive standards. Downtime remains minimal during normal factory shifts, supporting reliable output over time.
| Service and Training Support
I.C.T provides complete, practical support for full factory production lines that include JUKI SMT Pick machines and other equipment. Engineers arrive on site for careful installation and initial operation setup. They conduct clear training sessions on daily routines, program building, maintenance tasks, and basic problem-solving. Remote tools allow quick diagnosis and fixes from distant locations. Regular service visits keep machines performing at their best over many years. Technical staff help adjust lines for new products, better efficiency, or increased capacity without major interruptions. With service centers located worldwide, response times stay short wherever customers are based. This reliable partnership turns equipment into dependable tools that support consistent production and gradual business growth.
| Customer Feedback
Customers speak well of I.C.T engineers who arrive prepared and resolve issues efficiently during installation and service calls. They praise the steady performance and accuracy of JUKI SMT Pick machines through long production runs. Secure, professional packing ensures equipment reaches factories in excellent condition after long-distance shipping. Inquiries receive fast, helpful responses that prevent unnecessary line stoppages. Many report the complete system operates more smoothly than expected, with higher yields and fewer interruptions. Trust develops from reliable machines combined with consistent, attentive support. Factories consider I.C.T a dependable partner that helps maintain efficient, high-quality manufacturing day after day.
| Certifications and Standards
JUKI SMT Pick machines hold key certifications including CE marking for European safety compliance, RoHS for environmentally responsible materials, and ISO9001 for structured quality management systems. Several patents protect important innovations in placement heads, vision technology, and related features. These certifications confirm the equipment meets strict international standards for safe operation, environmental protection, and consistent manufacturing quality. Facilities around the world install and run the machines with confidence that regulatory requirements are fully satisfied. The certifications demonstrate a serious commitment to producing durable, high-performing systems that align with global industry expectations.
| About I.C.T Company and Factory
I.C.T operates its own research and development teams to continuously improve SMT and electronics manufacturing equipment. Production takes place in a large, modern facility equipped with strict inspection processes at every step, from raw materials to final testing. Since its establishment in 2012, the company has expanded rapidly, now employing a large workforce and maintaining eight branch offices worldwide. It serves more than 1600 customers in over 72 countries with comprehensive factory solutions. Rigorous quality management systems control all operations, ensuring consistent reliability and long-term performance of every machine. I.C.T delivers full support—from initial line planning and complete equipment delivery to ongoing optimization and upgrades—helping electronics manufacturers achieve stable, efficient production on a global scale.
