| I.C.T Acrab-Series PCB DIP Soldering Machine
The I.C.T Acrab-series PCB DIP soldering machine is the proven workhorse for high-volume through-hole assembly worldwide. Three models handle 350 mm, 450 mm or 615 mm PCBs. Advanced flux spray, long preheating zones, ultra-stable dual wave and smart PC+PLC control give outstanding wetting and zero bridging on complex automotive boards. Optional nitrogen protection creates a spot wave soldering machine that reduces dross by up to 90 % and produces mirror-bright joints while saving tons of solder and energy. Tool-free maintenance and worldwide on-site service keep your line running at maximum profit.
| Feature
Japan Kuroda precision nozzles plus stepper-motor drive guarantee uniform, repeatable flux coating. The entire module pulls out like a drawer with auto-cleaning, standard filter and built-in exhaust. Add the optional nitrogen flux system and you have a genuine spot wave soldering machine that keeps the chamber clean and cuts flux usage dramatically.
Three independent 1800 mm hot-air + IR zones with horizontal reflow design and thick insulation cotton reach 250 °C in just 15 minutes and hold ±2 °C across the whole PCB. Drawer-style plug-in modules mean tool-free service. Optional top preheating handles the thickest multi-layer boards perfectly before they hit the wave.
Patented synchronous chain and heavy-duty double-hook titanium fingers transport PCBs up to 615 mm wide without dropping—even heavy automotive panels. Speed accuracy stays within ±2 mm/min. Standard automatic finger cleaning and optional electric width adjustment make it the ideal PCB DIP soldering machine for any high-mix line.
One-piece cast-iron enamel-coated pot holds 500-700 kg lead-free solder and stays perfectly flat for years. Dual-wave height variation is less than 0.5 mm. Optional nitrogen blanket plus automatic dross-return channel slash oxidation, delivering shiny full fillets and huge solder savings—the real power of a spot wave soldering machine.
High-power top convection fans (optional top + bottom forced cooling) rapidly cool the board after soldering, preventing heat damage to sensitive parts and ensuring beautiful solder appearance even on thick boards coming straight from insertion machines.
Easy-to-use PC+PLC touch screen with PID+SSR heating gives pinpoint temperature control and live monitoring. Automatic standby, full alarm history, emergency manual mode and multiple safety layers (CE/UL certified) minimize tin waste and keep every operator safe and productive on this reliable PCB DIP soldering machine.
| DIP Line Equipment List
| Model | Acrab 350 | Acrab 450 |
| Dimension(mm) | 4420X1420X1750 | 4420X1520X1750 |
| Power Supply | 3P5W,380/220V 50Hz | 3P5W,380/220V 50Hz |
| Startup Power | 33kw | 33kw |
| Operation Power | 8kw | 8kw |
| Control System | PC+PLC | PC+PLC |
| Preheating Zone | 3 | 3 |
| Preheating Length | 1800mm | 1800mm |
| Preheating Temp. | (Room Temperature)-250°C | (Room Temperature)-250°C |
| PCB Width(mm) | 50-350mm | 50-450mm |
| Finger | Spring Pressing Finger (Standard); Option:Spring Pressing Finger, Duck Mouth Finger | |
| Solder Pot Capacity | Lead-free 500kg | |
| Machine Weight(kg) | Approx.1600kg | Approx.1900kg |
* I.C.T keeps working on quality and performance, specifications and appearance may be updated without particular notice.
| DIP Line Equipment List

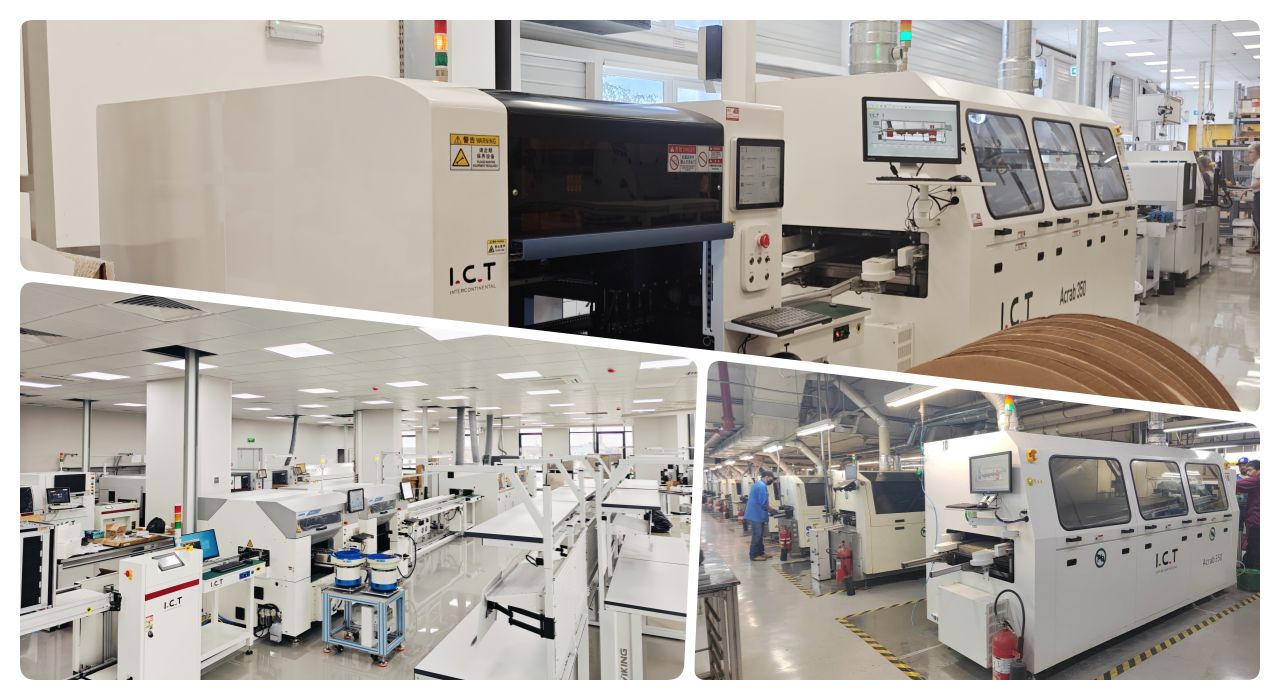

I.C.T offers a fully automatic DIP line built around the Acrab-series: high-speed insertion machines, smooth wave loaders/unloaders, and smart assembly belts. Paired with nitrogen protection, it becomes the ultimate spot wave soldering machine line for automotive, appliances and industrial boards—delivering zero defects, minimum dross and maximum throughput. Modular layout grows with your business, while global on-site service keeps uptime near 100 %.
| Product Name | Purpose in DIP Line |
|---|---|
| Automatic Insert Machine | Automatically places components onto PCBs with precision for DIP production line. |
Melts solder to form solid joints on PCBs during THT plug-in process. | |
Applies solder selectively to specific areas for accurate THT assembly | |
Inspects solder joints and placement defects on DIP assembled PCB. | |
Board input machine and board output machine | |
| DIP Peripheral | Peripheral products of DIP production line |
| Customer Success Video
I.C.T engineers flew to Mexico to help several factories. One automotive electronics customer now runs two completely different PCBA designs on the Acrab 350 PCB DIP soldering machine using custom fixtures—both with perfect wetting and no bridges. The same plant also runs our coating line and SS-540 selective unit flawlessly. They recorded a glowing video testimonial praising the total solution and lightning-fast on-site support.
| Expert Services and Training
We handle everything: installation, full process training, free warranty parts, 24/7 remote help and regular site visits. Our 20 overseas engineers get your team running the PCB DIP soldering machine at 99.5 %+ first-pass yield in just days, then keep optimizing parameters for years of maximum profit.
| Customer Testimonials
“Packing is very safe and professional.” “Your engineers are patient and skilled; they solved all problems in two days.” “The wave soldering machine runs stably with almost no dross – real energy saving!” “Response speed is amazing; questions answered within one hour anytime.”
| Quality Certifications
Every I.C.T PCB DIP soldering machine carries CE, RoHS, ISO9001:2015 and multiple invention patents. Each unit goes through 72-hour full-load burn-in and rigorous inspection in our Dongguan plant to guarantee years of trouble-free, high-performance operation.
| About I.C.T Company and Factory
Since 2012 we’ve grown to nearly 90 people inside a modern 12,000 m² factory in Dongguan, China. We design and build all core components in-house under strict quality systems. Over 1,600 customers in 72 countries trust us for complete SMT/DIP lines. Eight overseas offices and 20 field engineers deliver fast local service worldwide—your long-term partner for spot wave soldering machine solutions.
