I.C.T VL-M
I.C.T
| Quantity: | |
|---|---|

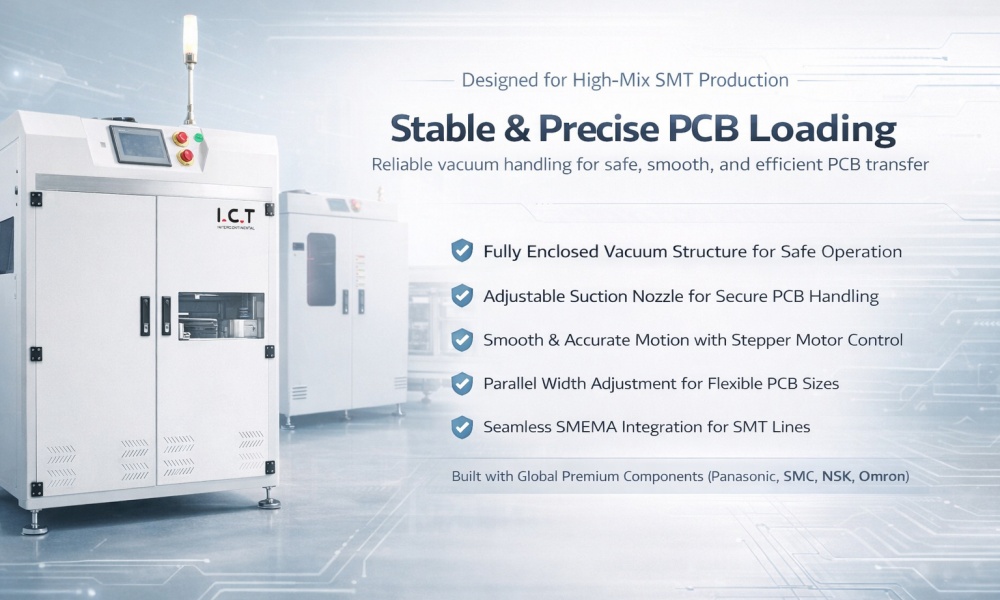

| Automatic Vacuum Magazine Loader
The Automatic Vacuum Magazine Loader is an indispensable tool in automated SMT production lines. Designed to efficiently transport PCBs, it incorporates automatic suction control, adjusting to varying PCB sizes and thicknesses. This ensures the safe handling of each board, reducing the risk of damage. With its high-speed performance, the loader minimizes downtime, making the production process faster and more efficient. Seamlessly integrating with other SMT equipment through SMEMA, it ensures that your production line operates smoothly. Built with robust materials, this loader offers long-lasting performance, making it a reliable choice for your factory.
| Advanced Vacuum and Clamping Technology
The Automatic Vacuum Magazine Loader ensures that each PCB is transported securely and efficiently throughout the SMT production line. With its advanced vacuum suction system, it prevents damage to the boards during the transfer process. This reliable handling ensures that production proceeds without disruptions, maintaining high-quality standards.
Featuring automatic suction control, this loader adapts to various PCB sizes and thicknesses, ensuring a secure grip on every board. Whether handling small or large PCBs, the loader provides the perfect amount of suction to hold them safely, making it ideal for diverse production needs.
The Automatic Vacuum Magazine Loader operates at high speeds, significantly reducing the time required for loading and unloading PCBs. By streamlining the handling process, it reduces downtime, increases throughput, and contributes to a more efficient production cycle, all while maintaining excellent handling precision.
This loader is fully compatible with other SMT equipment, including pick-and-place machines, reflow ovens, and inspection systems. With its SMEMA interface, it seamlessly integrates into your existing SMT production line, allowing for a smooth flow of PCBs from one station to the next without interruption.
The design of the Automatic Vacuum Magazine Loader is highly adaptable to various production line configurations. It offers customizable height adjustments to accommodate different work environments, ensuring that it fits perfectly within your factory’s setup and enhances overall efficiency.
| Specification
| Item | Translational Vacuum Loader | Vacuumand Magazine Loader | ||
|---|---|---|---|---|
| Model | VL330 | VL460 | VL1200 | VM330 |
| Dimension (mm) | 600 × 1002 × 1300 | 800 × 1270 × 1300 | 1450 × 1200 × 1300 | 650 × 1050 × 1300 |
| PCB Size (mm) | 50 × 50 ~ 450 × 330 | 50 × 50 ~ 530 × 460 | 50 × 50 ~ 1200 × 350 (customizable) | 50 × 50 ~ 450 × 330 |
| PCB Capacity | 400 pcs (0.6mm thick) | 400 pcs (0.6mm thick) | 100 pcs (0.6mm thick) | 400 pcs (0.6mm thick) |
| Cycle Time | Approx. 12 seconds or specify | Approx. 12 seconds or specify | Approx. 15 seconds or specify | Approx. 12 seconds or specify |
| Control System | PLC | PLC | PLC | PLC |
| Power | Max 150 VA | Max 150 VA | Max 150 VA | Max 150 VA |
| Air Supply | 4–6 bar, 10 L/min | 4–6 bar, 10 L/min | 4–6 bar, 10 L/min | 4–6 bar, 10 L/min |
| Transport Height | 900 ± 20 mm (customizable) | 900 ± 20 mm (customizable) | 900 ± 20 mm (customizable) | 900 ± 20 mm (customizable) |
| PCB Direction | Left to Right or Right to Left | Left to Right or Right to Left | Left to Right or Right to Left | Left to Right or Right to Left |
| Communication | SMEMA (In & Out) | SMEMA (In & Out) | SMEMA (In & Out) | SMEMA (In & Out) |
| Power Supply | 1 Phase AC 220V 50/60Hz (Option: 110V–380V) | 1 Phase AC 220V 50/60Hz (Option: 110V–380V) | 1 Phase AC 220V 50/60Hz (Option: 110V–380V) | 1 Phase AC 220V 50/60Hz (Option: 110V–380V) |
| Weight | 130 kg | 150 kg | 380 kg | 120 kg |
| Option | Automatic width adjustment | Automatic width adjustment | Automatic width adjustment | Automatic width adjustment |
| Related SMT Equipment
To build a complete turnkey SMT production line, I.C.T offers a full range of compatible machines. Our solutions include automatic printers, high-speed pick-and-place machines, reflow ovens, AOI systems, conveyors, depanelizers, and PCB Unloading machines. All equipment is designed to work together smoothly, helping customers create efficient, space-saving layouts such as U-shaped lines that fit tight factory floors while maintaining high output.
| Successful Customer Project in Saudi Arabia
In 2025, I.C.T engineers installed the Automatic Vacuum Magazine Loader in an LED production line in Saudi Arabia.
The client, a manufacturer of LED lighting, required a fully automated SMT line to streamline their production. I.C.T provided a comprehensive solution, which included the Automatic Vacuum Magazine Loader. The available space was limited, but with careful planning, the production line was designed to fit within the designated area. After 2 days of installation and 6 days of training, the system was up and running, significantly improving the client’s production efficiency.
| Professional Service and Training
I.C.T offers a full range of services to ensure that your equipment performs at its best. Our engineers provide on-site installation and thorough training for your team to ensure smooth operation. In addition, we offer remote technical support available 24/7, as well as regular maintenance to keep the loader in peak condition, minimizing downtime and extending the life of the equipment.
| What Our Customers Say
“The Automatic Vacuum Magazine Loader has improved our production line efficiency significantly. It was easy to integrate with our existing machines, and the training provided by I.C.T’s engineers ensured a smooth transition.” — LED Lighting Manufacturer, Saudi Arabia
“We’ve seen a significant reduction in downtime since we implemented the Automatic Vacuum Magazine Loader. It’s been a great addition to our SMT production line, increasing both speed and reliability.” — Electronics Manufacturer
| Quality Certifications
I.C.T’s equipment is fully certified to meet international standards, ensuring the highest quality and safety:
CE Certification
ISO 9001 Quality Management System
RoHS Compliance
UL Certification
These certifications provide peace of mind, knowing that our products meet rigorous global standards for safety and reliability.
| About I.C.T – Your Reliable SMT Partner
I.C.T is a leader in SMT solutions, offering high-performance equipment like the Automatic Vacuum Magazine Loader. With a robust R&D team and state-of-the-art manufacturing facilities, we provide comprehensive solutions for industries such as electronics, LED lighting, and automotive. Our global service network ensures that we can provide support wherever it is needed, ensuring that our equipment operates optimally and contributes to the success of our customers.
