Lyra LED Reflow Oven boosts LED assembly quality.
a. Precise control at 99.99% stability.
b. Efficient zones for even heat.
c. Stable speed ±2mm/min exact.
d. Simple Windows language switch.
e. Fast cooling slope changes.
f. Multi-layer safety features.
g. Easy tool-free upkeep.
I.C.T
| Quantity: | |
|---|---|

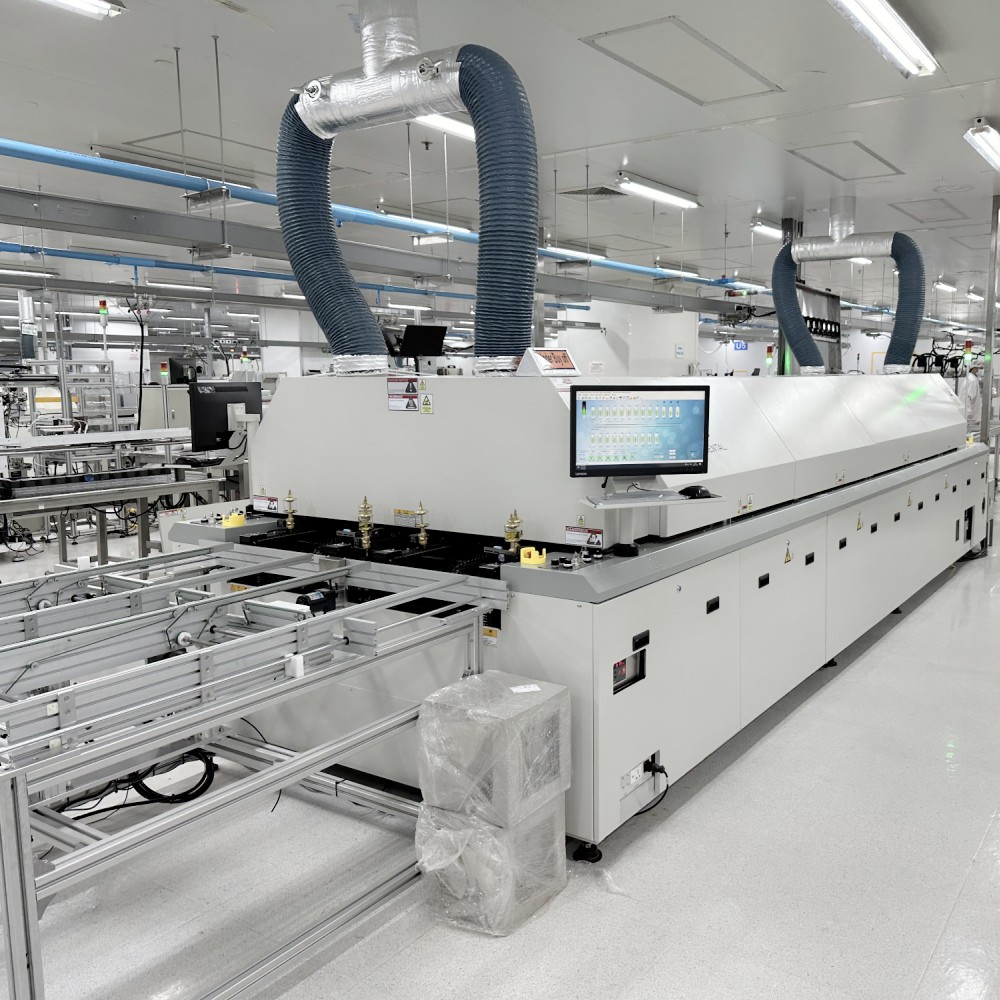

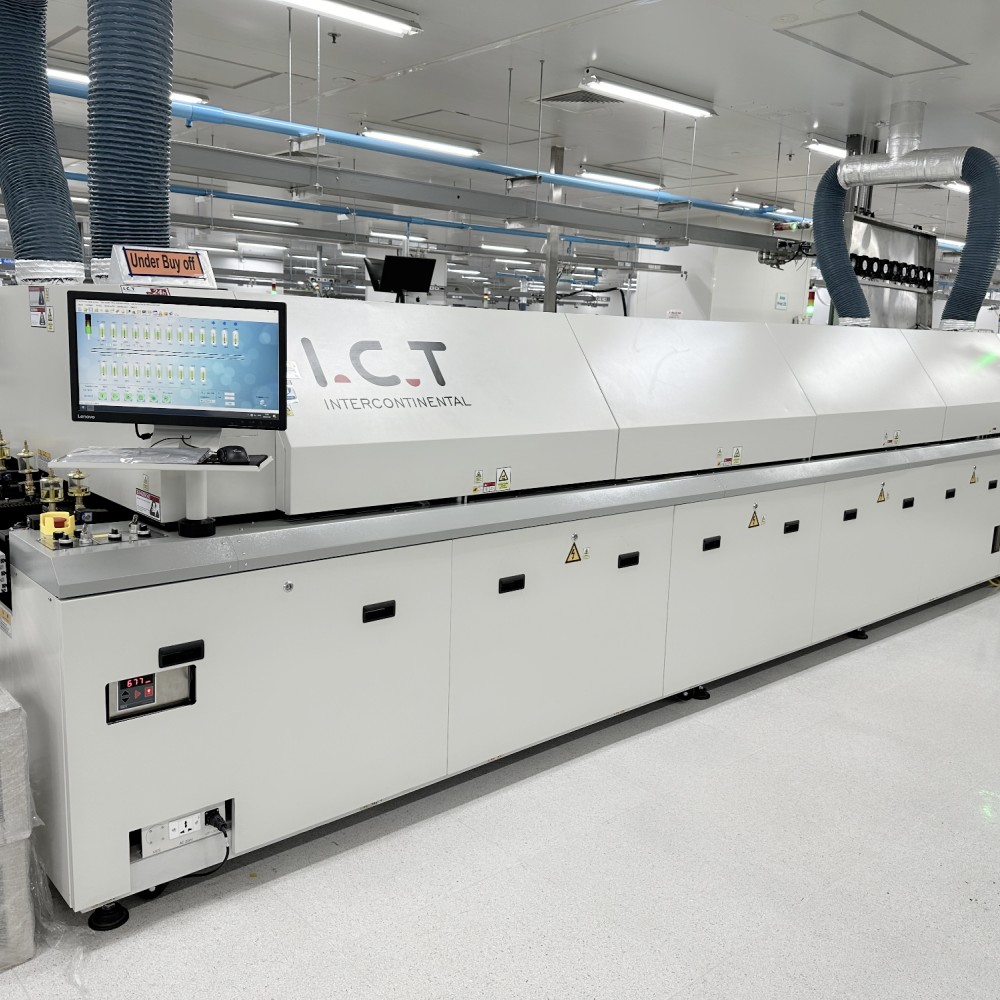

| High-End PCB Reflow Soldering Oven
The Lyra series is a premium LED Reflow Oven for modern lines. New design improves heating and control precision. Siemens PLC holds temperature steady over 99.99%. Top modules create uniform zones. Windows interface flips between Chinese and English. Passwords secure operations. It logs data, checks curves, spots faults. Simulation aids planning. Dynamic board view monitors flow. Cooling adjusts quickly for slopes. Extra protection layers ensure safety. Meets CE, CCC, UL rules. Motors invert for lead-free reflow solder in oven. No gas needed, motor lifts cover safely. Imported parts cut repair needs. Flux option keeps inside clean. Speed loops maintain accuracy. External chill adds options. This LED Reflow Oven handles diverse processes well.
| Feature
The LED Reflow Oven pairs PC with Siemens PLC for tight hold. Stability exceeds 99.99% always. This prevents solder flaws in LEDs. System records runs and checks curves. Virtual tests predict outcomes. Fault alerts fix issues fast. Process files auto-save. Board path shows live. Language swap eases use. Passwords lock changes. Monitoring runs full time. Diagnosis is built-in. This suits complex LED needs. Results repeat reliably. Lead-free works smooth. Less waste from errors. High output trusts it. Reflow solder in oven stays exact.
Efficient Heating System
Premium modules in the LED Reflow Oven space zones best. Uniformity stays high across runs. Design supports many lead-free types. Inverter motors tune air flow. Matches varied tech needs. Inside-out split boosts lifespan. Few seals cut leaks. Nitrogen recycles at ends. Lowers use and oxygen. Full zones get protection. Condenser aids flow. Meets IPC rules. Energy saves in use. Sealed body holds settings years. This makes reflow solder in oven efficient. LED boards heat evenly.
Loop control in the LED Reflow Oven locks speed to ±2mm/min. Boards move without shakes. Center bar and dual rails help. Water chill outside is add-on. No gas setup simplifies. Motor opens cover with rod. Top parts ensure smooth run. Low fix costs. No tools for service. Alerts for care. Power save mode. Live transport screen. Handles long shifts. Fits board sizes. Boosts line speed. Stable reflow solder in oven for LED.
| SMT Reflow Oven Specification
Model | L8 | L10 |
Dimension (L*W*H)mm | 5000x1300x1530 | 5800x1300x1530 |
Weight | Approx. 2100KG | Approx. 2315KG |
Number Of Heating Zones | Up8/Bottom8 | Up10/Bottom10 |
Length Of Heating Zones | 3110mm | 3892mm |
Rail Width Adjustment | Manual adjustment (Option: Automatic) | |
Exhaust Volume | 10M3/min*2 Exhausts | |
Control System | PLC+Computer | |
Temperature Control Method | PID + SSR | |
Transmission Agent | Chain + Mesh | |
Electric Supply Required | 5 Wire System 3P, N, PE 380 VAC ± 5%, 50 Hz. Other voltages upon request | |
Power For Warm Up | 64KW | 80KW |
Power Consumption | 10KW | 12KW |
Warming Time | Approx.25 minute | |
Temp. Setting Range | Room Temp.-- 300°C | |
Conveyor Height | 900+/-20mm | |
Conveyor Speed Range | 300~2000mm/mi | |
Fixed Rail Side | Front Fixed (Option:Rear Fixed) | |
Cooling Method | Forced-Air Motor and fan (Standard) | |
| SMT Line Equipment List
Our High Quality PCBA Production Line features advanced equipment for efficient and precise PCB assembly. The fully automated SMT line includes a loader, an auto printer for accurate solder paste application, a pick-and-place machine for precise component placement, a reflow oven for reliable soldering, and an AOI system for thorough defect inspection. This High Quality PCBA Production Line ensures smooth operation, high reliability, and low-cost SMT assembly, meeting diverse industry requirements.
| Customer Success Video

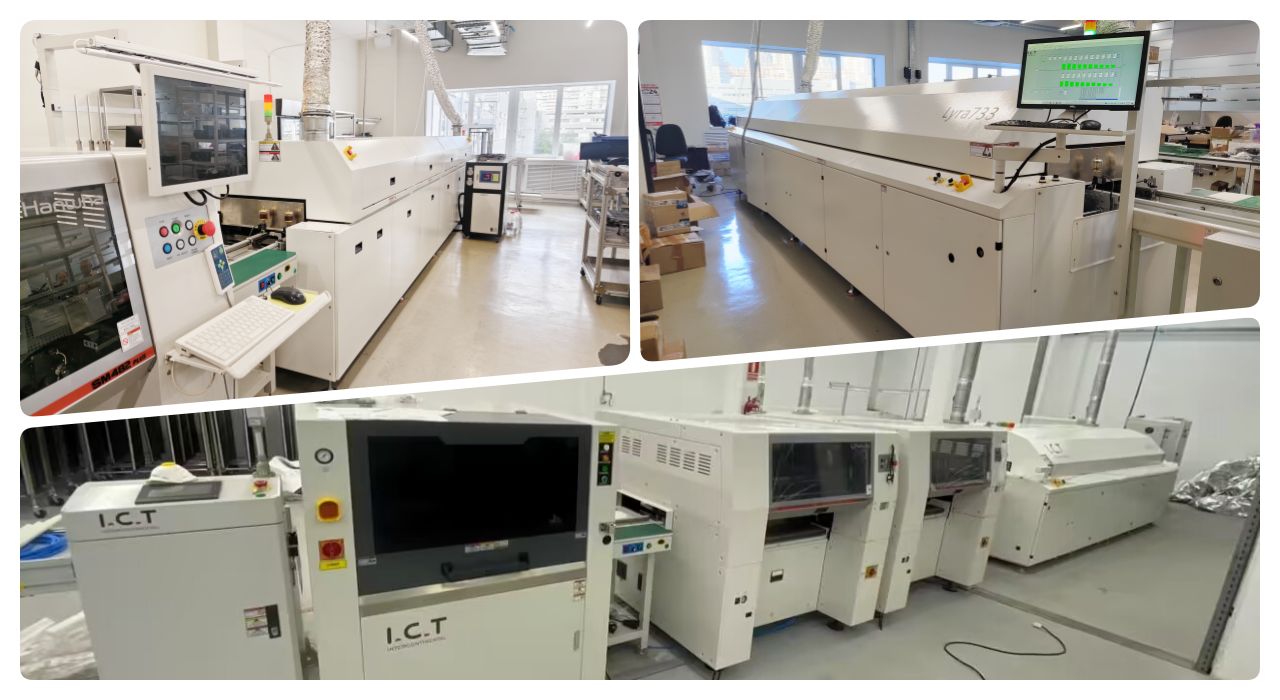

Uzbekistan client came to I.C.T factory for SMT line check. They saw L10 oven like our LED Reflow Oven in performance. List had DECAN S1 mounter, 5151 printer, AOI AI-5146, loader, belt conveyor, paste mixer, cold cabinet. Soldering stayed even on boards. All ran without stops. Our staff guided setup well. They liked I.C.T strong SMT tools. Visit sealed deal confidence. The reflow solder in oven gave steady joints.
| Professional Training & Support
I.C.T gives complete help for LED Reflow Oven. Setup, fix, and train on site. Quick answers to issues. Adjust processes as needed. Remote aid solves fast. Parts ship soon. Global teams ready. This fits reflow solder in oven perfectly. No downtime worries.
| Customer Praise
Engineers fix problems fast, clients say. LED Reflow Oven runs reliable daily. Packing keeps safe in transit. Responses come quick. On-site tips help much. Quality holds long term. Trust grows strong.
| Our Certification
LED Reflow Oven has CE, RoHS, ISO9001 marks. Patents cover main ideas. CCC, UL also passed. Safety and green proven. Tests check each machine.
| About I.C.T and Our Factory
I.C.T runs own R&D and make in 12000m² site. 89 people, 20 engineers. Fast rise since 2012. Help 1600+ in 72 lands. Strict checks on quality. Full system manages output. Covers LED Reflow Oven lines.
