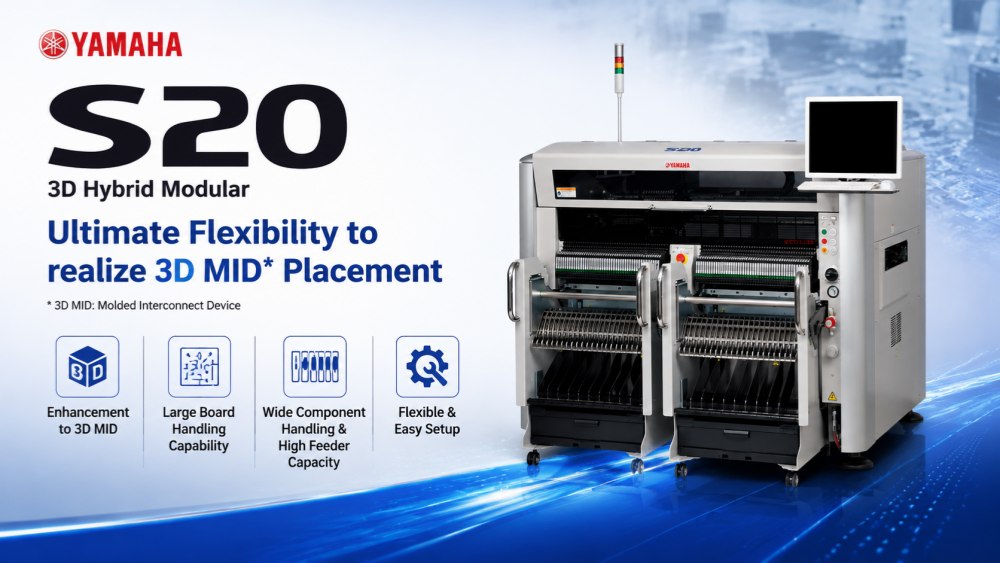

The Yamaha S20 is a next-generation SMT placement system designed for high-speed and flexible PCB assembly environments. It is built to handle complex production requirements while maintaining stable accuracy and long-term reliability. The machine supports a wide range of PCB sizes and component types, making it suitable for both high-volume production and multi-product manufacturing lines. With optimized structure and intelligent control systems, the S20 helps manufacturers improve production efficiency, reduce downtime, and achieve consistent output quality in modern electronics factories worldwide.

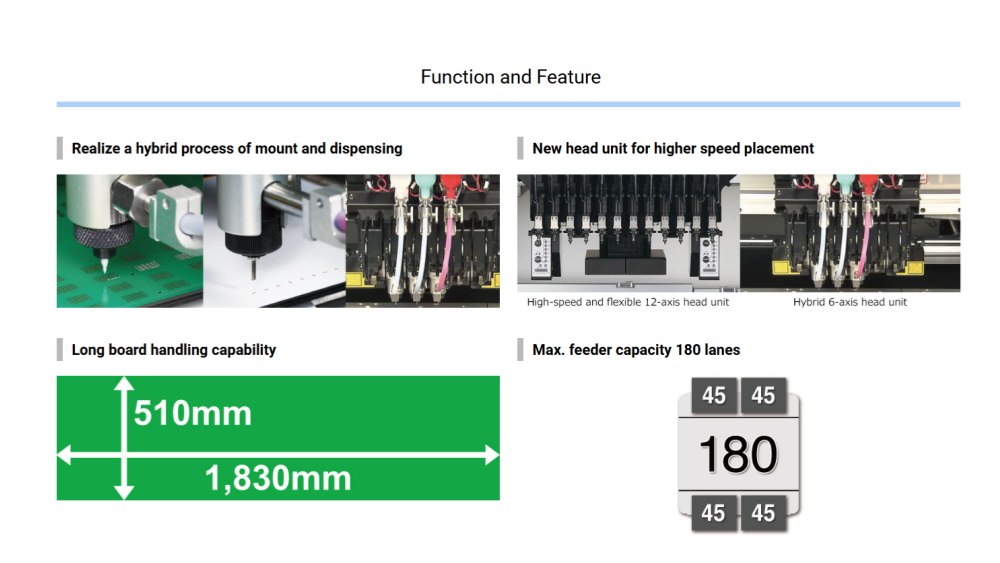

The Yamaha S20 is engineered for fast and stable component placement in demanding SMT environments. It maintains consistent speed during long production runs while ensuring high precision for each mounting position. This system is ideal for factories that require continuous output with minimal interruption. Its optimized motion control and mechanical structure reduce vibration and improve accuracy, making it suitable for both small components and complex PCB assemblies in modern electronics manufacturing.
The S20 supports a wide range of PCB sizes and configurations, making it highly adaptable to different production requirements. Whether handling small boards or large panels, the machine ensures smooth transfer and stable positioning. This flexibility allows manufacturers to switch between different product types without major setup changes. It is especially useful for high-mix production environments where frequent changeovers are required and production efficiency must remain stable.
Equipped with an advanced vision system, the Yamaha S20 ensures accurate component alignment before placement. The system automatically detects position deviations and corrects them in real time. This improves placement accuracy and reduces defects in final production. It also enhances overall process stability by minimizing human intervention. The intelligent recognition system is designed to support high-precision manufacturing demands in modern SMT production lines.
| Specification
| S10 | S20 | |
|---|---|---|
| Board size(with buffer unused) | Min. L50 x W30mm to Max. L1,330 x W510mm (Standard L955) | Min. L50 x W30mm to Max. L1,830 x W510mm (Standard L1,455) |
| Board size(with input or output buffer used) | Min. L50 x W30mm to Max. L420 x W510mm | - |
| Board size(with input and output buffers used) | Min. L50 x W30mm to Max. L330 x W510mm | Min. L50 x W30mm to Max. L540 x W510mm |
| Board thickness | 0.4 - 4.8mm | 0.4 - 4.8mm |
| Board flow direction | Left to right (Std) | Left to right (Std) |
| Board transfer speed | Max 900mm/sec | Max 900mm/sec |
| Placement speed (12 heads + 2 theta) Opt. Cond. | 0.08sec/CHIP (45,000CPH) | 0.08sec/CHIP (45,000CPH) |
| Placement accuracy A (μ+3σ) | CHIP +/-0.040mm | CHIP +/-0.040mm |
| Placement accuracy B (μ+3σ) | IC +/-0.025mm | IC +/-0.025mm |
| Placement angle | +/-180 degrees | +/-180 degrees |
| Z axis control / Theta axis control | AC servo motor | AC servo motor |
| Component height | Max 30mm*1 (Pre-placed components: max 25mm) | Max 30mm*1 (Pre-placed components: max 25mm) |
| Applicable components | 0201mm – 120x90mm, BGA, CSP, connector, etc. (Standard 01005 -) | 0201mm – 120x90mm, BGA, CSP, connector, etc. (Standard 01005 -) |
| Component package | 8 - 56mm tape (F1/F2 Feeders), 8 - 88mm tape (F3 Electric Feeders), stick, tray | 8 - 56mm tape (F1/F2 Feeders), 8 - 88mm tape (F3 Electric Feeders), stick, tray |
| Drawback check | Vacuum check and vision check | Vacuum check and vision check |
| Screen language | English, Chinese, Korean, Japanese | English, Chinese, Korean, Japanese |
| Board positioning | Board grip unit, front reference, auto conveyor width adjustment | Board grip unit, front reference, auto conveyor width adjustment |

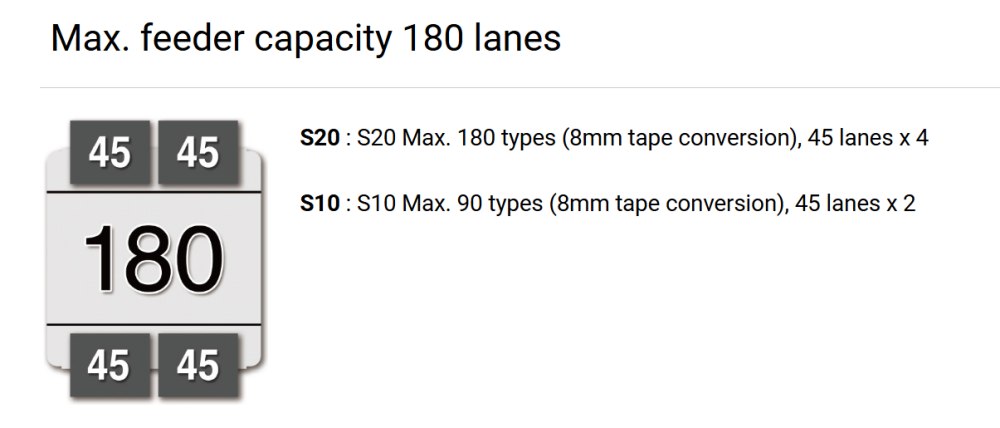

| Component types | Max 90 types (8mm tape), 45 lanes x 2 | Max 180 types (8mm tape), 45 lanes x 4 |
| Transfer height | 900 +/- 20mm | 900 +/- 20mm |
| Machine dimensions, weight | L1250xD1750xH1420mm, Approx. 1,200kg | L1750xD1750xH1420mm, Approx. 1,500kg |
| SMT Line Equipment List
Yamaha S20 is part of a complete SMT manufacturing ecosystem. It can work together with stencil printers, SPI systems, reflow ovens, AOI inspection machines, and PCB handling equipment to form a full production line. I.C.T provides integrated SMT solutions to help Customers build efficient factories with optimized layout and stable production flow. This ensures smooth material transfer, improved production balance, and higher overall factory efficiency for different electronics manufacturing applications.
