S10
I.C.T
| Quantity: | |
|---|---|

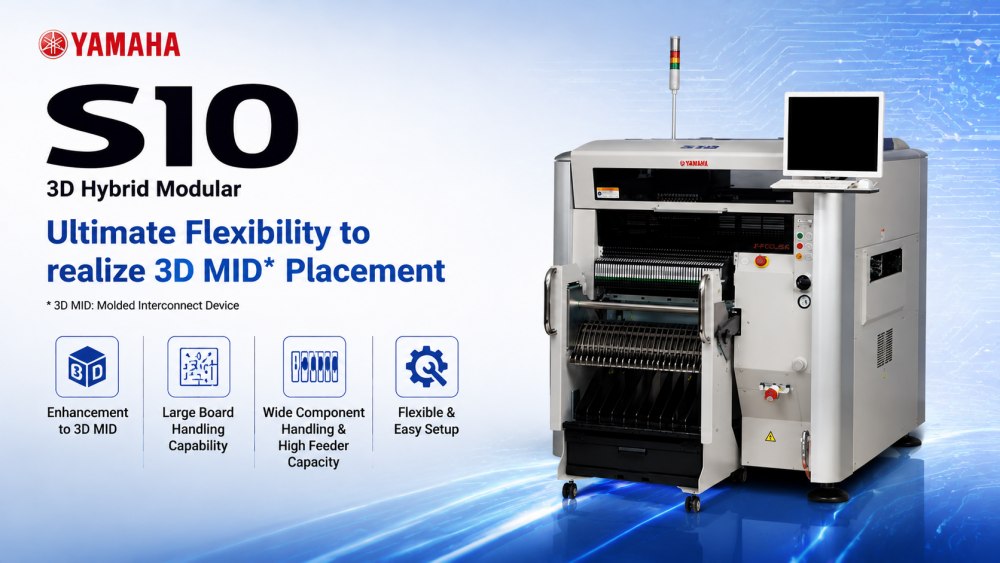

Yamaha S10 is a 3D hybrid modular chip mounter designed for modern PCB assembly production. It provides stable high-speed placement performance while supporting a wide range of electronic components. The system is built for manufacturers who need flexibility, accuracy, and scalable SMT line integration.
With its modular structure, S10 can easily adapt to different production requirements such as LED boards, consumer electronics, industrial control boards, and communication products. It also supports large PCB handling and high feeder capacity, making it suitable for high-mix and medium-volume production environments. The machine helps factories improve efficiency, reduce manual work, and maintain stable output quality.
S10 adopts advanced 3D hybrid mounting technology to improve placement flexibility. It supports complex PCB structures including MID applications. The system ensures stable and accurate component positioning even in multi-layer board designs, helping manufacturers achieve higher product reliability.
The machine supports large PCB processing with strong conveyor adaptability. It can handle different board sizes smoothly without reducing placement efficiency. This makes it suitable for LED panels, power boards, and industrial control boards requiring larger substrates.
S10 is designed with strong feeder expansion capability, supporting multiple component types in one setup. It reduces changeover time and improves continuous production efficiency. This structure is ideal for high-mix manufacturing environments.
The system integrates intelligent setup functions that simplify production changeovers. Operators can adjust parameters quickly, reducing downtime and improving line flexibility. It helps factories respond faster to urgent production orders.
| Specification
| S10 | S20 | |
|---|---|---|
| Board size(with buffer unused) | Min. L50 x W30mm to Max. L1,330 x W510mm (Standard L955) | Min. L50 x W30mm to Max. L1,830 x W510mm (Standard L1,455) |
| Board size(with input or output buffer used) | Min. L50 x W30mm to Max. L420 x W510mm | - |
| Board size(with input and output buffers used) | Min. L50 x W30mm to Max. L330 x W510mm | Min. L50 x W30mm to Max. L540 x W510mm |
| Board thickness | 0.4 - 4.8mm | 0.4 - 4.8mm |
| Board flow direction | Left to right (Std) | Left to right (Std) |
| Board transfer speed | Max 900mm/sec | Max 900mm/sec |
| Placement speed (12 heads + 2 theta) Opt. Cond. | 0.08sec/CHIP (45,000CPH) | 0.08sec/CHIP (45,000CPH) |
| Placement accuracy A (μ+3σ) | CHIP +/-0.040mm | CHIP +/-0.040mm |
| Placement accuracy B (μ+3σ) | IC +/-0.025mm | IC +/-0.025mm |
| Placement angle | +/-180 degrees | +/-180 degrees |
| Z axis control / Theta axis control | AC servo motor | AC servo motor |
| Component height | Max 30mm*1 (Pre-placed components: max 25mm) | Max 30mm*1 (Pre-placed components: max 25mm) |
| Applicable components | 0201mm – 120x90mm, BGA, CSP, connector, etc. (Standard 01005 -) | 0201mm – 120x90mm, BGA, CSP, connector, etc. (Standard 01005 -) |
| Component package | 8 - 56mm tape (F1/F2 Feeders), 8 - 88mm tape (F3 Electric Feeders), stick, tray | 8 - 56mm tape (F1/F2 Feeders), 8 - 88mm tape (F3 Electric Feeders), stick, tray |
| Drawback check | Vacuum check and vision check | Vacuum check and vision check |
| Screen language | English, Chinese, Korean, Japanese | English, Chinese, Korean, Japanese |
| Board positioning | Board grip unit, front reference, auto conveyor width adjustment | Board grip unit, front reference, auto conveyor width adjustment |
| Component types | Max 90 types (8mm tape), 45 lanes x 2 | Max 180 types (8mm tape), 45 lanes x 4 |
| Transfer height | 900 +/- 20mm | 900 +/- 20mm |
| Machine dimensions, weight | L1250xD1750xH1420mm, Approx. 1,200kg | L1750xD1750xH1420mm, Approx. 1,500kg |
| SMT Line Equipment List
S10 can be integrated into a full SMT production line including solder paste printer, SPI inspection system, pick and place machines, reflow oven, AOI inspection, and PCB handling systems. I.C.T provides a complete turnkey solution covering layout design, installation, training, and after-sales support.
This helps manufacturers build a stable, efficient, and fully automated SMT production line. It is suitable for electronics factories producing consumer electronics, automotive electronics, LED products, and industrial control systems. The full-line solution ensures high yield rate and consistent product quality.
| Customer Success Video
I.C.T successfully delivered a full automatic SMT production line to a customer in Kazakhstan for power supply manufacturing. The complete line included SMT loader, fully automatic printer, SMT placement machine, reflow oven, SMT conveyor, and offline AOI system.
Our engineers Andy and Billy traveled to the customer factory for installation and training support. They guided the team through machine setup, production debugging, and operator training to ensure smooth production startup.
The customer successfully started mass production after commissioning and confirmed stable performance of the entire SMT line.
| Service and Training Support
I.C.T provides full lifecycle service for Yamaha SMT machines including installation, programming support, operator training, and remote technical assistance. Our overseas engineering team ensures fast response for any production issues.
We also support SMT line layout planning, process optimization, and production efficiency improvement. Training covers machine operation, maintenance, and basic troubleshooting, helping customers build independent production capability quickly.
| Customer Feedback
Customers appreciate the stable performance and easy operation of Yamaha S10 SMT machines. They also value I.C.T engineers for professional installation and training support. Fast response time and clear technical guidance help customers start production smoothly.
Many customers highlight good machine quality, reliable packaging, and stable long-term operation performance. The combination of equipment reliability and global service support creates strong trust in long-term cooperation.
| Certifications and Standards
All I.C.T SMT equipment integration solutions are manufactured under strict international standards. We hold CE certification, RoHS compliance, ISO9001 quality management system certification, and multiple technical patents.
These certifications ensure stable machine quality, safe operation, and compliance with global electronics manufacturing requirements.
| About I.C.T Company and Factory
I.C.T is a professional SMT factory solution provider with strong R&D, manufacturing, and global service capability. We have a large engineering and production team serving customers in more than 80 countries worldwide.
Our factory follows strict quality inspection processes from raw material control to final machine testing. With continuous innovation and fast business growth, we support more than 1700 customers globally across industries such as automotive electronics, LED, consumer electronics, and industrial control.
We are committed to providing stable, efficient, and intelligent SMT production solutions for global manufacturers.
