The standardization of miniaturized components (0201 metric and below) and complex IC packages has made 3D Automated Optical Inspection (AOI) a mandatory quality gate, shifting the focus from basic defect detection to advanced metrology, false call elimination, and seamless data integration. PCBA manufacturers face a critical trade-off between inspection throughput (cycle time) and absolute measurement accuracy. High false call rates create secondary bottlenecks at manual review stations, negating the speed advantages of the SMT line, while massive image data payloads can strain factory IT networks. Selecting between a Mirtec vs Camtek 3D AOI Machine requires analyzing their distinct optical architectures, software ecosystems, IT infrastructure demands, and alignment with specific production environments (e.g., high-mix/low-volume vs. advanced semiconductor packaging crossover).
Optical Architecture: Mirtec relies on ultra-high-resolution top-down cameras (up to 25MP) combined with multi-frequency Moiré fringe projection, optimizing for rapid, full-board SMT inspection.
Metrology Focus: Camtek leverages its deep roots in semiconductor and advanced packaging inspection, offering superior metrology capabilities for highly complex substrates and micro-bumps.
Yield Impact: Both platforms utilize AI to filter false calls, but their programming workflows, version control, and library management systems dictate how quickly a New Product Introduction (NPI) reaches optimal yield.
Decision Driver: Mirtec is generally favored for traditional, high-speed SMT environments, whereas a Camtek 3D AOI machine excels in hybrid environments requiring semiconductor-grade precision and advanced substrate handling.
Table of Contents

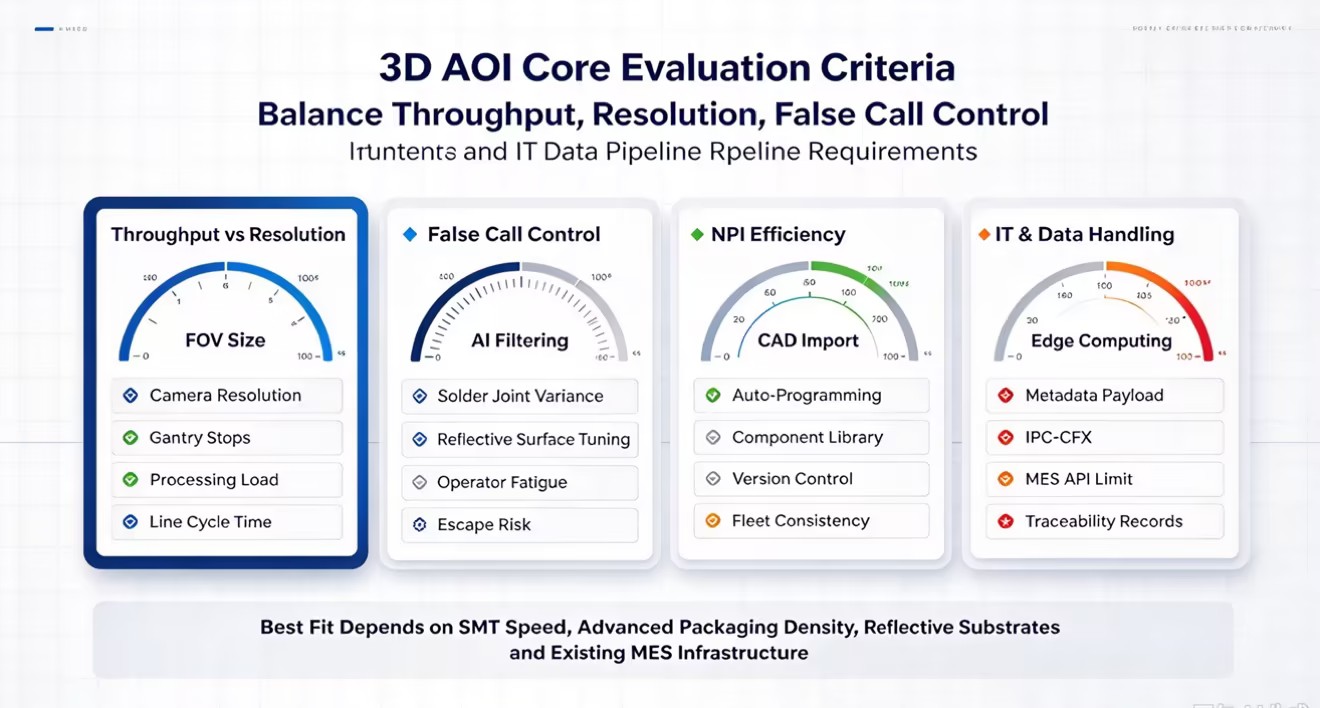

The physical limits of Field of View (FOV) and image capture speeds dictate the baseline performance of any optical inspection system on the factory floor. Camera resolution directly impacts your ability to inspect densely populated boards without slowing down the entire manufacturing line. Higher megapixel sensors capture a larger physical area in a single frame. This reduces the total number of mechanical stops the gantry must make across the PCB. However, processing larger image files requires immense computational power at the edge. You must balance the need for sub-micron resolution against the strict cycle time requirements of the SMT line. If the inspection machine cannot keep pace with the pick-and-place equipment, it immediately becomes the primary factory bottleneck.
Camera Resolution | Field of View (FOV) Size | Gantry Stops per Board | Processing Load | Ideal Application |
|---|---|---|---|---|
12 Megapixel | Small | High | Low | Legacy SMT, low-density boards |
15 Megapixel | Medium | Medium | Moderate | Standard high-mix SMT production |
25 Megapixel | Large | Low | High | High-speed, high-density mobile PCBA |
The true cost of a false call extends far beyond the few seconds it takes an operator to clear it at the rework station. Excessive false flags significantly impact labor efficiency and induce severe operator fatigue. When technicians spend their shifts clearing hundreds of non-defects, they develop alarm fatigue. This is a psychological condition where operators begin mechanically approving flags without thorough review. This drastically increases the risk of true defects escaping the manual review station and reaching the end customer. An effective inspection system suppresses false calls at the algorithmic level. This ensures human operators only interact with genuine anomalies requiring critical engineering judgment.
High-mix manufacturing environments demand rapid New Product Introduction (NPI) workflows. The efficiency of offline programming, auto-tuning capabilities, and centralized component libraries determines how fast a new board moves from the CAD stage to full production. If programmers must manually define inspection windows and height thresholds for every unique component, NPI cycle times will skyrocket. Modern systems offer robust version control. This allows process engineers to manage inspection libraries across multiple machines seamlessly. A tuned algorithm on Line 1 must behave identically when deployed to Line 4.
Modern 3D metrology generates terabytes of raw image data daily. Robust data pipelines handle these massive files without causing network timeouts or server throttling. When an inspection system attempts to push uncompressed 3D point cloud data to a centralized Manufacturing Execution System (MES), it easily overwhelms standard gigabit networks. Factories require intelligent edge computing solutions that compress data, extract only the necessary metrology metadata, and transmit it efficiently. Failure to optimize this data pipeline results in HTTP 429 API rate limits, dropped packets, and incomplete traceability records.
Mirtec approaches optical inspection with a focus on maximizing FOV without sacrificing micron-level detail. Their proprietary camera technology utilizes 15MP to 25MP top-down sensors paired with high-speed CoaXPress interfaces. This massive pixel density allows the system to capture highly detailed images of 0201 metric components across a wide physical area in a single trigger. By reducing the number of gantry movements required to cover a standard PCBA, Mirtec systems maintain high inspection speeds. The CoaXPress interface ensures the massive data payload from the camera reaches the processing unit with near-zero latency. This keeps the hardware perfectly synchronized with the software analysis.
To extract precise 3D height measurements, Mirtec utilizes Digital Multi-Frequency Quad Moiré technology. The system projects complex fringe patterns onto the PCBA from four distinct angles. As these patterns drape over the components and solder joints, the cameras capture the phase shifts in the fringes. The software then calculates the exact 3D topology of the board. This method effectively identifies coplanarity defects on gull-wing ICs, measures solder paste volume, and detects lifted leads that pass a standard 2D inspection. The multi-frequency approach allows the system to accurately measure both highly reflective surfaces and dark, light-absorbing component bodies.
The Intelli-Sys software suite drives the Mirtec hardware, heavily leveraging deep learning algorithms for complex inspection tasks. Traditional rule-based algorithms struggle with the natural variance in solder joint appearance. Mirtec trains its AI models on vast datasets of acceptable and defective solder joints. This allows the system to make nuanced decisions mimicking human judgment. The software features advanced Optical Character Recognition (OCR). This AI-driven OCR reads laser-etched part numbers on highly reflective IC packages, even when flux residue or poor lighting partially obscures the text. This ensures strict component traceability across the production floor.
A Camtek 3D AOI Machine approaches inspection from a metrology-first perspective, heavily influenced by the company's deep roots in semiconductor manufacturing. The sensor technology achieves sub-micron accuracy, which is critical when inspecting micro-bumps, copper pillars, and highly reflective die surfaces. Camtek utilizes specialized illumination techniques and confocal or interferometry-based sensors to capture precise topographical data. This allows the system to measure features physically too small or too reflective for standard fringe projection systems to resolve accurately. The focus remains on absolute measurement repeatability rather than just high-speed defect flagging.
Camtek holds distinct structural advantages when inspecting advanced packaging, IC substrates, and High-Density Interconnect (HDI) boards. These substrates feature extreme warpage, highly reflective gold pads, and microscopic trace geometries. Camtek calibrates its optical engines specifically to handle the specular reflection of bare silicon and polished metals. The material handling systems within the machine transport ultra-thin or flexible substrates without inducing stress or vibration. Vibration would otherwise corrupt the sub-micron metrology data. This makes the platform highly suitable for hybrid manufacturing environments bridging SMT and semiconductor assembly.
Defect categorization in a Camtek system goes beyond simple pass/fail metrics. The proprietary software integrates directly with semiconductor-level yield management systems. It classifies defects based on complex morphological rules and historical yield data. When inspecting thousands of micro-bumps on a single substrate, the system aggregates the metrology data to identify systemic process drifts. For example, it can detect a slight shift in the plating bath concentration long before hard defects occur. This proactive data handling allows process engineers to adjust upstream equipment dynamically, maintaining high yield rates on extremely expensive advanced packaging products.
Both systems can detect common SMT defects, but their strengths differ. Mirtec uses Quad Moiré technology for fast detection of lifted leads and tombstoning on standard PCBs, while Camtek focuses on detailed measurement of micro-scale solder features and complex advanced substrates.
Tall components can create shadows that hide nearby small components during 3D inspection. Mirtec uses multiple projectors and side cameras to inspect these hidden areas, while Camtek uses specialized optics and Z-axis focal stacking. Both approaches help reduce blind spots on high-density boards.
AI helps reduce manual programming and improve defect classification. Mirtec focuses on fast AI setup for standard SMT components and production lines, while Camtek uses AI for more complex defect analysis on semiconductor substrates. This supports different inspection needs and production environments.
Both systems provide centralized tools for managing inspection programs and component libraries across multiple machines. Mirtec focuses on fast library sharing between SMT lines, while Camtek provides detailed version control, audit records, and user permissions for production environments that require strict traceability.

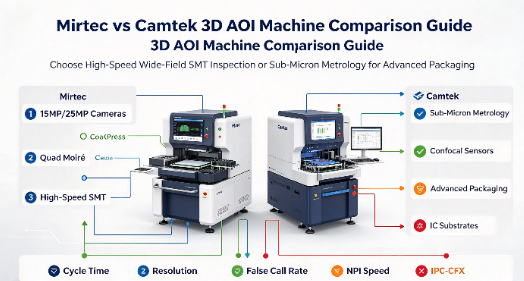

Technical Feature | Mirtec 3D AOI | Camtek 3D AOI |
|---|---|---|
Primary Application | High-speed SMT, standard to complex PCBA | Advanced packaging, IC substrates, HDI |
Optical Core | 15MP/25MP CoaXPress + Quad Moiré | Sub-micron confocal/interferometry sensors |
Shadow Mitigation | 8 Projection + 4 Side Cameras | Advanced optical engines & focal stacking |
AI Focus | Solder joint variance, OCR, rapid NPI | Morphological defect classification, yield analysis |
Data Integration | Standard MES, IPC-CFX compliance | Semiconductor yield management systems |
Closed-loop systems connect AOI with SPI, Pick-and-Place, and other production equipment. When AOI detects repeated placement errors, the system can send correction data upstream. Mirtec focuses on M2M communication within SMT lines, while Camtek connects inspection data with wider yield management systems for advanced packaging.
3D AOI systems generate large amounts of image and measurement data that can increase network load. Mirtec uses edge computing to process data locally and send key inspection results to the MES, while Camtek uses data compression to manage detailed semiconductor inspection records. Both approaches help reduce network pressure while keeping important production data.
Both Mirtec and Camtek send inspection data to factory systems for quality analysis and traceability. Mirtec provides visual dashboards for defect types, false calls, and machine performance, while Camtek focuses more on detailed SPC and long-term metrology trends. These tools help engineers identify process changes and improve production quality.
Schedule a benchmark demonstration using your most complex PCBA, including a known-defective board, to evaluate actual programming time and defect capture rates.
Audit your current false call rates and categorize them by component type to identify specific optical blind spots on your existing SMT line.
Evaluate your factory network bandwidth and MES API limits with your IT department to ensure the infrastructure can handle continuous 3D metrology data payloads.
Test the offline programming software during the vendor evaluation to measure the exact time required to build a new component library from scratch.
A: Mirtec utilizes ultra-high-resolution top-down cameras paired with multi-frequency Moiré fringe projection for high-speed, wide-field SMT inspection. Camtek employs specialized confocal or interferometry-based sensors designed for sub-micron metrology, focusing on extreme precision for semiconductor and advanced packaging substrates.
A: Camtek handles highly reflective surfaces by utilizing advanced optical engines and specialized illumination techniques calibrated for specular reflection. This allows the sensors to capture accurate topographical data on bare silicon, polished metals, and micro-bumps without the data loss typically caused by glare in standard projection systems.
A: Mirtec is generally better suited for high-mix, low-volume environments. Its Intelli-Sys software and AI-driven auto-programming allow for rapid New Product Introduction workflows. The ability to quickly tune algorithms and deploy centralized component libraries significantly reduces setup time during frequent line changeovers.
A: Mirtec mitigates shadow effects by employing a multi-camera architecture, typically featuring an 8 Projection plus 4 Side Camera configuration. When a tall component blocks the top-down fringe projection, the side cameras capture the shadowed areas, ensuring smaller adjacent components are fully inspected.
A: Yes. To prevent network throttling and API timeouts, both systems utilize edge computing to process raw image data locally. They compress the massive 3D point clouds into lightweight metadata payloads, transmitting only essential pass/fail metrics and height data to the MES via standard protocols.
A: AI reduces false calls by replacing rigid, rule-based thresholds with deep learning models trained on vast datasets of acceptable and defective joints. The AI understands the natural, acceptable variance in solder appearance, allowing it to accurately classify complex anomalies that trigger false flags in traditional algorithms.
