High-density PCB assemblies and extreme component miniaturization down to 01005 and 0201 metric sizes leave zero margin for error on the factory floor. Strict compliance standards across the automotive, aerospace, and medical sectors have transformed zero-defect manufacturing from a competitive advantage into a strict baseline requirement. Manufacturers constantly struggle to balance inspection speed with absolute accuracy. Maintaining line takt time keeps production quotas on track, but eliminating escape rates and minimizing false calls that bottleneck manual rework stations is equally vital for overall yield.
Evaluating the optimal Automated Optical Inspection (AOI) system requires moving far beyond basic spec-sheet claims. Production engineers must analyze technical realities, physical footprint constraints, and actual throughput capabilities. This analysis breaks down the production trade-offs between two industry leaders. Understanding the nuances of a Koh Young vs MEK AOI Machine deployment provides the clarity needed to optimize your surface mount technology (SMT) lines for 2026 and beyond.
Measurement vs. Inspection: Koh Young relies on true 3D profilometry (Moiré interferometry) for absolute measurement, making it the gold standard for complex, high-reliability SMT lines.
Versatility vs. Specialization: MEK offers highly flexible 5D/3D systems with exceptional multi-angle lighting, providing a strong advantage in mixed-technology boards (SMT and THT).
Throughput Realities: While MEK often provides faster raw image acquisition, Koh Young’s AI-driven defect filtering drastically reduces secondary manual review times, often resulting in higher effective line throughput.
Flagship Model Matchup: The evaluation often comes down to Koh Young’s Zenith series (e.g., Zenith 2, Zenith Alpha) against MEK’s ISO-Spector and SpectorBOX modular systems.
Cost-to-Performance: MEK typically presents a lower initial CapEx and faster deployment for high-mix/low-volume (HMLV) environments, whereas Koh Young’s higher initial investment is offset by superior yield protection in high-volume/low-mix (HVLM) or mission-critical applications.
Table of Contents
Traditional 2D AOI systems inspect only the X and Y axes, so they may miss height-related defects and can be affected by PCB colors or reflective components. True 3D AOI adds Z-axis measurement to detect lifted leads, coplanarity problems, and solder volume defects. It provides more accurate measurement for complex and high-density PCB assemblies.

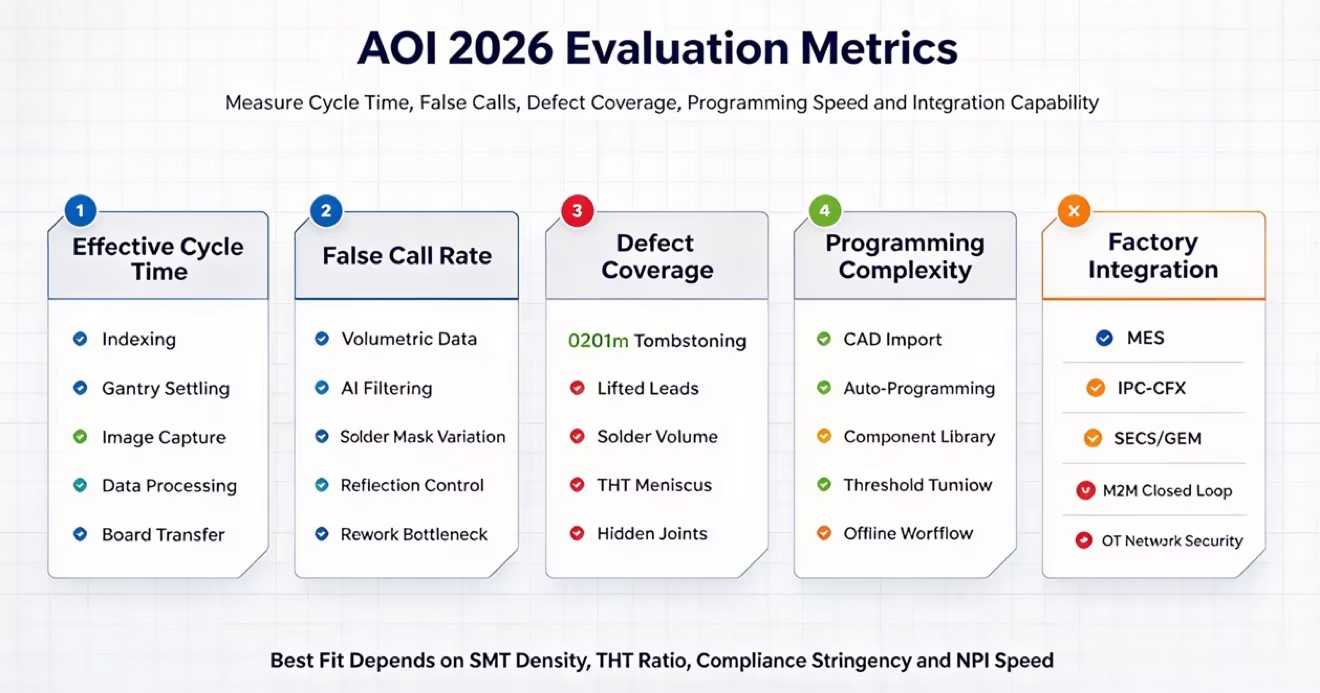

AOI speed depends on more than camera scanning time. Board loading, clamping, gantry movement, image capture, data processing, and board transfer all affect the total cycle time. False calls can also slow production because operators must review them manually. A good AOI system should balance fast inspection with low false call rates.
Modern AOI systems use AI to detect defects and identify process changes before they cause quality problems. By tracking changes in component position, solder volume, and Z-axis height, AI can warn operators when production starts to drift. Edge AI can process this data quickly and help factories improve quality control without slowing the production line.
Koh Young uses multi-way Moiré technology to inspect PCB components from several angles, reducing shadows caused by tall components. It creates 3D data to measure the height, area, and volume of components and solder joints. This helps detect small defects on dense PCBs and supports inspection based on IPC standards.
The Koh Young Zenith series includes the Zenith 2, Zenith Alpha, and Zenith UHS for different inspection needs. Optical resolutions range from 15µm to 10µm, with the 10µm option designed for small 0201 metric components and micro-BGAs. High-resolution cameras and rigid gantry systems also help maintain stable 3D inspection at high speeds.
Software integration is a primary differentiator for any Koh Young AOI Machine. The KSMART software ecosystem provides a centralized hub for factory-wide quality management. The AI-powered Koh Young Auto Programming (KAP) tool drastically reduces the time required to set up new board profiles. KAP automatically recognizes components from CAD data and applies the correct inspection parameters based on an extensive centralized database.
Furthermore, Machine-to-Machine (M2M) connectivity allows the system to feed real-time measurement data back to Solder Paste Inspection (SPI) systems and Pick-and-Place machines. This closed-loop communication automatically corrects placement offsets and paste volume deviations on the fly. If the AOI detects a consistent placement shift, it sends an offset command directly to the mounter, correcting the issue without human intervention.
Koh Young systems thrive in zero-tolerance manufacturing sectors. The absolute measurement capabilities make them the premier choice for automotive electronics, where component failure can lead to catastrophic safety issues. Aerospace and defense contractors rely on this technology to meet stringent regulatory documentation requirements.
Medical device manufacturers utilize the high-resolution metrology to ensure life-critical implants and monitors function flawlessly. Additionally, ultra-high-density mobile PCBA facilities benefit from the system's ability to inspect microscopic components packed tightly together without shadow interference. When absolute certainty is required, true 3D metrology provides the necessary objective data.
MEK uses 5D/3D imaging and multi-angle lighting for flexible PCB inspection. Its 9-camera system combines one top camera with eight side cameras to inspect hidden solder joints, tall components, J-leads, and gull wings. This design helps detect defects that standard top-down cameras may miss.
The MEK ISO-Spector M1A combines 3D inspection, AI, and high-speed image processing. The SpectorBOX offers flexible top-down or bottom-up inspection for wave and selective soldering lines. Its high Z-axis clearance also supports boards with large capacitors, heat sinks, and other tall components.
MEK can inspect both SMT and THT assemblies, making it suitable for mixed-technology boards. Bottom-up inspection helps detect insufficient solder, bridging, pin-hole defects, and other problems on wave-soldered pins. Its flexible lighting also improves inspection around large THT components.
MEK is well suited for high-mix, low-volume production where PCB designs and component types change frequently. Its flexible inspection system can handle SMT, THT, heavy copper boards, and different component sizes. This makes it useful for contract manufacturers and industrial electronics production.
MEK uses high-speed cameras to capture 2D/3D images quickly, giving it an advantage in raw scanning speed. Koh Young processes larger 3D datasets from Moiré projections, but newer GPU and Edge AI technology has improved processing speed. Both systems can support efficient inspection of complex PCB assemblies.
Koh Young is strong in SMT inspection because its 3D measurement can detect small defects such as 0201 tombstoning and solder volume problems. MEK performs well with THT and tall components because its side cameras can inspect connectors, solder joints, and areas hidden from top-down cameras.
Koh Young uses 3D height and volume measurements to identify defects and reduce false calls. MEK uses AI algorithms to separate real defects from visual differences caused by PCB colors or reflective components. Both systems aim to reduce false calls and prevent defective boards from passing inspection.
Koh Young uses KAP software to create inspection programs from CAD data and automatically set inspection parameters. MEK uses a customizable component library that gives engineers more control over lighting and inspection settings. Both systems support MES integration through SECS/GEM and IPC-CFX standards.
Both Koh Young and MEK provide global technical support and spare parts services. Koh Young uses regional support centers and remote diagnostics, while MEK works through regional distributors and integration partners. Buyers should compare local engineer response times, spare parts availability, and Service Level Agreements (SLAs) before purchasing.
Evaluation Dimension | Koh Young | MEK (Marantz) | Operational Impact |
|---|---|---|---|
Core Technology | True 3D Moiré Interferometry | 5D/3D Multi-Angle Stereoscopic | Determines absolute measurement vs visual inspection capability. |
SMT Defect Capture | Exceptional (Micro-components) | Strong | Critical for high-density mobile and medical PCBA. |
THT / Tall Components | Moderate (Shadow limitations) | Exceptional (9-camera system) | Dictates performance on mixed-technology and industrial boards. |
False Call Rate | Near-Zero (Volumetric data) | Low (AI-filtered) | Directly impacts manual rework bottleneck and effective throughput. |
Programming Method | AI Auto-Programming (KAP) | Customizable Library-Based | Affects NPI (New Product Introduction) speed and operator training. |
Z-Axis Clearance | Standard SMT Clearance | High Clearance Options | Determines ability to inspect boards with massive heat sinks or relays. |
The core conceptual decision boils down to choosing between rigid process control and agile adaptability. Deploying Koh Young technology means committing to absolute metrology. It is a decision to measure every physical dimension of a board to guarantee compliance with unforgiving industry standards. This rigid control is necessary for environments where a single defect is unacceptable, such as aerospace or medical manufacturing.
Conversely, deploying MEK technology means prioritizing flexibility. It is a decision to build a highly adaptable inspection process capable of handling unpredictable product mixes, heavy THT components, and diverse board layouts. Manufacturers must align their machine choice directly with their dominant production reality. A high-volume facility running identical smartphone boards needs strict standardization, while a contract manufacturer building fifty different products a week needs agile manufacturing capabilities.
Neither machine is universally superior across all manufacturing environments. The optimal choice hinges entirely on specific board complexity, the ratio of SMT to THT components, and the strictness of industry compliance requirements. Choose Koh Young if your facility produces mission-critical, high-density SMT boards where absolute 3D measurement and closed-loop process control are mandatory to meet automotive or medical standards. Choose MEK if you operate a high-mix contract manufacturing facility dealing with diverse board types, heavy THT components, and require a highly versatile system capable of rapid changeovers.
Compile a test batch of your most complex, defect-prone PCB assemblies to serve as a benchmark standard.
Schedule live demonstrations with both vendors to run your benchmark boards and record the actual programming time required.
Measure the false call rate and escape rate during the live test to calculate the true effective throughput for your specific product mix.
Audit your factory floor space and network infrastructure to ensure compatibility with the physical footprint and MES integration requirements of the selected machine.
A: Koh Young utilizes multi-way Moiré interferometry to capture absolute 3D volumetric measurements of every component and solder joint. MEK employs versatile 5D/3D multi-angle stereoscopic camera systems, which excel at inspecting complex geometries and hidden joints using omnidirectional lighting.
A: MEK generally performs better for THT applications. Their systems offer bottom-up inspection options, modularity for wave soldering lines, and high-clearance multi-angle side cameras that inspect tall components and heavy industrial connectors without shadow interference.
A: Yes. Both brands fully support modern factory integration standards, including IPC-CFX and SECS/GEM protocols. They facilitate seamless machine-to-machine communication, allowing the AOI to feed real-time data back to solder paste inspection and pick-and-place equipment.
A: Yes. While they use stereoscopic imaging rather than absolute Moiré metrology, their advanced algorithms and high-resolution top-down cameras accurately detect micro-defects, tombstoning, and bridging on densely packed surface mount assemblies.
A: Koh Young minimizes false calls by relying on strict, objective volumetric measurements rather than visual interpretation. MEK reduces false calls by utilizing advanced filtering algorithms that learn to distinguish between actual structural defects and harmless visual anomalies like varying solder mask colors.
