| Reliable SMT Stencil Printer
In fast-paced electronics manufacturing, inconsistent solder paste leads to defects and delays—our SMT stencil printer fixes that with automation. This high precision SMT stencil printer achieves ±0.01mm repeatability, ideal for LED, automotive, and consumer electronics. The automatic PCB printer calibrates boards instantly, prints in under 7 seconds, and cleans stencils without manual effort. Solve waste from uneven application or side buildup using the stencil printer solder paste system. Integrate with MES for real-time data, cut costs, and boost yield. From small 50x50mm to large 900x600mm PCBs, this high precision SMT stencil printer turns chaotic lines into smooth operations.
| Feature
Factory managers dread rework from poor paste deposits, especially in LED assembly where fine pitches demand perfection. The SMT stencil printer's arch bridge squeegee, driven by dual stepping motors, applies balanced pressure with real-time feedback. This high precision SMT stencil printer ensures ±0.01mm accuracy across tin-plated or FPC boards using advanced vision and coaxial lights. In automotive electronics scenarios, it supports glue printing to prevent overflows, reducing scrap and operator fatigue. Imagine consistent results shift after shift—the automatic PCB printer handles multi-method separation, making high-volume runs defect-free and profitable.
PCB jams halt production in high-mix factories, causing downtime and frustration. Our SMT stencil printer features a belt system that prevents sticking, with precise motor control for speeds up to 1500mm/s. The automatic PCB printer adapts directions flexibly, using side clamps and vacuum for warped boards under 1%. For consumer electronics lines switching sizes often, programmable lifting ensures perfect stencil contact. This stencil printer solder paste setup eliminates manual interventions, speeding throughput in LED or vehicle module assembly and letting teams focus on quality over fixes.
Paste residue on stencils causes quality drops and wasteful cleanups in busy shifts. The SMT stencil printer offers dry, wet, or vacuum modes with even spray distribution, software-controlled to save materials. High precision SMT stencil printer's separate CCD detects holes for auto cleaning, maintaining continuity in electronics manufacturing. In scenarios like family cinema PCB production, it removes side buildup effortlessly, preventing defects. Operators enjoy hassle-free maintenance—the automatic PCB printer keeps lines running longer, cutting costs and boosting efficiency for stencil printer solder paste applications.
| Specification
| Model | I.C.T-4034 | I.C.T5134 | I.C.T-5151 |
| Frame Size(mm) | 470*370 ~ 737*737 | 470*370 ~ 737*737 | 470*370 ~ 737*737 |
| PCB Size(mm) | 50*50 ~ 400*340 | 50*50 ~ 510*340 | 50*50 ~ 510*510 |
| Transport Direction | Left-Right; Right-Left; Left-Left; Right-Right | ||
| Support System | Magnetic Pin/Up-down table adjusted/support block | ||
| Clamping System | Side clamping(vacuum nozzle,Automation retractable Z pressure is option) | ||
| Printer Head | Two independent motorised printhead | ||
| Squeegee Type | Stainless steel(standard),plastic | ||
| Cleaning System | Dry, Wet, Vacuum | ||
| Inspection | 2D Inspection(Standard) | ||
| Power Supply | AC:220±10%,50/60HZ,3Kw | ||
| Control Method | PC Control | ||
| Dimension(mm) | 1220*1355*1500 | 1220*1355*1500 | 1220*1550*1500 |
| Model | I.C.T-6534 | I.C.T-6561 | I.C.T-9060 |
| Frame Size(mm) | 650*400 ~ 850*750 | 650*400 ~ 850*850 | 737*400 ~ 1100*900 |
| PCB Size(mm) | 50*50 ~ 650*340 | 80*50 ~ 650*610 | 80*50 ~ 900*600 |
| Dimension(mm) | 1330*1370*1500 | 1330*15450*1500 | 1580*1545*1500 |
* I.C.T keeps working on quality and performance, specifications and appearance may be updated without particular notice.

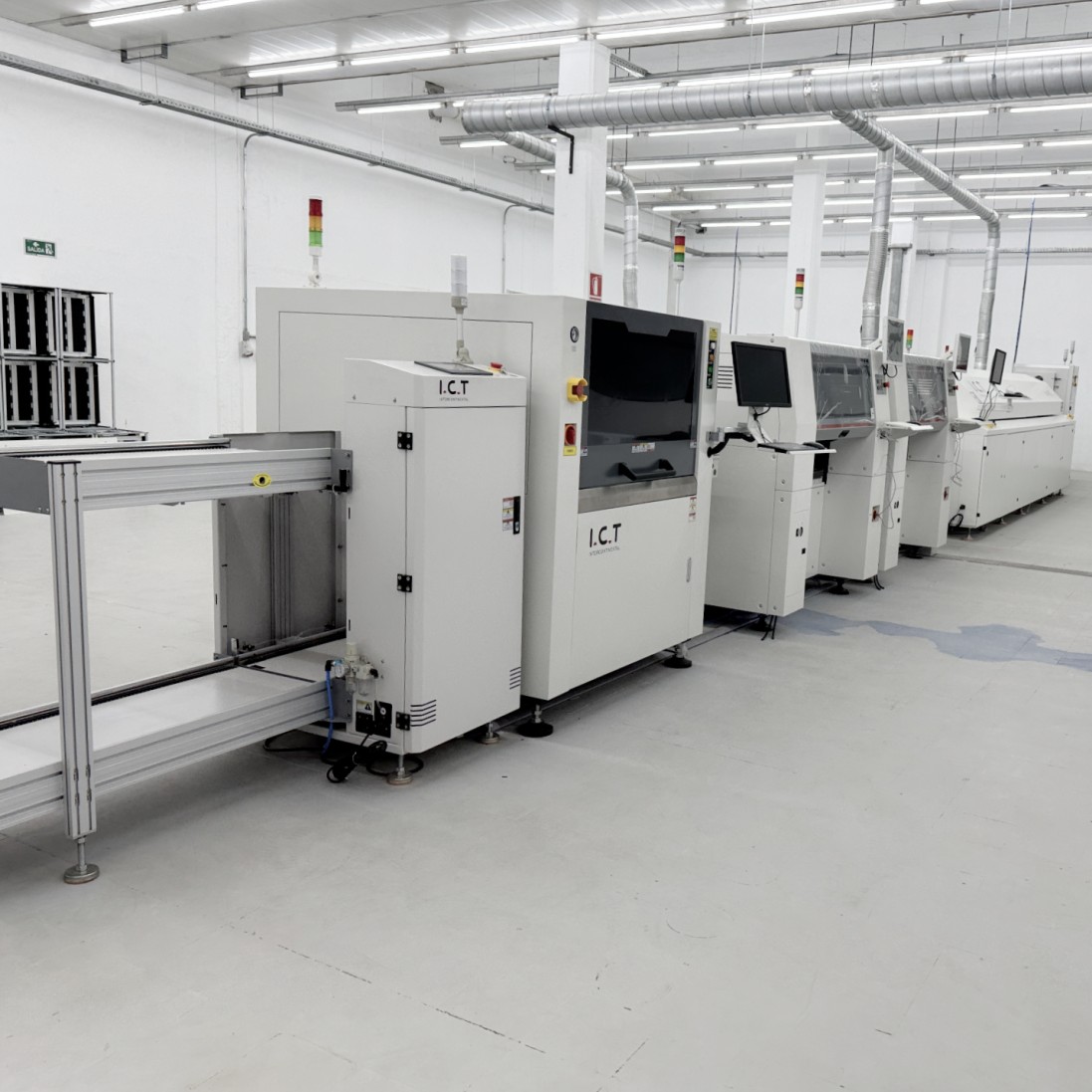

| SMT Line Equipment List
Our High Quality PCBA Production Line features advanced equipment for efficient and precise PCB assembly. The fully automated SMT line includes a loader, an auto printer for accurate solder paste application, a pick-and-place machine for precise component placement, a reflow oven for reliable soldering, and an AOI system for thorough defect inspection. This High Quality PCBA Production Line ensures smooth operation, high reliability, and low-cost SMT assembly, meeting diverse industry requirements.
| Product Name | Purpose in SMT Line |
|---|---|
| PCB Loader | Automatically loads bare PCBs to the line. |
| Solder Paste Printer | Prints solder paste on PCB pads accurately. |
| Pick and Place Machine | Mounts components onto PCBs precisely. |
| Reflow Oven | Melts solder to form solid joints. |
| AOI Machine | Inspects solder joints and placement defects. |
| SPI Machine | Checks solder paste height and quality. |
| Traceability Equipment | Records and tracks production data: Laser Marking Machine/Label Mounter/Inkjet Printer |
| Customer Success Case Video
A Saudi Arabia ODM company in 2025 faced expansion pressures for LED products, risking delays without reliable setup. I.C.T delivered full SMT and DIP lines, including the SMT stencil printer. Two expert engineers arrived in the Middle East, installing the high precision SMT stencil printer amid challenges. They trained staff on automatic PCB printer operations, from loading to optimizing stencil printer solder paste prints. The line started flawlessly, with quick cycles and zero initial defects. This partnership resolved downtime fears, enhanced yields, and built lasting trust through hands-on support.
| Service and Training Support
I.C.T supports your SMT stencil printer globally with installation and customized training. Engineers set up the high precision SMT stencil printer on-site, covering operation, maintenance, and integration. Remote help fixes issues fast for the automatic PCB printer. We provide spares, upgrades, and process optimization to keep stencil printer solder paste performance peak.
| Customer Reviews
Clients praise I.C.T engineers for rapid, knowledgeable overseas assistance. The SMT stencil printer impresses with durable reliability and low failures. Safe packing protects the high precision SMT stencil printer during shipping. Quick query responses save time, earning trust in every automatic PCB printer project.
| Certifications and Standards
Certified with CE, RoHS, ISO9001, and patents on cleaning, accuracy, and separation, the SMT stencil printer guarantees safety and quality. These standards ensure reliable stencil printer solder paste use worldwide.

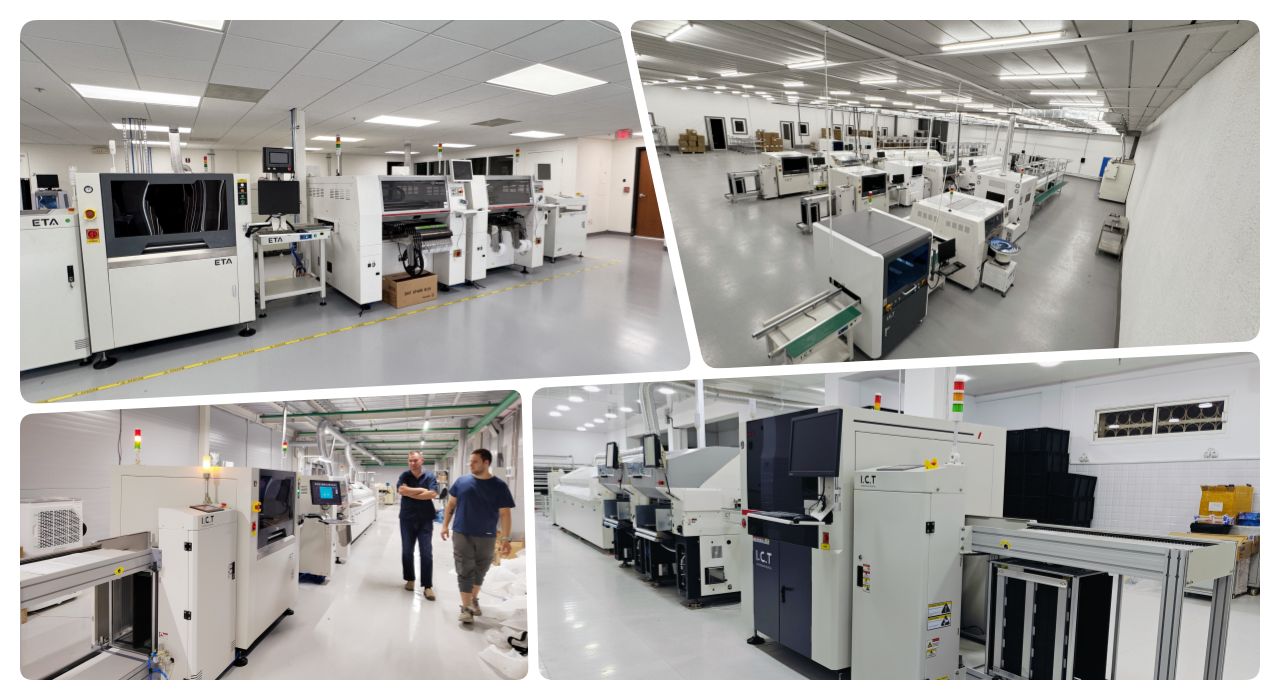

| About I.C.T Company and Our SMT Factory
I.C.T boasts in-house R&D, production, and over 89 staff, growing rapidly while serving 1600+ customers in 72 countries. Strict testing and quality systems produce robust equipment like the SMT stencil printer for seamless global SMT lines.
