| Solder Paste Stencil Spray Printing Machine Overview
The Solder Paste Stencil Spray Printing Machine from I.C.T delivers fast, accurate SMT printing for modern lines. With a 7-second cycle, it handles PCBs from 50x50mm to 900x600mm. High repeat accuracy of ±0.01mm and printing precision of 0.025mm ensure quality. Auto features like PCB calibration, squeegee pressure control, and stencil cleaning reduce manual work. It supports glue printing and works with LCD TV, LED, automotive electronics. The smt pcb printing machine fits Industry 4.0 and MES for real-time data. Simple Windows interface makes operation easy. I.C.T provides full support from setup to training.
| Feature
Arch bridge suspension squeegee uses two motors for direct control. This ensures stable pressure on both sides. Double slide rails keep accuracy before and after printing. Auto pressure feedback forms perfect paste. The Solder Paste Stencil Spray Printing Machine handles various substrates. It reduces defects in fine-pitch work. Imported parts extend life over ten years. This system suits high-volume SMT lines.
Unique belt conveyor prevents PCB jams effectively. Motor controls speed and stop position precisely. Directions switch left-right freely. Side clamps and vacuum hold boards tight. This ensures smooth stencil contact. The printer stencil PCB supports warpage under 1%. It fits diverse production needs. Fast transport up to 1500mm/s boosts efficiency.
Dry, wet, vacuum modes clean stencil fully. CCD separates from cleaning part for safety. Spray system spreads alcohol and paper evenly. Software controls consumption to save materials. Strong exhaust motor removes residue fast. This keeps printing perfect over long runs. The pcb solder paste stencil printer maintains quality automatically.
| Specification
| Model | I.C.T-4034 | I.C.T5134 | I.C.T-5151 |
| Frame Size(mm) | 470*370 ~ 737*737 | 470*370 ~ 737*737 | 470*370 ~ 737*737 |
| PCB Size(mm) | 50*50 ~ 400*340 | 50*50 ~ 510*340 | 50*50 ~ 510*510 |
| Transport Direction | Left-Right; Right-Left; Left-Left; Right-Right | ||
| Support System | Magnetic Pin/Up-down table adjusted/support block | ||
| Clamping System | Side clamping(vacuum nozzle,Automation retractable Z pressure is option) | ||
| Printer Head | Two independent motorised printhead | ||
| Squeegee Type | Stainless steel(standard),plastic | ||
| Cleaning System | Dry, Wet, Vacuum | ||
| Inspection | 2D Inspection(Standard) | ||
| Power Supply | AC:220±10%,50/60HZ,3Kw | ||
| Control Method | PC Control | ||
| Dimension(mm) | 1220*1355*1500 | 1220*1355*1500 | 1220*1550*1500 |
| Model | I.C.T-6534 | I.C.T-6561 | I.C.T-9060 |
| Frame Size(mm) | 650*400 ~ 850*750 | 650*400 ~ 850*850 | 737*400 ~ 1100*900 |
| PCB Size(mm) | 50*50 ~ 650*340 | 80*50 ~ 650*610 | 80*50 ~ 900*600 |
| Dimension(mm) | 1330*1370*1500 | 1330*15450*1500 | 1580*1545*1500 |
* I.C.T keeps working on quality and performance, specifications and appearance may be updated without particular notice.
| SMT Line Equipment List

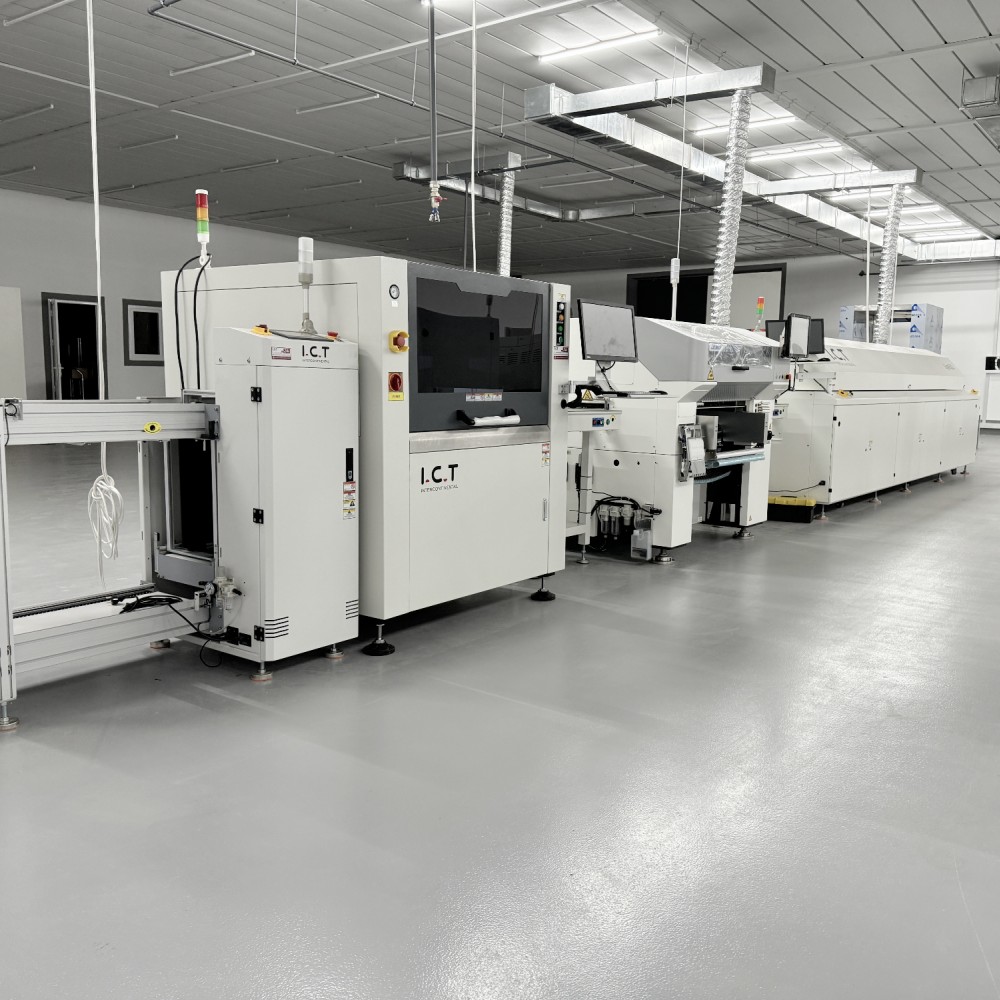

Our High Quality PCBA Production Line features advanced equipment for efficient and precise PCB assembly. The fully automated SMT line includes a loader, an auto printer for accurate solder paste application, a pick-and-place machine for precise component placement, a reflow oven for reliable soldering, and an AOI system for thorough defect inspection. This High Quality PCBA Production Line ensures smooth operation, high reliability, and low-cost SMT assembly, meeting diverse industry requirements.
| Product Name | Purpose in SMT Line |
|---|---|
| PCB Loader | Automatically loads bare PCBs to the line. |
| Solder Paste Printer | Prints solder paste on PCB pads accurately. |
| Pick and Place Machine | Mounts components onto PCBs precisely. |
| Reflow Oven | Melts solder to form solid joints. |
| AOI Machine | Inspects solder joints and placement defects. |
| SPI Machine | Checks solder paste height and quality. |
| Traceability Equipment | Records and tracks production data: Laser Marking Machine/Label Mounter/Inkjet Printer |
