I.C.T-5700
I.C.T
| Quantity: | |
|---|---|
| Efficient Precision PCB Cutting Machine
You’ll find this PCB cutting machine hard at work in smartphones, smart wearables, home devices, tablets, car electronics, medical gear, and even aerospace. It handles board sizes from 340×380mm all the way to 450×600mm and thicknesses between 0.5 and 5.0mm without complaint. A fresh CCD vision system spots every mark and fixes alignment on its own. The spindle spins up to 80,000rpm for light-stress, high-accuracy cuts. Dual platforms let you run different jobs side by side or merge them for bigger boards. An ion air gun wipes away static so dust doesn’t stick. Sensors watch the cutter constantly. The separate dust collector runs quiet yet powerful. Operation stays straightforward and steady.
| Feature
Transmission System
A unique dust-proof design on the X-axis keeps maintenance low and costs down. Flexible tank chains hold wires neatly and prevent any interference with moving parts. Thicker, stronger framing gives the whole machine rock-solid stability during long runs. Imported Panasonic servo motors team up with precise Taiwan guide rails and screw rods to deliver smooth, exact movement every shift. All these elements together make the PCB cutting machine 0.6-1.5mm cnc router a dependable workhorse that rarely needs attention while holding tight accuracy day in and day out.
Router System
The imported high-speed spindle cuts with low stress, quick reaction, and excellent precision. An ion air gun blasts static off the board surface so dust can’t settle. Optional automatic tool changing keeps the line running without pauses for higher output. Broken-tool detection triggers an instant alarm if anything wears out. A sharp CCD camera sits right over the cutter for fast and spot-on calibration. Every part of this setup ensures clean, reliable performance from the PCB cutting machine.

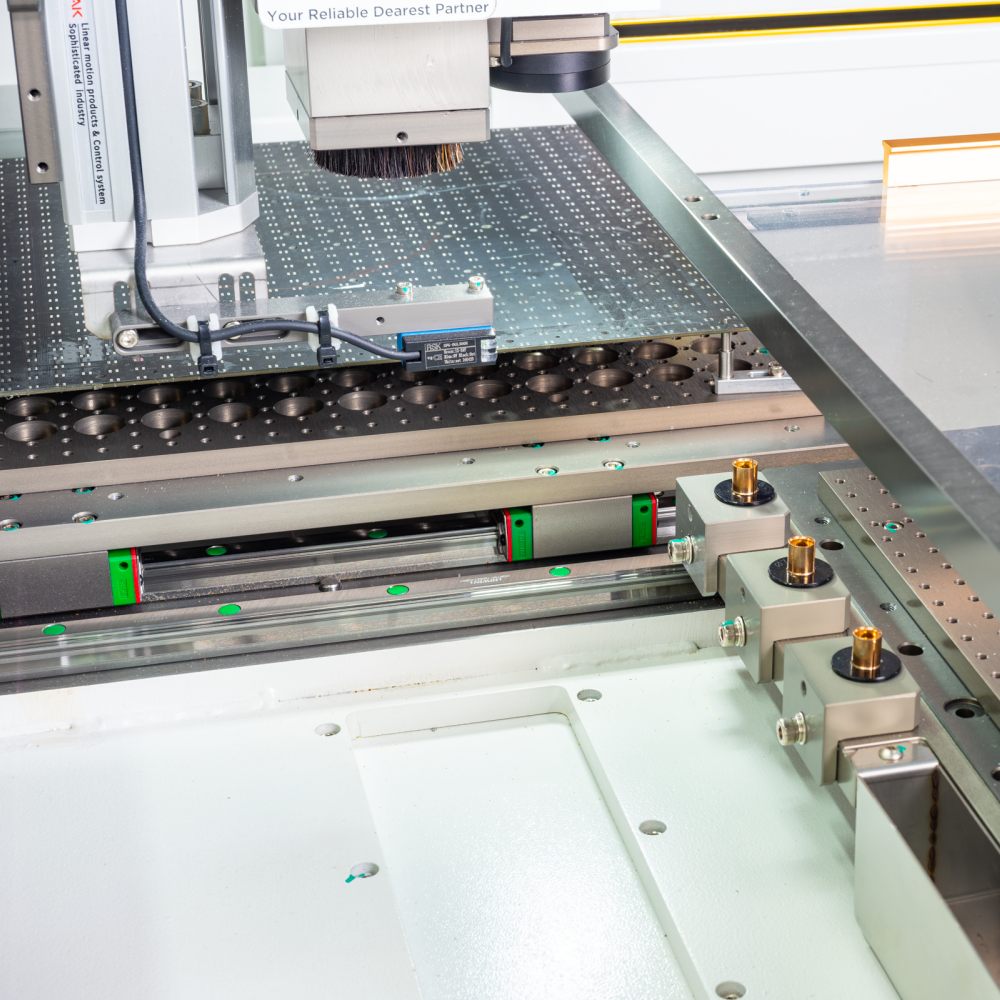

Platform System
The honeycomb base offers strong suction and fits many board types easily. Operators must press start buttons on both sides at once for safe startup. Light curtains, full safety covers, and two-way emergency stops protect everyone nearby. Servo motors and slide rails drive the Y-axis with outstanding steadiness. Dual platforms accept standard or custom fixtures without fuss. This thoughtful layout makes the PCB cutting machine safe, flexible, and ready for busy production floors.
Control System
Real-time CCD display lets operators see exactly what’s happening. Quick program switches and a simple interface keep changeovers fast. Production logs track every job for easy quality checks. Strong anti-interference design works well in noisy factories. An industrial computer paired with a dedicated CNC controller delivers steady, accurate control. All features meet CE standards and make daily use straightforward, so the PCB cutting machine stays reliable shift after shift.
Detail Display
Self-locking gas struts hold doors open securely. Broken-knife sensor checks cutter condition constantly. Optional auto tool changer swaps bits without stopping work. ESD interface guards sensitive components from static damage. Side door sensors halt motion if doors open. Convection fan maintains even cooling. Each small detail adds real safety and convenience to everyday operation of the PCB cutting machine.
| Specification
| Model | I.C.T-5700M | I.C.T-5700L | I.C.T-5700LL |
| Pcb Size(Double platform,Special size optional) | 290*350mm | 350*450mm | 450*500mm |
| PCB thickness | 0.3~6.0mm | ||
| Weight(with vacuum cleaner) | 1000kg | ||
| Dimension | 1075*1430*1460mm | 1125*1530*1460mm | 1225*1530*1460mm |
| Dust Collection Method | Vacuum cleaning | ||
| Air volume of vacuum cleaner | 28~35cm3/min | ||
| Vacuum cleaner Dimension | 640*785*1760mm | ||
| Voltage of the Dust Collector | 380V,50/60HZ,3kw | ||
| SMT Line Equipment List
I.C.T make real High-Quality PCBA Production Line. Vacuum loader give board clean. Auto printer put paste right. Placer set chip true. Many zone reflow solder hard. Good AOI find all bad. Line stay tight. Yield high. Cost low. No play. Make for hard work car health light. Board come ready real world. We back full.
| Product Name | Purpose in SMT Line |
|---|---|
| SMT Line | Turnkey Ful-auto SMT assembly line |
| PCB Loader | Automatically loads bare PCBs to the line. |
| Solder Paste Printer | Prints solder paste on PCB pads accurately. |
| Pick and Place Machine | Mounts components onto PCBs precisely. |
| Reflow Oven | Melts solder to form solid joints. |
| Customer Success Video
An Algerian customer building feature phones arrived at our factory to test the full line. They brought over ten panels plus all their components. We fired up the complete SMT process right in front of them: automatic printer laid solder paste, SPI checked it, RX-8 handled tiny parts, RS-1R placed bigger ones, tray feeder supplied shield covers, reflow oven finished soldering, AOI inspected quality, and finally the I.C.T PCB cutting machine separated every board with perfect clean edges. Everything ran smooth as clockwork. They watched high efficiency and flawless results up close, left happy, and fully approved the equipment.
| Service and Training Support
Worldwide service centers respond fast to any call. Quick spare parts shipping and remote guidance keep production moving with almost no downtime. Hands-on training at your site covers safe operation, programming, tool handling, and routine care for the PCB cutting machine. Experienced engineers handle installation and teach your team step by step. Ongoing advice helps optimize processes as needs change. This full support package gives customers confidence and helps them get the best long-term value from their investment.
| Client Testimonials
Clients regularly tell us how much they appreciate our engineers’ fast, expert help and clear guidance. They love the steady precision and clean results from our machines. Careful, secure packaging means every shipment arrives in perfect shape. Quick answers to questions create real trust and lasting partnerships. Overall, customers say I.C.T equipment and support stand out in the industry.
| Certifications and Standards
Multiple patents protect our innovative designs. ISO9001 confirms strict quality management throughout production. RoHS ensures environmentally friendly materials. CE marking proves full safety compliance. These important certifications show that every product, including the PCB cutting machine, meets high international standards customers can count on.
| About I.C.T Company and Factory
Strict testing procedures and complete quality systems run through our modern factories. Growth has been strong and steady, now reaching over 1600 customers across more than 72 countries. In-house research, development, and production teams with plenty of skilled engineers drive constant improvement. Every PCB cutting machine goes through careful checks before leaving the door. Focus stays on fresh ideas and solid global service to help partners succeed over the long haul.
