I.C.T-5700
I.C.T
| Quantity: | |
|---|---|
| Powerful Inline PCB Cutting Machine
This inline pcb cutting machine stands strong in smartphones, wearables, smart homes, tablets, car electronics, medical tools, and aerospace jobs. It takes boards from 340×380mm to 450×600mm, thicknesses 0.5 to 5.0mm. New CCD vision grabs marks quick and fixes position steady. Spindle hits 80,000rpm for easy, accurate cuts. Dual platforms run two jobs or link into one big space. Ion air gun knocks static off so dust stays clear. Sensors guard the cutter every second. Separate dust collector sucks hard but runs quiet. Easy controls make the Mini PCB Inline Cutting Machine ready for hard daily runs.
| Feature
Transmission System
Dust-proof X-axis cover keeps dirt out and cuts repair time. Tank chains hold wires safe and clean from moving parts. Heavy frame fights shake for steady long hours. Panasonic servo motors join Taiwan screw rods and guide rails for true, smooth power. These tough parts push the inline pcb cutting machine through heavy shifts without breaking down.
Router System

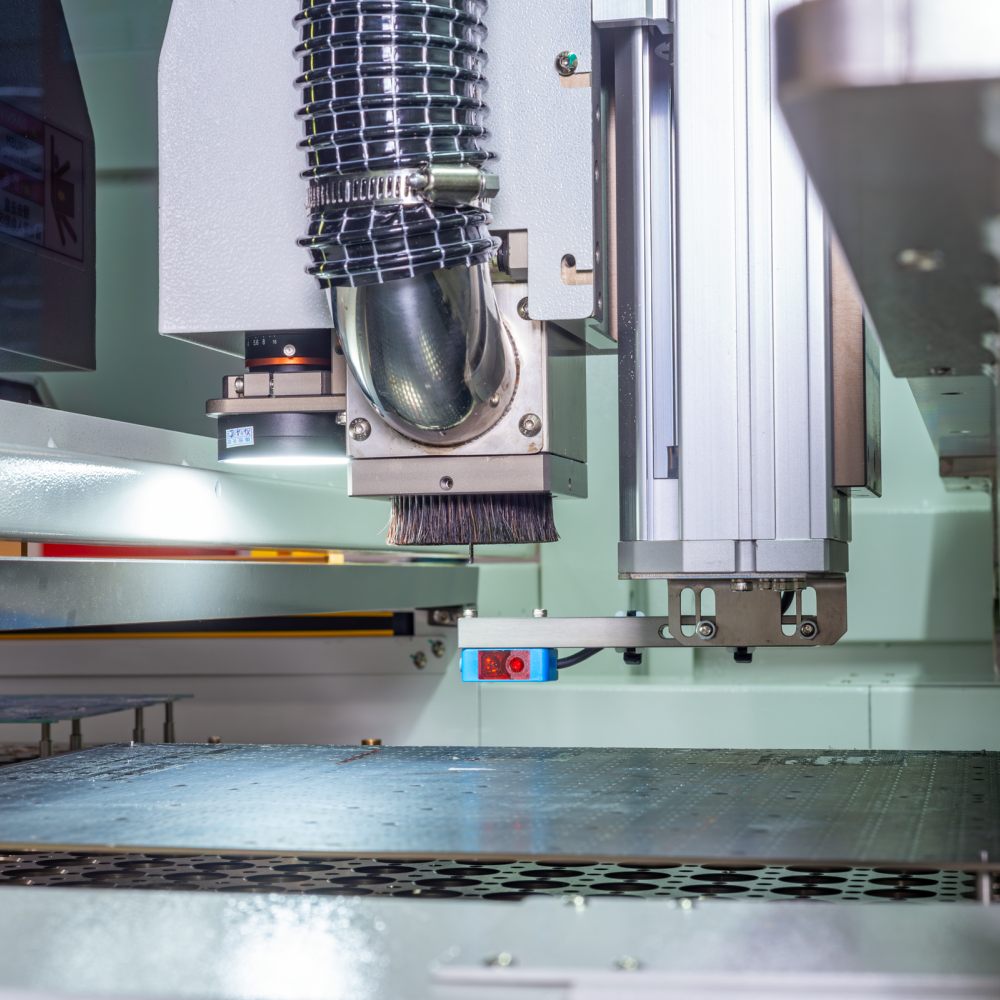

High-speed spindle bites quick with light force, small swing, and dead-on precision. Ion air gun blasts static clear to stop dust buildup. Optional auto tool changer drives work without breaks. Broken tool alarm rings loud and instant. Clear CCD sits right with the cutter for fast, sure setup. This hard-working system keeps the inline pcb cutting machine cutting strong and true.
Platform System

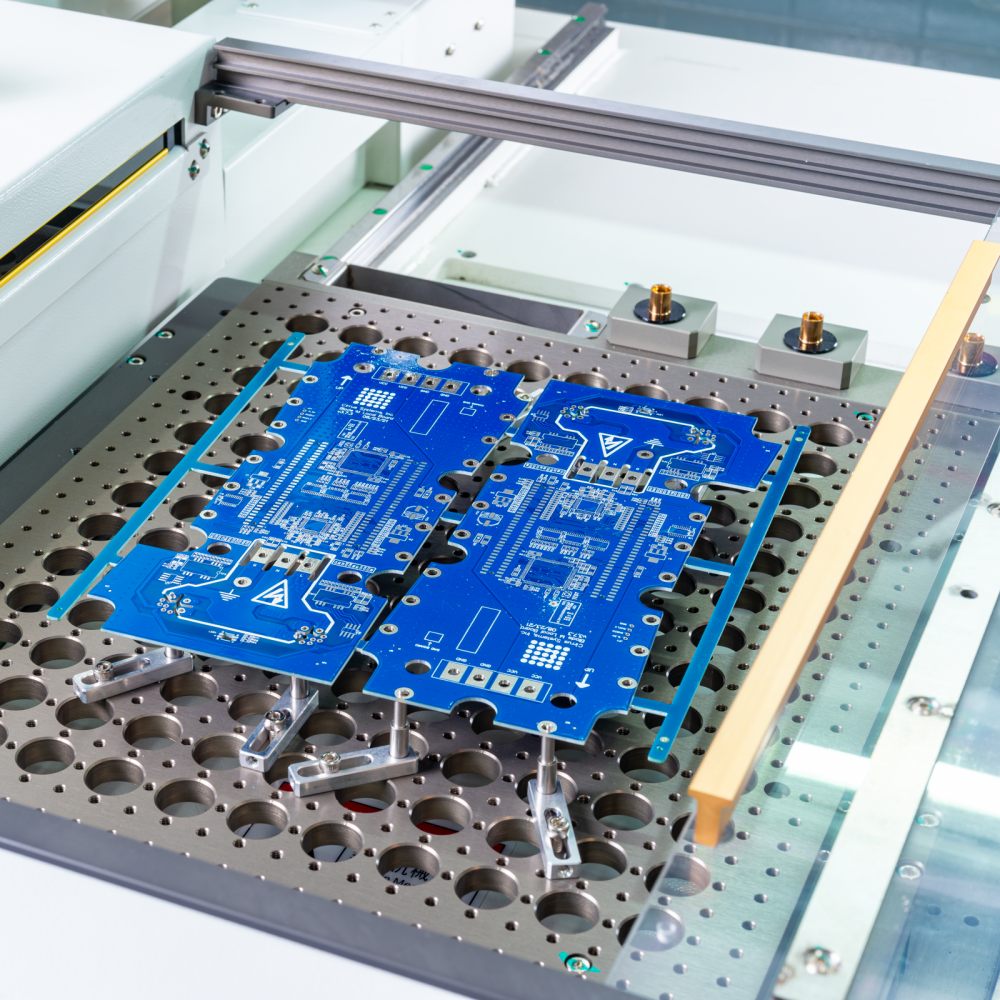

Honeycomb base locks boards down and fits wide types. Dual platforms take any fixture quick. Both start buttons demand two hands for real safety. Covers, light curtains, and fast stops guard workers close. Servos and rails hold Y-axis rock steady. The inline pcb cutting machine turns into a safe, ready partner for line demands.
Control System
Live CCD feeds sharp views straight to screen. Clean interface meets rules and swaps programs in seconds. Logs catch every move for solid records. Hard CNC controller blocks factory noise easy. Precision runs deep and lasts. Workers handle the inline pcb cutting machine with sure hands shift after shift.
Detail Display
Convection fan pushes even heat through. Side sensors kill power if doors move. ESD port blocks static jumps. Auto changer feeds tools smooth. Knife sensor tracks wear sharp. Gas struts lock doors open firm. These strong little pieces build safety and grip into the inline pcb cutting machine for real use.
| Specification
| Model | I.C.T-5700M | I.C.T-5700L | I.C.T-5700LL |
| Pcb Size(Double platform,Special size optional) | 290*350mm | 350*450mm | 450*500mm |
| PCB thickness | 0.3~6.0mm | ||
| Weight(with vacuum cleaner) | 1000kg | ||
| Dimension | 1075*1430*1460mm | 1125*1530*1460mm | 1225*1530*1460mm |
| Dust Collection Method | Vacuum cleaning | ||
| Air volume of vacuum cleaner | 28~35cm3/min | ||
| Vacuum cleaner Dimension | 640*785*1760mm | ||
| Voltage of the Dust Collector | 380V,50/60HZ,3kw | ||
| SMT Line Equipment List
I.C.T make real High-Quality PCBA Production Line. Vacuum loader give board clean. Auto printer put paste right. Placer set chip true. Many zone reflow solder hard. Good AOI find all bad. Line stay tight. Yield high. Cost low. No play. Make for hard work car health light. Board come ready real world. We back full.
| Product Name | Purpose in SMT Line |
|---|---|
| SMT Line | Turnkey Ful-auto SMT assembly line |
| PCB Conveyor | Automatically loads bare PCBs to the line. |
| Solder Paste Printer | Prints solder paste on PCB pads accurately. |
| Pick and Place Machine | Mounts components onto PCBs precisely. |
| Reflow Oven | Melts solder to form solid joints. |
| Customer Success Video
Men from Algeria building feature phones hauled over ten panels and parts to our shop for testing. We fired the full SMT line right there. Printer laid paste even, SPI scanned close. RX-8 dropped small parts fast, RS-1R set the big ones solid. Tray fed shield covers clean. Reflow baked tight. AOI hunted flaws. Then the I.C.T inline pcb cutting machine sliced boards apart clean and straight. Whole run pushed steady with power. They watched speed and perfect edges, walked away sold on the Mini PCB Inline Cutting Machine strength.
| Service and Training Support
Centers worldwide jump on calls quick. Parts ship fast to hold lines up. Remote fixes knock out trouble early. On-site crews teach install, programs, tools, and care for the inline pcb cutting machine. Good hands guide from day one. Steady tips build better runs over time. This backup stands like rock for customers pushing hard.
| Client Testimonials
Folks praise our engineers for fast fixes and straight talk. They like the hard precision and clean breaks from machines. Packing takes road hits without damage. Quick answers earn real respect. Customers call I.C.T top for gear and backup.
| Certifications and Standards
Patents prove our own tough ideas. ISO9001 locks quality down. RoHS keeps earth clean. CE stands for full safety. These hard-won signs show the inline pcb cutting machine meets big world tests every time.
| About I.C.T Company and Factory
Factories run hard tests and tight quality checks. Big engineer crews build and dream inside. Fast growth hits over 1600 customers in 72 countries. Every inline pcb cutting machine faces close looks before shipping. Drive for new power and world reach keeps bonds tough and long.
