I.C.T-6561
I.C.T
| Quantity: | |
|---|---|
| Fully Automatic SMT Stencil Printer
The I.C.T-6561 auto pcb solder printer machine is a high-speed fully automatic smt stencil printer designed for modern SMT lines. With Industry 4.0 and MES compatibility, it achieves ±0.01mm repeat accuracy and 7-second cycle time. The suspended print head and programmable pressure control guarantee perfect solder paste deposition on every board. Widely used in LED lighting, automotive electronics, and consumer products, this led light stencil printing machine supports PCB sizes from 80×50mm to 650×610mm. Easy Windows 10 interface lets new programs finish in 5-10 minutes. Choose I.C.T-6561 for stable, waste-free, high-quality printing every shift.
| Feature
Arch-bridge suspended print head uses two independent stepping motors for left-right balance. Real-time pressure feedback adjusts automatically from 0-15kg. OPC squeegee option limits print area to match PCB size, reducing solder paste waste by 30%. This auto pcb solder printer machine keeps perfect forming effect on fine-pitch and large LED boards.
Unique belt transmission prevents PCB jam completely. Motor drives speed up to 1500mm/s with exact stop position. Side clamps plus optional vacuum nozzle hold boards firmly. Left-right or right-left direction changes freely via software. The stencil printer for pcb ensures smooth PCB-stencil contact every cycle.
Dry, wet and vacuum three modes work separately with independent CCD control. Top-to-bottom spray cleans evenly while software counts alcohol and paper to save cost. Strong exhaust motor removes fumes in seconds. Stencil stays spotless for continuous high-quality printing.
| Specification
| Model | I.C.T-4034 | I.C.T5134 | I.C.T-5151 |
| Frame Size(mm) | 470*370 ~ 737*737 | 470*370 ~ 737*737 | 470*370 ~ 737*737 |
| PCB Size(mm) | 50*50 ~ 400*340 | 50*50 ~ 510*340 | 50*50 ~ 510*510 |
| Transport Direction | Left-Right; Right-Left; Left-Left; Right-Right | ||
| Support System | Magnetic Pin/Up-down table adjusted/support block | ||
| Clamping System | Side clamping(vacuum nozzle,Automation retractable Z pressure is option) | ||
| Printer Head | Two independent motorised printhead | ||
| Squeegee Type | Stainless steel(standard),plastic | ||
| Cleaning System | Dry, Wet, Vacuum | ||
| Inspection | 2D Inspection(Standard) | ||
| Power Supply | AC:220±10%,50/60HZ,3Kw | ||
| Control Method | PC Control | ||
| Dimension(mm) | 1220*1355*1500 | 1220*1355*1500 | 1220*1550*1500 |
| Model | I.C.T-6534 | I.C.T-6561 | I.C.T-9060 |
| Frame Size(mm) | 650*400 ~ 850*750 | 650*400 ~ 850*850 | 737*400 ~ 1100*900 |
| PCB Size(mm) | 50*50 ~ 650*340 | 80*50 ~ 650*610 | 80*50 ~ 900*600 |
| Dimension(mm) | 1330*1370*1500 | 1330*15450*1500 | 1580*1545*1500 |
* I.C.T keeps working on quality and performance, specifications and appearance may be updated without particular notice.
| SMT Line Equipment List
I.C.T High Quality PCBA Production Line features advanced equipment for efficient and precise PCB assembly. The fully automated SMT line includes a loader, an auto printer for accurate solder paste application, a pick-and-place machine for precise component placement, a reflow oven for reliable soldering, and an AOI system for thorough defect inspection. This High Quality PCBA Production Line ensures smooth operation, high reliability, and low-cost SMT assembly, meeting diverse industry requirements.
| Product Name | Purpose in SMT Line |
|---|---|
| PCB Loader | Automatically loads bare PCBs to the line. |
| Solder Paste Printer | Prints solder paste on PCB pads accurately. |
| Pick and Place Machine | Mounts components onto PCBs precisely. |

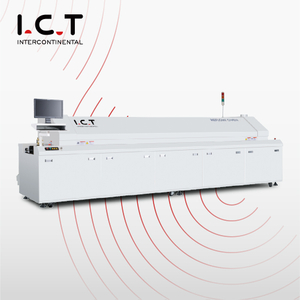

| Reflow Oven | Melts solder to form solid joints. |
| AOI Machine | Inspects solder joints and placement defects. |
| SPI Machine | Checks solder paste height and quality. |
Inspects internal solder joint integrity and detects hidden defects. | |
| SMT Cleaning Machine | Used for cleaning PCBs, stencils, fixtures, nozzles, etc. |
| PCB Cutting Machine | Cut the PCBA into the final product |
| Traceability Equipment | Records and tracks production data: Laser Marking Machine/Label Mounter/Inkjet Printer |
| Customer Success Case Study
In 2025, I.C.T engineers flew to Tajikistan to support a major LED lighting factory. The client purchased two full SMT lines, one DIP line, one conformal coating line, one dispensing line, and one LED bulb assembly line—all featuring the I.C.T-6561 Fully Smt Solder Paste Led Light Automatic Pcb Solder Printer Machine. Our team helped unload containers, installed every auto pcb solder printer machine, trained 25 local operators in three days, and achieved first-pass yield above 99.5%. The video shows bright LED bulbs rolling off the line and the factory manager saying: “I.C.T service is faster and professional!”
| Global Service & Training Support
I.C.T provides complete support worldwide. Our 20 engineers offer free online training, on-site installation, and lifetime spare parts service. 8 branch offices and 72-country experience guarantee response within 2 hours. Regular free software upgrades keep your fully automatic smt stencil printer always up-to-date.
| Customer Reviews
“Engineers support in 24 hours and fixed everything – true partners!” “Best packing I’ve seen – machine arrived perfect after ocean shipping.” “Response speed is amazing, even on weekends.” “Print quality better than European brands, price only half!”
| Certifications and Standards
I.C.T holds CE, RoHS, ISO9001 certificates and more than 30 invention patents. Every auto pcb solder printer machine passes 48-hour full-load testing before shipment. Quality you can trust.
| About I.C.T Company and Our Factory
I.C.T is a 25-year SMT expert with own R&D and 12,000㎡ factory in Dongguan. 89 staff and 20 engineers serve 1600+ customers in 72 countries. Strict IPC standard testing and complete quality system ensure every machine works perfectly. We grow fast because we always put customers first.
