I.C.T DI-250
I.C.T
| Quantity: | |
|---|---|

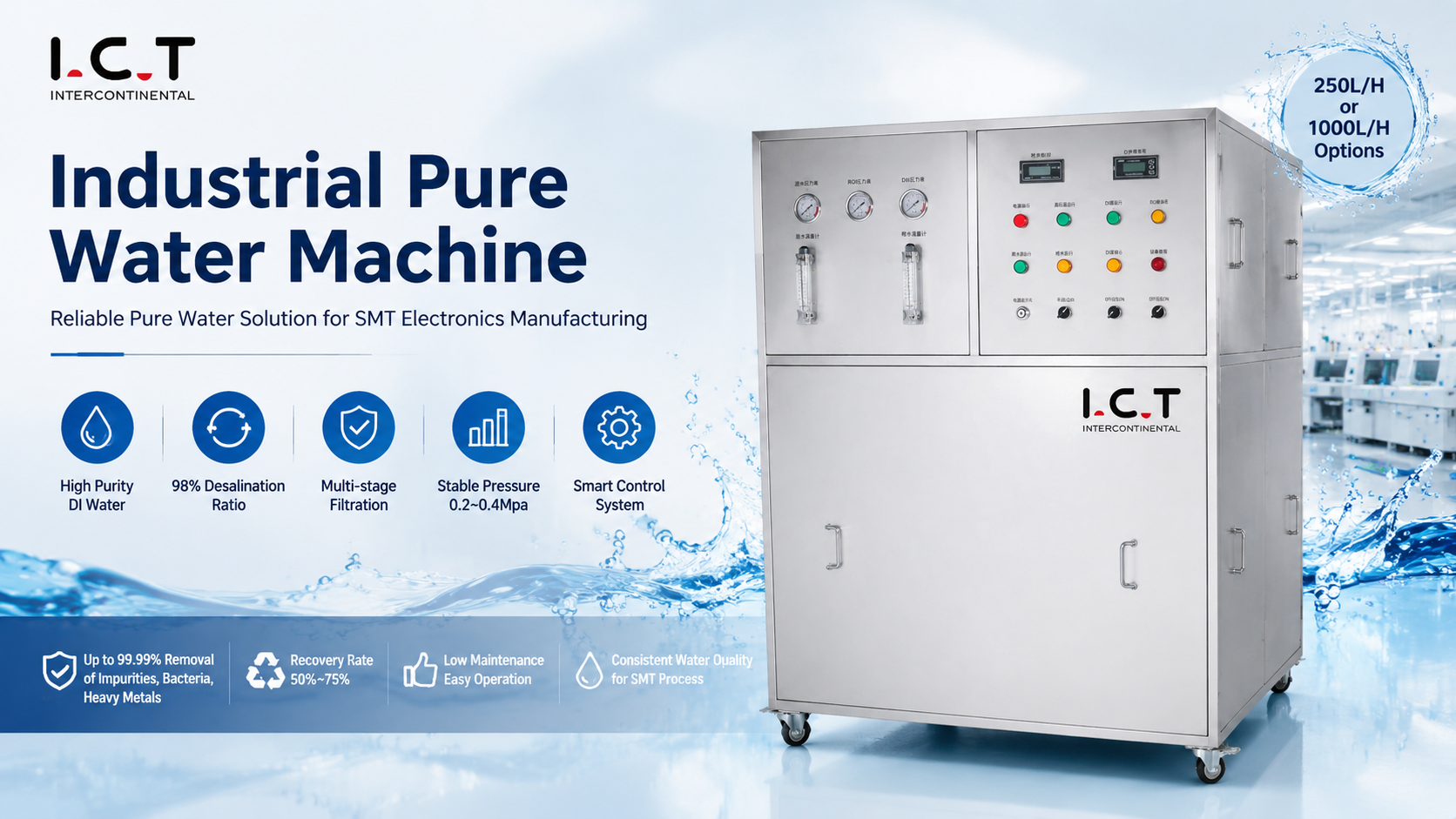

The Industrial Pure Water Machine is an essential tool for SMT production lines that require consistent water quality. Equipped with multiple filtration stages, including RO reverse osmosis and activated carbon filters, this system ensures that water is free from harmful contaminants. The machine provides a steady supply of purified water for various industrial uses, reducing the risk of water-related defects in the manufacturing process. The easy-to-use interface and automated operation make this PCB cleaning machine reliable and low-maintenance for high-volume production environments.
The Industrial Pure Water Machine uses a multi-stage filtration system, including activated carbon and reverse osmosis (RO), to remove heavy metals, organic contaminants, and bacteria. This ensures that the water used in SMT production is purified to the highest standard. The system is designed to handle high volumes of water with consistent results, reducing impurities that could otherwise affect the production process.

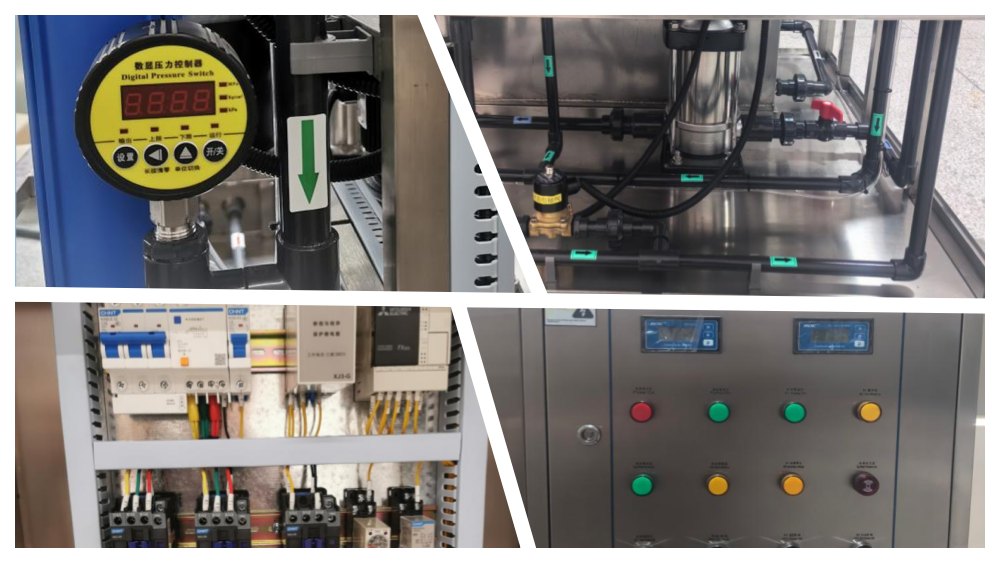

The machine is equipped with an adjustable water pressure system that ensures consistent flow rates to match different production needs. It features digital pressure controls that allow operators to fine-tune settings for optimal water delivery. This feature helps maximize cleaning performance, ensuring that water usage is both efficient and effective in removing contaminants.
The Internal Structure of the PCB Cleaning Machine is designed with high-quality materials to withstand long-term operation in industrial environments. The system’s durable stainless steel tank and advanced filtration components ensure high performance even under heavy usage. Its design is built for efficiency and ease of use, making it a reliable choice for high-volume PCB cleaning and water purification in SMT factories.
Equipped with a Panasonic PLC control system, the Industrial Pure Water Machine allows for easy operation with a touch-screen interface. The control system provides full monitoring and tracking of water quality, pressure, and usage, ensuring optimal performance at all times. The system also includes automated alerts for maintenance or water quality issues, reducing manual intervention and keeping the machine running smoothly.
| Specification:
| No. | Item | I.C.T-DI250 | I.C.T-DI1000 |
|---|---|---|---|
| 1 | Detergent filter | 0.22μm | 0.22μm |
| 2 | Rinse water pipe out filter | 0.22μm | 0.22μm |
| 3 | Air filter | 10μm | 10μm |
| 4 | DI water supply | 250L/H | 1000L/H |
| 5 | DI water pressure | 0.2~0.4Mpa | 0.2~0.4Mpa |
| 6 | Vent size | Φ76*H50mm | Φ76*H50mm |
| 7 | Power | AC380V/5A/50HZ, 3KW | AC380V/5A/50HZ, 5KW |
| 8 | Machine size | L1100W1100H1600mm | L1300W1300H1800mm |
| 9 | Machine weight | 360KG | 400KG |
* I.C.T keeps working on quality and performance, specifications and appearance may be updated without particular notice. If different, please follow the new list.
| SMT Line Equipment List
I.C.T provides comprehensive SMT production line solutions that cover the full electronics manufacturing process from beginning to end. Our systems integrate board handling, solder paste printing, high-speed component placement, inspection, reflow soldering, and flexible depaneling options including the PCB Manual Depaneling Router Machine for smaller production needs. We support customers with complete factory planning, equipment selection, professional installation, operator training, and continuous optimization. This end-to-end approach helps manufacturers in smartphone, automotive, medical, and consumer electronics industries achieve higher efficiency, consistent quality, and strong competitive advantage in today’s market.
| Product Name | Purpose in SMT Line |
|---|---|
| SMD PCB assembly Line | Turnkey Ful-auto SMT assembly line |
| SMT magazine loader | Automatically loads bare PCBs to the line. |
| Solder Paste Printer | Prints solder paste on PCB pads accurately. |
| SMT assembly machine | Mounts components onto PCBs precisely. |
| BGA reflow oven | Melts solder to form solid joints. |
| Customer Success Video
In 2026, I.C.T delivered a complete SMT production line to a drone manufacturer in Europe. The line included full equipment for PCB loading, printing, placement, reflow soldering, and inspection. I.C.T engineers provided on-site technical support, ensuring seamless installation and optimized performance. The customer reported significant improvements in production efficiency, higher product quality, and reduced downtime due to the effective support and integration provided by I.C.T. This successful project highlighted our ability to meet the complex needs of high-tech manufacturing environments.
| Service and Training Support
I.C.T provides complete SMT factory solutions, integrating the Industrial Pure Water Machine into your existing production line. Our engineers assist with the seamless integration of the water purification system, ensuring that it operates efficiently alongside other equipment. We also provide comprehensive training for your operators, covering system setup, operation, and maintenance, so your team can optimize the water supply for consistent production quality.
| What Our Customers Say
Customers who have implemented the Industrial Pure Water Machine report significant improvements in water quality, leading to better PCB production outcomes. The machine’s consistent performance and reliable water supply help reduce defects caused by contaminated water, enhancing overall process control. Clients value its low-maintenance design and easy integration into their production lines, contributing to smoother operations and higher production efficiency.
| Certifications and Standards
The Industrial Pure Water Machine complies with international standards such as CE, RoHS, and ISO9001, ensuring that it meets the highest levels of performance, safety, and environmental compliance. These certifications guarantee that the machine is a reliable and safe solution for industrial water purification, helping manufacturers maintain compliance with regulatory requirements while improving production quality.
| About I.C.T Company and Factory
I.C.T is a trusted provider of SMT, DIP, and Coating production line solutions. With over 20 years of experience, we specialize in designing and delivering complete SMT factory solutions that optimize every part of the production process. Our engineering team works closely with clients to ensure seamless integration, and we offer ongoing support to help improve factory efficiency and product quality. I.C.T’s systems are used by manufacturers in over 70 countries, helping them build high-performance, reliable production lines.
