LCO-350
I.C.T
| Quantity: | |
|---|---|
| Advanced PCBA Online Laser Cutting Solution

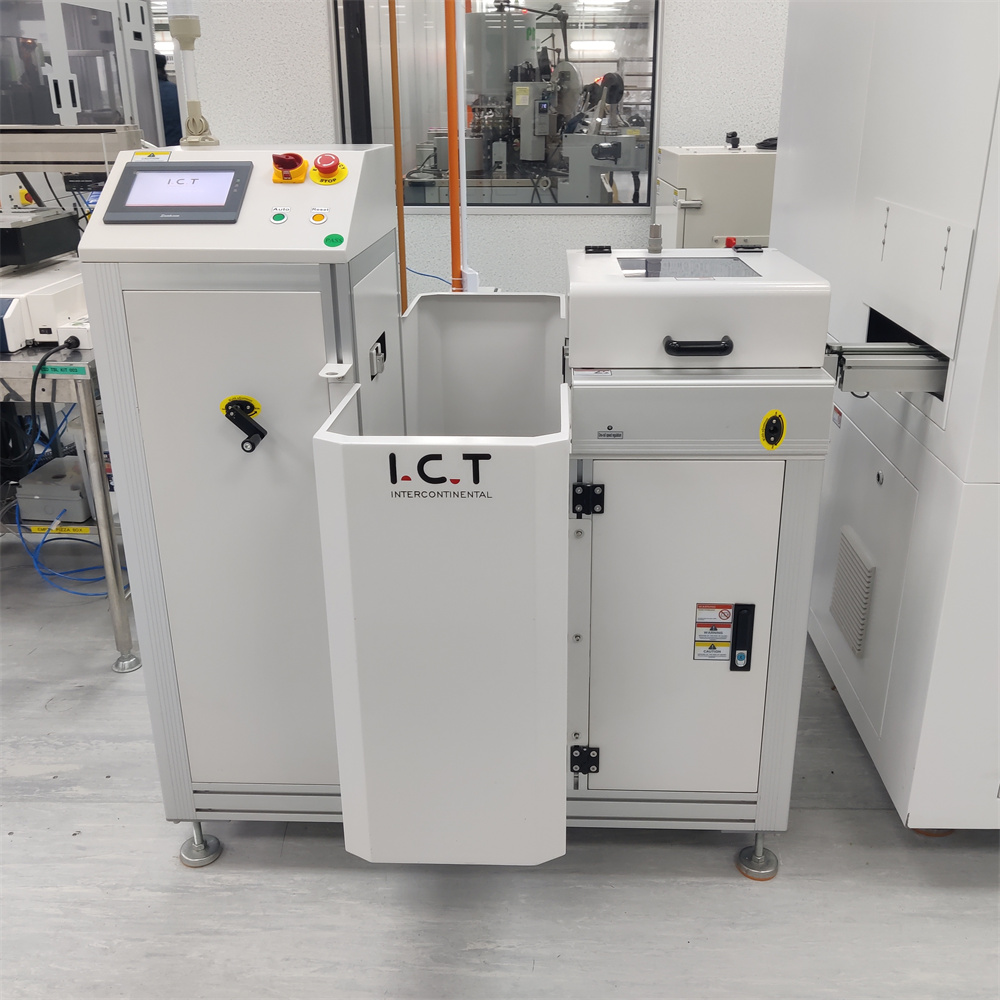

The I.C.T PCBA Online Laser Cutting Machine is built for the semiconductor industry, where precision and cleanliness are critical. This fully automated system handles everything from board loading to final tray placement. It uses powerful green lasers to cut PCBA panels quickly and cleanly, with no mechanical stress or thermal damage to sensitive components. The line includes an advanced loader for clip-frame feeding, dual cutting stations for high throughput, and an automatic placement machine that sorts OK products into trays while sending NG boards to waste bins. Designed for seamless integration into SMT or semiconductor lines, it supports complex shapes, thin boards, and high-mix production while keeping edges smooth and particle-free.
| Key Features in Detail
High-Precision Dual-Laser Cutting
Two 35W green lasers work together to cut boards at speeds over 200mm/s with positioning accuracy of ±0.005mm and cutting accuracy of ±0.025mm. This setup doubles productivity without sacrificing quality, making it perfect for high-volume semiconductor PCBA processing where speed and consistency matter.
Zero Thermal Damage and Clean Edges
The green laser technology creates almost no heat-affected zone, preventing delamination, warping, or carbonization. After cutting, edges are smooth, burr-free, and dust-free – ideal for delicate components like QFN, BGA, camera modules, and 5G PCBs in semiconductor applications.
Intelligent CCD Positioning and Defect Sorting
Advanced CCD cameras with three-color lighting and auto-expansion compensation locate fiducials precisely. The system detects defects during cutting and uses suction nozzles to place only good boards into trays, while rejecting faulty ones, reducing manual inspection and improving yield.
Fully Automated Workflow with Tray Management
From automatic board feeding via servo-controlled loader to synchronous manipulator pickup and final stacking of full trays, the entire process runs hands-free. It handles different product sizes, supplies empty trays automatically, and removes full ones, saving labor in fast-paced semiconductor lines.
Safe, Stable, and Smart Integration
The machine meets SMT anti-static standards, features safety door interlocks, leakage protection, and a built-in chiller plus dust extraction. It supports QR code reading for MES upload and offers custom fixtures, ensuring reliable operation and easy connection to other factory equipment.
| Specification
| Item | LCO-350 |
| Laser Type | Green laser |
| Laser Power | 35W |
| Platform Range | 300*300mm double table |
| Adapt to Product Thickness (mm) | MAX1.5mm |
| Maximum Speed Of Platform | 1000m/s |
| Maximum Cutting Speed (mm/s) | ≥200 mm |
| Positioning Accuracy | ±0.005mm |
| Repeatability | ±0.005mm |
| Cutting Accuracy | ±0.025mm |
| Power | AC220V/50Hz, 3KW |
| Weight | 3200KG |
| Dimensions | L1600*W1300*H1800mm |
| Complementary Semiconductor Line Equipment

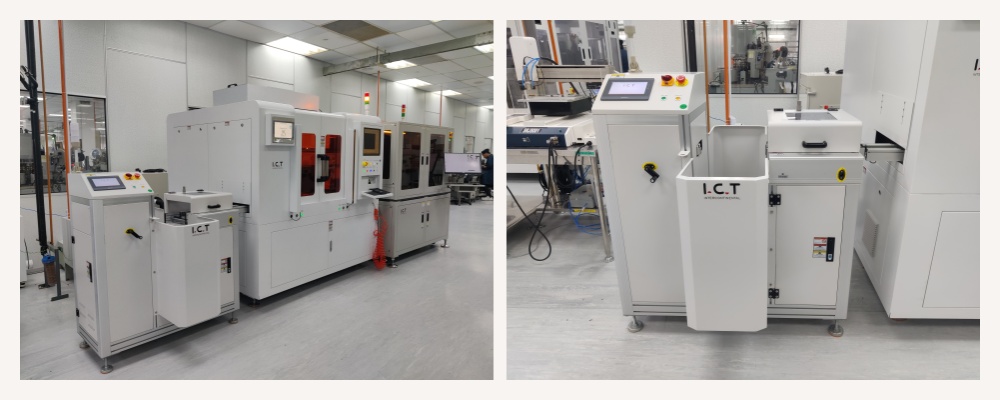

I.C.T provides a complete range of equipment to build or upgrade your semiconductor and PCBA production line. Besides the PCBA Online Laser Cutting Machine, key related systems include the Automatic Loader for reliable clip-frame feeding, the Automatic PCBA/IC Placement Machine for precise tray packing, and offline Laser PCB Cutting Machine options for smaller batches or R&D. These work together with AOI inspection, cleaning stations, and conveyors to create efficient, low-defect lines. As your full factory partner, I.C.T helps integrate everything smoothly for maximum output.
| Customer Success Video

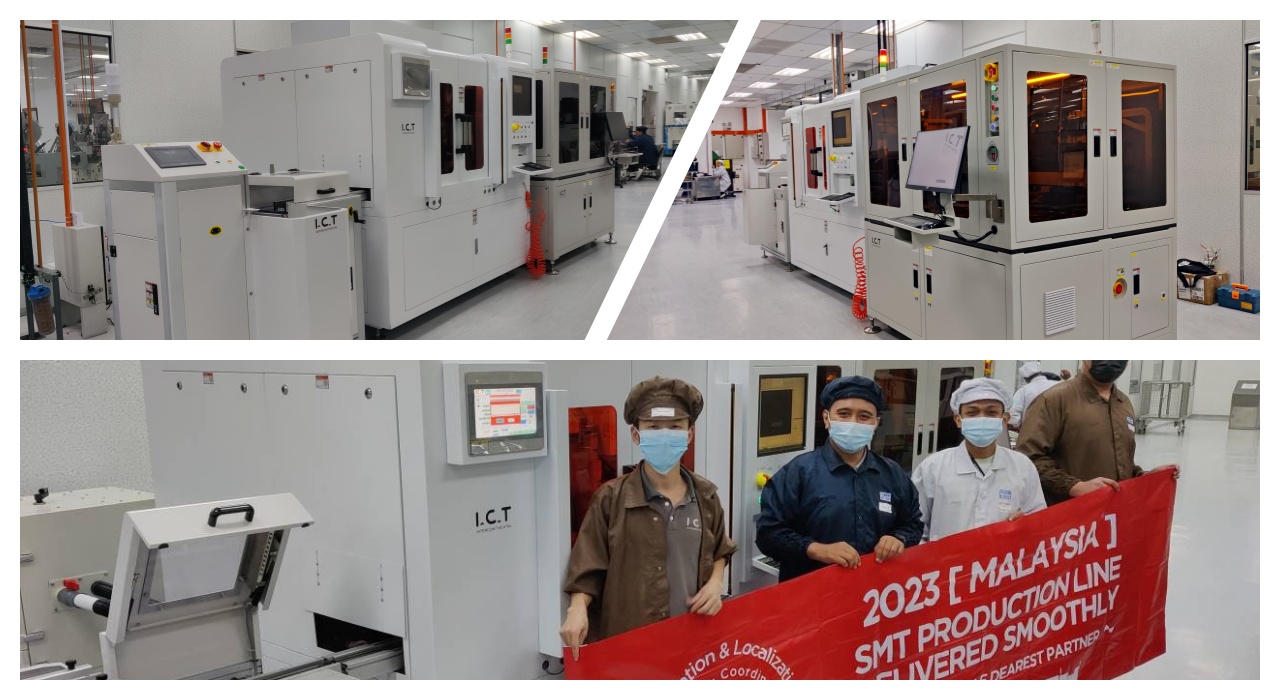

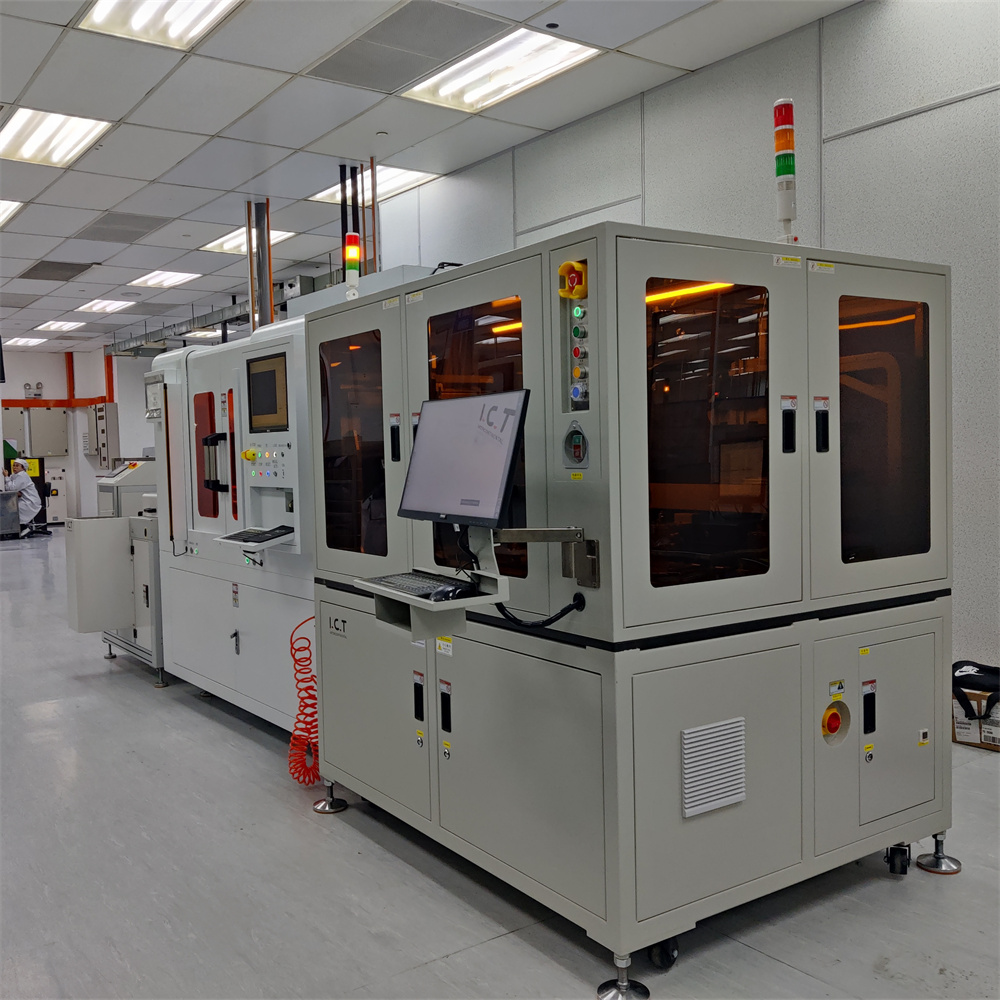

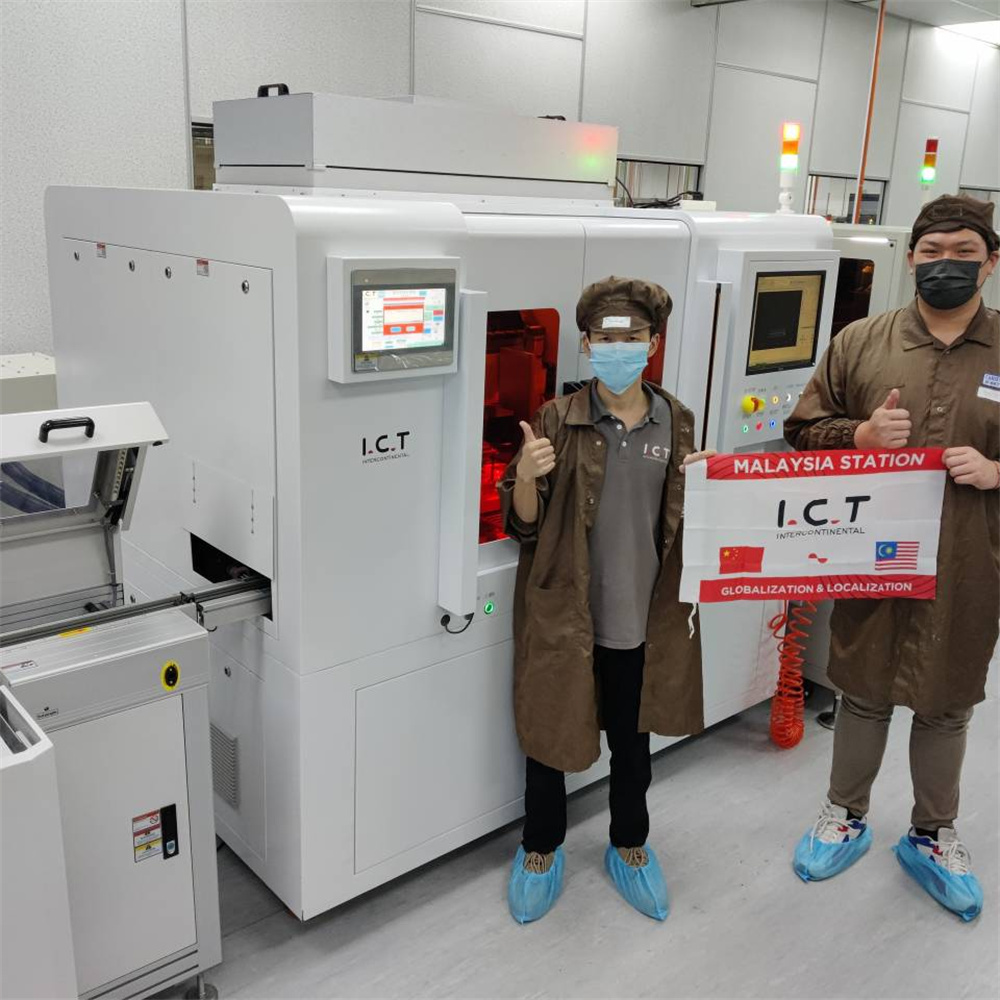

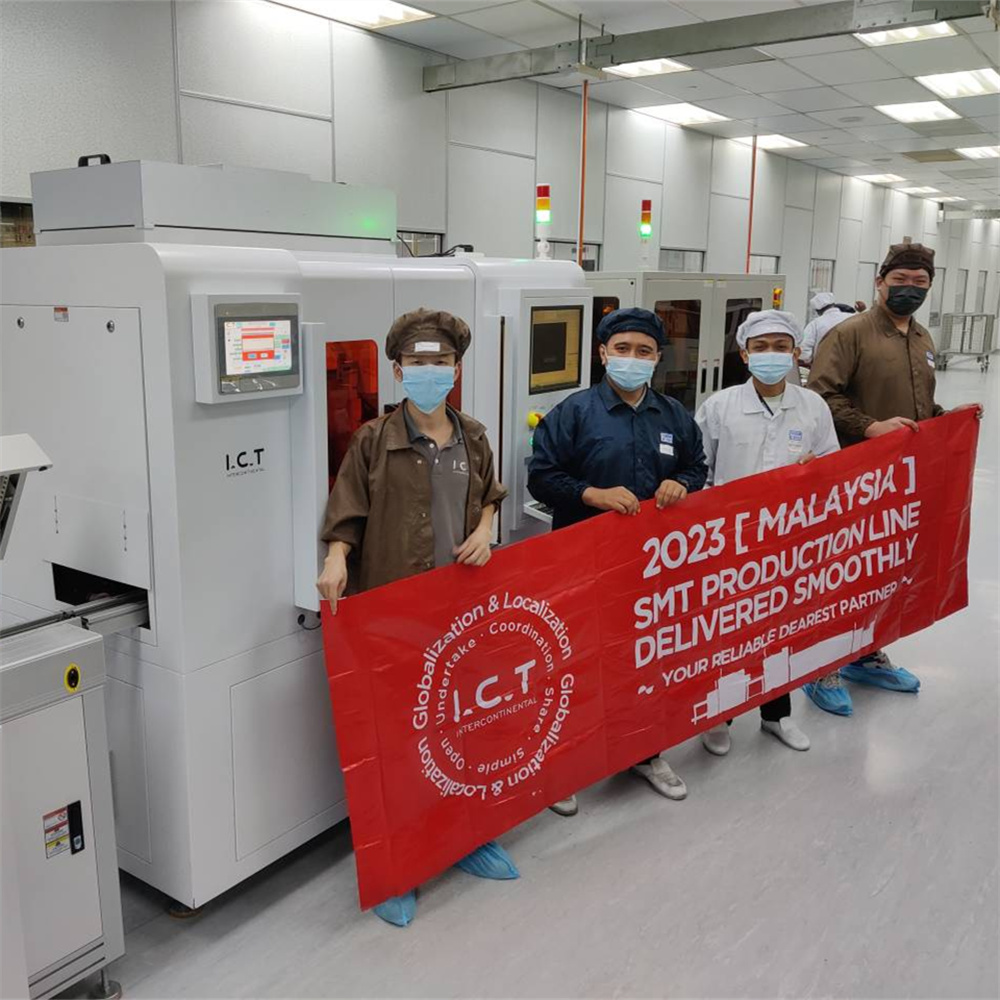

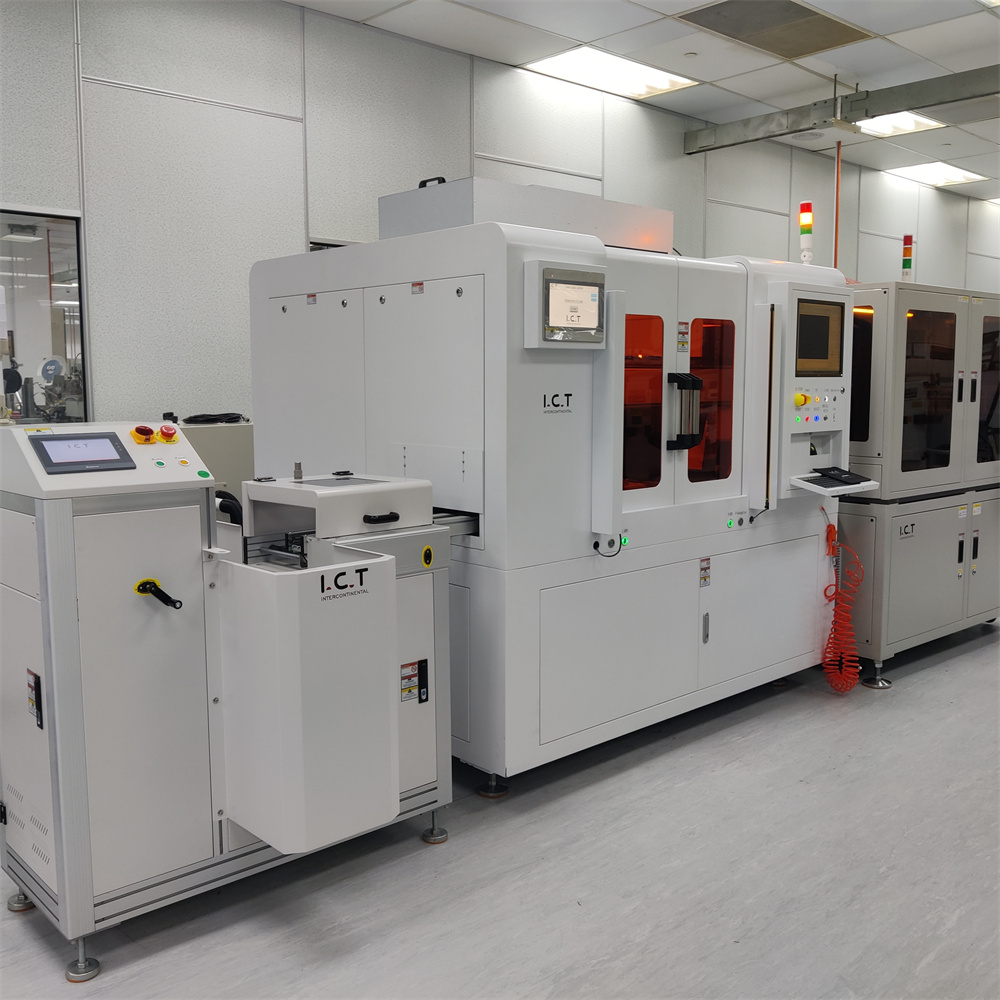

In Malaysia, I.C.T successfully delivered a complete online laser singulation system to a leading semiconductor customer. Our engineers traveled onsite to install the full line – including the advanced loader, PCBA Online Laser Cutting Machine, and automatic placement machine. They performed full debugging, operator training, and process optimization to ensure smooth ramp-up. The customer now enjoys high-speed, high-yield cutting with clean edges, automatic defect sorting, and reduced manual handling. The project strengthened their production capacity and product quality in a competitive market.
| Service and Training Support
Professional Support and Training
I.C.T offers comprehensive service from pre-sale consulting to after-sale support. Our experienced engineers provide full installation, on-site debugging, and operator training tailored to your team and products. We also deliver process optimization, regular maintenance guidance, and fast remote or onsite troubleshooting. With 20+ dedicated engineers and quick response times, we help you maintain peak performance and minimize downtime throughout the life of your PCBA Online Laser Cutting Machine and entire line.
| Client Testimonials
What Our Customers Say
Customers praise our engineers for their professional, patient, and detailed training during installation in Malaysia and other countries. Many highlight the PCBA Online Laser Cutting Machine's reliable performance, clean cutting results, and zero-damage output on sensitive semiconductor boards. They also appreciate the sturdy, well-packed shipping that arrived in perfect condition, plus our fast response to questions – often solved within hours. “I.C.T delivers real value and peace of mind,” is a common comment from satisfied partners.
| Certifications and Standards
I.C.T equipment meets international standards for safety and reliability. Our PCBA Online Laser Cutting Machine and related systems carry CE certification for European compliance, RoHS for environmental safety, and ISO9001 for quality management. We also hold multiple patents on laser cutting technology, software, and automation features, ensuring you get advanced, compliant solutions backed by proven engineering.
| About I.C.T Company and Factory
About I.C.T – Your Global Partner
I.C.T is a leading provider of full electronics manufacturing solutions with over 25 years of experience. We design and produce our own equipment in a 12,000 m² facility with strict testing processes and a complete quality management system. Our team of 89 staff, including 20 professional engineers, has served more than 1,600 customers across 72 countries. We grow rapidly by offering one-stop support – from demand analysis and line planning to installation, training, and ongoing optimization – helping semiconductor and PCBA factories build, upgrade, and run efficient, high-quality production systems worldwide.
