SC-500D
I.C.T
| Quantity: | |
|---|---|
| Professional Inspection PCB Conveyor for Zero-Defect SMT Lines
The I.C.T Inspection PCB Conveyor is the perfect high-end workstation for detailed visual quality control. Powerful shadow-free LED lighting from both sides, combined with a spacious transparent cover and comfortable footrest, lets operators spot even the smallest defects without eye strain. The famous one-button width synchronization adjusts the entire line in seconds. Built on aviation-grade aluminum rails with top-tier sensors and Industry 4.0 PLC, every Inspection PCB Conveyor delivers rock-solid performance 24/7. Available in standard or full CE version, it’s trusted by leading electronics factories worldwide for flawless inspection results every day.
| Full Conveyor Range Including Premium Inspection Solutions
I.C.T provides over ten conveyor models so you always get the right machine. Standard linking conveyors simply transfer boards. Telescopic, cooling and reject units solve special layouts. The flagship Inspection PCB Conveyor series offers 600 mm, 1000 mm and 1200 mm lengths with adjustable LED brightness, anti-static surface and optional Dual-lane SMT PCB Conveyor configuration for high-mix lines. Heavy-duty chain versions and buffering models are also available. Every unit can be customized in size, lighting color, cover height and smart functions to perfectly fit your quality standards.
| Detailed Product Features
Aviation-grade thick aluminum profiles and precision-machined rails form an extremely stable frame that never bends. Reinforced steel base plates and high-grade fasteners absorb all vibration even at maximum speed. Every part follows strict ISO and CE rules, giving the Inspection PCB Conveyor decades of perfect alignment and zero maintenance headaches.
High-brightness LED panels on top and bottom with stepless dimming eliminate every shadow and reveal tiniest defects instantly. Cool-white or warm-white options reduce eye fatigue during long shifts. Bright three-color tower lights and large emergency buttons stay visible across the shop floor. Full ESD protection keeps sensitive chips safe.
7-inch full-color touch screen plus reliable PLC makes daily operation a breeze — change speed, width or light level in seconds. Optional Industry 4.0 module supports Hermes, CFX and all major MES systems. Software upgrades and remote diagnostics are completely free for life.
Standard 3 mm anti-static flat belt runs whisper-quiet for normal boards. For heavier or hotter boards after reflow, switch to stainless-steel chain drive that never slips and handles higher weight perfectly. Both systems work smoothly with the Inspection PCB Conveyor’s precise stop-and-go inspection motion.
| Reflow Oven Specification
| Parameter | Specification |
|---|---|
| PCB Width | 50–400 mm (500 mm optional) |
| Conveyor Height | 900 ± 20 mm |
| Transfer Speed | 0.5–20 m/min adjustable |
| Power Supply | AC 220 V 50/60 Hz |
| Power Consumption | 50–150 W |
| Direction | Left to Right (Right to Left optional) |
| Belt Material | 3 mm ESD flat belt or chain |
| Control Mode | PLC + Touch Screen |
| One-button Width Adjust | Optional (whole line sync) |
| CE Safety Standard | Full cover + sensor protection |
* I.C.T keeps working on quality and performance, specifications and appearance may be updated without particular notice.
| SMT Line Equipment List

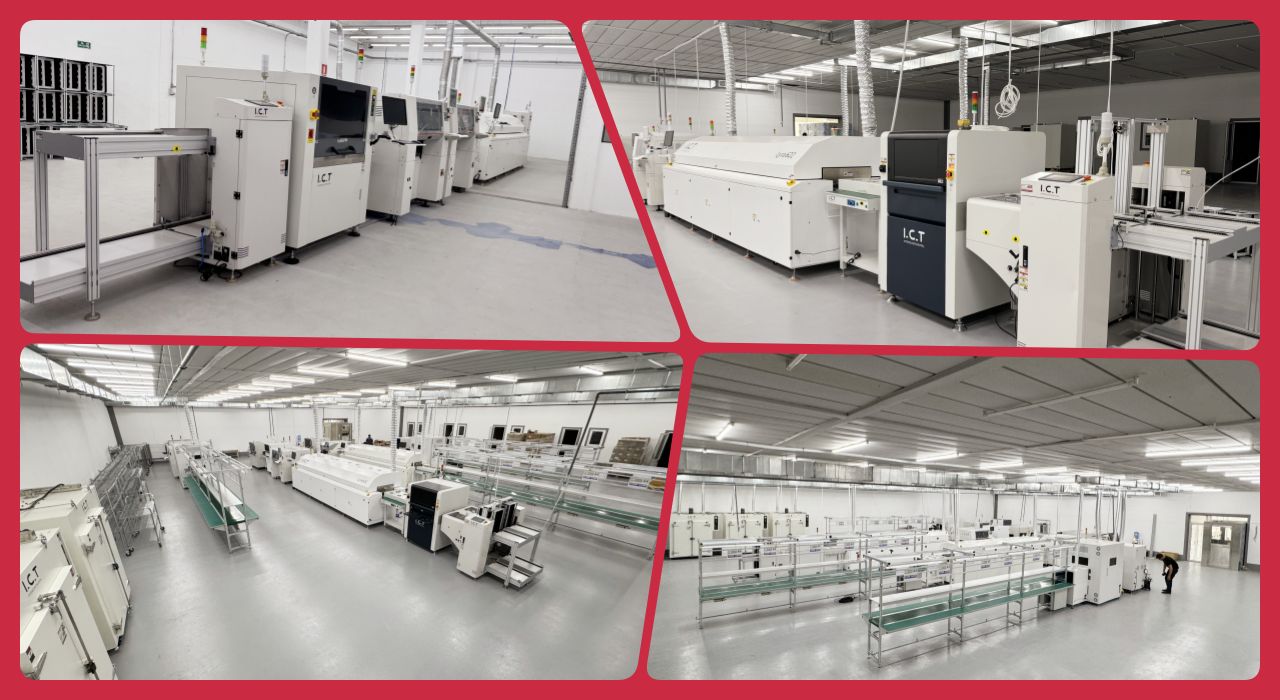

Our High Quality PCBA Production Line features advanced equipment for efficient and precise PCB assembly. The fully automated SMT line includes a loader, an auto printer for accurate solder paste application, a pick-and-place machine for precise component placement, a reflow oven for reliable soldering, and an AOI system for thorough defect inspection. This High Quality PCBA Production Line ensures smooth operation, high reliability, and low-cost SMT assembly, meeting diverse industry requirements.
| Customer Success Story
Two experienced I.C.T engineers flew directly to Uruguay to help a major smart electric meter manufacturer start their brand-new SMT line. The customer purchased magazine loader, printers 471 & 481, Lyra622 placement machine, AOI, turning conveyor, reflow oven W2, multiple SMT Conveyors, PCB Lift Conveyor, roller lines and bull-eye tables. Within one week our team completed installation, fine-tuning and full operator training. Today the entire line runs at high speed with zero blocking issues. The factory manager said the smooth board flow and our rapid on-site service exceeded all expectations.
| Professional Training & Support
Two senior I.C.T engineers flew to Uruguay to start a complete high-speed line for a major smart electric-meter manufacturer. The package included magazine loaders, printers 471 & 481, Lyra622 mounter, AOI, reflow oven W2, multiple Inspection PCB Conveyors (some configured as Dual-lane SMT PCB Conveyor), roller lines and workstations. In just seven days our team finished installation, lighting tuning and full operator training. Operators now catch every tiny defect comfortably, and first-pass yield has reached record levels.
| Customer Praise
From layout planning to daily mass production, I.C.T never leaves you alone. We offer free online and on-site training, lifetime free software upgrades, and 7×24 remote assistance. When urgent help is needed, our engineers fly to your site within 48 hours anywhere on the planet. Spare parts ship same-day from eight global warehouses — your line stays up and running.
| Our Certification
Every I.C.T machine carries CE, RoHS and ISO9001 certificates plus dozens of invention and utility patents. Each Inspection PCB Conveyor completes a rigorous 48-hour full-load aging test before leaving the factory. Quality is our daily habit, never an accident.
| About Us and Factory
Established in 2012 in Dongguan, China, I.C.T has quickly become a leading global SMT solution provider with nearly 90 dedicated employees and a modern 12,000 m² factory. We design and manufacture all core components in-house under strict quality systems. More than 1,600 customers from 72 countries trust our equipment every day. With eight overseas offices and continuous rapid growth, I.C.T keeps delivering reliable Inspection PCB Conveyor and world-class service to electronics manufacturers worldwide.
