| Solid Electronic Smt Pick And Place Machine

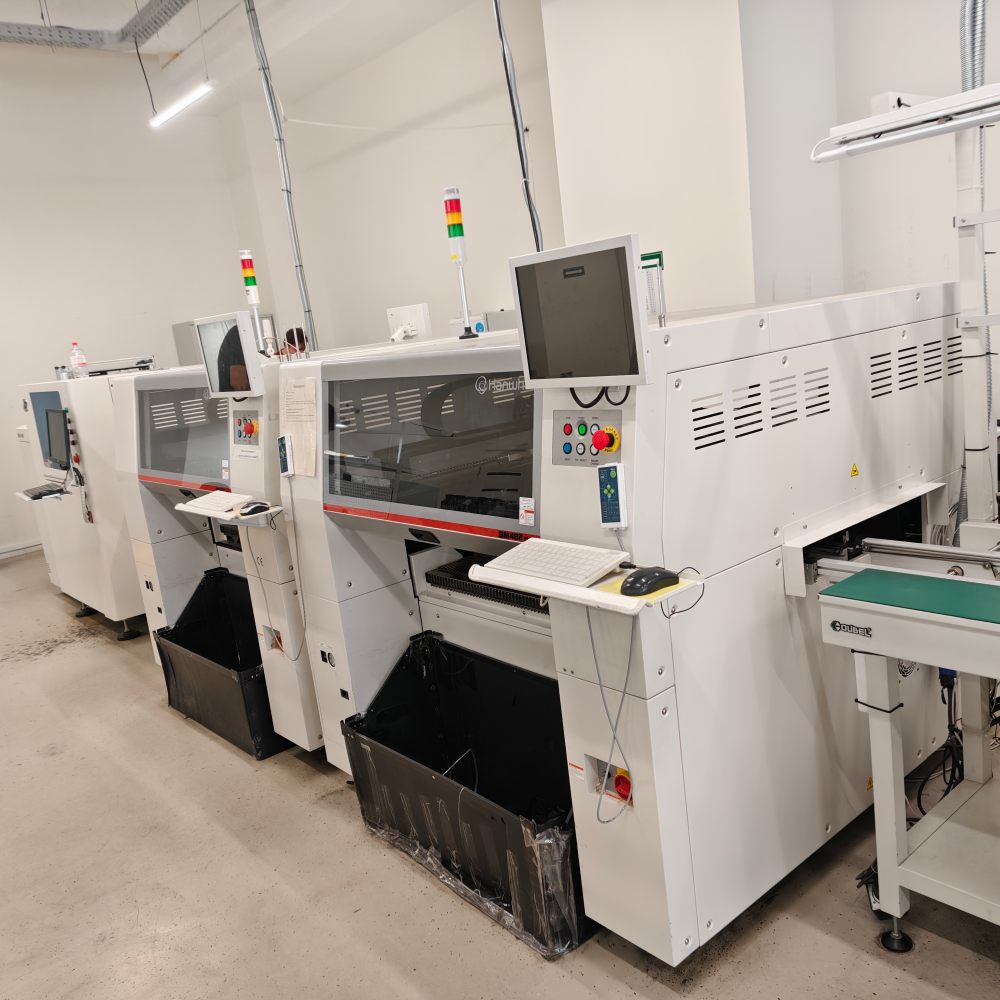

Hanwha makes the Electronic Smt Pick And Place Machine for daily hard work. Models share useful parts like on-the-fly vision that spots components in motion, mixed feeders that fit old and new to save cash, and simple software for quick changes. These machines take many board sizes and part types with good precision. I.C.T sells these strong Electronic Smt Pick And Place Machines and adds line planning, setup, and training. Customers get steady runs and real help no matter the country.
| Model Introduction
High-Speed Model: SM471Plus
The SM471Plus has one gantry and ten spindles per head. It hits 78,000 CPH best case. Flying vision holds ±40µm on 0402 chips and ±50µm on ICs. Phone and gadget makers use this Electronic Smt Pick And Place Machine for big runs. Boards go to 510x460mm standard, larger with options.
Flexible Mid-Speed Model: SM481Plus
SM481Plus runs one gantry with six spindles per head at 40,000 CPH. It places parts up to 42mm. Stage vision gets ±30µm on ICs. Car and appliance shops pick this for mixed work. Single lane takes long boards to 1,500mm without issues.
Multi-Functional Model: SM482Plus
SM482Plus uses one gantry and six spindles for 30,000 CPH. Stage vision keeps ±30µm on ICs. It handles boards up to 1,200x510mm. Lighting and industrial plants run this Automatic Smd Pick And Place Machine on odd parts every day.
Advanced Flexible Model: DECAN L2
DECAN L2 carries two gantries with six spindles each. It does 56,000 CPH and parts up to 55mm option. Flying vision gives ±28µm chip hold. LED and big board lines choose this Electronic Smt Pick And Place Machine for fast dual work and 1,200mm lengths.
| Specification
| Parameter | SM471Plus | SM481Plus | SM482Plus | DECAN L2 |
|---|---|---|---|---|
| Placement Speed (Optimum) | 78,000 CPH | 40,000 CPH | 30,000 CPH | 56,000 CPH |
| Number of Spindles | 10 Spindles/Head (1 Gantry) | 6 Spindles/Head (1 Gantry) | 6 Spindles/Head (1 Gantry) | 6 Spindles/Head (2 Gantries) |
| Placement Accuracy (Chip) | ±40µm (0402) | ±40µm (0402) | ±40µm (0402) | ±28µm (03015) |
| Placement Accuracy (IC) | ±50µm | ±30µm | ±30µm | ±25µm |
| Component Range | 0402 ~ □14mm (H12mm) | 0402 ~ □42mm (H15mm) | 0402 ~ □55mm (H15mm) | 0402 ~ □21mm (H12mm, up to □55mm opt.) |
| Max PCB Size (Standard) | 510 x 460mm | 460 x 400mm | 740 x 460mm | 510 x 460mm |
| Max PCB Size (Option) | 610 x 460mm | 1,500 x 460mm | 1,200 x 510mm | Up to 1,200 x 460mm |
| Feeder Capacity (8mm) | 120ea | 120ea | 120ea | 120ea |
| Vision System | Flying Vision | Stage Vision | Stage Vision | Flying Vision |
| More SMT Related Products
I.C.T puts full SMT lines together with the Electronic Smt Pick And Place Machine. We add vacuum loaders for clean boards, paste printers for exact spread, reflow ovens for firm joints, and AOI to spot flaws. Everything links up tight. Lines raise good output, cut costs, and take tough shifts in car, medical, light, and consumer plants. Boards finish ready. We plan and back the whole thing.
| Product Name | Purpose in SMT Line |
|---|---|
| SMT Line | Turkey Fully Automated Traceable High-End SMT Line |
| PCB Linking Conveyor | Automatically loads bare PCBs to the line like |
| Solder Paste Printer | Prints solder paste on PCB pads accurately. |
| Pick and Place Machine | Mounts components onto PCBs precisely. |
| Reflow Oven | Melts solder to form solid joints. |
| Inspection Machine | SMT inspection devices like AOI Inspection, SPI, X-ray, and stencil inspecter. |
| Traceability Equipment | Records and tracks production data like Laser-marking-printing-Machine |
| Customer Success Video
Two I.C.T engineers went to Tajikistan for an LED shop. Equipment came as two SMT lines with several Electronic Smt Pick And Place Machines, plus DIP, coating, dispensing, and bulb assembly lines. Video shows unload, build, train workers, and start runs. Staff made different LED lights fast. Customer said good words on quick job and strong quality.
| Service and Training Support
I.C.T gives full service and training on each Electronic Smt Pick And Place Machine. We check needs, design lines, ship safe, install, and teach right there. Engineers come anywhere for fixes or updates. Customers learn ways to keep speed high and stops low for good long runs.
| Client Testimonials
People like I.C.T engineers for clear help and patience. They trust the Electronic Smt Pick And Place Machine for day-after-day work. Packing keeps things safe on trips. Team answers fast. Many say training gets them going quick with clean boards and low waste.
| Certifications and Standards
I.C.T has main marks for trust. CE for Europe safety, RoHS for green rules, ISO9001 for steady quality. Patents cover our ideas. These show every Electronic Smt Pick And Place Machine and service meets world standards for safe and solid work.
| About I.C.T Company and Factory
I.C.T runs own research, build, and make sites in China. 89 people work here, 20 engineers among them. Started 2012, grown steady. Serve over 1600 customers in 72 countries with full lines. Strict tests and quality steps cover all work to send good machines and help everywhere.
