High-density printed circuit board assemblies (PCBAs) in the electric vehicle (EV), advanced driver-assistance systems (ADAS), and aerospace sectors push traditional Automated Optical Inspection (AOI) to the breaking point. Shrinking component pitches and congested board layouts turn false calls and cycle-time bottlenecks into major threats to line efficiency. High-volume manufacturers must balance zero-defect production with aggressive throughput targets. Picking the wrong inspection architecture leads to escaped micro-defects in the field or massive manual rework from algorithmic false positives.
The AOI machine serves as the structural gatekeeper on the surface mount technology (SMT) line. It bridges Solder Paste Inspection (SPI) and backend validation, working alongside In-Circuit Testing (ICT) to ensure board reliability. Boards passing electrical tests can still hide marginal solder joints that fail under thermal cycling. Structural validation is mandatory. This evaluation breaks down how the Mirtec vs Omron AOI Machine ecosystems handle 2026 production realities, focusing on hardware, AI software, and factory integration.
Throughput vs. Ecosystem: Mirtec excels in raw throughput and cycle-time reduction via simultaneous top/bottom inspection, while Omron dominates in closed-loop, zero-defect ecosystems connecting SPI, AOI, and AXI.
AI Maturity: Mirtec’s 2026 INTELLI-PRO platform offers aggressive AI-driven defect classification and rapid programming for New Product Introduction (NPI).
Precision Targeting: Omron’s high-resolution imaging is specifically tailored for stringent compliance industries (automotive/medical) where absolute transparency and historical data modeling are non-negotiable.
Decision Driver: The choice hinges on whether the production line prioritizes standalone inspection speed and rapid changeovers or deep, machine-to-machine (M2M) process control.
Table of Contents
Choosing an AOI machine requires more than comparing inspection speed. Manufacturers should consider cycle time, small-component inspection, false call rates, and factory integration.
The AOI machine must keep pace with the SMT line. If placement takes 20 seconds but inspection takes 35 seconds, AOI becomes a production bottleneck. Compare FOV capture speed, image processing time, and board movement time when evaluating throughput.
Modern PCBAs often use 0201 metric components and dense layouts. Tall capacitors and connectors can create shadows that hide nearby components. 3D projection and multi-angle cameras help inspect these difficult areas more accurately.
A high False Call Rate (FCR) increases manual review and slows production. It can also cause operator fatigue and increase the risk of real defects being missed. Stable algorithms and AI filtering can reduce unnecessary false calls while maintaining defect detection.
Modern AOI machines should connect with MES and other production systems. IPC-CFX support allows inspection data to be shared across the factory for yield monitoring, defect tracking, and process improvement.
Factor | What to Check |
|---|---|
Inspection Speed | Cycle time and FOV capture speed |
Small Components | 0201 metric and dense PCB inspection |
False Calls | FCR and AI filtering |
3D Inspection | Shadow reduction and height measurement |
Integration | IPC-CFX and MES compatibility |
Mirtec focuses on high-speed inspection and shorter cycle times. Systems such as the MV-6TB can inspect the top and bottom of a PCBA at the same time. This removes the need to flip the board or use a second AOI machine, helping the inspection process keep pace with high-speed SMT lines.
Key Hardware Features
Feature | Main Benefit |
|---|---|
Top & Bottom Inspection | Reduces inspection cycle time |
15MP–25MP Cameras | Captures detailed PCB images |
Side-Angle Cameras | Detects hidden solder joints and J-leads |
3D Moiré Projection | Measures solder height and volume |
Linear Drive System | Reduces vibration during fast scanning |
Mirtec uses the INTELLI-PRO platform to improve defect classification and reduce manual programming. Deep learning helps separate real defects from normal variations in PCB color, warpage, and components. AI-based OCR can also read difficult component markings, while CAD-based auto-programming helps create inspection programs faster for new products.
Main Software Benefits
AI-based defect classification
Fewer unnecessary false calls
AI-enhanced component OCR
Faster CAD-based programming
Shorter NPI setup time
The architecture of an Omron AOI Machine is built around absolute precision and deterministic quality control. Omron approaches the shadowing problem with a sophisticated multi-angle image capture and advanced lighting sequence. Utilizing multiple projectors casting phase-shift fringes from different angles, the system reconstructs a shadow-free 3D model of the board. This capability proves necessary when inspecting complex geometries, densely packed RF shields, or micro-components nestled directly adjacent to tall connectors.
This level of total transparency targets EV and ADAS manufacturing. In highly regulated automotive sectors, a single escaped defect can lead to catastrophic failure in a braking system or autonomous navigation unit. The hardware specifications and deep traceability features achieve zero-defect products. Every solder joint's height, volume, and area are measured, recorded, and tied to the board's serial number. This provides an immutable digital record of quality for compliance audits and warranty claims.
Rather than relying entirely on black-box AI for decision-making, Omron emphasizes algorithmic stability. The system utilizes highly stable, deterministic algorithms for repeatable precision across multiple production runs. Engineers in regulated industries prefer deterministic models because they can mathematically prove exactly why a machine failed a specific joint. Transparency in the decision-making logic drives root-cause analysis and process validation.
Omron connects SPI, AOI, and AXI systems through Machine-to-Machine (M2M) communication for better process control. SPI checks solder paste, AOI inspects visible components and solder joints, while AXI detects hidden defects under BGAs and BTCs. By sharing inspection data across these systems, manufacturers can identify process changes earlier, correct placement problems, and improve first-pass yield.Head-to-Head Evaluation: Mirtec vs Omron AOI Machine

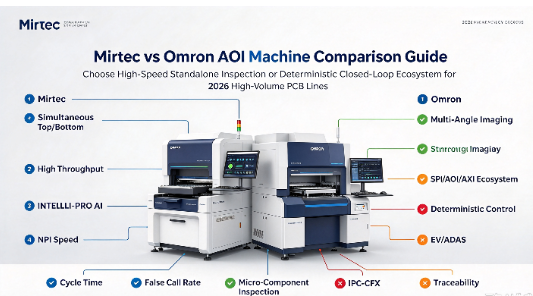

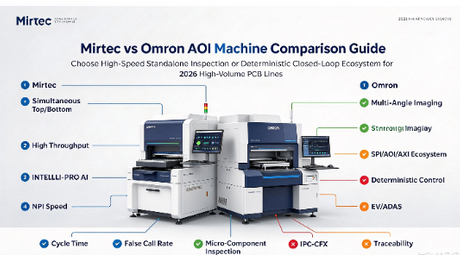

Mirtec uses simultaneous top and bottom inspection to reduce handling time and increase throughput, making it suitable for high-volume production. Omron uses multi-angle imaging and multiple projectors, which may require more inspection time but provide better visibility around dense and complex components. Mirtec is well suited for flatter, uniform boards, while Omron focuses more on complex boards where detailed 3D inspection is important.
Technical Comparison Matrix: Mirtec vs Omron | ||
Evaluation Metric | Mirtec AOI Architecture | Omron AOI Architecture |
|---|---|---|
Core Philosophy | Maximum throughput and rapid changeover. | Zero-defect precision and deterministic control. |
Inspection Speed | Exceptionally fast (Simultaneous Top/Bottom). | Moderate (Multi-angle, multi-phase capture). |
Defect Classification | Aggressive AI and Deep Learning (INTELLI-PRO). | Deterministic algorithms with structural logic. |
Ecosystem Integration | Strong standalone node with standard MES links. | Deep native M2M loop with Omron SPI/AXI. |
Ideal Environment | High-mix, high-volume consumer/industrial electronics. | Highly regulated Automotive (EV/ADAS), Medical, Aerospace. |
Shadowing Mitigation | Side-angle cameras and 3D moiré projection. | Multi-projector phase-shift fringe reconstruction. |
The software philosophies of the two manufacturers diverge significantly. Mirtec pushes aggressive integration of AI for rapid decision-making. The neural network handles the heavy lifting of differentiating between a functional but slightly oxidized solder joint and a true cold solder defect. This drastically reduces the programming burden on the process engineer, allowing them to focus on line optimization rather than tweaking inspection thresholds.
Omron focuses on deterministic, data-backed process control. While Omron utilizes AI for specific tasks like OCR and initial tuning, the core measurement relies on absolute geometric data. When handling PCB warpage and component color variations, Mirtec’s AI adapts fluidly to visual differences. Omron handles warpage through physical Z-axis compensation and strict 3D topological mapping. This ensures the measurement remains mathematically true regardless of substrate bowing.
Evaluating the deployment strategy requires looking at the broader SMT line. Mirtec operates as a powerful standalone node. It connects efficiently to legacy MES platforms via standard protocols like SECS/GEM or MQTT, and complies with IPC-CFX. It serves as an excellent choice for dropping into an existing line composed of mixed-vendor equipment without requiring a massive software overhaul.
Omron’s strength magnifies when deployed as part of a full Omron SPI/AOI/AXI line. The native M2M communication eliminates the friction of third-party interoperability. While Omron integrates with non-native SMT equipment, the deepest value of their software ecosystem unlocks when controlling the entire inspection chain. Competing against other market leaders like Saki and Viscom, Mirtec wins on standalone speed and AI adaptability. Omron competes fiercely on full-line process control and automotive-grade traceability.
Installing a 3D AOI machine involves more than adding new hardware. Operator training, calibration, and software integration can all affect inspection accuracy and production stability.
Mirtec’s AI system and Omron’s connected inspection platform both require proper training. Operators should understand defect results, review procedures, and system settings to avoid incorrect overrides or missed warnings.
Vibration and temperature changes can affect cameras, projectors, and Z-axis measurements over time. Regular calibration helps maintain inspection accuracy and prevents increasing false calls or missed defects.
AOI defect codes should be correctly mapped to the factory MES before production begins. Network performance should also support large 3D inspection files without slowing data transfer or review stations.
Set clear vendor SLAs for technical support.
Test the AOI with actual production boards.
Map AOI defect codes to the MES.
Introduce new software in stages.
Schedule regular Z-axis calibration.
Initiate a benchmark test using the facility's most complex, high-density PCBA to validate both vendors' claims against actual false call rates.
Audit the current MES infrastructure to determine readiness for IPC-CFX data ingestion and closed-loop feedback.
Evaluate the existing SMT line composition to decide if a standalone high-speed node or a full-ecosystem overhaul provides the best operational alignment.
Require both vendors to demonstrate their NPI programming workflow live, timing the process from CAD import to a stable inspection recipe.
A: Mirtec emphasizes maximum throughput and rapid setup using AI-driven defect classification and simultaneous top/bottom scanning. Omron focuses on highly deterministic, zero-defect precision and deep machine-to-machine (M2M) ecosystem integration, making it ideal for strict regulatory environments.
A: True one-pass inspection eliminates the need to mechanically flip the board or route it through a second machine. Capturing optical data from both sides concurrently drastically reduces handling time and overall cycle time, preventing the inspection node from bottlenecking high-speed placement lines.
A: Yes, Omron equipment supports standard industry protocols like IPC-CFX and SECS/GEM for third-party integration. However, the most advanced closed-loop feedback features, which dynamically adjust inspection parameters based on upstream data, function most seamlessly when paired natively with Omron SPI and AXI systems.
A: Omron is generally better suited for EV and ADAS manufacturing. These sectors require absolute zero-defect compliance and immutable traceability. Omron’s deterministic 3D modeling, shadow-free multi-angle imaging, and deep historical data tracking align perfectly with strict automotive regulatory audits.
A: Modern AI utilizes deep learning neural networks trained on millions of images to understand contextual variations. Instead of failing a joint based on rigid volumetric thresholds, the AI recognizes acceptable variations in solder mask color, warpage, or minor oxidation, filtering out false positives while catching true structural defects.
A: Routine maintenance includes regular calibration of the Z-axis using certified artifacts to prevent measurement drift caused by factory vibrations. It also requires cleaning the optical lenses and projector windows, verifying linear drive lubrication, and monitoring the degradation of LED lighting arrays to ensure consistent image capture.
