I.C.T-LV733
I.C.T
| Quantity: | |
|---|---|

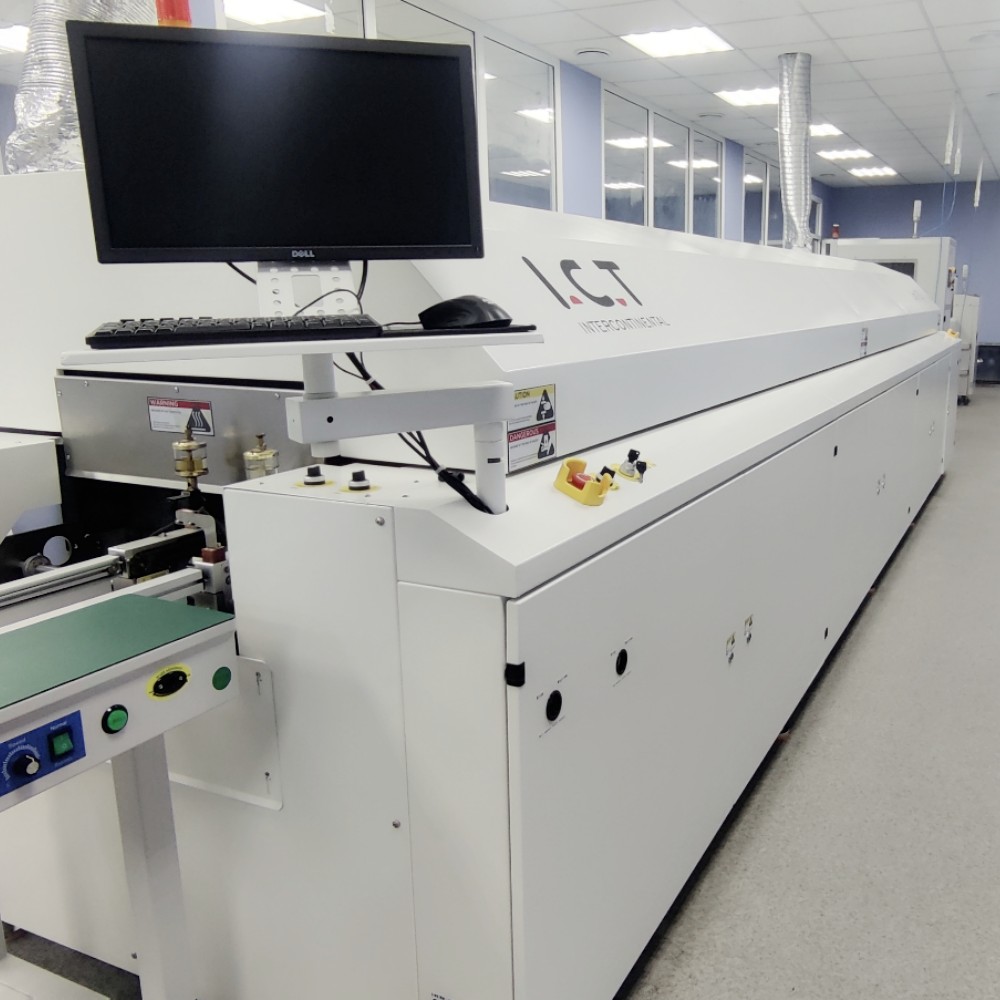

| Advanced vaccume reflow oven
I.C.T flagship vaccume reflow oven for void-free lead-free soldering. New concept design gives top heating and vacuum performance. PC-Siemens PLC controls temperature stable over 99.99% within 0.7°C. First-class modules optimize zone intervals for uniform repeat. Windows offers Chinese-English switch, password, records, curve analysis, virtual simulation, self-diagnosis, monitoring, auto files, dynamic transport. Cooling adjusts slopes quick. Multi safety protections. Meets CE CCC UL. Inverter motors for hot air. No gas source, motor cover rod. Imported parts low maintenance. Optional flux clean chamber. Closed-loop speed accurate. External water cool available. As leading Reflow Oven Manufacturer, we build reflow oven 450mm wide process for complex PCBs. This vaccume reflow oven meets various high-end needs efficiently.
| Feature
Vaccume reflow oven pairs PC Siemens PLC for 0.7°C exact hold. Stability over 99.99% prevents any defects. Records operations, measures curves, analyzes, simulates virtual, auto fault detect, real-time monitor, saves documents, live board display. Bilingual simple. Password secure. Full process watch. Self-diagnosis fast. Suits lead-free tough. Batch consistent. Rework zero. High volume perfect. Daily reliable. As Reflow Oven Manufacturer, we ensure tight control. Over-temp alarms extra. Adapts all boards. Vacuum integrates seamless.
Efficient Heating System
Closed-loop vaccume reflow oven speed ±2mm/min lock. PCBs smooth no bump. Center support dual transmission firm. External water chill option. Gas free install simple. Motor cover safety rod. Imported parts quiet durable. Tool-free service quick. Alerts regular. Economy power save. Live transport screen. Long runs stable. Board sizes fit. Line output high. Errors none. Reflow oven 450mm conveyor steady. Dual lanes shift prevent.
Uzbekistan electronics maker sent team to I.C.T factory verify full SMT line order. They tested L10 vaccume reflow oven model with vacuum tech similar ours. Setup had DECAN S1 fast placer, 5151 accurate printer, AI-5146 smart AOI, NG/OK auto loaders, belt smooth conveyors, paste precise mixer, refrigerated safe cabinet. Ran thousands boards, voids under 1% every time. Temperature curves flat within 0.7°C start to end. Quiet operation, easy clean in minutes. Our engineers trained recipe setup, vacuum pull timing. Client amazed void-free results on power modules. Signed off happy, ordered extra reflow oven 450mm for second line. As Reflow Oven Manufacturer, this visit proved our vaccume reflow oven top choice for high-reliability needs.
| SMT Reflow Oven Specification
| I.C.T-LV733 | I.C.T-LV733N | |
| DIMENSIONS AND WEIGHTS | ||
| Dimensions | 7000*1430*1530mm | |
| Required area | 10.05m2 | |
| Weight | ca. 3200 kg | ca. 3300 kg |
| Load per unit area 400 kg/m2 | 400 kg/m2 | |
| PROCESS CHAMBER HEATING | ||
| Length of heating zones | 3730mm | |
| Quantity of preheating zones | 7 | |
| Length of preheating zones | 2675mm | |
| Quantity of peak zones | 3 | |
| Warm up time | ca. 20 min | |
| VACUUM ZONE | ||
| Vacuum maximum pressure | 0.1-12kpa | |
| Vacuum pump flow | 1500/min | |
| Pressure relief time | ≦10S | |
| Product time | ≧40S | |
| COOLING ZONE | ||
| Quantity of cooling zones | 3(top 3/bottom 3) | |
| Length of cooling zones | 1460mm | |
| CONVEYOR | ||
| Transport Level | 900 ±20 mm | |
| PCB Width | L500 - W400mm | |
| Conveyor control | 3-stage, independent control | |
| Conveyor Number | 1 | |
| Adjustable conveyor speed | 300 - 1800 mm/min | |
| INTERFACES | ||
| Type | SMEMA | |
| Voltage supply | 5-Wire System 3P,N,PE 380 VAC ± 5 % 50 Hz Other voltages upon request | |
| Connected load | 65KW | |
| Operating capacity | 16 KW | |
| As the operating efficiency depends on the settings of the process parameters, the values reached actually can differ from the values indicated here. | ||
| SMT Line Equipment List
Our High Quality PCBA Production Line features advanced equipment for efficient and precise PCB assembly. The fully automated SMT line includes a loader, an auto printer for accurate solder paste application, a pick-and-place machine for precise component placement, a reflow oven for reliable soldering, and an AOI system for thorough defect inspection. This High Quality PCBA Production Line ensures smooth operation, high reliability, and low-cost SMT assembly, meeting diverse industry requirements.
| Customer Success Video
I.C.T full support vaccume reflow oven from install to lifetime. On-site setup, operator training hands-on until independent. Engineers global fly 48 hours any issue. Remote access fixes 95% problems instant. Process tweak free new products. Parts from 8 warehouses same day ship. Annual free check maintain peak. Software upgrade forever no cost. 24/7 WhatsApp direct line. Training videos docs all languages. Service plans flexible budget. Zero downtime guarantee. As Reflow Oven Manufacturer, we cover reflow oven 450mm needs complete. Customers focus production we handle rest.
| Professional Training & Support
Factories love engineers arrive fast solve vacuum issues clever ways. vaccume reflow oven runs non-stop years voids always low. Packing steel wood protect ocean travel perfect. Replies any time zone under hour. Training new staff master complex recipes two days. Quality solder joints mirror shine consistent. Energy save noticeable bills. Easy interface reduce errors. Best void removal seen market. As Reflow Oven Manufacturer, reflow oven 450mm wins praise wide boards flawless. Overall smartest upgrade lines ever.
| Customer Praise
Vaccume reflow oven certified CE RoHS ISO9001 full. Over 50 patents vacuum heating control. CCC UL TUV some models. Third-party test safety electrical vacuum. Green no harm materials. Reports detailed each unit. Customs easy worldwide. Europe USA Asia accept direct. Prove environment safe reliable. Strict every part check. As Reflow Oven Manufacturer, reflow oven 450mm meets highest standards. Customers confident critical apps.
| Our Certification
I.C.T operates its own advanced R&D center and full production lines within a 12000m² state-of-the-art facility in Dongguan, China. Our team of 89 dedicated professionals includes 20 experienced engineers focused on innovation. Founded in 2012, we achieve over 40% annual growth through customer-centered solutions. We proudly serve more than 1600 active clients across 72 countries globally. Every process follows strict quality inspection protocols from raw materials to final testing. A comprehensive ISO management system guarantees consistency and traceability. This integrated approach allows us to deliver complete SMT turnkey lines, including the reliable Reflow Soldering Oven Machine, helping factories worldwide build efficient, scalable operations with SMD Soldering Oven Machine at the core.
| About I.C.T and Our Factory
I.C.T own R&D production 12000m² advanced factory Dongguan. 89 staff 20 engineers innovate daily. Since 2012 grow 40% yearly. Serve 1600+ customers 72 countries. Strict inspect every step raw to ship. ISO system trace all. Full SMT solutions turnkey. As Reflow Oven Manufacturer, build vaccume reflow oven plus lines. Global warehouses service centers fast help. One stop electronic assembly. reflow oven 450mm core high-end.
