I.C.T-4034
I.C.T
| Quantity: | |
|---|---|

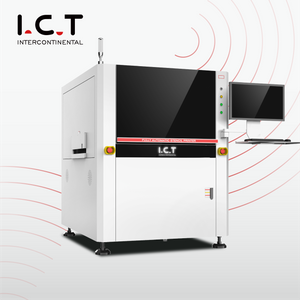

| I.C.T SMT Solder Paste Stencil Screen Printer Machine Overview
Customers choose this SMT solder paste stencil screen printer machine for building LED lights, set-top boxes, home theaters, auto parts, and common electronics. It spreads solder paste flat on small to medium boards. Simple controls let operators start quick. Auto steps align boards, push paste through stencil, and clean up. Ties into whole SMT lines for steady runs. Switch products fast without long waits. Great for busy factories needing a solid Solder Paste Printer Machine every shift. This stencil printer machine SMT works with glue when customers want. The screen stencil printer handles various needs.
| Feature
Customers get uniform paste layers with the SMT solder paste stencil screen printer machine. Arch bridge squeegee slides on rails with motors controlling each side. Pressure stays right with live adjustments. No misses on fine details for LED or vehicle boards. Operators set stencil and boards then the smd printer runs smooth. No need for constant checks in this Solder Paste Printer Machine setup.
Boards pass through the SMT solder paste stencil screen printer machine without jams. Motor belts stop precise every time. Customers pick side clamps or vacuum based on board. Sensors catch issues and pause. Change direction to match line. Keeps production going in stencil printer machine SMT with mixed boards.
Customers save on supplies cleaning the screen stencil printer. Choose dry, wet, or vacuum to remove paste. Spray hits all areas even. Software watches usage to cut waste. Short stops for clean mean more uptime. Factories rely on this SMT Solder Paste Printer for high volume smd printer jobs.
| Specification
| Model | I.C.T-4034 | I.C.T5134 | I.C.T-5151 |
| Frame Size(mm) | 470*370 ~ 737*737 | 470*370 ~ 737*737 | 470*370 ~ 737*737 |
| PCB Size(mm) | 50*50 ~ 400*340 | 50*50 ~ 510*340 | 50*50 ~ 510*510 |
| Transport Direction | Left-Right; Right-Left; Left-Left; Right-Right | ||
| Support System | Magnetic Pin/Up-down table adjusted/support block | ||
| Clamping System | Side clamping(vacuum nozzle,Automation retractable Z pressure is option) | ||
| Printer Head | Two independent motorised printhead | ||
| Squeegee Type | Stainless steel(standard),plastic | ||
| Cleaning System | Dry, Wet, Vacuum | ||
| Inspection | 2D Inspection(Standard) | ||
| Power Supply | AC:220±10%,50/60HZ,3Kw | ||
| Control Method | PC Control | ||
| Dimension(mm) | 1220*1355*1500 | 1220*1355*1500 | 1220*1550*1500 |
| Model | I.C.T-6534 | I.C.T-6561 | I.C.T-9060 |
| Frame Size(mm) | 650*400 ~ 850*750 | 650*400 ~ 850*850 | 737*400 ~ 1100*900 |
| PCB Size(mm) | 50*50 ~ 650*340 | 80*50 ~ 650*610 | 80*50 ~ 900*600 |
| Dimension(mm) | 1330*1370*1500 | 1330*15450*1500 | 1580*1545*1500 |
* I.C.T keeps working on quality and performance, specifications and appearance may be updated without particular notice.
| SMT Line Equipment List
I.C.T High Quality PCBA Production Line features advanced equipment for efficient and precise PCB assembly. The fully automated SMT line includes a loader, an auto printer for accurate solder paste application, a pick-and-place machine for precise component placement, a reflow oven for reliable soldering, and an AOI system for thorough defect inspection. This High Quality PCBA Production Line ensures smooth operation, high reliability, and low-cost SMT assembly, meeting diverse industry requirements.
| Product Name | Purpose in SMT Line |
|---|---|
| PCB Loader | Automatically loads bare PCBs to the line. |
| Solder Paste Printer | Prints solder paste on PCB pads accurately. |
| Pick and Place Machine | Mounts components onto PCBs precisely. |
| Reflow Oven | Melts solder to form solid joints. |
| AOI Machine | Inspects solder joints and placement defects. |
| SPI Machine | Checks solder paste height and quality. |
Inspects internal solder joint integrity and detects hidden defects. | |
| SMT Cleaning Machine | Used for cleaning PCBs, stencils, fixtures, nozzles, etc. |
| PCB Cutting Machine | Cut the PCBA into the final product |
| Traceability Equipment | Records and tracks production data: Laser Marking Machine/Label Mounter/Inkjet Printer |
| Customer Success Video
Our engineers headed to Tajikistan for an LED lighting customer. They purchased two SMT lines, one DIP line, one coating line, one dispensing line, and one LED bulb assembly line. Video shows unloading, assembling the SMT solder paste stencil screen printer machine with Hanwha mounters, Juki units, reflow ovens, coaters, curing, and markers. We trained operators on spot. Lines produced bright LEDs soon. Customers praised easy launch and quality.
| Service and Training Support
We install and train customer teams at site or remote. Plan lines, solve issues, add customized options. Engineers visit any customer spot. Focus on goals to boost speed and cut costs. Smooth after picking our Solder Paste Printer Machine.
| Customer Reviews
Customers note our engineers fix quick and explain easy. The SMT solder paste stencil screen printer machine runs steady. Packing safe for travel. Fast replies keep things moving. Solid help for stencil printer machine SMT.
| Certifications and Standards
We have CE, RoHS, ISO9001, and patents. These ensure safe, eco-friendly, quality products. Customers trust our screen stencil printer meets rules.
| About I.C.T Company and Our Factory
We design and produce in-house with many engineers. Serve over 1600 customers in 72 countries growing fast. Strict quality on every smd printer. Full support from plan to run for SMT Solder Paste Printer users.
