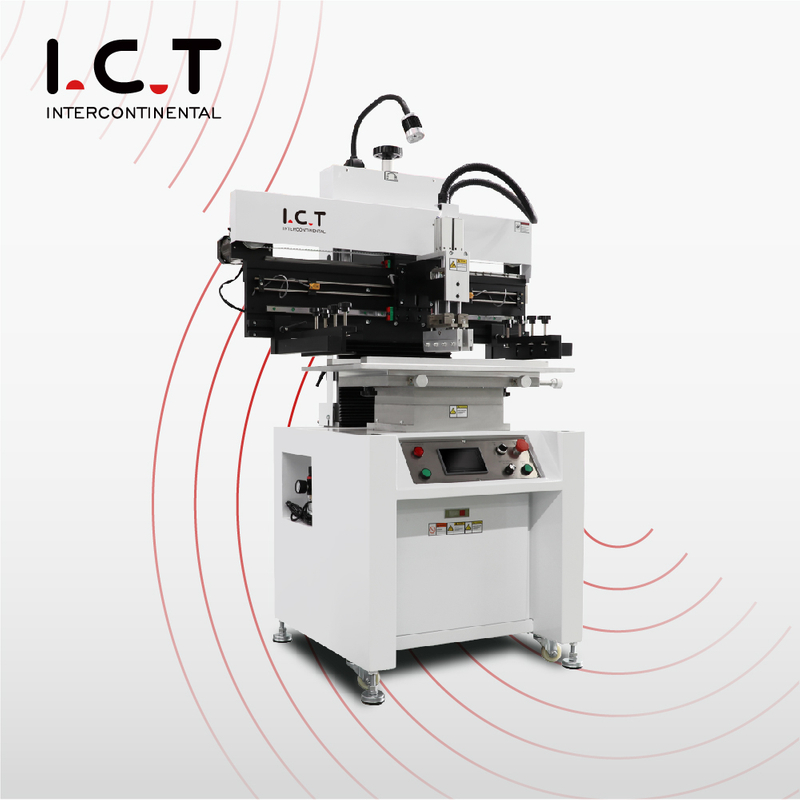

| Reliable Semi-automatic Stencil Printer for SMT Production
The SMT semi automatic printer machine places the semi-automatic stencil printer at the SMT line front. Taiwan TBI guide ways and SANYO stepper motor drive speed match to keep paste stable in PCB assembly lines. Suspension squeegee and precision gauge set even layers for no bridges to mounters. Modular bench with alignment device holds single or double PCBs 0.2-6mm and docks SMEMA for direct pass to placers. Friendly English MMI teaches semi-auto to sync line UPH. 200W and 8-second cycles help the SMT Semi automatic stencil printer machine support sensor or LED SMT production lines with low energy.
| Feature
Pin and support block setup allows flexible position for different one-sided and double-sided PCBs in SMT production lines. Imported stepper motor and Taiwan precision guide rail add solder paste and cleaning operation limit sensor flexible adjustment to reduce transportation travel. This makes the semi-automatic stencil printer easy convert and accurate fix in PCB assembly lines to avoid paste shift that affects placer accuracy.
Direct connect squeegee structure with two high-precision cylinders ensure accurate and stable pressure on double slide positioning rails for uniform paste to reflow. Touch screen operation in English MMI has interface teaching and navigation function for manual semi-automatic and full-automatic. Core control parts adopt imported high-quality brands to ensure stability and operability of the printer in SMT lines. Auto printing and alignment device for PCB board and frame keep quality high with less rework in PCB assembly lines.
| Specification
| Model | P3 | P6 | P12 | P15 |
| Accuracy | +/- 0.05mm | +/- 0.05mm | +/- 0.05mm | +/- 0.05mm |
| PCB Size | 300 x 350 mm | 600 x 350 mm | 1200 x 350 mm | 1500 x 350 mm |
| Platform size | 320 x 400 mm | 700 x 400 mm | 1350 x 400 mm | 1650 x 400 mm |
| Stencil Size(mm) | 370*470-550*650 | 370*470-550*650 | 370*470-1500*650 | 370*470-1750*650 |
| PCB Thickness | 0.2 - 6 mm | 0.2 - 6 mm | 0.2 - 6 mm | 0.2 - 6 mm |
| Stencil Positioning | Manual | Manual | Manual | Manual |
| Cycle Time | < 10 Sec. | < 10 Sec. | < 12 Sec. | < 12 Sec. |
| Power Consumption | 200 W | 200 W | 220 W | 220 W |
| Power Supply | 1 -PH, 220VAC 50/60HZ | 1 -PH, 220VAC 50/60HZ | 1 -PH, 220VAC 50/60HZ | 1 -PH, 220VAC 50/60HZ |
| Air Pressure | 4.5-6 kg/cm | 4.5-6 kg/cm | 4.5-6 kg/cm | 4.5-6 kg/cm |
| Squeegee Speed | 0-200mm/sec | 0-1200mm/sec | 0-200mm/sec | 0-200mm/sec |
| Dimension | 850x750x1650 mm | 1050x750x1650 mm | 1660x750x1650 mm | 2100x750x1650 mm |
| Weight | 280 Kg | 300 Kg | 356 Kg | 430 Kg |
| Squeegee Length | 250mm | 250mm | 250mm | 250mm |
| Platform Height | 950mm | 950mm | 950mm | 950mm |
| Option: Special size can be customized | ||||
* I.C.T keeps working on quality and performance, specifications and appearance may be updated without particular notice.
