RX-7R
JUKI
| Quantity: | |
|---|---|
| High-Speed Placement for LED Lenses
Look, when you're building LED lights, you need a machine that doesn't fool around. The LED lenses pick and place machine from Juki steps up and does the job clean. It grabs small chips and bigger parts, sets them down perfect on the circuit board. You can add modules as your shop grows. Cameras watch every move live. Programming is straightforward—nobody wastes hours on it. The narrow frame slides right into tight lines. I.C.T folks help from the first sketch to daily runs. Lines stay steady, output climbs, and LED lens boards come out ready for prime time. It's practical, reliable gear that just works.
| JUKI Pick and Place Machine Model Features
RS-1R / RS-1XL Series Features
These two are the flexible workhorses. The RS-1R pushes 47,000 parts per hour with dead-on ±35µm accuracy. It takes regular boards or stretches wider on the RS-1XL for big LED panels up to 650×560mm. That Takumi head shifts smart on the go—handles odd shapes and mixed runs smooth. You load 112 feeders, swap jobs fast. Vision spots trouble quick, force control treats thin boards gentle. Folks mix them with speed demons for all kinds of work. Changeovers hardly slow anything down. Good solid choice when you need variety without fuss.
RX-7R / RX-8 Series Features
Now these are the speed kings in a small package. The RX-7R cranks out 75,000 CPH, while the RX-8 flies to 100,000 with that clever P20 head. Both squeeze into just 998mm width—best parts-per-square-foot around. They nail tiny 03015 chips every time. Parallel heads team up nice. New lighting makes cameras see clear as day. Gentle placement protects delicate stuff. Machines talk to each other, share bad marks, keep feeders full. Perfect for high-volume tiny-part jobs like phone boards or LED drivers. You want raw speed without eating floor space—this is it.
| Specification
| Parameter | RS-1R | RS-1XL | RX-7R | RX-8 |
|---|---|---|---|---|
| Placement Speed (Optimum CPH) | 47,000 | 42,000 | 75,000 | 100,000 |
| Maximum Board Size (mm) | 650 × 370 (single/double) | 650 × 560 | 510 × 450 (single lane) | 510 × 450 (approx.) |
| Minimum Board Size (mm) | 50 × 50 | 50 × 50 | 50 × 50 | 50 × 50 |
| Component Height (max mm) | 25 | 25 | 3-10.5 (head dependent) | 3 |
| Smallest Component | 0201 (metric) | 0201 (metric) | 03015 (metric) | 0201 (approx. 0.4×0.2mm) |
| Largest Component (mm) | 74 square / 150×50 | 74 square / 150×50 | 25 square | 5 square |
| Feeder Inputs (max) | 112 | 112 | 76 | 56 (approx.) |
| Placement Accuracy | ±35µm (Cpk ≥1) | ±35µm (Cpk ≥1) | ±40µm (approx.) | High precision (vision) |
| Machine Width (mm) | 1,500 (approx.) | 2,109 | 998 | 998 |
| Head Type | Takumi inline head | Takumi inline head | Parallel rotary heads (P16S) | P20 rotary head |

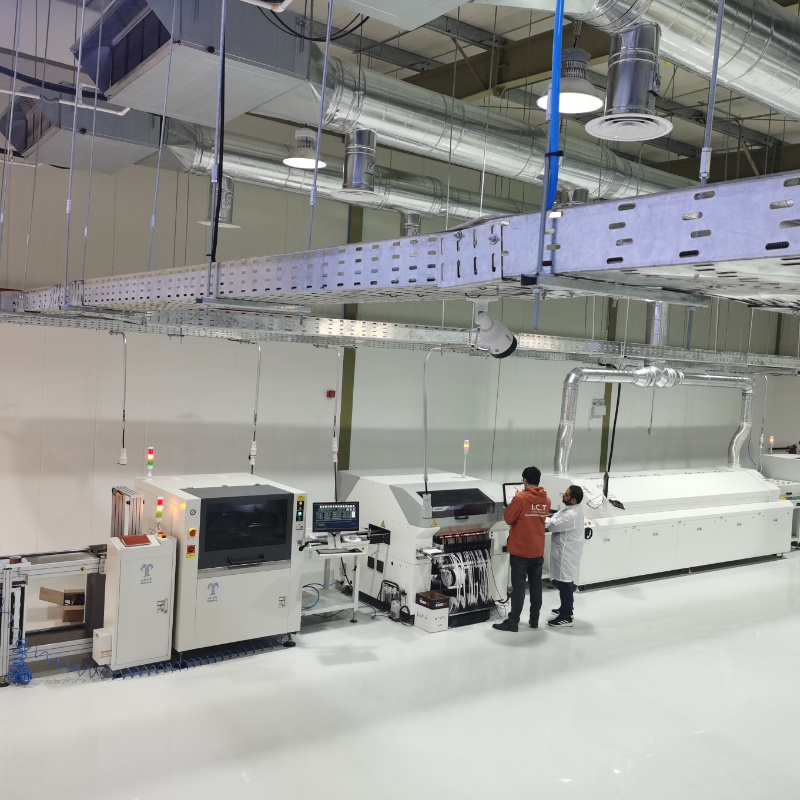

| SMT Line Equipment List
I.C.T puts together real-deal PCBA assembly lines that hold up under pressure. The loader and unloader brings boards in spotless. SMT printer spreads paste even every time. The LED lenses pick and place machine drops every component exactly where it belongs. Reflow ovens with plenty of zones lock solder tight. AOI catches anything off before it moves on. Conveyors link everything snug. Buffers keep the flow steady. Yield goes way up, costs come down. No weak spots. Built tough for automotive power units and LED lens work. Boards roll out ready for the real world. We stand full behind it all.
| Customer Success Video
There's this shop making power supplies for cars, and their video tells the story plain. Full SMT and DIP lines run smooth as clockwork. Boards slide in clean from the vacuum loader. Paste prints perfect. The LED lenses pick and place machine fills them fast and accurate. Reflow cures solid, cooling and buffers keep pace. AOI checks every detail. Over on DIP, wave solder handles through-hole clean, flippers turn boards, ICT tests function. Customer talks straight—everything connects, nothing jams, quality stays high shift after shift. You see the whole flow clear on film, from bare board to finished product ready for tough duty.
| Service and Training Support
I.C.T doesn't leave you hanging. Engineers show up, install the LED lenses pick and place machine, run tests till it's perfect. Training is hands-on—operators learn programming, daily care, quick fixes the easy way. Remote link gets problems solved in hours. Regular maintenance plans keep machines sharp for years. We look at your whole line, suggest smarter flow. Upgrades drop in simple. Offices worldwide mean help gets there fast, no matter where you are. Customers run full tilt with hardly a hiccup. Good partnership from the start.
| Customer Feedback
Folks tell it like it is. They like how our engineers roll in prepared and fix things quick. The LED lenses pick and place machine gets respect for steady speed and rare mistakes. Packing is careful—gear arrives safe across oceans. Questions get straight answers, usually same day. Service feels close even from far away. Lines run longer, trouble drops. Output numbers climb real nice. Customers say the machines, the people, the backup—all of it adds real value every day on the floor. Trust builds steady with every job done right.
| Certifications and Standards
Every LED lenses pick and place machine comes with solid paperwork. CE mark means it meets tough European safety rules. RoHS shows no bad materials inside. ISO9001 keeps quality tight from drawing board to shipping dock. Plenty of patents guard the smart heads and vision tech. These stamps tell customers the machines are safe for crews, easy on the planet, built to last years. You buy knowing global standards are covered clean. Confidence comes standard.
| About I.C.T Company and Factory
I.C.T keeps its own research crews busy dreaming up better gear. Ideas turn into real machines quick in big clean plants. Tests run strict at every station. Crew count grows steady. New offices pop up worldwide. More than 1600 shops in 72 countries run our lines now. Growth comes from plain hard work and results you can see. Quality rules watch every piece. The LED lenses pick and place machine rolls off the line tough and ready for daily grind. We're a dependable partner clear around the globe.
