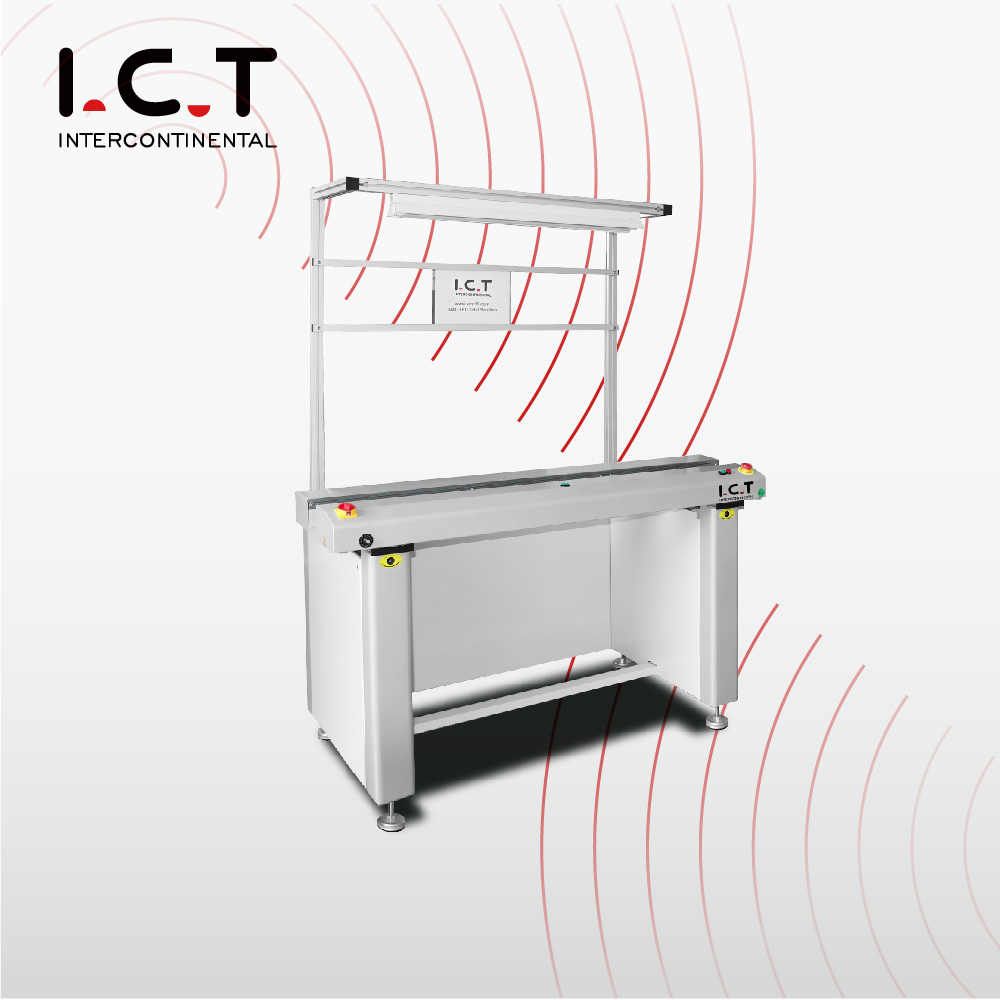

| SMT PCB Sealing Conveyor for Clean & Safe Board Handling
The I.C.T SMT PCB Sealing Conveyor is the perfect Conveyor Pcb Assembly Line station after reflow or AOI when boards must stay 100% clean before conformal coating or packing. A full-sealed transparent cover blocks dust and fingers while bright internal LEDs let operators see everything clearly. One-button width sync, upgraded aviation-grade aluminum rails and Industry 4.0-ready PLC deliver rock-solid reliability 24/7. Choose standard belt or heavy-duty chain — every SMT PCB Sealing Conveyor keeps your valuable boards perfectly protected and moving smoothly in high-end electronics factories worldwide.

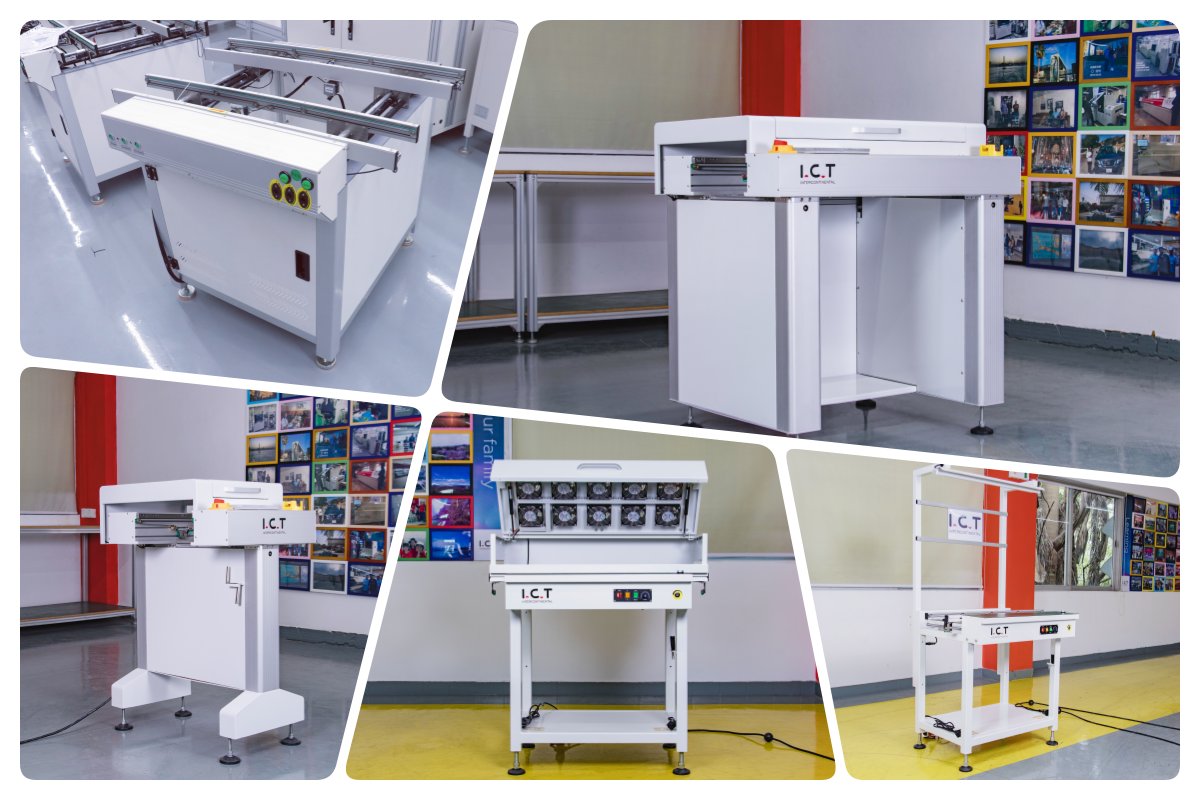

| Complete SMT Conveyor Series to Fit Every Factory Layout
I.C.T offers more than ten conveyor types so every factory runs perfectly. Standard linking conveyors simply transfer boards. Inspection stations add bright lights. Telescopic and reject units fit special layouts. The advanced SMT PCB Sealing Conveyor comes with manual cover, automatic lift cover, single or dual-lane version, plus optional air shower or ionizer for ultra-clean environments. Heavy-duty chain and buffering models are also available. Every Conveyor Pcb Assembly Line can be fully customized in length, height, cover type and smart functions to match your exact cleanliness requirements.
| Detailed Product Features
Thick aviation-grade aluminum profiles and reinforced steel base create an ultra-rigid frame that never warps. Precision linear rails and high-strength fasteners eliminate vibration even at top speed. All parts meet strict ISO and CE standards, giving the SMT PCB Sealing Conveyor decades of perfect board protection and zero dust leakage.
High-transparent acrylic cover completely seals the top while bright LED strips inside provide shadow-free illumination. Optional pneumatic auto-lift cover opens in 2 seconds for easy access. Anti-static design and washable filters keep air inside cleaner than the cleanroom itself.
7-inch color touch screen plus reliable PLC makes daily setup incredibly fast — change speed, width or cover mode in seconds. Optional Industry 4.0 module supports Hermes, CFX and all major MES systems. Software updates and remote diagnostics are free for life.
Standard 3 mm ESD flat belt runs whisper-quiet and clean. For heavier boards after reflow, choose stainless-steel chain drive that never slips and handles higher loads perfectly. Both systems work smoothly inside the fully sealed SMT PCB Sealing Conveyor.
| Reflow Oven Specification
| Parameter | Specification |
|---|---|
| PCB Width | 50–400 mm (500 mm optional) |
| Conveyor Height | 900 ± 20 mm |
| Transfer Speed | 0.5–20 m/min adjustable |
| Power Supply | AC 220 V 50/60 Hz |
| Power Consumption | 50–150 W |
| Direction | Left to Right (Right to Left optional) |
| Belt Material | 3 mm ESD flat belt or chain |
| Control Mode | PLC + Touch Screen |
| One-button Width Adjust | Optional (whole line sync) |
| CE Safety Standard | Full cover + sensor protection |
* I.C.T keeps working on quality and performance, specifications and appearance may be updated without particular notice.
| SMT Line Equipment List
Our High Quality PCBA Production Line features advanced equipment for efficient and precise PCB assembly. The fully automated SMT line includes a loader, an auto printer for accurate solder paste application, a pick-and-place machine for precise component placement, a reflow oven for reliable soldering, and an AOI system for thorough defect inspection. This High Quality PCBA Production Line ensures smooth operation, high reliability, and low-cost SMT assembly, meeting diverse industry requirements.
| Customer Success Story
Two senior I.C.T engineers flew to Uruguay to launch a complete high-speed line for a leading smart electric-meter manufacturer. The package included magazine loaders, printers 471 & 481, Lyra622 mounter, AOI, reflow oven W2, multiple SMT PCB Sealing Conveyors, roller lines and packing stations. Within seven days our team finished installation, cover sealing test and full operator training. The Conveyor Pcb Assembly Line now keeps every finished board spotless before coating, and the customer says product appearance and reliability have reached new heights.
| Professional Training & Support
From line design to daily mass production, I.C.T is always by your side. We provide free online and on-site training, lifetime free software upgrades, and 7×24 remote support. When needed, our engineers arrive at your factory within 48 hours anywhere in the world. Spare parts ship same-day from eight global warehouses — your production never stops.
| Customer Praise
“The SMT Conveyor quality is outstanding and the one-button width change saves us hours every shift.”
“Packing is super strong — machines arrived perfect after two months at sea.”
“Engineers are patient, professional and solved every question in minutes.”
“Response time is lightning fast — even on weekends!”
“Best after-sales team I’ve ever worked with.”
| Our Certification
Every I.C.T machine carries CE, RoHS and ISO9001 certificates plus dozens of invention patents. Each SMT PCB Sealing Conveyor passes a strict 48-hour full-load aging test before delivery. Quality is built in every day — that’s why customers trust us year after year.
| About Us and Factory
Founded in 2012 in Dongguan, China, I.C.T has grown rapidly into a leading global SMT solution provider with nearly 90 passionate employees and a modern 12,000 m² factory. We design and manufacture all core components in-house under strict quality systems. More than 1,600 customers from 72 countries run our equipment every day. With eight overseas offices and continuous fast growth, I.C.T keeps delivering reliable SMT PCB Sealing Conveyor and world-class service to electronics manufacturers worldwide.
