| Proven SMT SMD Pick and Place Machine
The SMT SMD Pick and Place Machine built by Hanwha keeps running strong in electronics plants worldwide. Models share strong features across the line: vision that grabs parts on the move without pauses, feeders blending electric and pneumatic to reuse existing ones and cut costs, plus easy-to-use software for quick edits. They handle diverse boards and components under exact standards. I.C.T delivers these reliable SMT SMD Pick and Place Machines, managing full line design, installation work, and direct training so customers launch smooth operations in any location.
| Model Introduction
High-Volume Leader: SM471Plus
SM471Plus comes with one gantry and ten spindles per head, hitting 78,000 CPH at top conditions. Flying vision places 0402 chips at ±40µm and ICs at ±50µm. Factories producing phones and consumer items choose this SMT SMD Pick and Place Machine for heavy daily output. Boards fit standard 510x460mm, with upgrades for larger sizes as needed.
Balanced Everyday: SM481Plus
One gantry carries six spindles in the SM481Plus for 40,000 CPH while managing parts to 42mm. Stage vision raises IC accuracy to ±30µm. Automotive and appliance makers use this model when jobs mix component sizes. Single-lane handling reaches long boards up to 1,500mm for varied runs.
Specialty Handler: SM482Plus
The SM482Plus uses six spindles on one gantry to maintain 30,000 CPH on unusual parts and boards to 1,200x510mm. Stage vision ensures ±30µm on ICs. Lighting and industrial lines pick this SMT SMD Pick and Place Machine for tricky placements that keep production steady.
Multi-Capable Power: DECAN L2
DECAN L2 features two gantries with six spindles each, achieving 56,000 CPH on components up to 55mm. Flying vision secures ±28µm for small chips. LED and large-board producers select it for dual-lane speed and extended 1,200mm panels in demanding work.
| Specification
| Parameter | SM471Plus | SM481Plus | SM482Plus | DECAN L2 |
|---|---|---|---|---|
| Placement Speed (Optimum) | 78,000 CPH | 40,000 CPH | 30,000 CPH | 56,000 CPH |
| Number of Spindles | 10 Spindles/Head (1 Gantry) | 6 Spindles/Head (1 Gantry) | 6 Spindles/Head (1 Gantry) | 6 Spindles/Head (2 Gantries) |
| Placement Accuracy (Chip) | ±40µm (0402) | ±40µm (0402) | ±40µm (0402) | ±28µm (03015) |
| Placement Accuracy (IC) | ±50µm | ±30µm | ±30µm | ±25µm |
| Component Range | 0402 ~ □14mm (H12mm) | 0402 ~ □42mm (H15mm) | 0402 ~ □55mm (H15mm) | 0402 ~ □21mm (H12mm, up to □55mm opt.) |
| Max PCB Size (Standard) | 510 x 460mm | 460 x 400mm | 740 x 460mm | 510 x 460mm |
| Max PCB Size (Option) | 610 x 460mm | 1,500 x 460mm | 1,200 x 510mm | Up to 1,200 x 460mm |
| Feeder Capacity (8mm) | 120ea | 120ea | 120ea | 120ea |
| Vision System | Flying Vision | Stage Vision | Stage Vision | Flying Vision |
| More SMT Related Products
I.C.T creates entire SMT lines to complement the SMT SMD Pick and Place Machine, including vacuum loaders clearing boards, automatic printers applying paste precisely, multi-zone reflow ovens building firm joints, and AOI systems finding issues early. All units connect for nonstop movement. This setup increases quality output, lowers waste, and performs well in automotive, medical, lighting, and consumer factories. Completed boards arrive ready for use, with our team handling planning and ongoing support throughout.
| Product Name | Purpose in SMT Line |
|---|---|

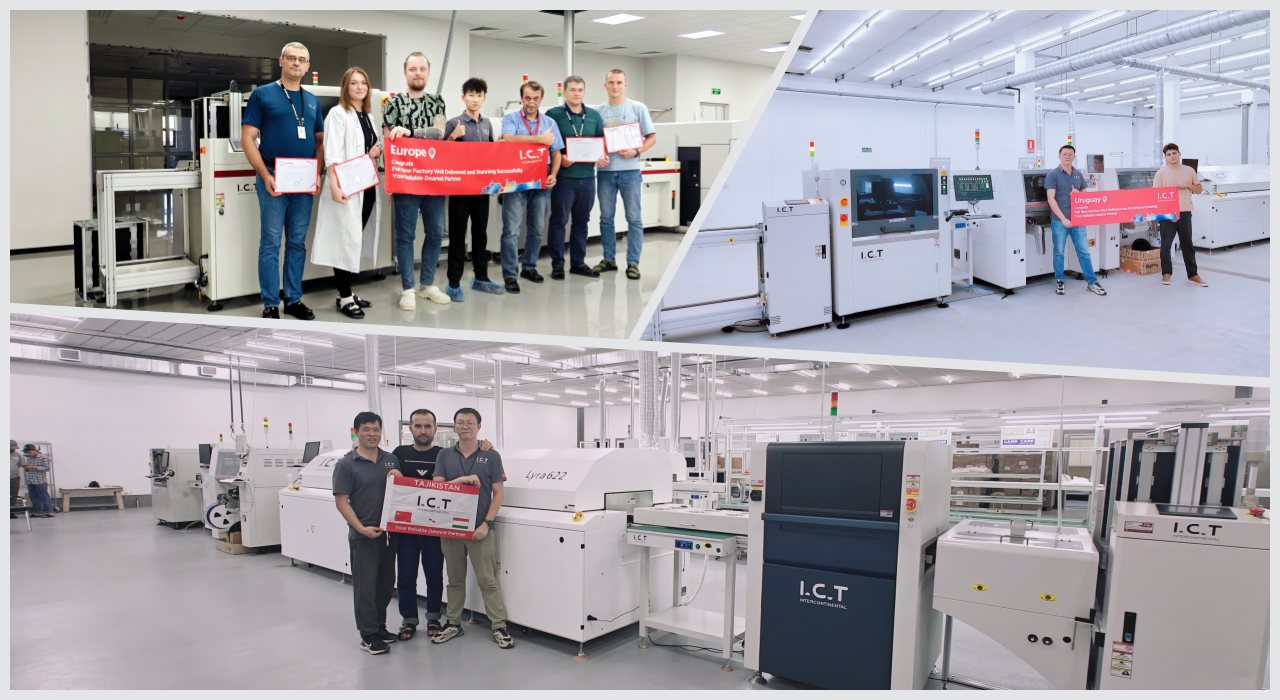

| SMT Line | Turkey Fully Automated Traceable High-End SMT Line. |
| PCB Loader | Automatically loads bare PCBs to the line. |
| Solder Paste Printer | Prints solder paste on PCB pads accurately. |
| Pick and Place Machine | Mounts components onto PCBs precisely. |
| Reflow Oven | Melts solder to form solid joints. |
| Inspection Machine | SMT inspection devices like Automatic-Optical-Inspection-Machine, SPI, X-ray, and stencil inspecter. |
| Traceability Equipment | Records and tracks production data like PCB-Laser-Making-Machine |
| Customer Success Video
I.C.T engineers traveled to Tajikistan to launch an LED customer's setup. Equipment covered two full SMT lines with several SMT SMD Pick and Place Machines, one DIP line, coating line, dispensing line, and LED bulb assembly line. The video captures unloading, assembly steps, training sessions for local staff, and early production of various LED products. Lines ran smoothly soon after. The customer shared clear positive comments on rapid installation and strong results
| Service and Training Support
I.C.T provides full service and training for each SMT SMD Pick and Place Machine. Our process starts with need review and line planning, followed by delivery, on-site setup, and practical teaching. Engineers visit worldwide for support and adjustments. We continue with improvements and updates to maintain high efficiency and low downtime.
| Client Testimonials
Customers often highlight I.C.T engineers for their skilled and helpful approach during visits. They depend on the SMT SMD Pick and Place Machine for consistent operation. Secure packaging protects during transport, and questions receive fast replies. Training enables quick starts to quality production with minimal loss.
| Certifications and Standards
I.C.T holds essential international certifications proving standards: CE for equipment safety, RoHS for material compliance, ISO9001 for management quality. Patents protect our unique developments in SMT technology. These assure every SMT SMD Pick and Place Machine and service follows strict rules on performance, protection, and environmental care.
| About I.C.T Company and Factory
I.C.T maintains own research, development, and production facilities in China, employing 89 staff members including 20 engineers. Rapid expansion happened since founding in 2012. We now support over 1600 customers across 72 countries with comprehensive electronics solutions. Factory processes include rigorous testing and quality controls to supply dependable machines globally.
