An SMT splicing machine is used to connect the end of one component tape with the start of another reel, so the SMT line can continue running with less interruption. In simple terms, it helps operators replace component reels faster without creating long stops at the feeder or pick and place stage.
For factories that handle frequent reel changes, understanding how SMT splicing machine works is important because material changeover directly affects line efficiency, feeder stability, and production output. A good splicing process keeps components moving smoothly from reel to feeder to placement machine.
This article explains what an SMT splicing machine is, how the automatic tape splicing process works, and why a component reel splicing machine is becoming an important part of modern SMT production.
An SMT splicing machine is a piece of equipment designed to join two carrier tapes together during component reel replacement. Instead of stopping the line, removing an empty reel, and manually preparing the next reel, the operator can use the splicing machine to connect the new reel to the existing tape path.
The purpose is not only to connect tape. The real purpose is to reduce downtime, improve changeover accuracy, and keep the production line supplied with components.
In SMT production, electronic components are usually supplied in carrier tape and reel packaging. The carrier tape holds components in pockets, and a cover tape protects them before they are picked by the placement machine.
During production, the feeder pulls the tape forward. When one reel is nearly empty, the next reel must be connected accurately. The SMT splicing machine helps join the two tapes so that feeding can continue with minimal disruption.
Without a reliable splicing process, every reel change can become a small production stop. On a busy SMT line, those small stops add up quickly. If operators need to change many reels during a shift, poor changeover control can reduce the effective output of the entire line.
An SMT splicing machine is especially useful when the factory needs:
Shorter reel replacement time
More stable feeder operation
Less operator-dependent manual work
Better material changeover control
Lower risk of tape misalignment

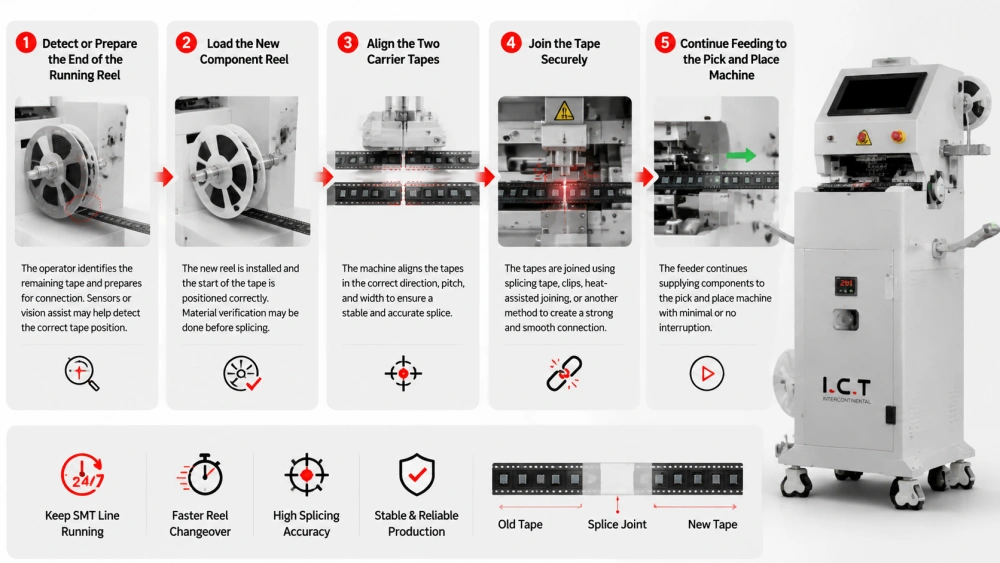

The basic working principle is straightforward. The machine prepares, aligns, and joins two component tapes so the feeder can continue pulling material without a long interruption.
Although machine designs vary, most automatic or semi-automatic models follow a similar operating logic.
The process begins when the current component reel is close to empty. The operator identifies the remaining tape and prepares it for connection. In more advanced systems, sensors or vision assistance may help detect the correct tape position.
This step matters because the splice point must be clean and accurate. If the tape end is damaged, uneven, or positioned incorrectly, the final joint may affect feeder movement.
Next, the operator prepares the new reel. The start of the new tape must be positioned correctly so it can be joined to the end of the old tape.
In a controlled material changeover system, this stage may also include material verification. For example, the operator may check part number, reel barcode, lot information, or feeder assignment before completing the splice.
Accurate alignment is one of the most important parts of the automatic tape splicing process. The two tapes must match in direction, pitch, and width. If alignment is poor, the feeder may jam or the component pocket sequence may become unstable.
A good component reel splicing machine helps position the tapes consistently. This reduces the skill pressure on operators and makes the changeover process easier to repeat across different shifts.
After alignment, the machine joins the old and new tapes. Depending on the machine type, this may involve splicing tape, clips, heat-assisted joining, or another mechanical joining method.
The joint must be strong enough to pass through the feeder, but smooth enough not to interfere with feeding. This balance is important. A weak joint may separate, while a bulky or uneven joint may cause feeder resistance.
Once the splice is complete, the feeder can continue supplying components to the pick and place machine. The goal is for the transition between reels to be as smooth as possible, with little or no interruption to placement.
This is where splicing becomes valuable. It supports continuous production instead of treating every reel change as a full stop.

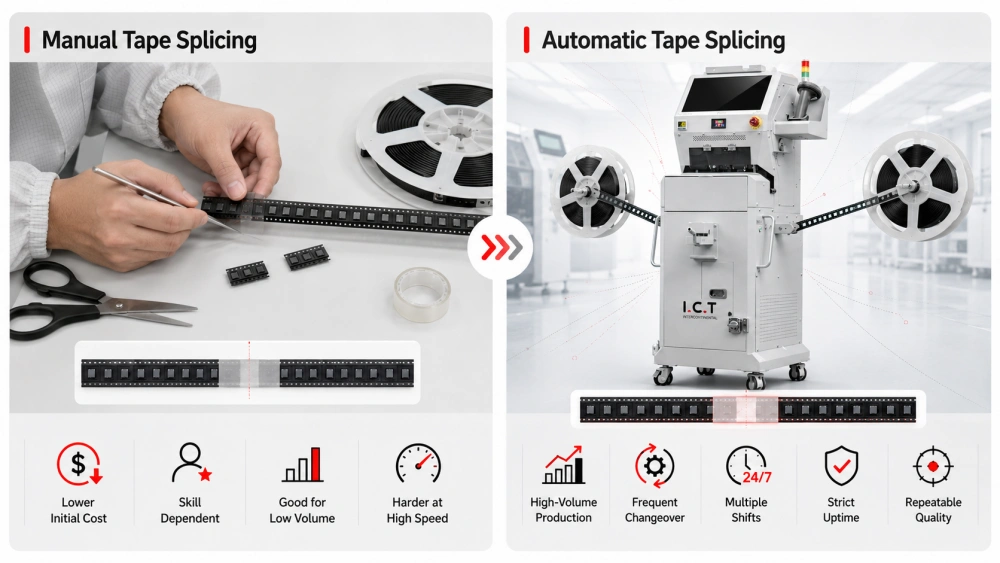

SMT tape splicing can be done manually or with automatic equipment. Both methods can work, but the stability and efficiency are different.
Manual splicing usually depends on an operator cutting, aligning, and joining the tapes by hand. It may require lower initial investment, but the result depends heavily on skill and attention.
Manual splicing can be suitable for low-volume lines, simple products, or factories with limited reel changes. However, as production speed increases, manual operation becomes harder to control.
An automatic tape splicing process uses equipment to standardize key steps such as tape positioning, cutting, alignment, and joining. This improves consistency and reduces the chance of human error.
Automatic splicing is usually better for factories with:
High-volume SMT production
Frequent material changeover
Multiple production shifts
Strict uptime requirements
Demand for repeatable operation quality
For a broader view of material changeover strategy, you can read the SMT splicing machine and material changeover guide.
A component reel splicing machine may look compact, but it usually combines several functions to make reel joining faster and more reliable.
The positioning area holds the old and new carrier tapes in place. This area helps ensure that the tapes are aligned before joining. Stable positioning is especially important for small components and narrow tapes.
Some machines include a cutting or trimming mechanism to prepare the tape ends. A clean cut helps create a better splice and reduces the risk of uneven movement through the feeder.
The splicing unit performs the actual joining process. It may apply splicing tape, press the joint, or complete another type of connection depending on machine design.
Advanced machines may include sensors, barcode scanning, or visual inspection. These functions help reduce wrong-material loading and improve process traceability.
For example, the SMT automatic intelligence splicing machine is designed for intelligent reel splicing and efficient SMT material changeover.
A splice may look like a small connection point, but it can affect the entire feeding process. If the splice is not accurate, the feeder may not pull the tape smoothly.
Common feeder-related problems from poor splicing include tape jams, feeding resistance, missed advancement, and unstable pick position. These problems may stop the line or create placement errors.
This is why the quality of the joint matters as much as the speed of the operation. Fast splicing is useful only when the final splice can pass through the feeder reliably.
A good splice should be strong, flat, and accurately aligned. It should allow the feeder to continue moving the tape without sudden resistance. When this happens, the pick and place process stays more stable.
For production teams, this means fewer interruptions and better confidence during reel changeover.
Material changeover includes more than replacing a reel. It also involves identifying the correct material, preparing the next reel, verifying the setup, maintaining feeder stability, and keeping the placement program supplied with the right components.
An SMT splicing machine helps with the physical connection between reels. However, a complete changeover process may also include barcode verification, feeder management, kitting, material tracking, and production planning.
When these steps work together, the factory can reduce line stoppages and improve production continuity.
Operator workload is a major factor in SMT production. When operators must handle many feeders, reels, and changeovers at once, mistakes become more likely. A component reel splicing machine reduces repetitive manual work and gives operators a clearer, more controlled process.
This is one reason automatic reel splicing is especially valuable in lines with frequent product changes or high component consumption.
Before using an SMT splicing machine in production, factories should check several practical details. The goal is to make sure the machine matches the actual materials and line requirements.
Different components use different tape widths. Common SMT carrier tape widths include 8 mm, 12 mm, 16 mm, and 24 mm. A suitable machine should support the tape sizes used most often in your production line.
Damaged tape, bent edges, or poor reel handling can affect the splice. Operators should check tape condition before joining two reels, especially when dealing with sensitive or high-value components.
The final splice must pass through the feeder smoothly. Even if the tape is joined successfully, the process is not complete unless the feeder can handle the splice without resistance or jamming.
Automatic equipment reduces manual skill requirements, but it does not remove the need for process discipline. Operators should understand correct tape direction, material verification, and basic troubleshooting.
Many splicing problems come from small preparation errors. These mistakes are easy to prevent when the process is standardized.
If the new tape is loaded in the wrong direction, the feeder cannot continue correctly. This can lead to downtime, component waste, or wrong material flow.
Misalignment can create feeding resistance. It may also cause the splice to catch inside the feeder path. Accurate positioning is essential for reliable splicing.
If the joint is not strong enough, the tapes may separate during feeding. This can stop production and require manual recovery.
Splicing the wrong reel is more serious than a simple tape problem. It can lead to wrong component placement and quality risk. For this reason, splicing should be connected with proper material checking procedures.
A factory should consider automatic splicing when reel changes happen often enough to affect uptime, labor efficiency, or production stability.
In high-volume production, component reels are consumed quickly. Frequent reel changes create many opportunities for downtime. Automatic splicing helps reduce these repeated losses.
High-mix production often involves many component types and reel changes. A standardized splicing process helps operators manage complexity more effectively.
When production schedules are tight, even short stops can affect delivery. Automatic splicing supports a smoother material flow and helps protect line output.
An SMT splicing machine connects component tapes during reel changeover so the SMT line can keep running with fewer interruptions. By preparing, aligning, and joining carrier tapes, it supports a more stable automatic tape splicing process and reduces the downtime caused by reel replacement.
Understanding how SMT splicing machine works helps factories make better decisions about feeder management, material changeover, and line efficiency. For low-volume production, manual splicing may still be enough. But for high-volume or high-mix SMT lines, an automatic component reel splicing machine can improve consistency, reduce operator pressure, and support continuous production.
If your factory wants to improve reel changeover efficiency, the next step is to evaluate your actual tape widths, feeder types, reel consumption rate, and downtime cost. These factors will help you choose the right splicing solution for your SMT line.
An SMT splicing machine is used to join the end of one component reel tape with the start of another reel. This helps the feeder continue supplying components to the pick and place machine with less interruption. It is mainly used to reduce downtime during material changeover and improve production continuity in SMT assembly lines.
An SMT splicing machine works by preparing, aligning, and joining two carrier tapes together. The operator loads the old tape and the new tape, and the machine helps position them accurately before making the splice. In automatic models, the process may include detection, cutting, alignment, and pressing to create a stable connection for feeder operation.
The automatic tape splicing process is a controlled method for connecting two component tapes with help from a machine. It usually includes tape preparation, alignment, joining, and final checking. Compared with manual splicing, automatic splicing improves consistency and helps reduce errors caused by operator fatigue or inaccurate hand alignment.
Yes, an SMT splicing machine can reduce pick and place downtime by making reel changeover faster and more stable. When a new reel is connected before the old tape fully runs out, the feeder can continue supplying components without a long stop. This is especially useful in high-volume SMT lines with frequent reel changes.
Before choosing a component reel splicing machine, check tape width compatibility, feeder compatibility, splicing speed, operation stability, verification functions, and after-sales support. The best choice depends on your production volume, material changeover frequency, operator workload, and the type of components used on your SMT line.
