SMT splicing problems usually appear when two component tapes are not prepared, aligned, joined, or fed correctly. A poor splice can cause tape separation, feeder jams, component loss, placement interruptions, and unexpected production downtime. In high-volume SMT assembly, even a small splice defect can affect the stability of the entire material supply process.
Most common SMT splicing problems are preventable. The key is to understand the relationship between splice preparation, carrier tape alignment, joining strength, feeder compatibility, and operator handling. When the factory combines the correct equipment with a standardized process, the risk of component tape splice failure can be reduced significantly.
This guide explains the most frequent splice problems, how to perform practical SMT splice joint troubleshooting, and how to prevent repeated failures during automatic or manual material changeover.
An SMT splice is a small joint, but it must perform reliably inside a fast-moving feeder. The connected tape needs to maintain the correct direction, width, pitch, pocket position, and mechanical strength while passing through the feeder path.
If any part of the process is incorrect, the splice may fail immediately or create a problem several minutes later. For example, a joint may look secure when it is made but become separated after repeated pulling by the feeder. Another splice may remain connected but create enough thickness or misalignment to cause a feeding jam.
Splice quality does not depend on one action alone. It is affected by the condition of the old tape, the condition of the new tape, the cutting method, the alignment position, the joining material, the feeder design, and the operator's handling method.
This means troubleshooting should not focus only on the visible joint. If the same problem happens repeatedly, the factory should review the complete process from reel preparation to feeder operation.
Operators often perform reel changes during busy production periods. When several feeders need attention at the same time, the operator may rush tape preparation or skip a verification step. Fatigue and shift-to-shift differences can also create inconsistent results.
Automatic equipment can reduce some of this variation, but it does not remove the need for proper training and process control. A reliable splicing operation must be easy to follow even when production demand is high.
A splice that works with one feeder may not perform equally well with another feeder type. Differences in tape path, guide structure, cover tape handling, and clearance can affect how the joint moves through the feeder.
For this reason, a splice should always be tested under actual production conditions. Visual inspection alone cannot confirm that a joint will feed correctly at normal line speed.
Tape misalignment is one of the most common SMT splicing problems. It happens when the old and new carrier tapes are not positioned in the same direction or are not aligned correctly before joining.
Misalignment can affect the tape edge, pocket position, sprocket holes, or component pitch. When the feeder pulls the connected tape forward, the joint may move unevenly or catch against the guide path.
Common symptoms of tape misalignment include feeder resistance, uneven tape movement, intermittent feeding alarms, and a splice that shifts sideways while passing through the feeder. The operator may also notice that the tape edge is not straight after the joint is completed.
In some cases, the feeder continues moving but the component pocket position becomes unstable. This can lead to missed picks or placement errors rather than an immediate machine stop.
The two tapes were not placed on the same centerline.
The tape ends were cut at different angles.
The operator joined tapes with different orientations.
The positioning guide was not used correctly.
The tape width was not compatible with the splicing tool.
The carrier tape edge was damaged before joining.
Before joining, operators should confirm the tape direction, edge position, and pocket orientation. The old and new tapes should be placed in the machine guide according to the defined reference point, rather than aligned only by eye.
When possible, use a splicing machine with a stable positioning fixture or alignment guide. The guide should hold both tapes securely while the joint is created. Factories should also define a simple visual inspection standard for straightness, edge position, and tape direction.
If misalignment continues after operator training, test the process with different tape suppliers and tape widths. The problem may come from carrier tape dimensional variation rather than only from operator handling.
A weak splice joint may separate while the feeder is pulling the tape. This is a serious form of component tape splice failure because it breaks material continuity and can stop the feeder unexpectedly.
The joint may separate immediately after splicing, during feeder loading, or after the connected tape has already passed through part of the feeder path. Delayed separation is particularly difficult to diagnose because the splice may initially appear acceptable.
Signs of a weak splice include tape separation, loose joining material, an open joint, or a feeder that suddenly stops after the splice point reaches the feeding mechanism. Operators may also find the new reel disconnected from the old tape during inspection.
If the joint separates inside the feeder, the operator may need to remove the tape, clear the feeder path, reconnect the reel, and verify the material again. This creates more downtime than a normal reel changeover.
Insufficient joining pressure.
Incorrect or damaged splicing material.
Dust, oil, or residue on the tape surface.
Uneven or damaged tape ends.
Incorrect overlap between the two tapes.
Splicing material that does not match the tape type.
Excessive feeder pulling force.
The tape ends should be clean, flat, and free from contamination before joining. Operators should use the correct splicing material and follow the recommended position and overlap. If the machine applies pressure or heat, the settings should be checked according to the tape and joining method being used.
Factories should perform a simple pull or handling check during process validation. The goal is not to apply excessive force, but to confirm that the joint remains secure during normal tape movement.
For high-volume production, an automatic splicing machine can help improve joining consistency by controlling tape position and joining action. The automatic SMT tape splicing solution can be evaluated when the factory needs more repeatable reel changeover performance.
A splice jam occurs when the connected section cannot pass smoothly through the feeder. The feeder may stop, generate an alarm, or show abnormal resistance as the splice reaches the guide, sprocket, or cover tape path.
This problem is common when the splice is too thick, uneven, misaligned, or not suitable for the specific feeder. A joint can be mechanically strong but still fail because its shape does not match the feeder clearance.
Typical signs include a sudden feeder stop, a jam alarm, irregular tape advancement, or a splice that becomes folded or damaged inside the feeder. In some cases, the feeder motor may continue trying to advance the tape while the component position does not move correctly.
Repeated jams at the same feeder position may indicate a feeder-specific issue. Jams that happen with many feeders may indicate a wider splicing process problem.
The splice is too thick for the feeder path.
The joint has an uneven edge or raised section.
The tape width does not match the feeder setup.
The splicing material extends beyond the tape edge.
The feeder guide is dirty or damaged.
The splice was loaded in the wrong direction.
The final splice should be flat and clean, with no unnecessary material extending into the feeder path. Operators should avoid excessive overlap or joining material that creates a bulky joint.
Before full production, test the splice through the actual feeder model at normal operating speed. Check the movement before and after the splice point. This test should be repeated for the tape widths and component types that are used most often.
Feeder maintenance is also important. Dust, adhesive residue, and worn guide parts can make a feeder less tolerant of splice variation. A good troubleshooting process should check both the splice and the feeder condition.
Another common problem occurs when the new reel is loaded in the wrong direction or the carrier tape is reversed before splicing. The tapes may still be joined, but the feeder cannot deliver components correctly.
Incorrect direction can cause component pockets to face the wrong way, cover tape to move improperly, or sprocket holes to fail to engage with the feeder mechanism.
Symptoms may include no component pickup, backward tape movement, feeder alarms, exposed components in the wrong position, or a splice that appears correct but cannot be loaded into the feeder.
Because the tape can still look physically connected, this problem may be mistaken for a feeder or placement machine fault. Operators should verify tape direction before adjusting the machine or replacing the feeder.
The new reel was placed in the wrong orientation.
The tape was turned over before joining.
The operator did not compare the old and new tape directions.
Similar-looking reels caused confusion.
The work instruction did not include a direction check.
Use a clear tape direction mark on the splicing station. Operators should compare the new tape with the running tape before joining and confirm that the component pockets, sprocket holes, and cover tape are facing the correct way.
Material labels and feeder assignments should also be easy to read. When several reels look similar, barcode checking or material verification can reduce the risk of incorrect loading.
A standard work instruction should include a direction check as a required step rather than leaving it to operator memory.
Some splices remain connected but still create unstable component feeding. The joint may pass through the feeder, yet the component pitch, pocket position, or tape movement becomes inconsistent near the splice point.
This type of problem can affect placement accuracy and may be more difficult to identify than a complete feeder jam. The line may continue running while producing intermittent pickup errors or component placement alarms.
Operators may observe missed picks, empty pockets, irregular tape advancement, or a placement head that pauses near the splice area. In some cases, only certain components or feeder positions show the problem.
If the issue is intermittent, it is important to record when it happens and whether it is always associated with the splice point. This information can help separate a splicing problem from a feeder or component problem.
The placement machine expects components to arrive at a predictable pickup location. If the tape moves unevenly or the splice changes the effective pitch, the component may not be presented correctly.
This can affect the SMT pick and place system even when the machine itself is functioning normally. Stable component feeding is therefore an important part of placement quality control.
Use splicing materials and joining methods that preserve tape flatness and movement. Avoid placing the joint too close to a damaged pocket or using a tape section with stretched or deformed sprocket holes.
When validating a splicing process, run enough tape through the feeder to observe the actual transition. A short manual check at the splicing station is not enough to confirm stable placement behavior.
Wrong-material loading is not a mechanical splice failure, but it is one of the most serious problems connected with reel changeover. The tape may be joined correctly while the wrong component is introduced into the production line.
This can lead to incorrect placement, product quality problems, rework, material waste, and difficult traceability investigations.
Wrong material may be selected because similar reels are stored together, labels are difficult to read, or the operator is working under time pressure. The risk becomes higher in high-mix production, where many part numbers may be used on the same line.
Another risk occurs when a replacement reel is prepared in advance but not clearly identified. The operator may assume that the reel is correct without completing a proper check.
Use barcode scanning or a defined two-step material verification process when the production environment requires stronger traceability. The part number, feeder position, and work order should be checked before the splice is completed.
Replacement reels should be staged according to the production plan and clearly separated from unused or returned materials. This reduces confusion during busy changeover periods.
Material verification should be treated as part of the splicing process. A fast splice is not a successful changeover if it introduces the wrong component into the feeder.
Inconsistent splice quality is common when the process depends heavily on manual handling. Two operators may use the same tools but create joints with different alignment, pressure, overlap, or joining strength.
This creates an unstable production process. The line may operate normally on one shift but experience more feeder problems on another shift.
Operator variation may come from incomplete training, unclear work instructions, different personal habits, fatigue, or the use of different tools. It can also happen when the process does not define acceptable tape alignment or splice appearance clearly.
If the factory only tells operators to “join the tapes securely,” each person may interpret the instruction differently. A better process describes the exact steps and the quality criteria that must be checked.
Create a visual work instruction that shows correct tape direction, cutting position, overlap, joining material placement, and final inspection points. Use sample images or approved reference splices when possible.
Training should include both normal operation and common failure examples. Operators should know how to recognize a weak joint, an uneven edge, a reversed tape, and a splice that is not suitable for the feeder.
For lines with frequent reel changes, consider upgrading to automatic equipment. The manual versus automatic splicing comparison can help production teams evaluate whether automation would reduce operator-dependent variation.

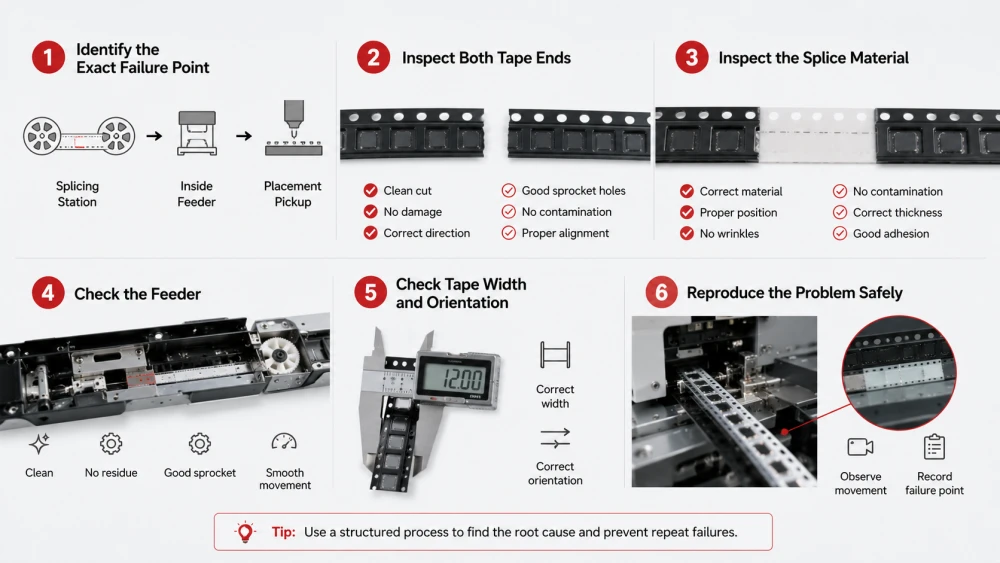

When a splice fails, the fastest solution is not always to replace the entire reel or adjust the placement machine. A structured troubleshooting process helps identify the actual cause and prevents the same problem from returning.
The following steps can be used for practical SMT splice joint troubleshooting.
First determine where the problem occurs. Does the splice fail at the splicing station, during feeder loading, inside the feeder, or near the placement pickup position?
The location provides an important clue. A joint that separates before loading suggests a joining problem. A joint that jams inside the feeder suggests thickness, alignment, or compatibility issues. A joint that passes through but causes pickup errors may indicate pitch or tape movement instability.
Check whether the old and new tapes were cut cleanly and whether either tape has damaged edges, stretched sprocket holes, contamination, or deformation.
Do not inspect only the visible surface. Check the tape direction, pocket position, cover tape condition, and edge alignment. A small defect before the splice can affect the joint after it is completed.
Check whether the correct joining material was used and whether it is positioned within the recommended area. Look for loose edges, wrinkles, contamination, excessive thickness, or incomplete adhesion.
If the same material repeatedly creates problems, test another approved joining material or review the machine settings. The joining material must match the tape and feeder conditions.
Inspect the feeder path for dust, adhesive residue, damaged guides, worn sprockets, or abnormal resistance. Run a known-good tape through the feeder to confirm whether the feeder itself is operating correctly.
This comparison is useful because it separates splicing faults from feeder faults. If a known-good tape also jams, the feeder may require cleaning, adjustment, or maintenance.
Confirm that the tape width matches the feeder and that the old and new tapes are facing the correct direction. A width mismatch or reversed tape can create symptoms that look similar to splice failure.
Document the tape width, component type, feeder model, and production line position. This information helps identify patterns if the problem occurs repeatedly.
If the issue is intermittent, reproduce it using a controlled test reel rather than waiting for the next production failure. Observe the splice as it passes through the feeder and record the point where movement becomes unstable.
Do not continue running a known-bad splice if it may damage the feeder or create product quality risk. Controlled testing is safer and usually produces better diagnostic information.
Prevention is more effective than repeated recovery. A strong prevention program combines correct equipment, standard work, operator training, material control, feeder maintenance, and performance monitoring.
The work instruction should explain each step from old reel preparation to feeder verification. It should show where to place the tape, how to confirm direction, how to apply the joining material, and how to inspect the final joint.
The instruction should also define what to do when the tape is damaged, the wrong material is found, or the splice does not meet the visual standard. Clear decision rules reduce improvisation during production.
Approved reference samples help operators understand the difference between an acceptable splice and a defective splice. Samples can show correct alignment, flatness, edge position, overlap, and joining material placement.
Reference samples are especially useful for training new operators and maintaining consistent standards across different shifts.
Before joining, inspect both the old and new tape. Check for damaged edges, contamination, deformation, missing pockets, and poor cover tape condition. Do not assume that every tape end is suitable for splicing.
If the tape is damaged, cut back to a clean section or follow the factory's approved recovery procedure. Starting with a poor tape end increases the chance of joint failure.
Regular cleaning and maintenance help keep the positioning and joining process stable. Remove tape fragments, dust, and adhesive residue from the working area according to the machine supplier's instructions.
Check cutting parts, guides, sensors, and pressure mechanisms at defined intervals. A machine that gradually loses alignment accuracy may create more failures before the problem becomes obvious.
Splicing quality cannot compensate for a dirty or damaged feeder. Feeder maintenance should include cleaning the tape path, checking guide movement, inspecting sprockets, and reviewing abnormal feeding resistance.
Factories should record whether splice-related alarms are concentrated on specific feeder models or positions. This information can reveal equipment maintenance issues that are being incorrectly attributed to the splicing process.
Track feeder stops, tape separations, jam locations, wrong-material incidents, and operator rework connected with reel changeover. The data should include the tape width, component type, feeder position, operator, and shift when possible.
Regular review helps the factory identify recurring causes. It also shows whether an equipment upgrade or process change is producing measurable improvement.
Automation is not a solution to every splicing problem, but it can reduce the variation that causes many failures. It is especially useful when the factory performs frequent reel changes, operates several shifts, or has difficulty maintaining consistent manual splicing quality.
Automatic equipment can help position the tapes according to a repeatable reference. This reduces misalignment caused by hand placement and makes the final splice more consistent across operators.
A machine can help control joining pressure, position, or sequence. This reduces the likelihood of weak joints caused by uneven manual handling.
Automation provides a clearer process for training and auditing. Operators follow the same machine workflow, and supervisors can review problems against a defined operating sequence.
Factories evaluating automation should still test the equipment with actual tapes and feeders. A suitable machine must match the production materials and support the required changeover process.

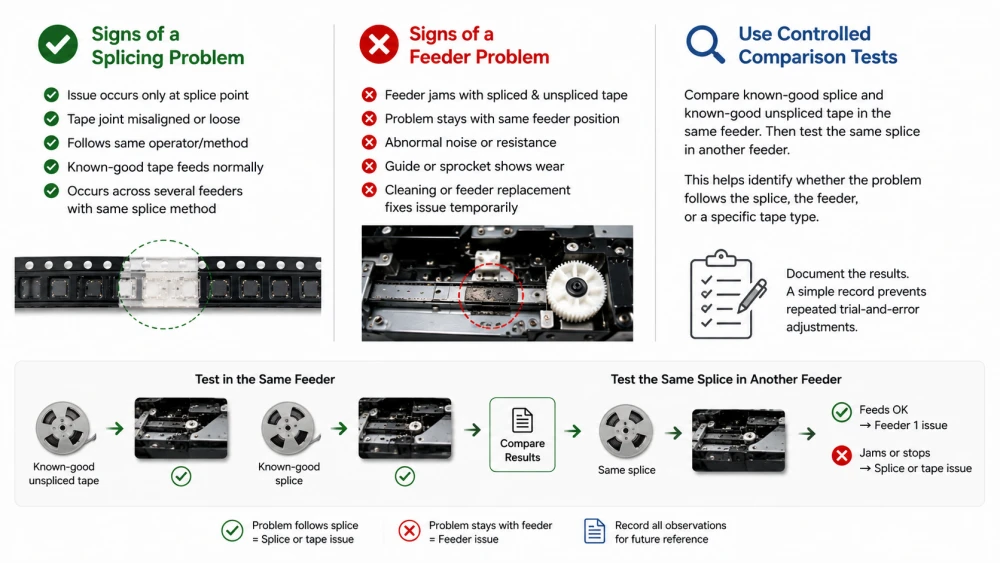

Splice faults and feeder faults can create similar symptoms, so the diagnosis should be systematic. Replacing the splicing method when the real problem is a worn feeder will not solve the issue.
The issue occurs only when the tape reaches the splice point.
The tape joint is visibly misaligned or loose.
The problem follows the same splicing operator or method.
Known-good tape feeds normally through the same feeder.
The issue occurs across several feeders using the same splice method.
The feeder jams with both spliced and unspliced tape.
The problem stays with the same feeder position.
The feeder has abnormal noise or resistance.
The guide or sprocket shows visible wear.
Cleaning or feeder replacement temporarily solves the issue.
The most useful test is to compare a known-good splice and a known-good unspliced tape in the same feeder. Then test the same splice in another feeder. This helps identify whether the problem follows the splice, the feeder, or a specific tape type.
Document the results instead of relying on memory. A simple troubleshooting record can prevent repeated trial-and-error adjustments.
The most common SMT splicing problems include tape misalignment, weak joints, feeder jams, incorrect tape direction, unstable component feeding, wrong-material loading, and inconsistent operator execution. These problems can create production downtime, feeder alarms, component waste, and placement quality risks.
Effective prevention starts with clean tape preparation, accurate alignment, suitable joining materials, feeder compatibility checks, standard work instructions, and regular machine and feeder maintenance. When a problem occurs, use structured SMT splice joint troubleshooting to identify whether the cause is the splice, the feeder, the material, or the operating method.
For factories with frequent reel changes or high production pressure, an automatic splicing system can improve repeatability and reduce operator-dependent variation. The complete process should be considered as part of the wider SMT material changeover strategy.
By monitoring splice-related failures and correcting their root causes, SMT manufacturers can reduce component tape splice failure, improve feeder stability, and maintain a more reliable supply of components to the placement line.
The most common SMT splicing problems are tape misalignment, weak or separated splice joints, feeder jams, incorrect tape direction, unstable component feeding, wrong-material loading, and inconsistent splice quality between operators. These problems can be caused by poor tape preparation, incorrect joining material, feeder condition, operator error, or incompatibility between the splice and feeder.
An SMT splice joint may fail inside the feeder because it is too thick, weak, misaligned, contaminated, or unsuitable for the feeder path. The joint may also fail when the carrier tape edge is damaged or the joining material is not applied correctly. Test the splice with the actual feeder and inspect both the joint and feeder condition during troubleshooting.
Component tape splice failure can be prevented by using clean and undamaged tape ends, aligning the tapes accurately, selecting suitable joining material, checking tape direction, and testing the splice through the actual feeder. Standard work instructions, operator training, regular maintenance, and automatic splicing equipment can further improve repeatability.
To troubleshoot an SMT splice joint, first identify where the failure occurs. Inspect the tape ends, joining material, tape direction, joint thickness, and alignment. Then check the feeder for contamination, wear, or abnormal resistance. Compare the problem splice with a known-good splice and record the tape width, feeder position, component type, and operating conditions.
An automatic SMT splicing machine can reduce many problems caused by manual alignment, inconsistent joining pressure, and operator variation, but it cannot prevent every failure. Incorrect materials, damaged tape, unsuitable feeder conditions, poor maintenance, or wrong machine settings can still cause problems. Automation works best when combined with material verification, training, and feeder maintenance.
