I.C.T-1200
I.C.T
| Quantity: | |
|---|---|

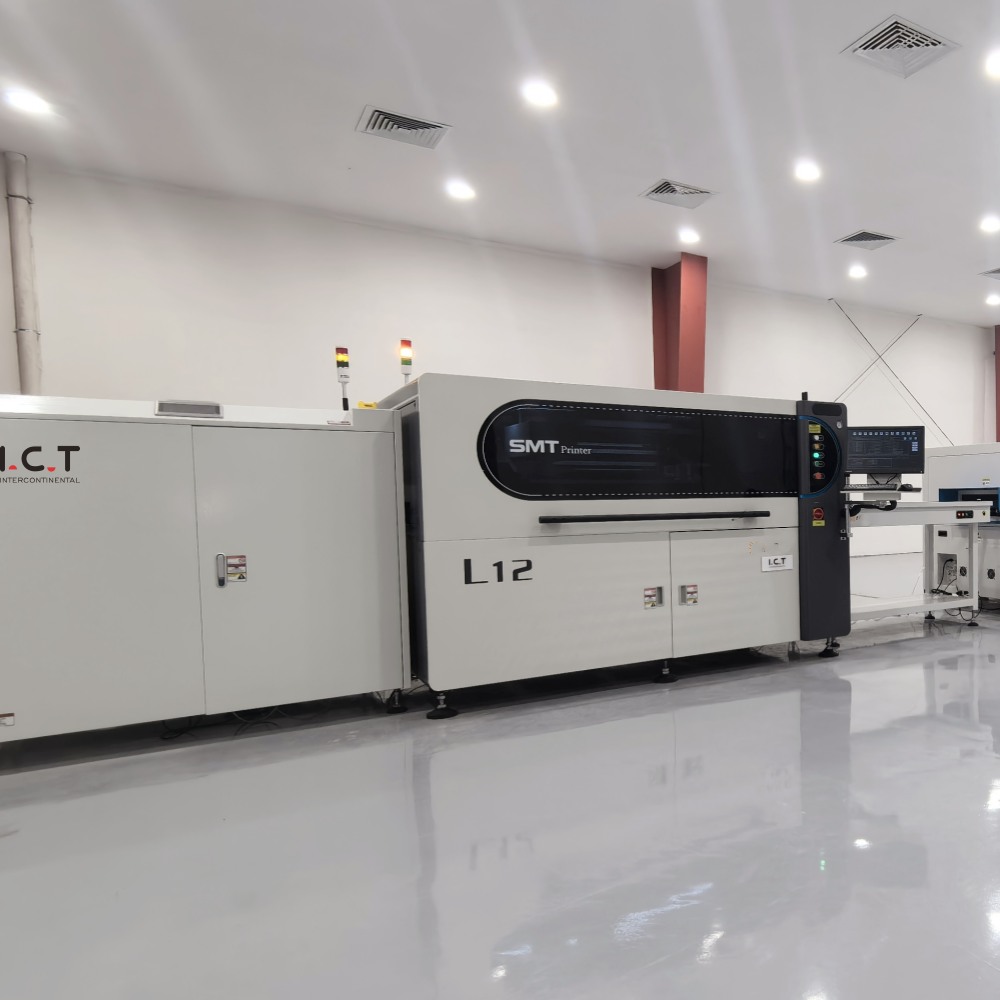

| Full Aoutomatic Solder Printer Machine
The I.C.T-1200 full aoutomatic solder printer machine handles LED PCBs up to 1200mm with high automation. It meets Industry 4.0 and connects to MES for zero defects. Repeat accuracy ±0.015mm, printing 0.03mm. This stencil printing machine with pcb processes boards 8050~1200350mm. It includes glue printing, auto cleaning, pressure control to raise output and cut costs. Parts from Panasonic and SMC keep failure low. Windows 10 system allows new setups in 5-10 minutes. Suited for LED lighting, vehicle electronics, general SMD. This pcb solder printer led 1200mm offers stable runs and easy use.
| Feature
Arch bridge suspension with direct squeegee link in the full aoutomatic solder printer machine. Two stepping motors drive pressure for accuracy. Slide rails hold position before and after prints. Suspended head adjusts pressure with live feedback. It balances force online and supports multiple separation ways. This reduces defects on LED 1200mm boards and ensures even paste.
Belt design stops PCB jams in this stencil printing machine with pcb. Motor sets speed and exact stops. Directions change to fit lines: left-right or others. Side clamps plus vacuum hold boards flat to stencil. Works with thin or warped PCBs. This keeps contact smooth and line speed high in SMT work.
Dry, wet, or manual options for the pcb solder printer led 1200mm. CCD separate from spray for clear views. Spray covers evenly top to bottom, saves alcohol and paper. Software tracks use. Strong vacuum pulls residue out fast. This maintains stencil condition and print quality with less stop time.
| Specification
| Model | I.C.T-4034 | I.C.T5134 | I.C.T-5151 |
| Frame Size(mm) | 470*370 ~ 737*737 | 470*370 ~ 737*737 | 470*370 ~ 737*737 |
| PCB Size(mm) | 50*50 ~ 400*340 | 50*50 ~ 510*340 | 50*50 ~ 510*510 |
| Transport Direction | Left-Right; Right-Left; Left-Left; Right-Right | ||
| Support System | Magnetic Pin/Up-down table adjusted/support block | ||
| Clamping System | Side clamping(vacuum nozzle,Automation retractable Z pressure is option) | ||
| Printer Head | Two independent motorised printhead | ||
| Squeegee Type | Stainless steel(standard),plastic | ||
| Cleaning System | Dry, Wet, Vacuum | ||
| Inspection | 2D Inspection(Standard) | ||
| Power Supply | AC:220±10%,50/60HZ,3Kw | ||
| Control Method | PC Control | ||
| Dimension(mm) | 1220*1355*1500 | 1220*1355*1500 | 1220*1550*1500 |
| Model | I.C.T-6534 | I.C.T-6561 | I.C.T-9060 |
| Frame Size(mm) | 650*400 ~ 850*750 | 650*400 ~ 850*850 | 737*400 ~ 1100*900 |
| PCB Size(mm) | 50*50 ~ 650*340 | 80*50 ~ 650*610 | 80*50 ~ 900*600 |
| Dimension(mm) | 1330*1370*1500 | 1330*15450*1500 | 1580*1545*1500 |
* I.C.T keeps working on quality and performance, specifications and appearance may be updated without particular notice.

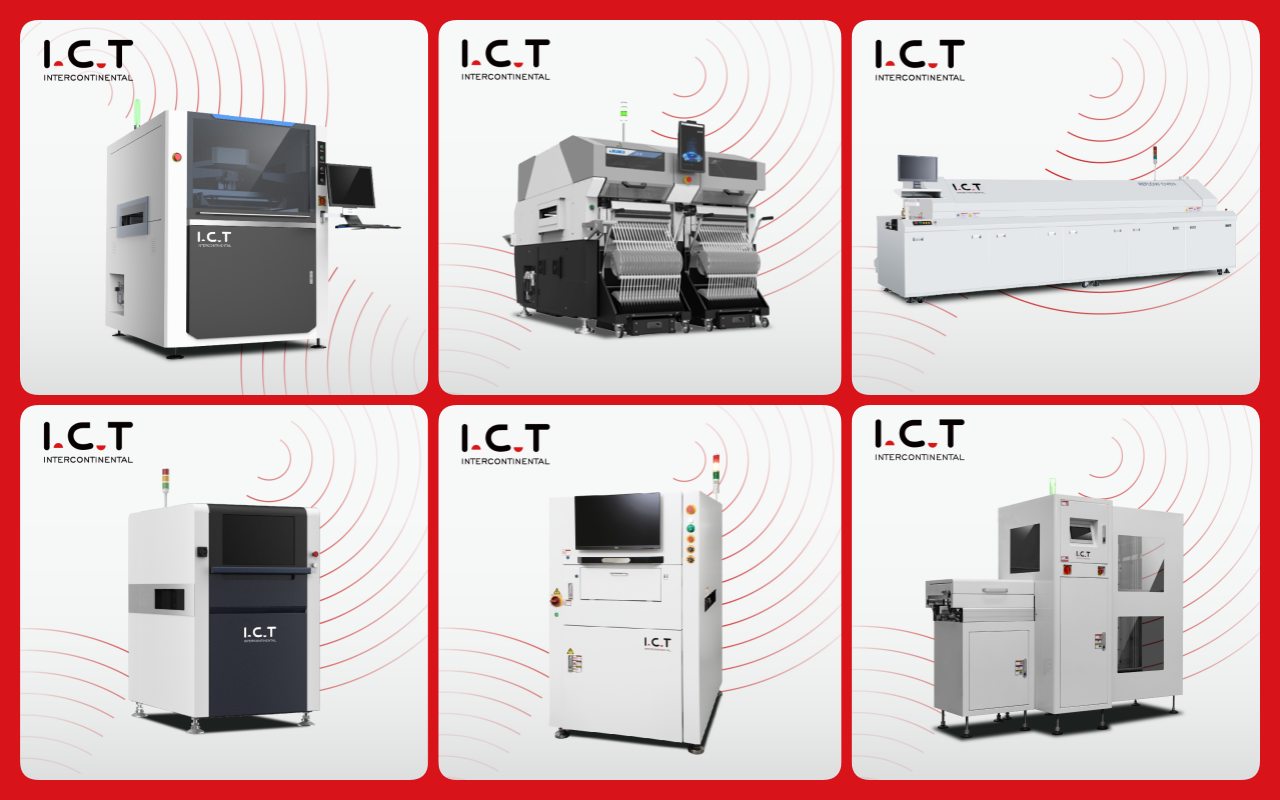

| SMT Line Equipment List

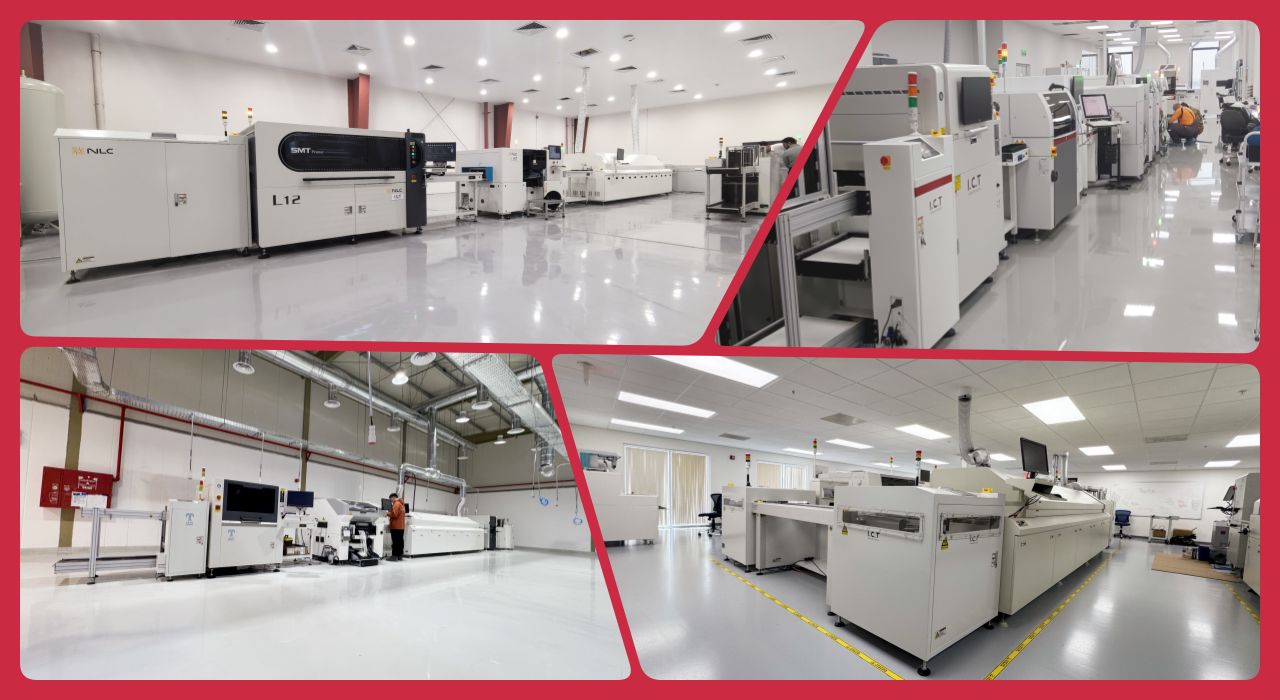

I.C.T High Quality PCBA Production Line features advanced equipment for efficient and precise PCB assembly. The fully automated SMT line includes a loader, an auto printer for accurate solder paste application, a pick-and-place machine for precise component placement, a reflow oven for reliable soldering, and an AOI system for thorough defect inspection. This High Quality PCBA Production Line ensures smooth operation, high reliability, and low-cost SMT assembly, meeting diverse industry requirements.
| Product Name | Purpose in SMT Line |
|---|---|
| PCB Loader | Automatically loads bare PCBs to the line. |
| Solder Paste Printer | Prints solder paste on PCB pads accurately. |
| Pick and Place Machine | Mounts components onto PCBs precisely. |
| Reflow Oven | Melts solder to form solid joints. |
| AOI Machine | Inspects solder joints and placement defects. |
| SPI Machine | Checks solder paste height and quality. |
Inspects internal solder joint integrity and detects hidden defects. | |
| SMT Cleaning Machine | Used for cleaning PCBs, stencils, fixtures, nozzles, etc. |
| PCB Cutting Machine | Cut the PCBA into the final product |
| Traceability Equipment | Records and tracks production data: Laser Marking Machine/Label Mounter/Inkjet Printer |
| Customer Success Video
In 2025, I.C.T engineers went to a home LED lighting factory for installation and training. Customer needed 13 machines in a 29-meter line, but space was 21x5 meters. We made a U-shape layout to fit 16x2.7 meters. Two days for setup: wiring, placement, tests, and links including the full aoutomatic solder printer machine. Six days training covered board load, settings, cleans, fixes, and MES data. Line started with no issues, raised LED output. Customer got customized fit without extra space or delays. This shows how the stencil printing machine with pcb works in tight areas for quick results.
| Service and Training Support
I.C.T handles full installation, upkeep, and training for the full aoutomatic solder printer machine. Engineers check customer needs, draw customized line plans, adjust processes, and test on site. Global centers send parts fast, offer remote checks, and update software. Training teaches daily runs, pressure sets, clean steps, error reads, and safe habits. We serve customers in 72 countries with 25 years experience. This builds lines from start, fixes issues quick, and helps growth with less cost.
| Customer Reviews
Customers like engineers for clear teaching and fast help on site. The full aoutomatic solder printer machine gets praise for steady accuracy and few stops. Packing with foam and crates keeps gear safe on long trips. Responses come quick by call or remote, solve problems in hours. Customers say this builds trust and keeps lines running.
| Certifications and Standards
I.C.T has CE for safety, RoHS for no harmful materials, ISO9001 for quality control. Patents cover cleaning saves, quick switches, crash guards, glue tools, error checks, print force, process steps, quality stents, stencil wipes, lift speeds, belt moves. These make the pcb solder printer led 1200mm safe and new for world markets.
| About I.C.T Company and Our Factory
I.C.T runs own R&D and build sites with 89 staff, 20 engineers, growing since 2012. We help 1600 customers in 72 countries with full SMT sets. 12,000m² park tests parts in, assembles exact, runs long trials, manages quality strict. This gives low errors, long life gear. Branches worldwide mix global know-how with local service. We focus on honest deals, simple plans, open talk, team work, shared wins. Customers get lines from zero, upgrades, speed ups, market shifts.
