| PCB SMT Printer Overview
Reliable Automatic Solder Paste Printer for SMT Lines
This PCB SMT printer from I.C.T is easy to use and gives top results in SMT work. It puts solder paste on PCBs with high precision. The machine has a quick 7-second print time. It repeats positions at ±0.01mm. Auto features include PCB check, pressure set, printing, and stencil clean. Parts come from good brands like Panasonic. It fits Industry 4.0 and MES for live data. Good for electronics, cars, and LEDs. Cut hand work and waste. Link with other machines via SMEMA. I.C.T tests everything hard and helps worldwide. Start small or go big with this Automatic SMT Printer.
| Feature
The print head hangs on an arch bridge. Two motors control each squeegee. Pressure stays even from 0 to 15kg. Speed goes 10 to 200mm per second. Accuracy hits ±0.025mm. Angles adjust to 45, 55, or 60 degrees. It works for solder or glue. Feedback keeps paste shape perfect. No smears or extra paste. This helps the SMT Solder Paste Printer run clean and fast every day.
Belts move PCBs up to 1500mm per second. Motor stops them exact. No stuck boards. Side clamps and vacuum hold tight. PCB and stencil touch smooth. Height is 900mm plus or minus 20. Go left to right or both ways. Pins and blocks fix warp under 1%. Lift table sets height auto. Change products in under 5 minutes. Low care parts last long. Great for non-stop SMT Solder printer lines.
Choose dry, wet, vacuum, or hand clean. CCD part splits from clean area. Spray is even top to bottom. Software saves alcohol and paper. Strong motor pulls vacuum well. Stencil stays ready. No long stops. This keeps the Automatic Solder Paste Printer working without mess or delay.
| Specification
| Model | I.C.T-4034 | I.C.T5134 | I.C.T-5151 |
| Frame Size(mm) | 470*370 ~ 737*737 | 470*370 ~ 737*737 | 470*370 ~ 737*737 |
| PCB Size(mm) | 50*50 ~ 400*340 | 50*50 ~ 510*340 | 50*50 ~ 510*510 |
| Transport Direction | Left-Right; Right-Left; Left-Left; Right-Right | ||
| Support System | Magnetic Pin/Up-down table adjusted/support block | ||
| Clamping System | Side clamping(vacuum nozzle,Automation retractable Z pressure is option) | ||
| Printer Head | Two independent motorised printhead | ||
| Squeegee Type | Stainless steel(standard),plastic | ||
| Cleaning System | Dry, Wet, Vacuum | ||
| Inspection | 2D Inspection(Standard) | ||
| Power Supply | AC:220±10%,50/60HZ,3Kw | ||
| Control Method | PC Control | ||
| Dimension(mm) | 1220*1355*1500 | 1220*1355*1500 | 1220*1550*1500 |
| Model | I.C.T-6534 | I.C.T-6561 | I.C.T-9060 |
| Frame Size(mm) | 650*400 ~ 850*750 | 650*400 ~ 850*850 | 737*400 ~ 1100*900 |
| PCB Size(mm) | 50*50 ~ 650*340 | 80*50 ~ 650*610 | 80*50 ~ 900*600 |
| Dimension(mm) | 1330*1370*1500 | 1330*15450*1500 | 1580*1545*1500 |
* I.C.T keeps working on quality and performance, specifications and appearance may be updated without particular notice.
| SMT Line Equipment List

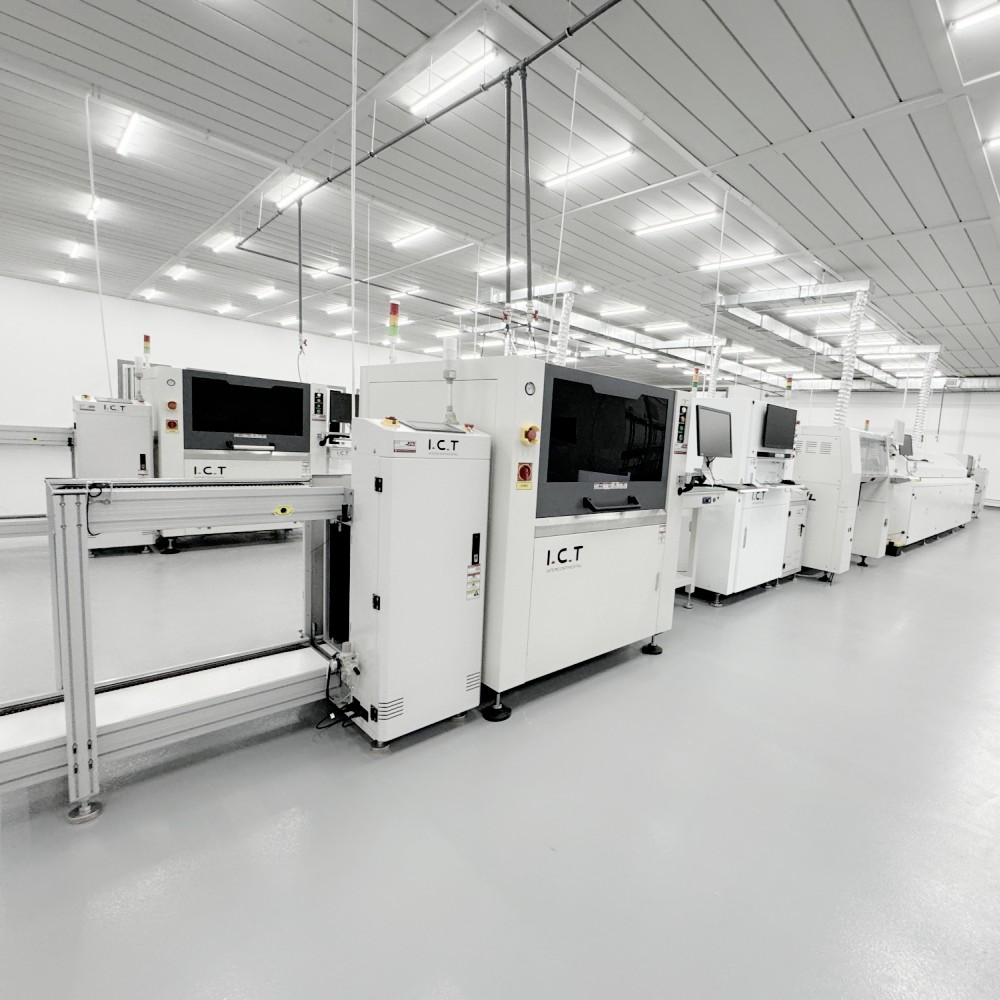

Our High Quality PCBA Production Line features advanced equipment for efficient and precise PCB assembly. The fully automated SMT line includes a loader, an auto printer for accurate solder paste application, a pick-and-place machine for precise component placement, a reflow oven for reliable soldering, and an AOI system for thorough defect inspection. This High Quality PCBA Production Line ensures smooth operation, high reliability, and low-cost SMT assembly, meeting diverse industry requirements.
| Product Name | Purpose in SMT Line |
|---|---|
| PCB Loader | Automatically loads bare PCBs to the line. |
| Solder Paste Printer | Prints solder paste on PCB pads accurately. |
| Pick and Place Machine | Mounts components onto PCBs precisely. |
| Reflow Oven | Melts solder to form solid joints. |
| AOI Machine | Inspects solder joints and placement defects. |
| SPI Machine | Checks solder paste height and quality. |
| Traceability Equipment | Records and tracks production data: Laser Marking Machine/Label Mounter/Inkjet Printer |
| Customer Success Video
I.C.T sent engineers to North America. They set up two SMT lines for a beauty tool maker. Parts included laser marker, SMT printer with SPI, Panasonic placers, Heller reflow, AOI, conveyors, PCBA cleaner, and solder paste box. Team did install, link software, and train staff. Fixed issues fast. Lines ran with 99% up time. Passed check on time. Client now makes products for world sales. Shows I.C.T skill in far installs and full help.
| Service and Training Support
Full Support and Easy Training
I.C.T gives all help for your PCB SMT printer. We plan lines and install on site. Training is hands-on or online. Teach run, fix, and MES link. Support 24/7 from branches. Keep parts ready and check yearly. Fix risks and save money. Grow your team strong with our one-stop way.
| Customer Reviews
Clients like our work. "Engineers fixed printer fast and taught well," says Europe car company. North America beauty firm: "SMT Solder Paste Printer runs perfect, no stops." Packing safe: "Boxes came good over sea." Fast help: "Answer quick, parts same day." We build trust with good jobs.
| Certifications and Standards
Proven Quality Marks
We have CE for safe use. RoHS for green parts. ISO9001 for good control. Patents on print, clean, and move tech. All check our work from start to end. Trust this PCB SMT printer anywhere.
| About I.C.T Company and Our SMT Factory
Strong SMT Solution Maker
I.C.T started 2012. Now 89 people, 20 engineers. 12,000m² space. Eight offices. Serve 1,600 plus clients in 72 lands. Do own design and make. Test strict in Dongguan plant. 48-hour run and check precision. $30 million fund. Grow fast with honest, simple, open ways. Local help for world needs. Many went from zero to full lines with us.
