| High-End Jet Dispensing Machine
Year after year the same story repeats: factories need glue placed fast, placed perfect, placed without drama. The I.C.T SMT glue machine answers that call. Three-axis gantry, Panasonic servos, grinding screws, 800 mm/s speed. Vision system reads Mark points, corrects edges, never drifts. Valve preheats glue, controls volume to the microliter. Syringes swap in minutes. The SMT AI glue dispensing machine learns your boards, remembers your programs, runs 24/7. From medical devices to LED panels, from prototype labs to million-piece lines—same result every shift. We ship it, install it, train your people, stand behind it.
| Detailed Product Features
Servo motor turns. Grinding screw advances. Valve opens. Exact glue volume exits. Preheating holds 0.1 °C tolerance. Red glue, underfill, UV adhesive—any type flows the same. Syringe change takes sixty seconds. Cleaning cycle runs automatic. No dried glue, no air bubbles, no missed dots. Bond strength stays identical board after board. The SMT glue machine never second-guesses the program.
Anti-static belts start. Independent motors drive left section, right section. Board enters, sensors read edges, stop bar drops—position locked. Width adjusts by twin grinding screws; rails stay parallel within 0.02 mm. Accepts 50×50 mm up to 600×600 mm, 5 kg max. Speed 300 mm/s any direction. SMEMA handshakes front and back. The SMT AI glue dispensing machine never waits for the line, the line never waits for it.
Shift ends. Operator presses one button. Purge cycle starts. Valve tip flushes clean in eight seconds. Temperature controller holds glue viscosity hour after hour. No hardened plugs form. No manual scraping needed. Valve life doubles. Downtime drops to almost zero. The SMT glue machine stays ready for the next run without delay.
PLC talks to industrial PC. Panasonic servos listen. Omron relays click. Schneider breakers guard. CE certification stamped. Industry 4.0 backbone built in. MES port open. Add 3D height scan or UV cure tomorrow—software already knows how. UFD interface shows plain numbers, plain buttons. New operator runs full speed after two hours. The SMT AI glue dispensing machine thinks ahead so you don’t have to.
| Specification
| Model | I.C.T-D450 | I.C.T-D600(LENS) | I.C.T-D1200(LENS) |
| Dispensing Range | X400*Y400*Z50mm | X600*Y400*Z50mm | X1200*Y400*Z50mm |
| Product Weight | Max.4.5kg | ||
| Product Thickness | Max.6mm | ||
| Maximum Speed | 2000mm/s | ||
| Vision Methodology | CCD | ||
| Cleaning System | Auto | ||
| Injection Valve Speed | 200 points/s | ||
| Dispensing Accuracy | ±0.02mm | ||
| Repeated Accuracy | ±0.01mm | ||
| Weight | 650 Kg | 750 Kg | 950 Kg |
| Dimension | W770*D1200*H1500mm | W880*D1200*H1500mm | W1590*D1200*H1500mm |
| SMT Line Equipment List
Bare board in magazine. Loader pushes. SMT glue machine shoots perfect dots at 800 mm/s. Pick-and-place drops components or lenses onto wet glue. IR or UV oven hardens adhesive in seconds. Optional AOI scans volume and position. All stations linked by SMEMA. One or two operators oversee everything. First-pass yield 99.5 % plus. Uptime brutal. Automotive, medical, consumer, LED—every standard met, every cost crushed, every profit increased. One complete SMT AI glue dispensing machine line. Zero risk. Maximum return.
| Product Name | Purpose in Glue Dispensing Line |
|---|---|
| Glue Dispensing Machine | Delivers high-speed, ultra-precise glue dispensing |
| Conformal Coating Machine | Applies final protective coating for reliability |
| Pick and Place Machine | Accurately places components onto fresh glue |
| Curing Oven | Rapidly cures glue with IR or UV technology |
| Customer Success Story

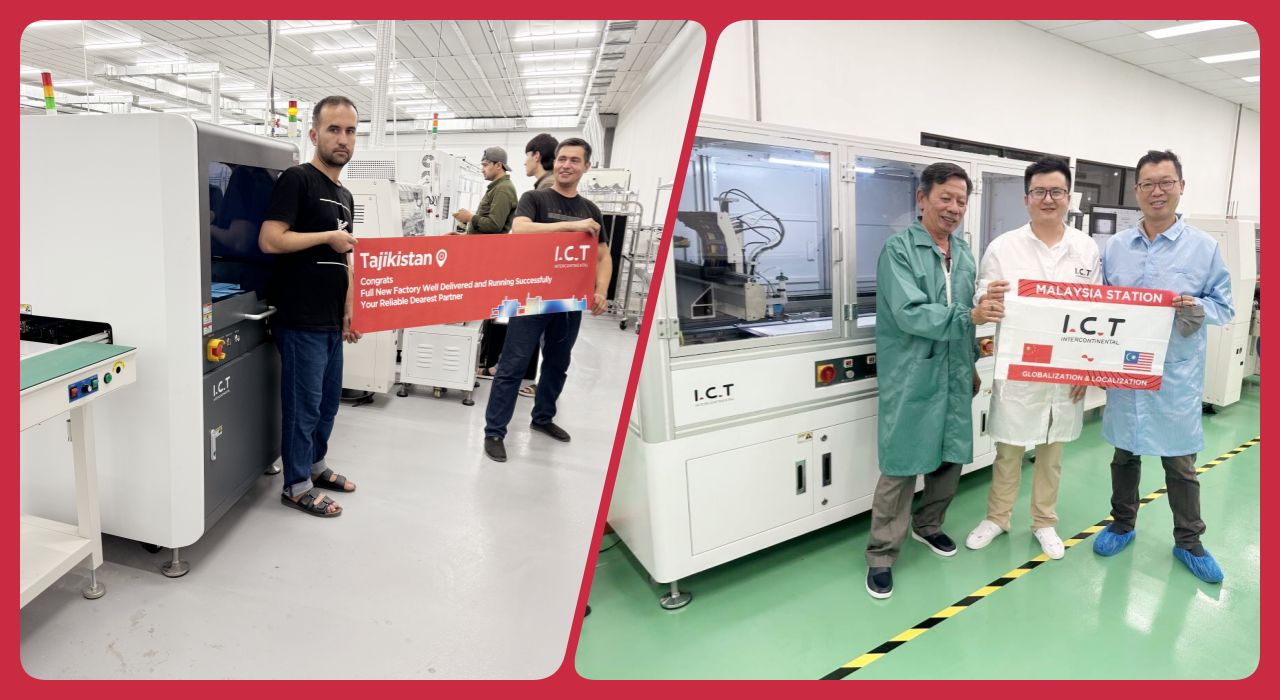

Two I.C.T engineers landed in Dushanbe. Customer had ordered two full SMT lines, one DIP line, one conformal coating line, one glue line, one complete LED bulb assembly line. Machines arrived. Engineers unpacked, leveled, wired, programmed. The SMT glue machine placed dots. Pick-and-place set lenses. Ovens cured. AOI checked. First boards came out perfect. Local team trained in ten days. Production hit 100 % capacity. Customer filmed everything, smiled wide, said on camera: “Output doubled, defects gone, I.C.T delivered exactly what they promised.”
| Professional Training & Support
We arrive before the SMT glue machine does. We stay until your operators run it alone. Remote login fixes 80 % of calls in under thirty minutes. Spare parts leave our warehouse the same day. On-site visits scheduled within 48 hours anywhere in the world. Free lifetime software updates. Process optimization included. The SMT AI glue dispensing machine earns money from day one.
| Customer Praise
“Engineers knew every screw.” “Glue dots never move.” “Wooden crates survived 8 000 km without a scratch.” “Remote team fixed the alarm at 2 a.m. my time.” “Line has not stopped in fourteen months.” Same words, different countries, same SMT glue machine.
| Our Certification
CE mark. RoHS compliant. ISO9001 certified. Multiple invention patents registered. Every SMT glue machine leaves the factory with full test reports and serial-number traceability. Ship to Europe, America, Japan—no customs questions, no delays.
| About Us and Factory
Dongguan, China. 12 000 m² factory. 89 employees. 20 engineers. $30 million registered capital. Founded 2012. 1 600 customers. 72 countries. Every SMT glue machine runs full load test before it leaves. Quality gate never sleeps. Growth curve still points up. We build it. We own it. We support it.
