When you’re building printed circuit board assemblies (PCBAs), thorough testing is non‑negotiable — and the I.C.T A40 Flying Probe Tester delivers dependable results without overcomplicating the process. This upgraded flying probe testing solution brings together smooth motion control, versatile inspection coverage, and user‑friendly operation to support quality production workflows.

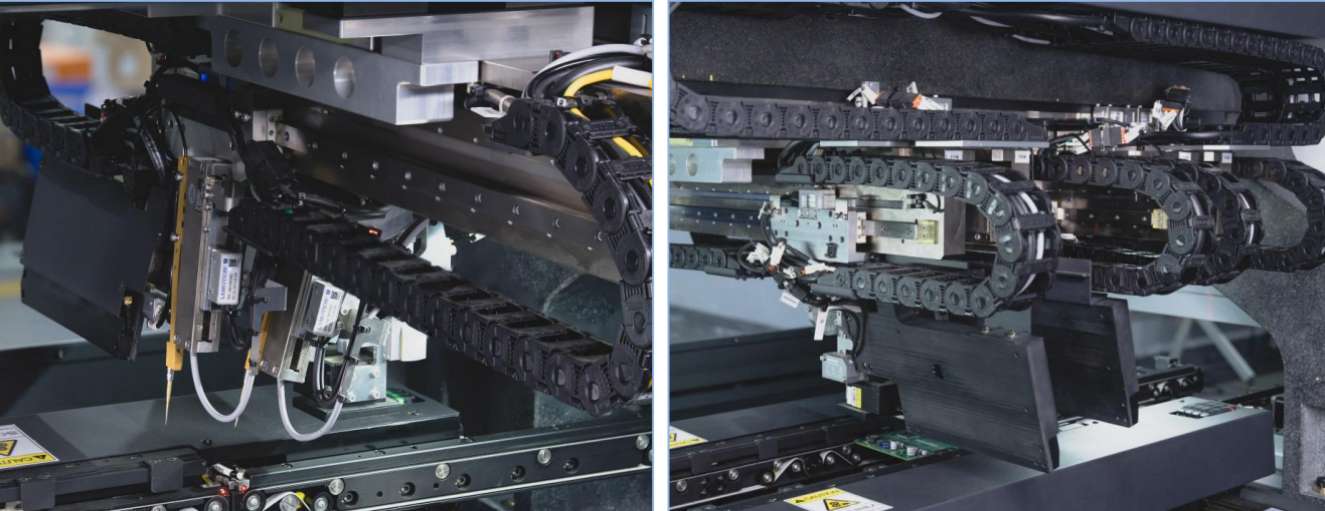

At the heart of this system is its advanced Drive System — multiple independent servo motors coupled with high‑precision ball screws and a vibration‑damping marble base ensure fast, accurate probe motion across the board. This setup supports high‑speed testing up to 1000 mm/s in the X/Y axes with axis resolution down to 1 μm, giving you reliable coverage even on complex designs.

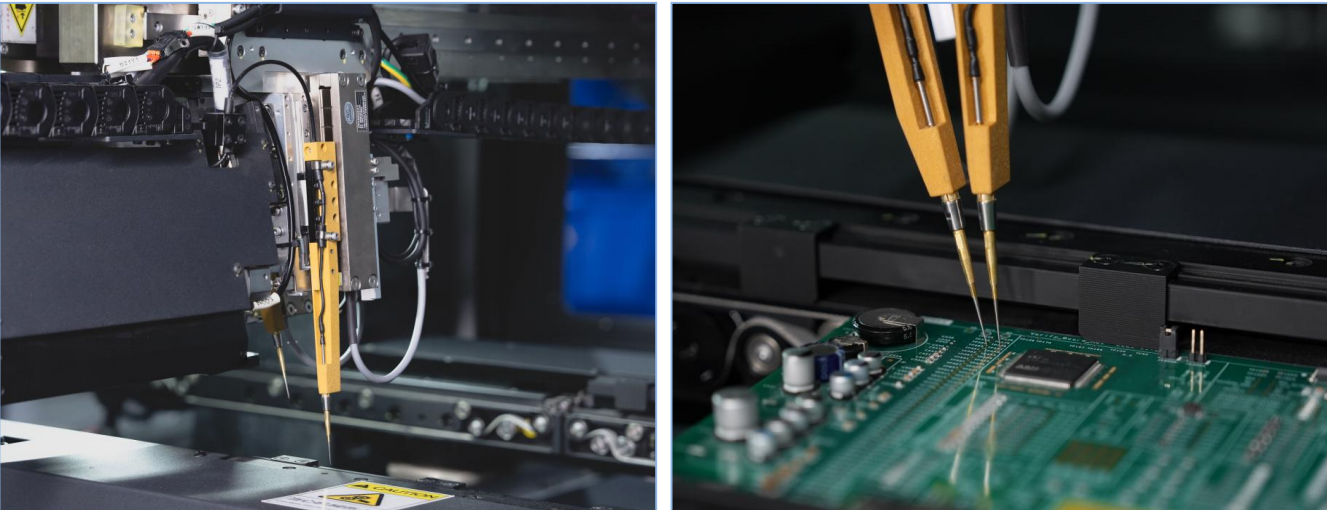

The Test Probes System is designed for flexibility and detailed inspection. Four top flying probes (expandable to 6 or 8) operate independently, using soft‑landing probe technology and adjustable probe pressure to protect sensitive pads and components while maintaining precise contact. This approach not only improves test coverage but also accelerates path planning for dense layouts.

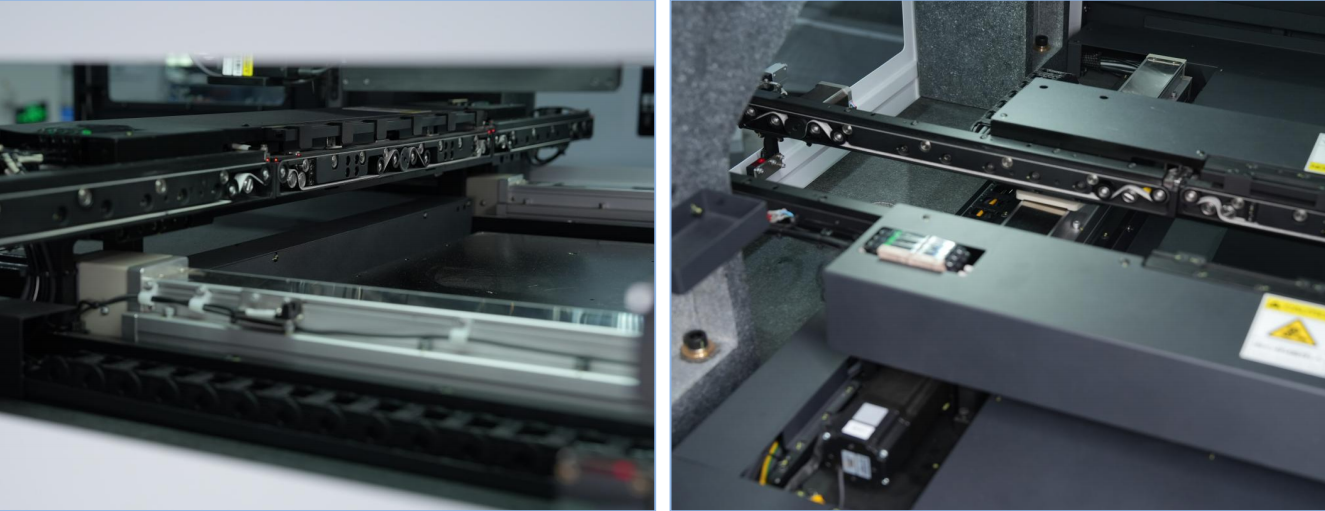

To support consistent board handling, the machine uses a robust Conveyor Systemwith an anti‑static belt and high‑precision sensors. Whether running inline with production or in an offline batch mode, the conveyor ensures accurate board positioning and smooth movement through the test area.
Software support makes setup straightforward: import CAD files, automatically generate test programs, and analyze results with clear reporting — even integrating directly with MES systems for data‑driven production control. With this balance of precision and flexibility, the upgraded I.C.T Flying Probe Tester helps manufacturers improve quality control across prototypes, small batches, and production runs with confidence.
