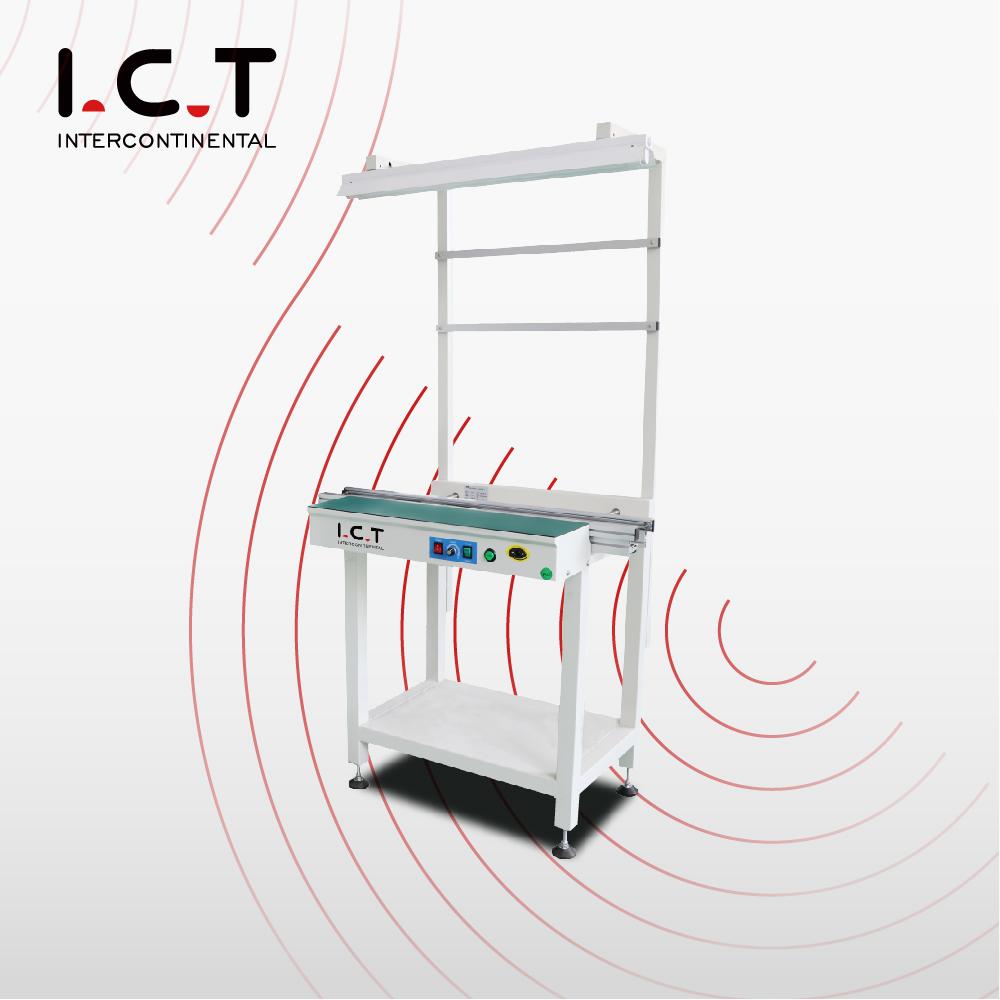

| High-Performance AOI PCB Conveyor for Seamless SMT Inspection
The I.C.T AOI PCB Conveyor is the upgraded SMT Monorail Track Conveyor specially designed for inline and offline AOI machines. It stops boards precisely under the camera, releases them instantly after scanning, and keeps perfect alignment at all times. Built with premium aviation aluminum, top-brand sensors and Industry 4.0-ready PLC, every AOI PCB Conveyor supports one-button width change for the entire line. Available in belt or chain drive, standard or full CE version — it runs 24/7 with zero vibration, ultra-low noise and almost no maintenance in electronics factories worldwide.
| Types of SMT Conveyor
I.C.T offers more than ten conveyor models so every AOI station gets the perfect match. Standard linking conveyors connect machines. Inspection, telescopic, gate and buffering types handle special needs. The core AOI PCB Conveyor comes in 1.0 m, 1.2 m, 1.5 m or fully custom lengths with single-stop, double-stop or bypass modes. Heavy-duty chain versions support hot boards after reflow. Every SMT Monorail Track Conveyor can be customized in speed, stop position, lighting and communication protocol to fit your exact AOI machine perfectly.
| Detailed Product Features
Thicker aviation-grade aluminum profiles and precision-machined rails form an ultra-rigid frame that never twists. Reinforced steel base plates and high-strength fasteners absorb vibration even at top speed. All parts meet strict ISO and CE standards, giving every AOI PCB Conveyor exceptional durability and perfect board positioning for decades of non-stop operation.
Top-brand photoelectric sensors detect board edges in milliseconds. Bright three-color tower lights and oversized emergency buttons are visible from anywhere. Full ESD protection plus neat wiring keep sensitive electronics safe while delivering 99.99% accuracy every cycle.
7-inch color touch screen plus powerful PLC lets operators set stop position, speed and width in seconds. Optional Industry 4.0 module supports Hermes, CFX and all major AOI protocols. Software updates and remote troubleshooting are free for life.

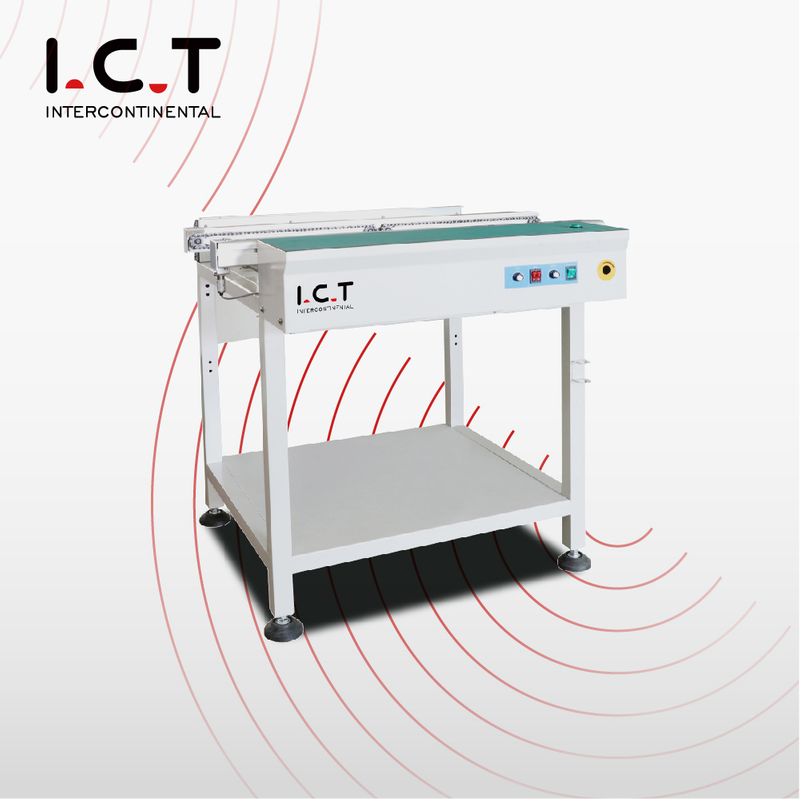

Standard 3 mm anti-static flat belt runs whisper-quiet and clean. For heavier or hotter boards, choose stainless-steel chain drive that never slips and handles higher weight perfectly. Both systems work flawlessly with the precise stop-and-go motion of the AOI PCB Conveyor.
| Reflow Oven Specification
| Parameter | Specification |
|---|---|
| PCB Width | 50–400 mm (500 mm optional) |
| Conveyor Height | 900 ± 20 mm |
| Transfer Speed | 0.5–20 m/min adjustable |
| Power Supply | AC 220 V 50/60 Hz |
| Power Consumption | 50–150 W |
| Direction | Left to Right (Right to Left optional) |
| Belt Material | 3 mm ESD flat belt or chain |
| Control Mode | PLC + Touch Screen |
| One-button Width Adjust | Optional (whole line sync) |
| CE Safety Standard | Full cover + sensor protection |
* I.C.T keeps working on quality and performance, specifications and appearance may be updated without particular notice.
| SMT Line Equipment List
Our High Quality PCBA Production Line features advanced equipment for efficient and precise PCB assembly. The fully automated SMT line includes a loader, an auto printer for accurate solder paste application, a pick-and-place machine for precise component placement, a reflow oven for reliable soldering, and an AOI system for thorough defect inspection. This High Quality PCBA Production Line ensures smooth operation, high reliability, and low-cost SMT assembly, meeting diverse industry requirements.
| Customer Success Story
Two senior I.C.T engineers flew to Uruguay to launch a complete high-speed line for a leading smart electric-meter manufacturer. The package included magazine loaders, printers 471 & 481, Lyra622 mounter, multiple AOI PCB Conveyors (SMT Monorail Track Conveyor type), offline AOI, reflow oven W2 and roller lines. In just seven days our team finished installation, stop-position calibration, AOI handshake testing and full operator training. The customer now enjoys 100% stable inspection with zero misalignment and says our rapid on-site support was outstanding.
| Professional Training & Support
From layout planning to daily mass production, I.C.T stands with you all the way. We provide free online and on-site training, lifetime free software upgrades, and 7×24 remote assistance. When urgent help is needed, our engineers board a plane within 48 hours anywhere in the world. Spare parts ship same-day from eight global warehouses — your AOI PCB Conveyor never stops.
| Customer Praise
“The automatic inspection PCB conveyor lighting is incredible — we now see defects we never noticed before!” “Wooden crates were rock-solid — machines arrived perfect after two months at sea.” “Engineers trained every shift patiently until everyone felt 100% confident.” “Support replies in minutes, even on weekends!” “Best Inspection Conveyor Belt we’ve ever used.”
| Our Certification
Every I.C.T AOI PCB Conveyor carries CE, RoHS and ISO9001 certificates plus dozens of invention patents. Each machine completes a strict 48-hour full-load aging test before shipping. Quality is built in every day — that’s why customers trust us year after year.
| About Us and Factory
Founded in 2012 in Dongguan, China, I.C.T has grown fast into a leading global SMT solution provider with nearly 90 dedicated employees and a modern 12,000 m² factory. We design and manufacture all core components in-house under strict quality systems. More than 1,600 customers from 72 countries run our AOI PCB Conveyor and other equipment every day. With eight overseas offices and continuous rapid growth, I.C.T keeps delivering reliable, innovative SMT Monorail Track Conveyor and world-class service to electronics manufacturers worldwide.
