You want your Low-Volume SMT Production to work well and give good results. The right Small Reflow Oven can change how you work. It is easy to set up and lets you change recipes fast. This helps you save time and work better. When you work with different PCB assemblies, picking the right oven is very important. Smart features like automatic profiling and prediction software help you finish small batches quickly and accurately. Your choice affects what you make and how much money you earn.
· Picking the right oven helps your low-volume SMT production. It saves time and lowers mistakes.
· Find ovens with good temperature control and easy setup. Smart features like automatic profiling help too.
· Batch ovens are good for small jobs and prototypes. Conveyor ovens are better for bigger runs and tricky boards.
· Keep your oven clean and use the right reflow profiles. This keeps your oven working well and your solder joints strong.
· Use a checklist to choose an oven that fits your board size. Make sure it matches your budget and future plans for the best results.
Running Low-Volume SMT Production brings special problems. Standard reflow ovens often do not work well for you. You must control the temperature very carefully. If you do not, small parts can get ruined. Not handling thermal stress can cause defects and waste boards. Here are some problems you might see:
· Getting the right temperature is hard with regular ovens.
· Sensitive parts can get hurt by too much heat.
· Defects like bridging, tombstoning, and weak solder joints can happen if you do not watch the process.
· Fine-pitch and high-density parts need flexible setups and good thermal profiling.
· You need trained workers and good calibration to keep quality high and defects low.
· If you do not set your reflow profile right, you might get voiding, cold joints, or warping.
· Too much heat can make the PCB come apart and ruin your work.
Tip: Pick ovens with smart profiling and easy calibration. This helps you lower risks and get better results.
The oven you pick changes your product quality and speed. The right oven lets you control each step. You can set zone temperatures, ramp rates, and belt speeds to fit your board and solder paste. This helps you stop common defects and keep your work moving fast.
Oven Parameter | Influence on Defect Rates and Throughput |
Zone Temperature Settings | Keeping the same temperature in each zone lowers defects like graping and head-in-pillow. |
Ramp Rate (~1°C/second) | A balanced ramp rate stops solder slump and thermal problems, so you get good quality and speed. |
Belt Speed | The right speed gives enough heat for strong solder joints and steady work flow. |
Preheat Zone Temperature | Heats off solvents early, so you get fewer solder balls and flux problems. |
Peak Temp & Time-Above-Liquidus | Controls how solder joints form; bad control can cause cold joints or heat damage. |
You want fewer defects and more finished boards. The right oven gives you the control and accuracy you need for every batch. If you choose well, you will do better in Low-Volume SMT Production.
You want your Low-Volume SMT Production to run smoothly. The right oven gives you the control you need. Look for features that help you avoid mistakes and keep your boards safe. Here are some must-have features:
· Precise temperature control with PID systems keeps your heating steady.
· Easy-to-set heating profiles let you adjust preheat, soak, reflow, and cooling stages.
· Built-in thermometers help you check the temperature and avoid bad solder joints.
· Flexible zone settings allow you to fine-tune heat for different board types.
· Batch or vapor phase ovens work well for small runs because they handle different board sizes and types.
· Good software interfaces make it simple to set up and monitor your process.
· Soldering fixtures and tweezers help you place and hold parts during soldering.
Note: Industry standards like IPC/EIA J-STD-001 say you must follow proper thermal profiles. This keeps your boards strong and free from defects.
You need to fit your oven into your workspace and your budget. Many ovens for Low-Volume SMT Production come in compact sizes. You can place them on a bench or a small table. This saves space and keeps your work area neat.
Oven Type | Size | Cost Range | Best For |
Benchtop Oven | Small | Low to Medium | Prototyping, labs |
Batch Oven | Medium | Medium | Small runs, flexibility |
Vapor Phase Oven | Small/Medium | Medium to High | High quality, precision |
You do not need to spend a lot to get good results. Many ovens offer strong performance at a fair price. Choose an oven that matches your production needs and leaves room for future growth. When you pick the right size and price, you set yourself up for success.
Picking the right oven can really help your work. You need an oven that fits your needs and space. It should also give you good results every time. Here are some top choices for batch and conveyor ovens.
Batch ovens are good for making prototypes and for small labs. They are also great if you want to save money. You put your boards in, set the profile, and let it cook. Many people start with batch ovens because they cost less and are simple to use.
Popular Batch Oven Models:
· T-937M (Puhui): Not expensive, uses hot-air convection, heats well.
· LPKF ProtoFlow S: Trusted by many for making prototypes.
· APS Low-Volume Batch Oven: Has one zone, big window, easy to watch.
· Controleo3 Ready-to-Run: Good for making a few boards now and then.
· Table-top toaster ovens (with upgrades): Cheap, nice for hobby work.
· Desktop reflow ovens from eBay: Many kinds, but quality is not always the same.
⚠️ Do not use ovens with infrared heating. Hot-air ovens heat evenly and work better.
Pros and Cons of Batch Ovens:
Advantages | Disadvantages |
Soldering is automatic with set temperature curves | Costs more than simple heating plates |
Works well for high-density parts like BGA, QFN, QFP | Takes up more bench space |
Gives steady and repeatable results | Preheat takes longer, sometimes several minutes |
Easy for small jobs | Hot or cold spots can hurt boards with mixed parts |
Batch ovens are best if you want to:
· Make prototypes or small batches.
· Work in a lab or small shop.
· Spend less money.
· Watch your boards while soldering.
Pick a hot-air oven with at least 2.5-3kW of power. This helps your boards heat up the same all over. It also keeps your solder joints strong. The T-937M and LPKF ProtoFlow S are known for being easy and reliable. Controleo3 ovens are good for making a few boards sometimes. If you want to save money, you can upgrade a toaster oven. But you need to check for uneven heating.

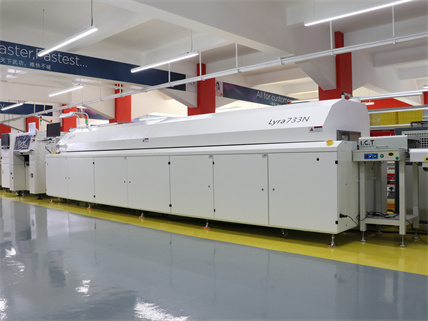

Conveyor ovens help you make more boards faster. You put your boards on a moving belt. The oven does the rest. These ovens are great when you need to make lots of boards or work with tricky ones.
Model | Max PCB Size (mm) | Heating Zones | Nitrogen Support | Control Type | Key Features |
SMT Wertheim Reflow Oven | 350 x 350 | 8 | Yes | Touchscreen | Steady conveyor, easy controls, nitrogen keeps joints clean |
Vitronics Soltec XPM3 | 500 x 400 | 8-10 | Yes | Touchscreen | Heats up fast, saves energy, you can set profiles |
N/A | 12 (7 preheat, 3 peak, 2 cooling) | Yes | Touchscreen | Advanced controls, wide rail, heats and cools slowly | |
BTU Pyramax 100A | 457 x 457 | 8-12 | Yes | Touchscreen | Fast, adjustable belt, saves energy, good for big or tricky boards |
Conveyor ovens give you:
· A steady flow for over 100 boards each day.
· Many heating zones for better temperature control.
· Can handle bigger boards and special profiles.
· Touchscreen controls make setup simple.
Batch vs. Conveyor Ovens:
Feature | Conveyor Ovens | Batch Ovens |
Throughput | High; makes many boards without stopping | Low; one board at a time |
Precision | Many zones, very exact control | One zone, not as flexible |
Board Size | Up to 12" x 12" | Up to 8" x 8" |
Flexibility | Very flexible, many profiles and speeds | Not as flexible, best for small jobs |
Cost | More expensive | Cheaper |
Footprint | Bigger, needs more space | Smaller, fits on a bench |
Best For | Making lots of boards, contract work, hard jobs | Prototyping, labs, saving money |
Pick a conveyor oven if you want to:
· Make more than 100 boards each day.
· Work with big or tricky PCBs.
· Need very exact temperature control for special parts.
· Want to grow your work in the future.
��️ Top brands like ATCO give long warranties and tech help. This keeps your line working and helps you worry less.
If you want the best for small labs or making prototypes, start with a good batch oven like the T-937M or LPKF ProtoFlow S. If you need to make more boards and want more control, get a conveyor oven like the SMT Wertheim or Vitronics Soltec XPM3. The oven you pick will help you do better and reach your goals faster.
You want the best results from your Low-Volume SMT Production. Start by looking at your real needs. Think about how many boards you make each week. Check the size of your largest PCB and the space you have in your workshop. Make sure your oven fits your bench and leaves room for other tools.
Look for ovens that give you precise temperature control. This helps you avoid cold joints and overheating. Choose a model with easy-to-use controls and clear displays. Pick an oven that matches your budget but does not cut corners on quality. Energy efficiency matters, too. It keeps your costs low and helps the environment.
Tip: Always check if the oven can handle different board types and sizes. This gives you more flexibility as your work changes.
If you plan to grow your business, pick an oven that can scale up. Some ovens let you add features or connect to bigger lines later. Choose brands with a good reputation and strong support. This keeps your line running and helps you solve problems fast.
Use this checklist to make a smart choice:
1. Check the oven’s size and make sure it fits your largest PCB.
2. Look for precise temperature control and uniform heating zones.
3. Pick ovens with easy programming and clear displays.
4. Make sure the oven is easy to clean and maintain.
5. Choose models with safety features like auto-shutdown.
6. Ask about energy efficiency to save on power bills.
7. Pick brands with good support, warranties, and spare parts.
8. Think about future needs—can you upgrade or expand the oven?
9. Read datasheets for your components to match oven specs.
10. Use thermocouples to test and set your reflow profiles.
Note: Avoid ovens that do not offer good temperature profiling or even heating. This helps you prevent defects and wasted boards.
You can boost your soldering quality by setting up the right reflow profile. Start by creating abaseline profile that matches your board’s complexity and the sensitivity of your parts. Attach thermocouples to several spots on a sample board. This lets you track the real temperature during a test run.
Follow these steps for a strong profile:
1. Preheat Stage: Raise the temperature slowly—about 1-3°C per second. This prevents thermal shock and keeps your components safe.
2. Soak Stage: Hold the board at 150-200°C for 60-120 seconds. This step evens out the heat and activates the flux.
3. Reflow Stage: Hit a peak temperature between 230-250°C for 30-90 seconds. Make sure you do not go above the max temperature for your parts.
4. Cooling Stage: Cool the board at 2-4°C per second. Steady cooling stops cracks and keeps joints strong.
Tip: Use profiling software to analyze your thermal data. Adjust your oven’s zone temperatures and conveyor speed until you see even heating across the board.
If you use lead-free solder, you may need a higher peak temperature and a longer soak. For the best results, assign a unique reference number to each profile. This helps you track changes and repeat your best work.
Regular maintenance keeps your oven running smoothly and your results consistent. Clean the oven often to remove dust and solder paste residue. Check heating elements and calibrate temperature sensors to avoid uneven heating. Make sure the cooling fans work well and adjust their speed if needed.
· Inspect and replace worn parts, like old heating elements or damaged seals.
· Keep a log of all calibrations and repairs. This helps you spot patterns and fix problems early.
· Check oven doors and seals for leaks. Good seals keep heat inside and save energy.
��️ A well-maintained oven gives you steady performance and fewer defects. Make maintenance a habit, not an afterthought.
Picking the right oven for Low-Volume SMT Production helps you get better quality and work faster. Features like automated thermal management and real-time profiling help you make fewer mistakes. Smart scheduling lets you switch jobs quickly. Use the checklist and tips to help you choose. Try new tools like vision systems and data analytics to keep making your process better. When your oven fits your needs, your business can do well.
You should pick an oven that fits your largest PCB. Measure your boards first. Choose a model with a little extra space. This gives you room for future projects and helps you avoid mistakes.
You can use a toaster oven for hobby work or learning. For better results, upgrade it with a controller. For professional boards, you should pick a real reflow oven. This gives you more control and better quality.
You should calibrate your oven every month or after any repairs. Regular calibration keeps your temperature accurate. This helps you avoid defects and saves you money on wasted boards.
Nitrogen support gives you cleaner solder joints and fewer defects. If you want the best quality, pick an oven with nitrogen. For most small jobs, you can work without it. Upgrade later if your needs grow.
Look for auto-shutdown, overheat alarms, and good insulation. These features protect you and your boards. You stay safe, and your work stays on track.
