| SMT Automatic Solder Paste Printer Overview
Efficient Automatic SMT Stencil Printer for Modern SMT Lines
The SMT Automatic Solder Paste Printer by I.C.T offers advanced automation for accurate solder paste application in SMT processes. This High Precision Pcb Stencil Printer features a 7-second print cycle, ±0.01mm positioning repeatability, and ±0.025mm accuracy. It includes automatic PCB calibration, squeegee pressure adjustment, printing, and stencil cleaning to minimize errors and costs. Using top components like Panasonic servomotors and Rexroth guides, it supports glue printing and Industry 4.0/MES for data exchange. Suitable for electronics, automotive, LED, and more, this Pcb Printer Machine Smt Stencil connects via SMEMA for seamless lines. I.C.T's quality control and worldwide service help scale operations, improving yields and reducing waste in any Smt Paste Printer setup.
| Feature
The arch bridge suspension head with dual stepping motors controls squeegees independently for even pressure (0-15kg) and speed (10-200mm/sec). Accuracy reaches ±0.025mm, with angles at 45°/55°/60° for solder or glue. Real-time feedback balances pressure to form ideal paste shapes, avoiding bridges or shortages. Programmable separation lifts squeegee, stencil, and PCB gently. This core of the SMT Automatic Solder Paste Printer handles fine-pitch parts, cuts paste waste, and ensures consistent results in high-demand Automatic SMT Stencil Printer applications.
Belt conveyors move PCBs up to 1500mm/s with motor precision to prevent jams. Side clamps, vacuum nozzles, and optional Z-pressure secure boards for perfect stencil contact. Height sets at 900±20mm, with flexible directions. Magnetic pins and adjustable tables manage <1% warpage. Product changeover takes under 5 minutes. Durable NSK bearings and IKO guides lower downtime. This system in the High Precision Pcb Stencil Printer supports smooth flow in full Pcb Printer Machine Smt Stencil lines.
Options include dry, wet, vacuum, or manual cleaning, with CCD isolated for safety. Even spray distributes alcohol top-to-bottom, software limits usage to save resources. Powerful exhaust motor maintains strong vacuum. Auto-clean after prints clears holes quickly. This feature keeps the Smt Paste Printer operational longer, preventing defects and supporting extended runs in any Automatic SMT Stencil Printer environment.
| Specification
| Model | I.C.T-4034 | I.C.T5134 | I.C.T-5151 |
| Frame Size(mm) | 470*370 ~ 737*737 | 470*370 ~ 737*737 | 470*370 ~ 737*737 |
| PCB Size(mm) | 50*50 ~ 400*340 | 50*50 ~ 510*340 | 50*50 ~ 510*510 |
| Transport Direction | Left-Right; Right-Left; Left-Left; Right-Right | ||
| Support System | Magnetic Pin/Up-down table adjusted/support block | ||
| Clamping System | Side clamping(vacuum nozzle,Automation retractable Z pressure is option) | ||
| Printer Head | Two independent motorised printhead | ||
| Squeegee Type | Stainless steel(standard),plastic | ||
| Cleaning System | Dry, Wet, Vacuum | ||
| Inspection | 2D Inspection(Standard) | ||
| Power Supply | AC:220±10%,50/60HZ,3Kw | ||
| Control Method | PC Control | ||
| Dimension(mm) | 1220*1355*1500 | 1220*1355*1500 | 1220*1550*1500 |
| Model | I.C.T-6534 | I.C.T-6561 | I.C.T-9060 |
| Frame Size(mm) | 650*400 ~ 850*750 | 650*400 ~ 850*850 | 737*400 ~ 1100*900 |
| PCB Size(mm) | 50*50 ~ 650*340 | 80*50 ~ 650*610 | 80*50 ~ 900*600 |
| Dimension(mm) | 1330*1370*1500 | 1330*15450*1500 | 1580*1545*1500 |
* I.C.T keeps working on quality and performance, specifications and appearance may be updated without particular notice.
| SMT Line Equipment List

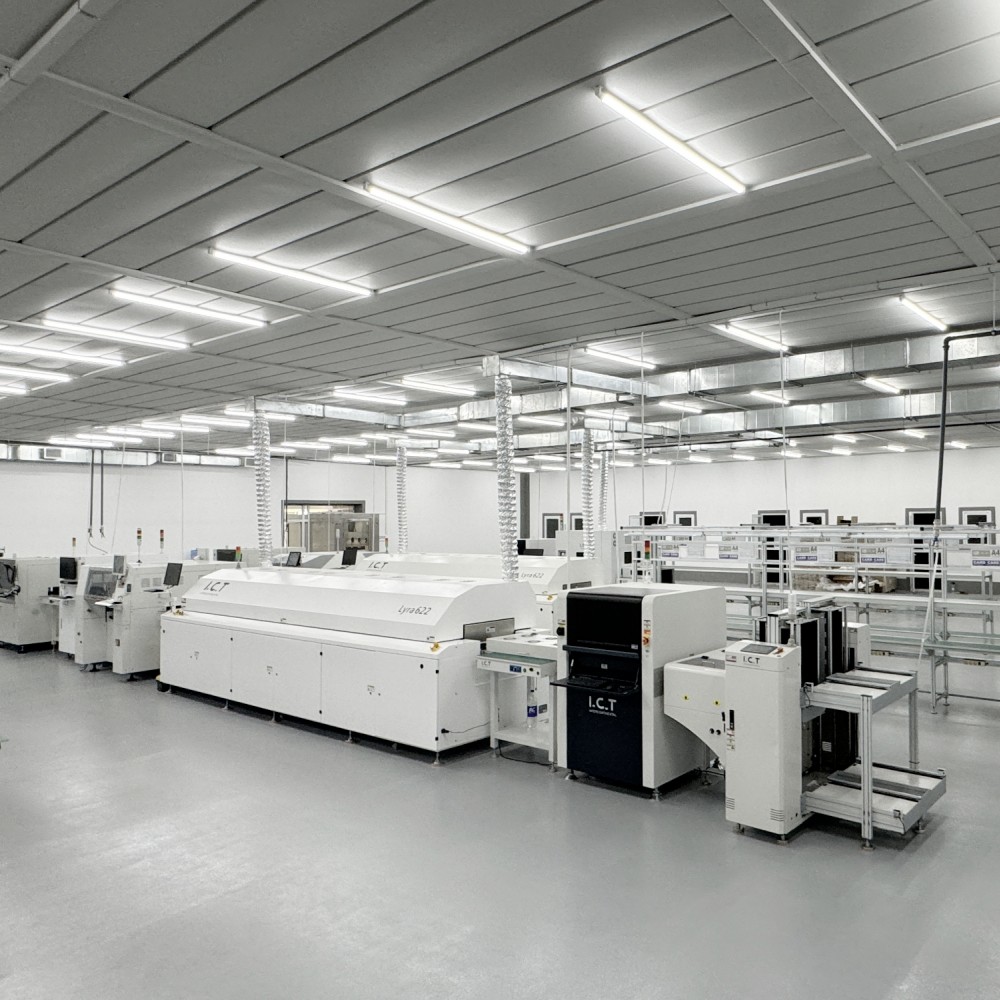

Our High Quality PCBA Production Line features advanced equipment for efficient and precise PCB assembly. The fully automated SMT line includes a loader, an auto printer for accurate solder paste application, a pick-and-place machine for precise component placement, a reflow oven for reliable soldering, and an AOI system for thorough defect inspection. This High Quality PCBA Production Line ensures smooth operation, high reliability, and low-cost SMT assembly, meeting diverse industry requirements.
| Product Name | Purpose in SMT Line |
|---|---|
| PCB Loader | Automatically loads bare PCBs to the line. |
| Solder Paste Printer | Prints solder paste on PCB pads accurately. |
| Pick and Place Machine | Mounts components onto PCBs precisely. |
| Reflow Oven | Melts solder to form solid joints. |
| AOI Machine | Inspects solder joints and placement defects. |
| SPI Machine | Checks solder paste height and quality. |
| Traceability Equipment | Records and tracks production data: Laser Marking Machine/Label Mounter/Inkjet Printer |
| Customer Success Video
I.C.T engineers traveled to North America to deploy two complete SMT lines for a beauty device manufacturer. Equipment covered laser markers, SMT Automatic Solder Paste Printer with SPI, Panasonic mounters, Heller reflow ovens, AOI systems, conveyors, PCBA washers, and solder paste storage units. We handled full installation, alignment, software integration, and optimization despite challenges. Hands-on training empowered local staff, and quick fixes ensured smooth startup. Lines reached 99% uptime and cleared acceptance tests ahead of schedule. The client now supplies global markets with high-quality products. This case shows I.C.T's strength in international projects, providing end-to-end solutions for efficient, scalable production.
| Service and Training Support
Full-Service Support and Training Programs
I.C.T offers complete assistance for your SMT Automatic Solder Paste Printer, from needs assessment and line design to installation. Our global experts manage on-site setup, commissioning, and connection to other machines. Training covers operation, maintenance, fault diagnosis, and MES/Industry 4.0 linkage, delivered in-person or online. With eight branches, we provide 24/7 remote help, parts inventory, and regular checks to maintain peak performance. We focus on process tweaks, upgrades, and cost savings. Trust I.C.T for risk-free growth, turning your factory into a smart, high-output operation with this Automatic SMT Stencil Printer.
| Customer Reviews
Clients value I.C.T's expertise and reliability. "Engineers solved our printer issues fast and trained our team expertly," says an automotive company. A North American beauty maker notes, "The High Precision Pcb Stencil Printer delivers flawless prints with minimal waste." Shipping gets acclaim: "Equipment arrived undamaged thanks to sturdy packaging." Response is quick: "Queries answered in hours, parts delivered same day." Feedback highlights our skilled engineers, robust machines, safe transport, and dedicated support, creating lasting trust.
| Certifications and Standards
I.C.T maintains CE for safety, RoHS for eco-materials, and ISO9001 for quality systems. Patents cover printing controls, cleaning tech, and transport designs. These ensure the SMT Automatic Solder Paste Printer meets global standards in every aspect.
| About I.C.T Company and Our SMT Factory
Since 2012, I.C.T has grown with 89 staff, 20 engineers, and 12,000m² in Dongguan. Eight branches serve 1,600+ clients across 72 countries. We handle R&D, production, and rigorous tests like 48-hour runs under ISO9001. $30 million capital fuels our integrity, simplicity, openness, coordination, and sharing. Global reach with local service helps build or enhance SMT lines from scratch to full scale. Our rapid expansion comes from innovative, one-stop solutions trusted worldwide.
