Introduction to the performance characteristics of Full-auto SMT Production Line equipment

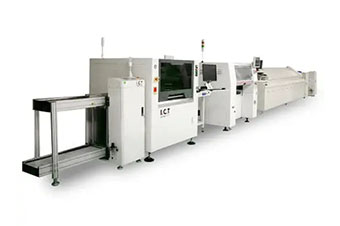

Taking the company's SMT PCBA production line as an example, we will further introduce the production methods of SMT production line, turnkey SMT PCB assembly line, and high-speed LED bulb production line for sale. As a Full-auto SMT Production Line in the production line, its performance advantages of good quality, easy operation and low price have won unanimous praise. It is suitable for start-up SMT factories or semi-automatic production lines to be upgraded to Full-auto SMT Production Line factories. Let’s talk about it next. Talk about the equipment composition of this Full-auto SMT Production Line.

An introduction to the performance characteristics of the fully automatic loading machine in the Full-auto SMT Production Line.

What are the performance advantages of Samsung pick-and-place machines in the Full-auto SMT Production Line?

Introduction to the performance characteristics and product advantages of the reflow oven in the Full-auto SMT Production Line.

An introduction to the performance characteristics of the fully automatic loading machine in the Full-auto SMT Production Line.

This model is mainly used in the front end of Full-auto SMT Production Line, and has two loading modes: push plate and vacuum suction plate.

The control system of SMT Production Line adopts PLC control, and the operation interface adopts touch screen, which has stable performance and convenient operation.

The frame structure is welded by sheet metal, and the surface is painted, leaving a visibility window.

The lifting structure of the push plate adopts the motor lifting setting, and the effective setting step can be selected as; 10mm, 20mm, 30mm, 40mm, and an optional frequency converter.

The suction board part sucks the board by vacuum suction, and 200-300 PCB boards can be stacked at a time.

The transfer structure adopts the stepping motor transfer method, which can be set for acceleration and deceleration at start and stop, and the conveying is stable, and it is not easy to punch the board.

Equipped with a standard SMEMA signal port, which can be connected to any other equipment online.

What are the performance advantages of Samsung pick-and-place machines in the Full-auto SMT Production Line?

① Advanced placement machine

② Fast and flexible pick and place machine

③ Multifunctional Full-auto SMT Production Line placement

Introduction to the performance characteristics and product advantages of the reflow oven in the Full-auto SMT Production Line.

Has an efficient flux management system

With high stability nitrogen protection system

High-performance cooling system in Full-auto SMT Production Line

Specially designed for a wide range of lead-free soldering processes, with environmental protection as the goal

Bring you more energy-saving benefits and let SMT Production Line become controlled

Forced hot air structure and high production capacity feasibility

With a variety of temperature zones, suitable for the product process requirements of different SMT Production Lines

Effectively remove atomized flux before discharging to the atmosphere

① Adopt brand LCD computer + PLC intelligent control system, if the computer crashes unexpectedly, it can work offline without affecting the production of SMT Production Line, ensuring the stability and reliability of the control system;

② Windows2000 operation interface, powerful and easy to operate;

③ The upper furnace body is opened with a double-cylinder jacking machine to ensure the safety and reliability of the SMT Production Line;

④ Equipped with mesh belt tensioning device, stable transportation, no jitter, no deformation, ensuring smooth PCB transportation;

⑤ Synchronous guide rail transmission mechanism to ensure accurate width adjustment and long service life of Full-auto SMT Production Line guide rails

⑥ Automatically control the lubrication system, which can automatically lubricate the transmission chain by setting the refueling time and refueling amount;

⑦ All heating zones are PID controlled by a computer, which can be turned on separately in different temperature zones.

⑧ With fault sound and light alarm function

⑨ Equipped with a leakage protector to ensure the safety of Full-auto SMT Production Line operators and control systems

⑩ Built-in UPS and automatic delay shutdown system to ensure that the PCB and reflow soldering machine are not damaged when the power is cut off or overheated

⑪ The temperature zone is equipped with an independent temperature sensing sensor to monitor and compensate the temperature balance of each temperature zone in real time.
